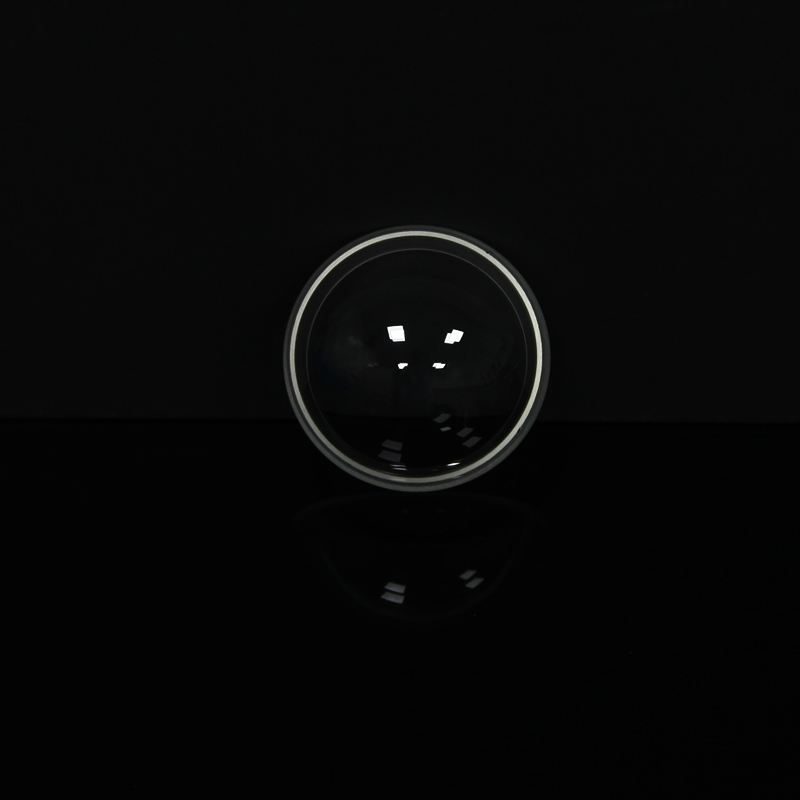

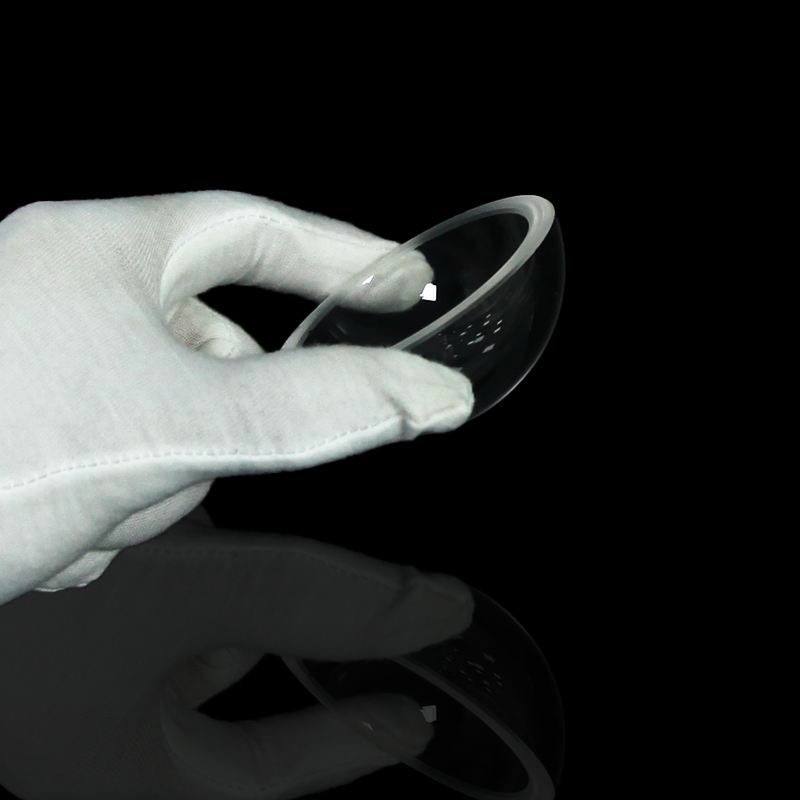

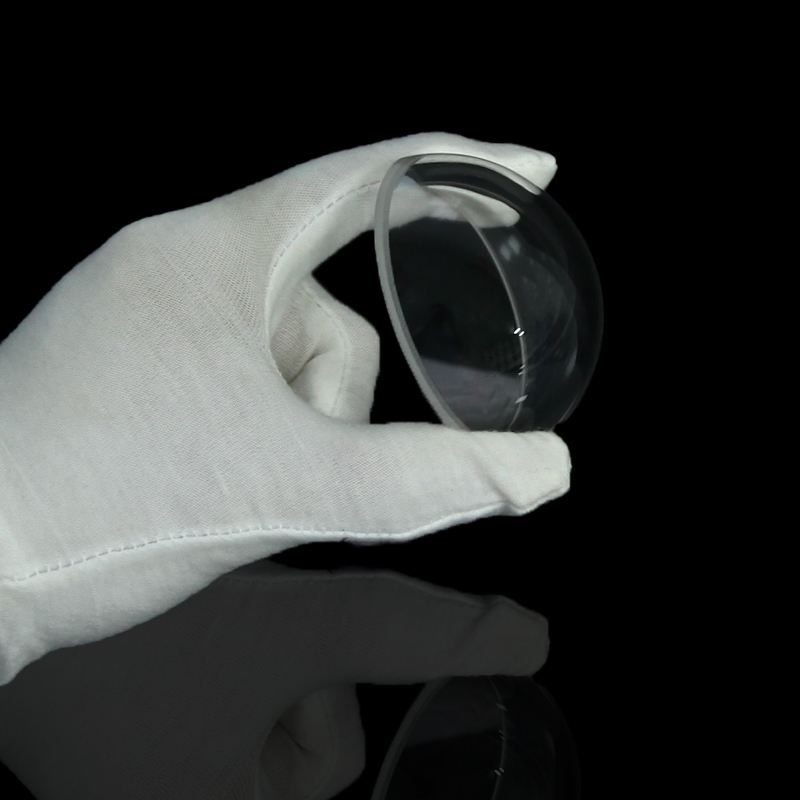

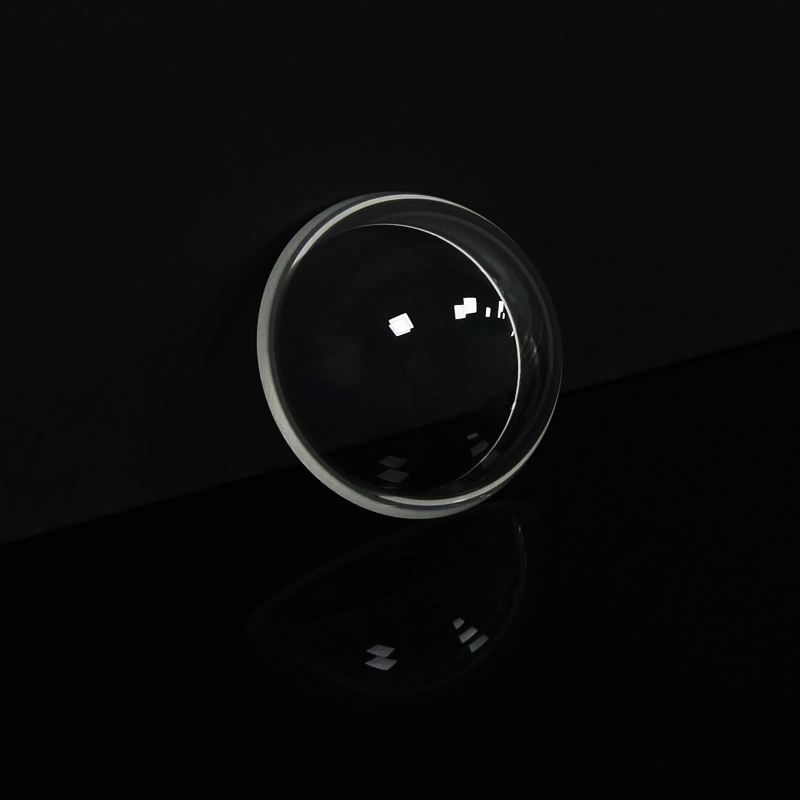

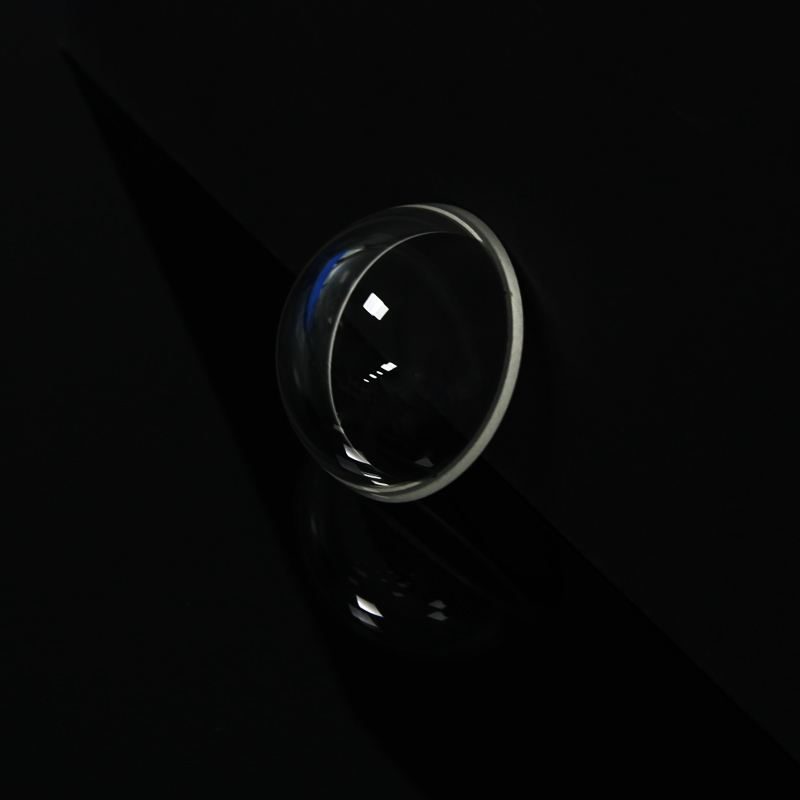

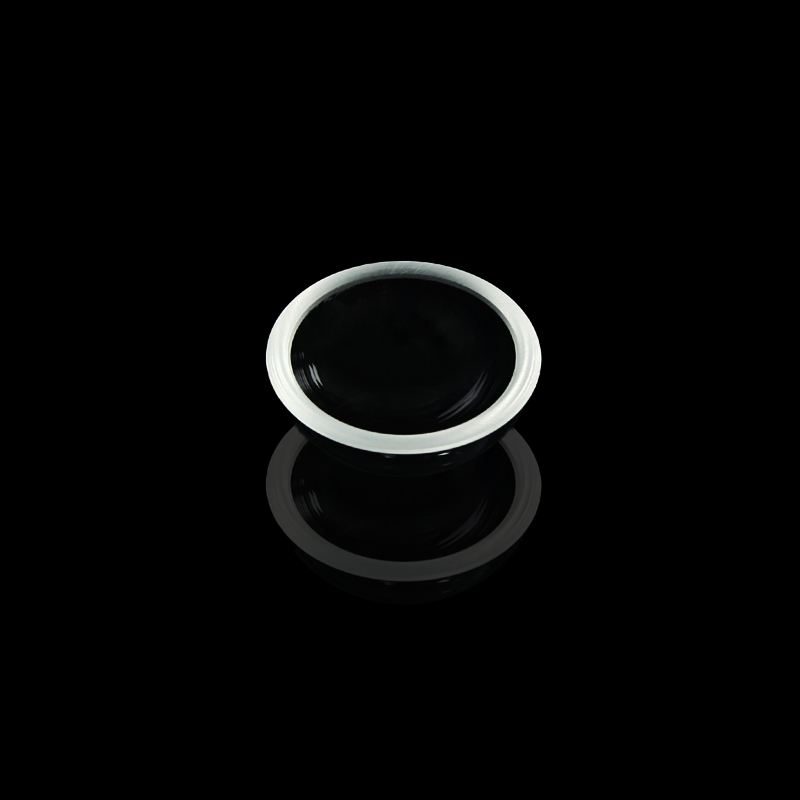

13 mm N-BK7 Dome Lens, AR Coated

Product description

This N-BK7 dome lens is designed for imaging applications across the 0.7-1.7 μm and 400-700 nm wavelength ranges. Its anti-reflective coating minimizes glare, enhancing clarity and visibility. With a diameter of 13 mm and a surface quality of 60/40, this lens is suitable for precision optical systems. The lens can be customized for various sizes, ensuring compatibility with diverse projects while maintaining high performance and reliability.

Key Features

Diameter of 13 mm ensures compatibility with standard optical systems.
Surface quality of 60/40 provides adequate clarity for imaging applications.
Anti-reflective coating enhances visibility by reducing glare.
Custom sizes available from 1 mm to 100 mm diameter, accommodating various application needs.
Tolerance of +/-0.1 mm ensures precision fit in optical assemblies.

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Dome
Diameter	13 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	half ball lens; Plano-convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.3
Structure	Plano-convex
Diameter Tolerance	+/-0.1mm
Tolerance	+/-0.1mm
Color	Clear
Clear Aperture	>95%

FAQ

What are the available custom sizes for this lens?

Custom sizes can range from 1 mm to 100 mm in thickness and 0.5-300 mm in diameter.

What is the surface quality of the lens?

The lens has a surface quality of 60/40, suitable for many imaging applications.
