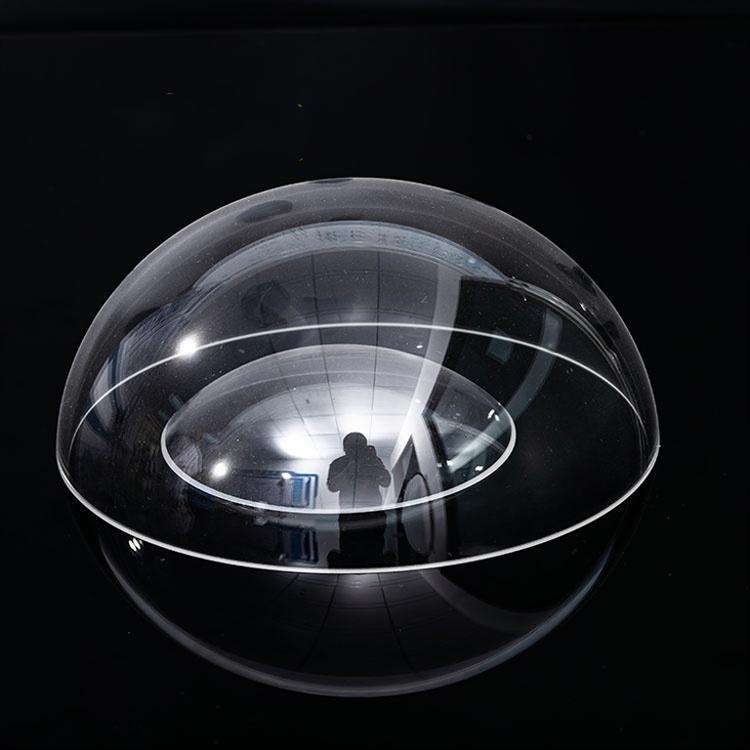

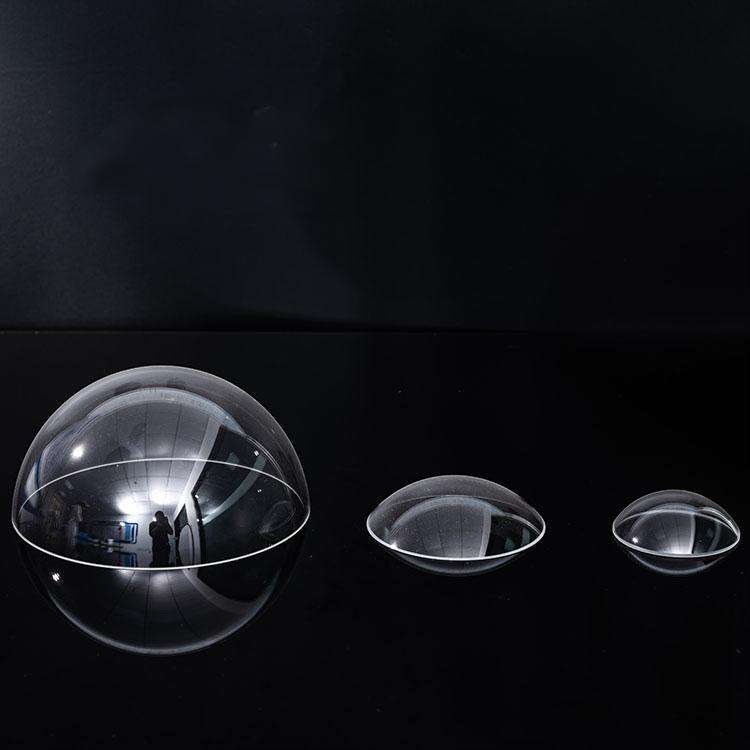

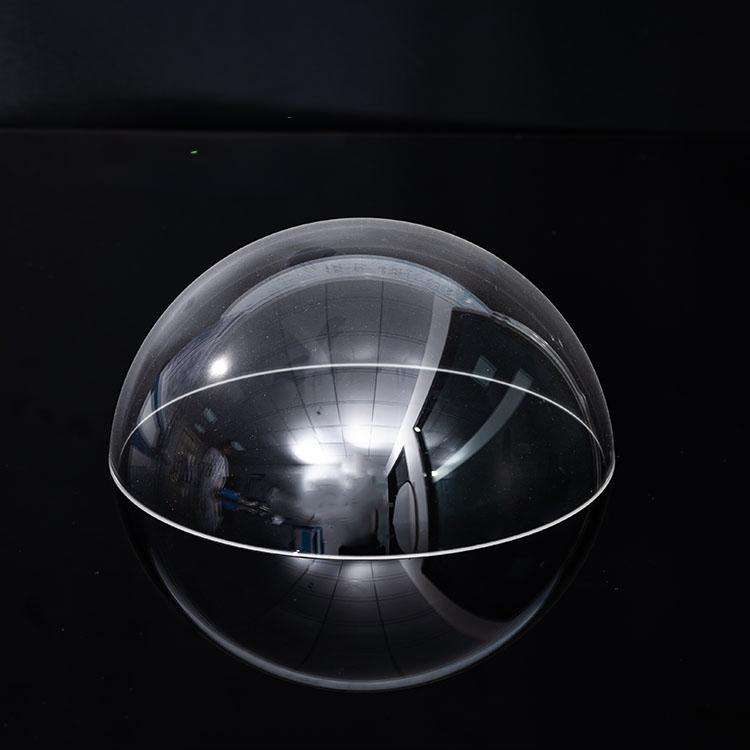

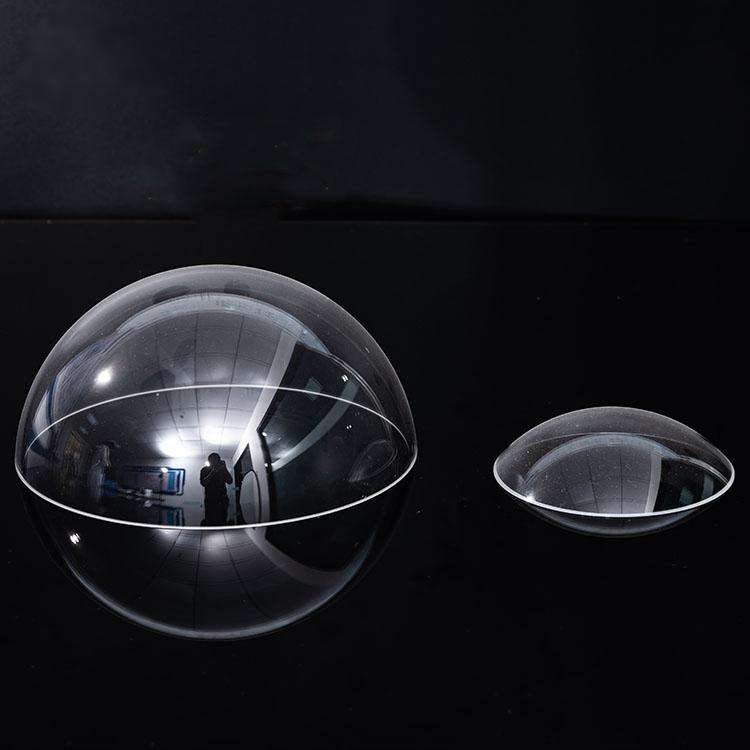

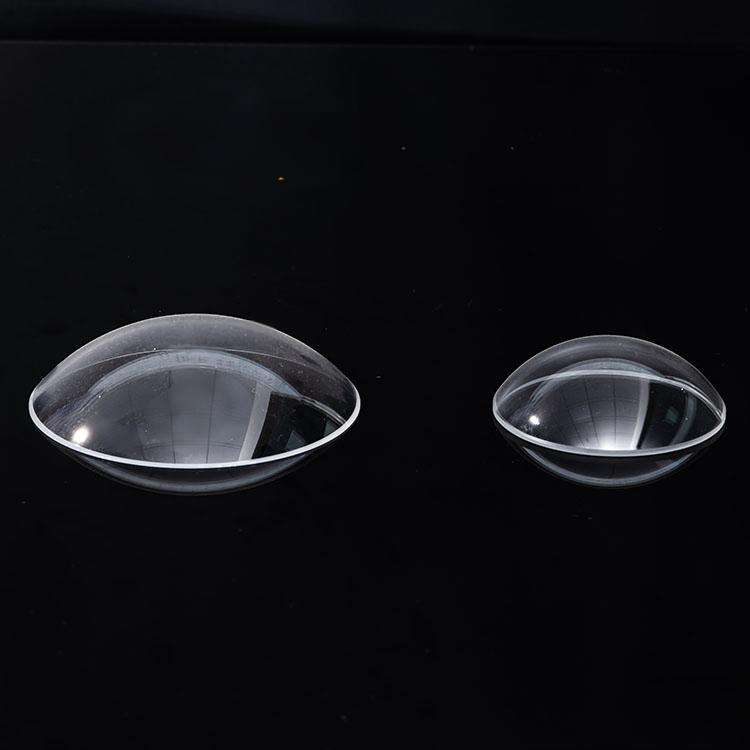

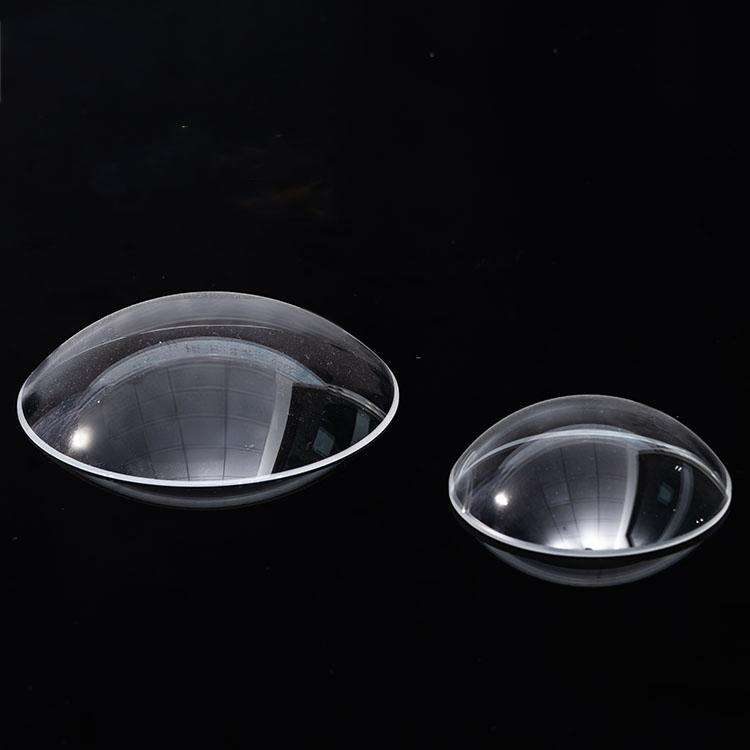

5 mm N-BK7 Dome Lens, AR Coated

Product description

The N-BK7 dome lens is specifically designed for applications in LIDAR systems, providing optimal performance for wavelengths below 400 nm. With a diameter range of 5 to 300 mm, this lens offers versatility for various optical setups. Its 60/40 surface quality ensures adequate clarity and performance while maintaining a transparent appearance. The lens is suitable for custom OEM and ODM solutions, making it an ideal choice for engineers seeking reliable optical components tailored to their specifications.

Key Features

Diameter range: 5.0 to 300.0 mm for versatile application fit.
Surface quality of 60/40 ensures reliable optical performance.
Diameter tolerance of ±2.5 μm for precision fitting.
Customizable support for OEM and ODM projects.
Lightweight design at 0.5 kg (1.10 lb) for easy integration.

Applications

Lidar

Specification Summary

Item	Value
Material	N-BK7
Shape	Dome
Diameter	5 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)

Full Specifications

Parameter	Value
Type	dome lens; dome cover
Customized Support	OEM, ODM
Warranty	3years
Logo/Graphic Design	unsupport
Weight	0.5kg(1.10lb)
Diameter Tolerance	±2.5μm
Color	Transparent
Thickness Tolerance	±0.1mm
Clear Aperture	95%

FAQ

What are the available custom sizes?

The lens can be customized within a diameter range of 5 mm to 300 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
