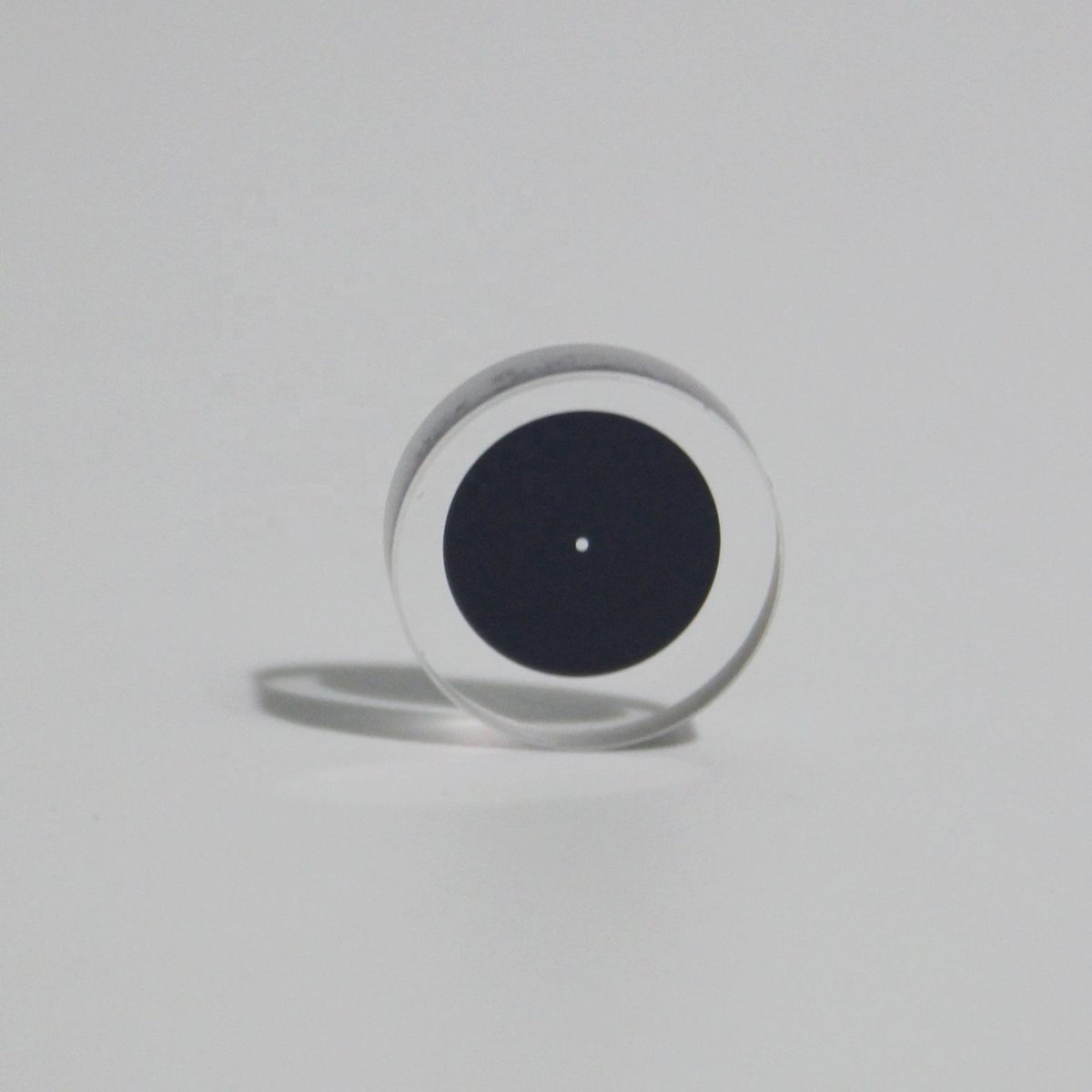

3 mm N-BK7 Lens, AR Coated

Product description

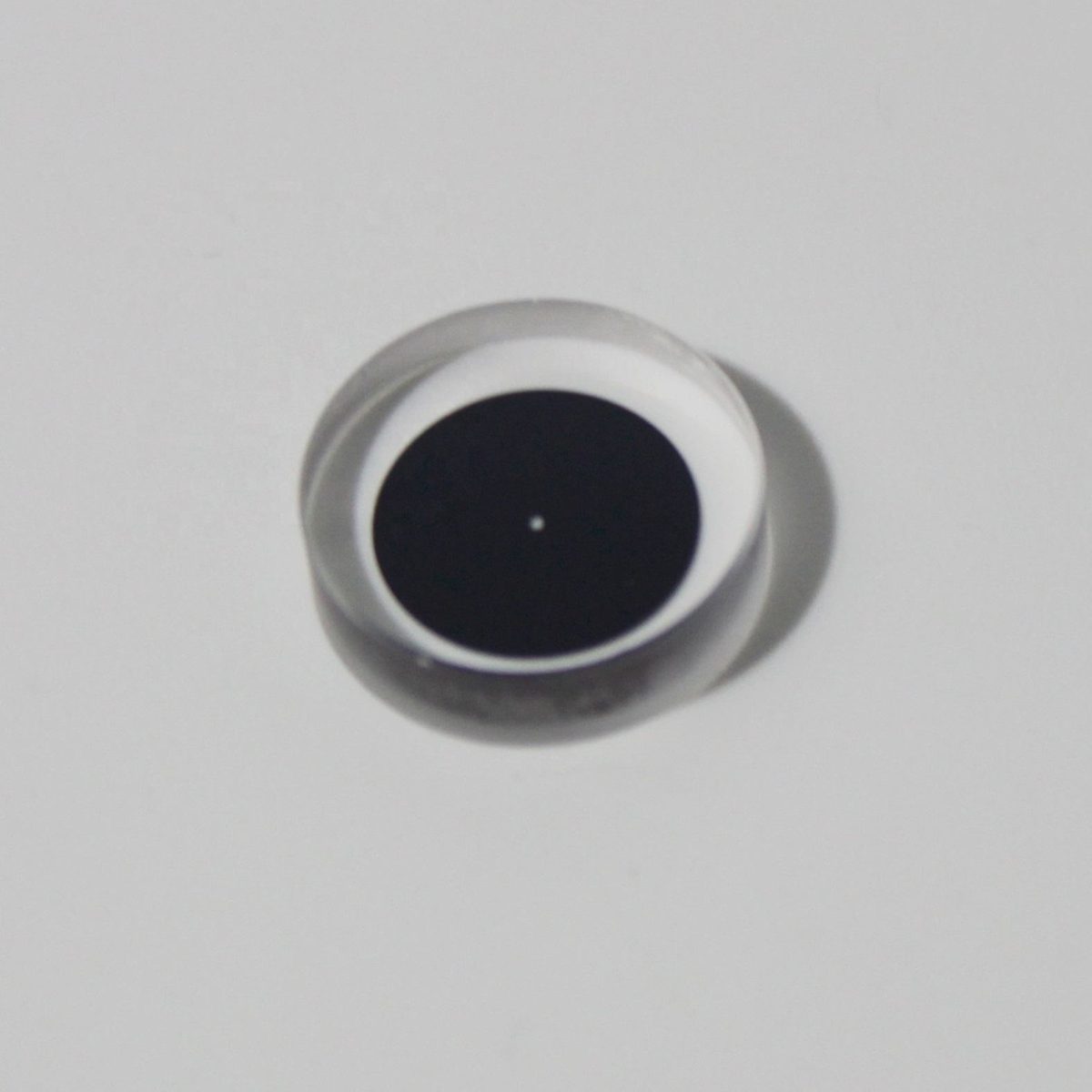

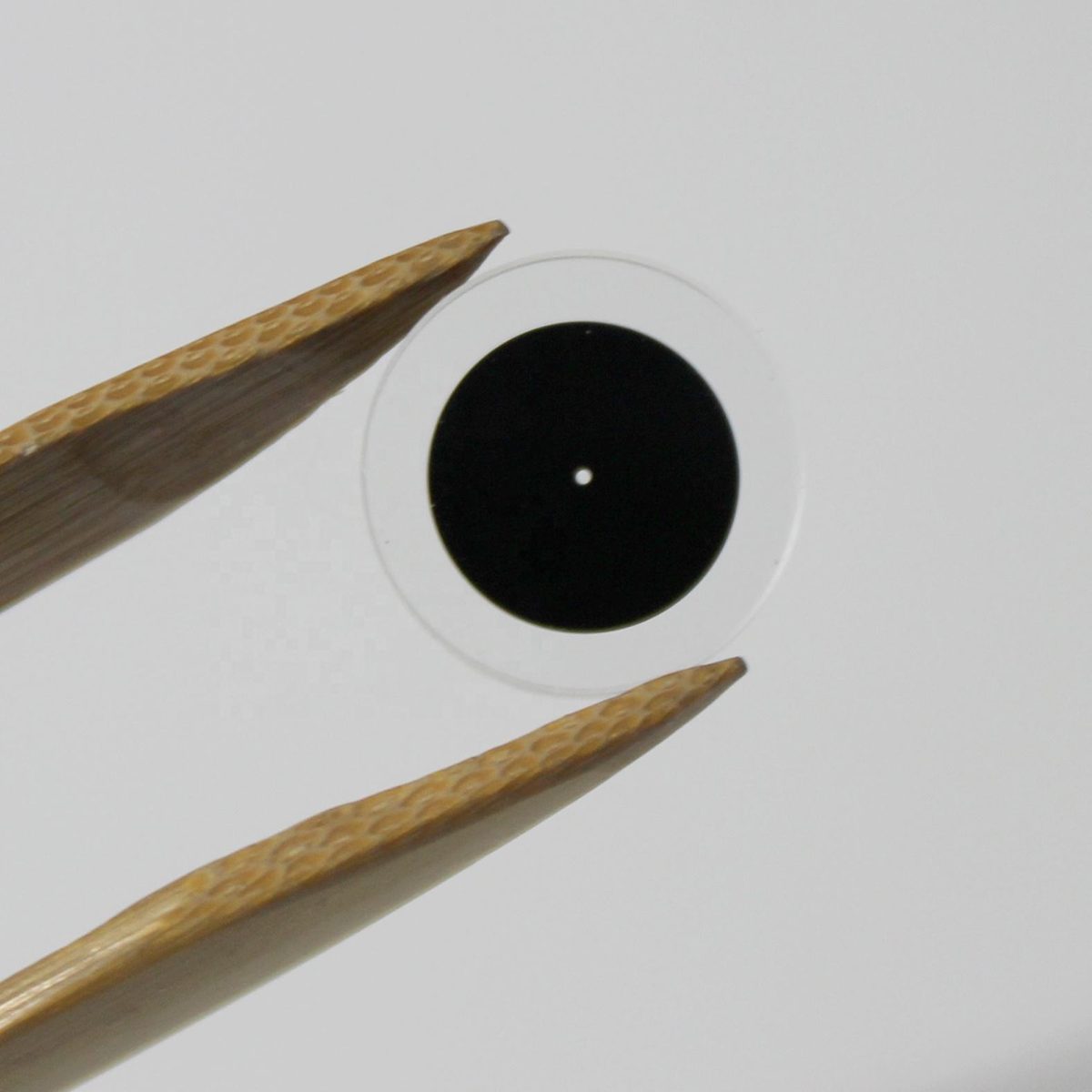

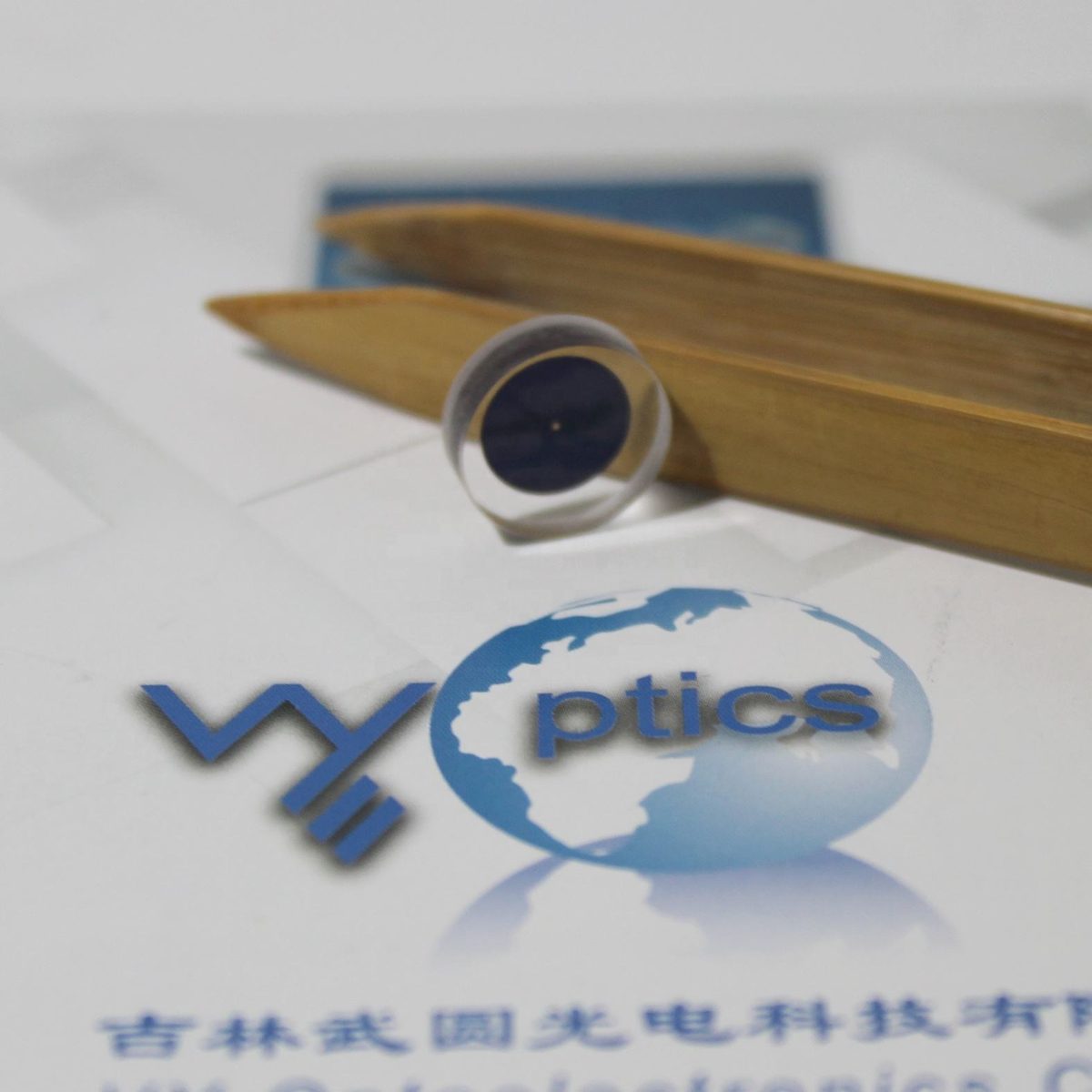

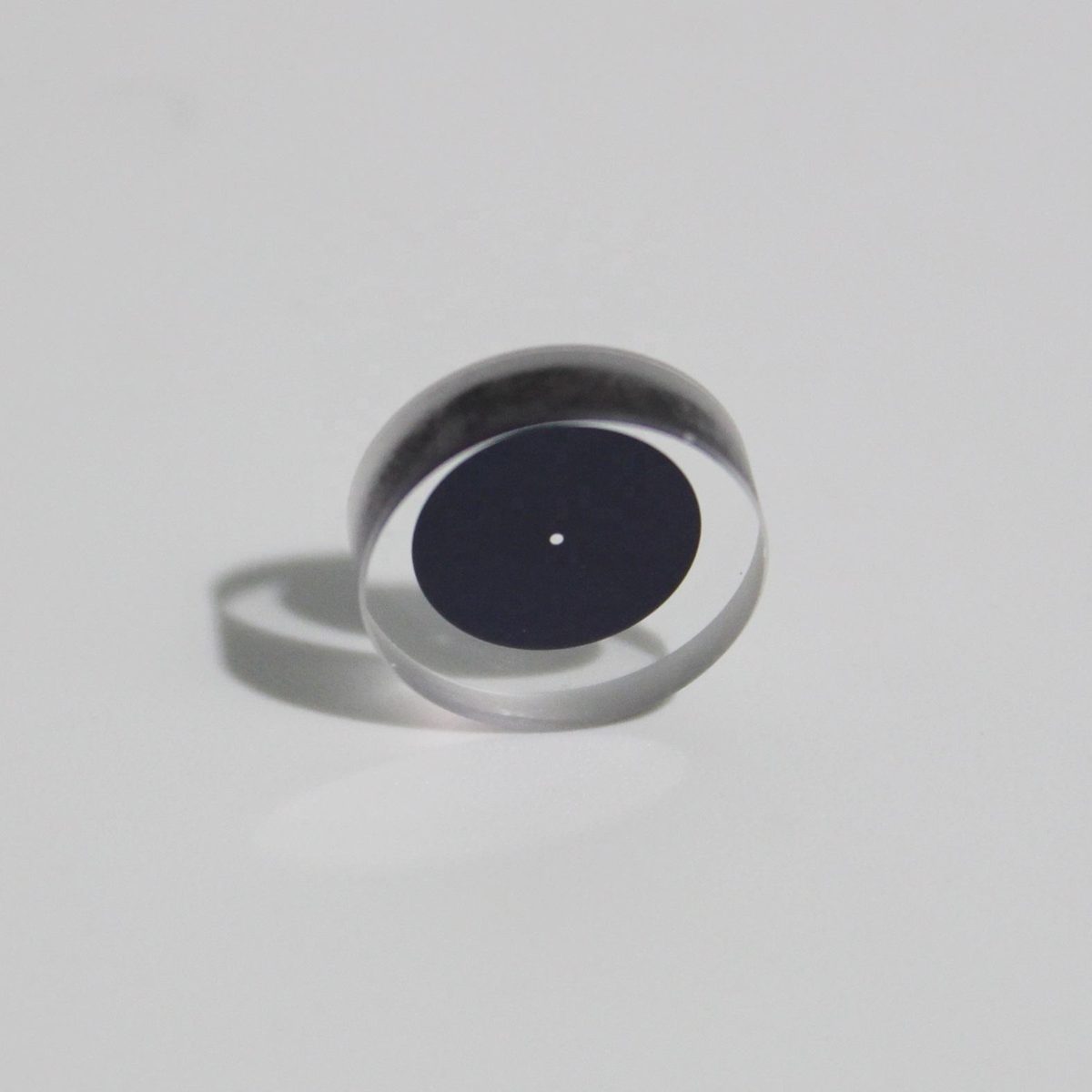

The Optical Glass Reticle is designed to meet the demands of precision applications in optical systems. With a diameter of 3.0 mm and a thickness of 0.15 mm, this reticle is suitable for integration into various optical setups, providing excellent surface quality (10/5) and flatness. It is ideal for applications requiring high accuracy and reliability, such as in imaging and measurement systems. Customization options are available to fit specific project needs.

Key Features

Diameter of 3.0 mm with a tolerance of +/-0.01 mm for precise fitting.
Thickness of 0.15 mm with a tolerance of +/-0.1 mm, ensuring compatibility with various optical designs.
Surface quality rated at 10/5, providing superior clarity and minimal distortion.
Customization support available through OEM and ODM services to meet unique specifications.
Surface figure of λ/10, enabling high-performance optical applications.

Specification Summary

Item	Value
Material	N-BK7
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Reticle; Optical window
Customized Support	OEM, ODM
Warranty	Available
Weight	Custom
Name	Optical Glass Reticle
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10(PV flat surface can achieve 0.03um per 150mm)

FAQ

Can I get custom sizes for the Optical Glass Reticle?

Yes, customization options are available, including diameters from 3 mm to 460 mm and thicknesses from 0.15 mm to 30 mm.

What are the tolerances for diameter and thickness?

The diameter tolerance is +/-0.01 mm, and the thickness tolerance is +/-0.1 mm.
