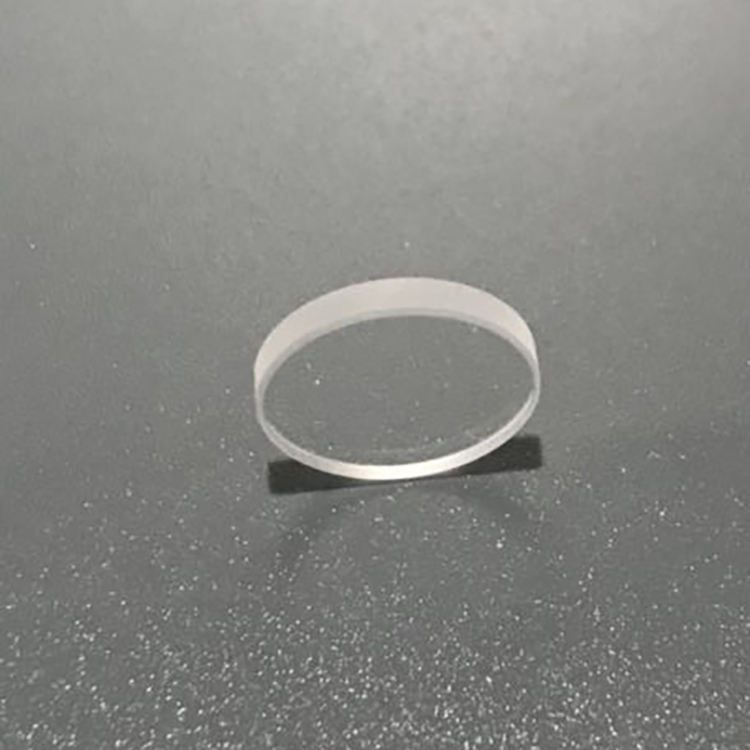

5 mm N-BK7 Lens

Product description

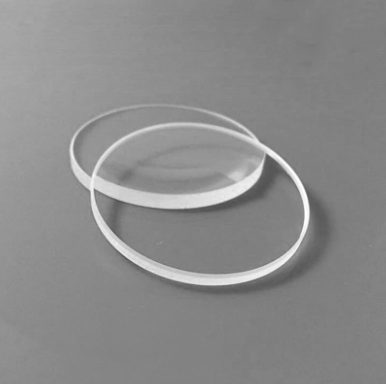

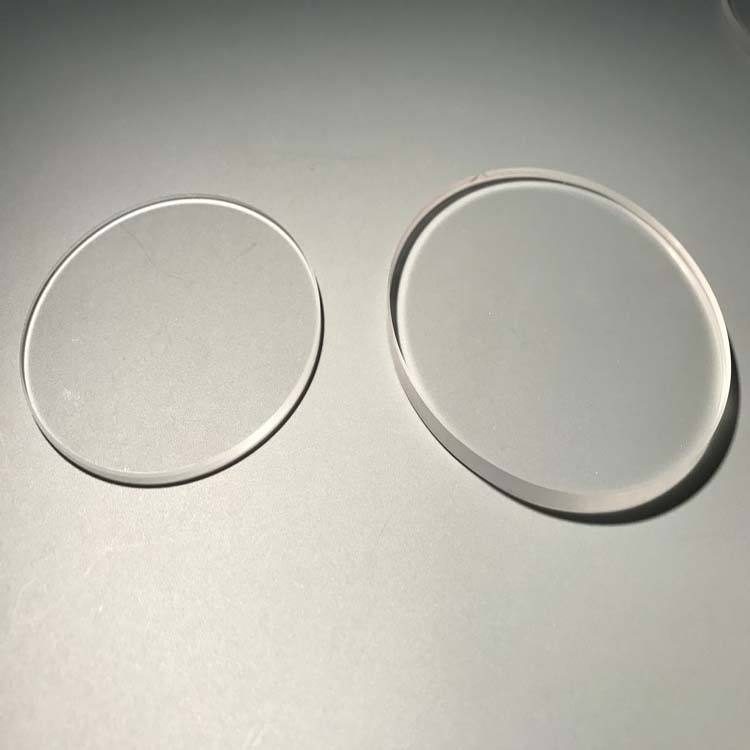

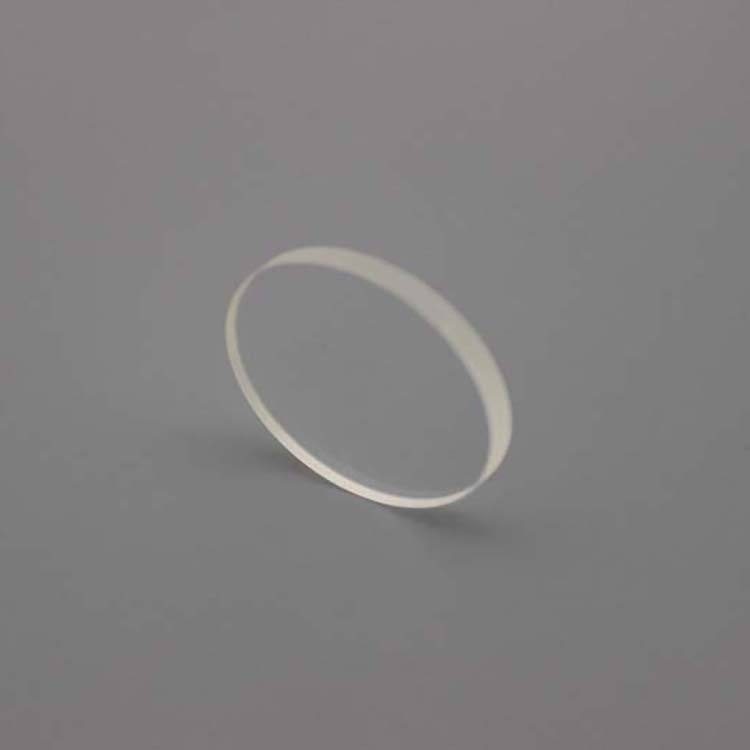

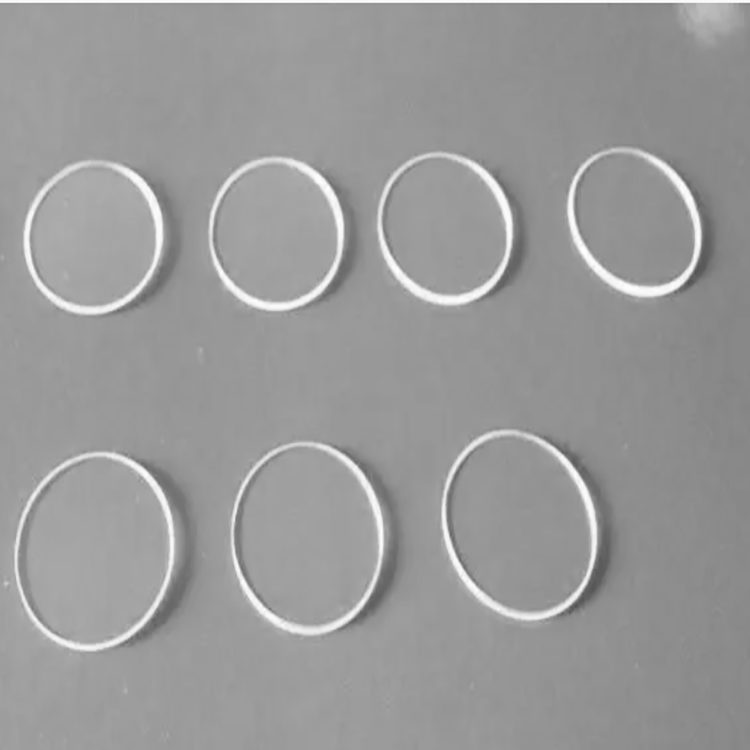

This N-BK7 optical window is designed for applications requiring high transmittance in the 400-700 nm wavelength range. With a diameter of 5.0 mm and a thickness of 2.3 mm, it offers excellent surface quality (60/40) and a clear aperture of over 95%. Ideal for use in optical systems where clarity and precision are paramount, this window ensures minimal light loss and distortion.

Key Features

Diameter of 5.0 mm with a tolerance of ±0.01 mm for precise fit.
Thickness of 2.3 mm with a tolerance of ±0.1 mm for consistent performance.
Surface quality of 60/40 ensures minimal optical distortion.
Clear aperture greater than 95% for maximum light transmission.
Customizable options available through OEM and ODM support.

Specification Summary

Item	Value
Material	N-BK7
Diameter	5 mm
Thickness	2.3 mm
Surface Quality	60/40
Coating	uncoated
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	optical Windows
Customized Support	OEM, ODM
Warranty	3 Years
Logo/Graphic Design	unsupport
Weight	0.5kg(1.10lb)
Diameter Tolerance	0.01mm
Color	Transparent
Clear Aperture	95%
Thickness Tolerance	0. 1mm

FAQ

What is the minimum order quantity (MOQ) for this optical window?

The minimum order quantity (MOQ) is not specified.

Can I get a custom size for this optical window?

Yes, customizable options are available through OEM and ODM support.
