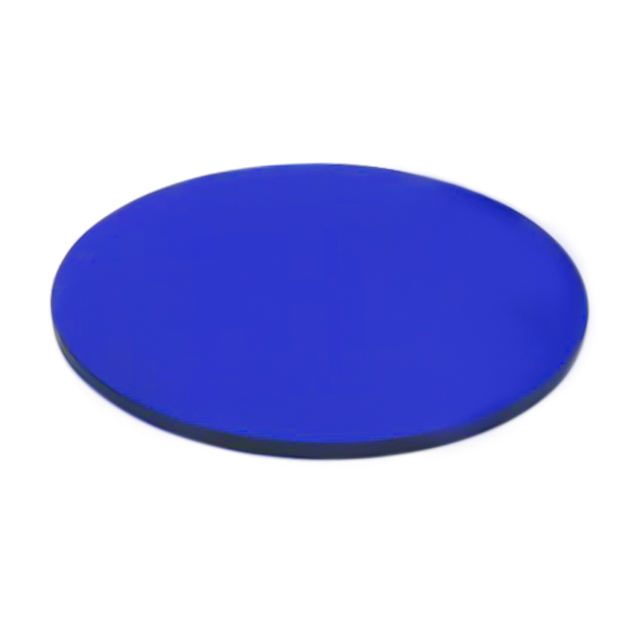

6 mm N-BK7 Lens, AR Coated
N-BK7 bandpass filter with 85% transmittance, ideal for security and imaging applications. OEM/ODM support available.
Core attributes
- Material
- N-BK7
- Diameter
- 6 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Diameter
- 6 mm
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The N-BK7 bandpass filter is engineered to selectively transmit wavelengths while blocking unwanted light, making it ideal for applications in security and imaging. With a transmittance of 85% across multiple bands including 400-700 nm and 1.7-3 μm, this filter ensures high-performance optical clarity. Its compact 6 mm diameter and 0.3 mm thickness fit seamlessly into various optical systems, providing reliable performance in demanding environments.
Key Features
- Transmittance of 85% ensures high optical clarity for effective imaging.
- Surface quality rated at 40/20 for minimal distortion and enhanced image quality.
- Compatible with various bands including 400-700 nm and 1.7-3 μm for versatile applications.
- Manufactured from durable N-BK7 material for reliability in long-term use.
- Available with OEM, ODM, and OBM support for tailored solutions.
Applications
Security, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | 6 mm |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |

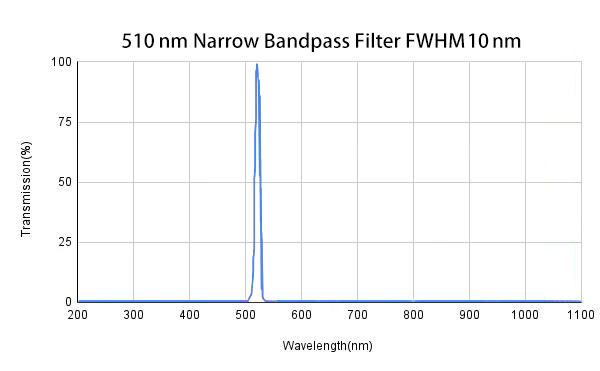

| Name | Filtro Pasa Banda 510nm 10mm |
| Substrate | B270,BK7,JGS |
FAQ
Is custom sizing available for this filter?
Custom sizing is not available for this filter.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
