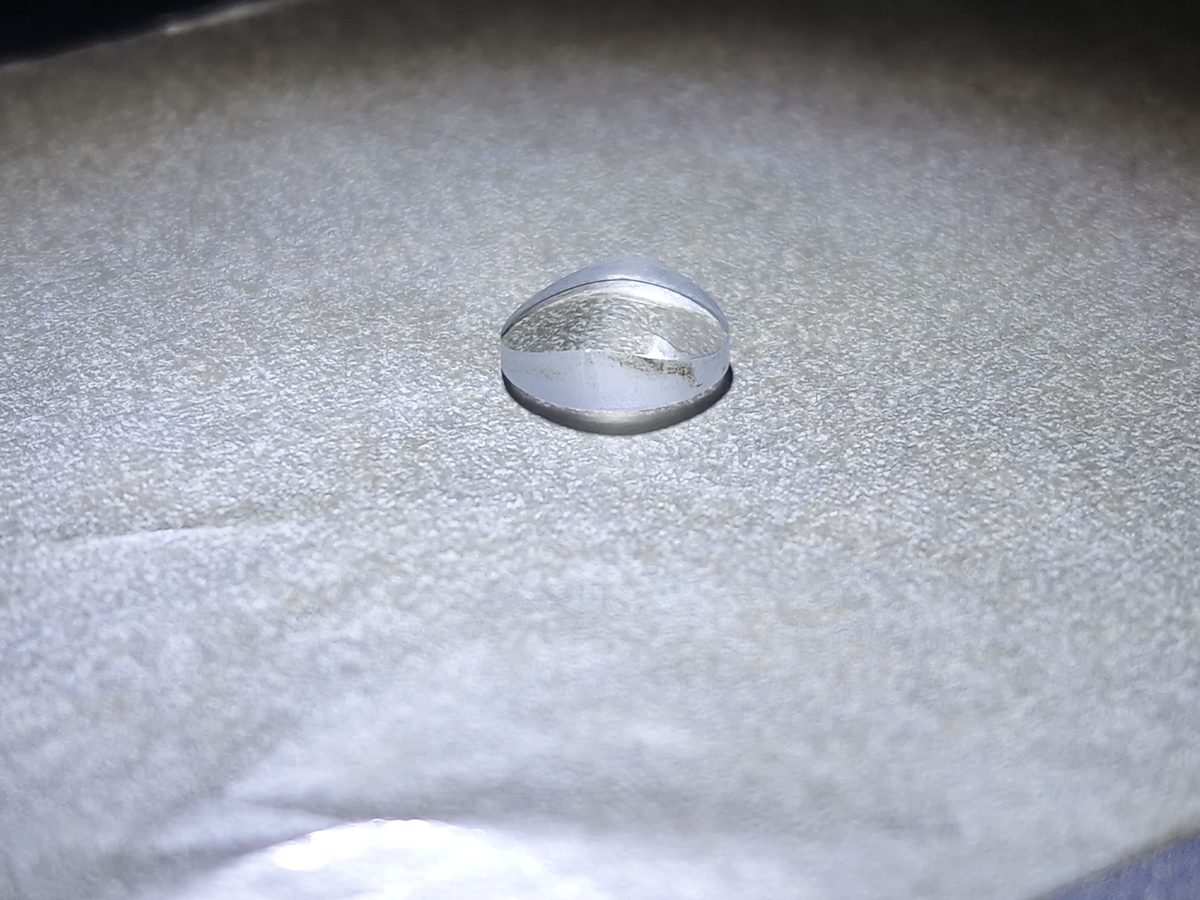

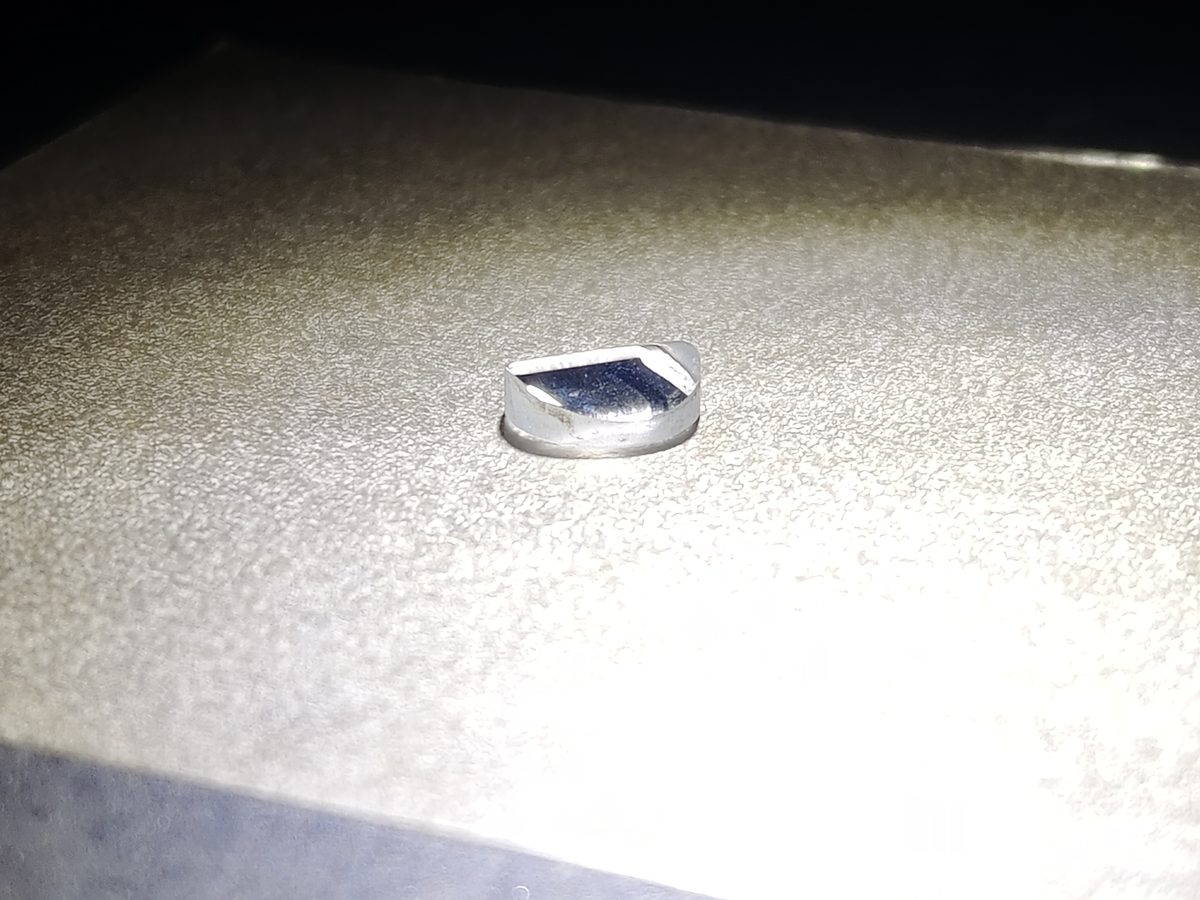

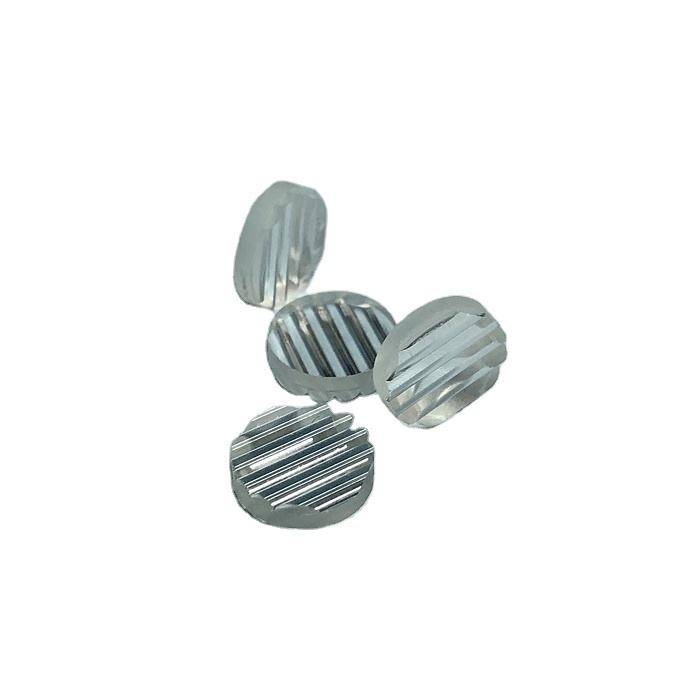

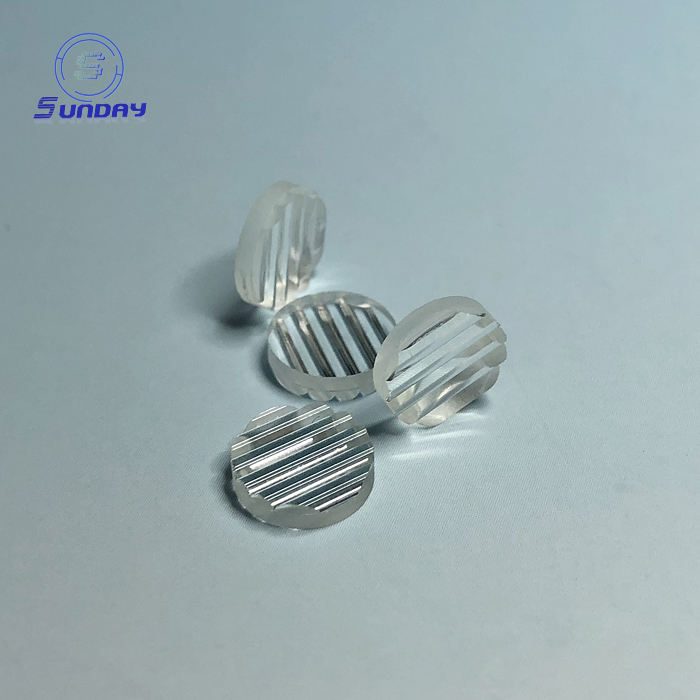

6 mm N-BK7 Lens

Product description

This optical lens is designed for applications requiring collimation across a wide range of wavelengths, specifically in the bands of 8-14 μm, 3-5 μm, 1.7-3 μm, and 400-700 nm. With a diameter of 6 mm, it is suitable for various optical systems where precision and reliability are critical. The lens is manufactured from N-BK7 material, ensuring durability and performance in demanding environments. Custom sizes and configurations are available to meet specific project requirements.

Key Features

Customizable dimensions for specific applications, enhancing fit and performance.
Manufactured from N-BK7, providing excellent optical clarity and durability.
Suitable for multiple wavelength bands (400-700 nm, 1.7-3 μm, 3-5 μm, 8-14 μm), ensuring versatility.
Available in various angles (5° to 110°), offering flexibility in collimation applications.

Applications

Collimation

Specification Summary

Item	Value
Material	N-BK7
Diameter	6 mm
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	6 months
Weight	customized
Use	Optical

FAQ

Can I get custom sizes?

Yes, custom sizes and configurations are available to meet specific project needs.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for potential flexibility in orders.
