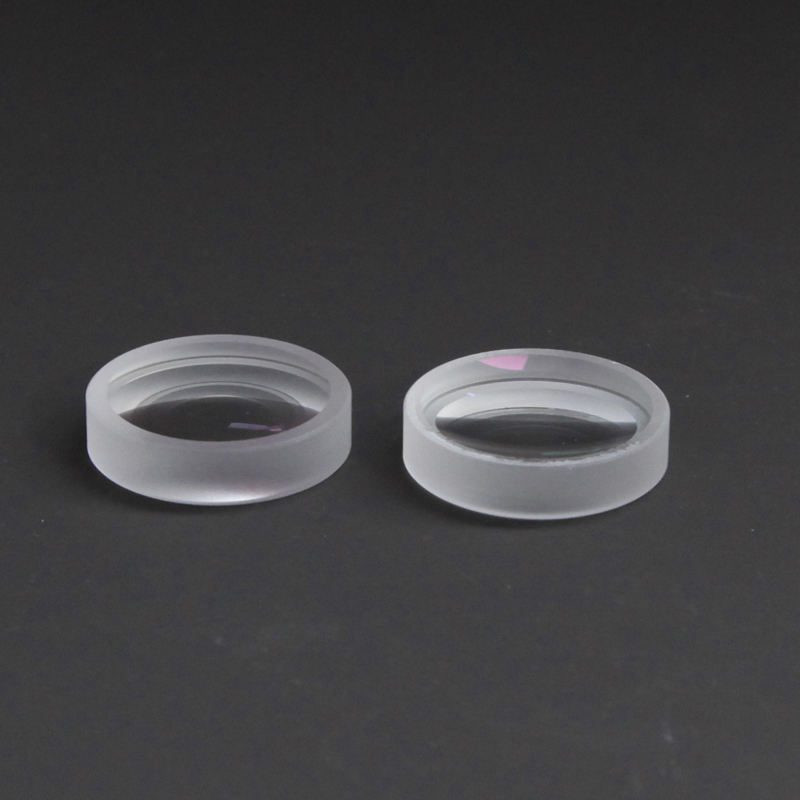

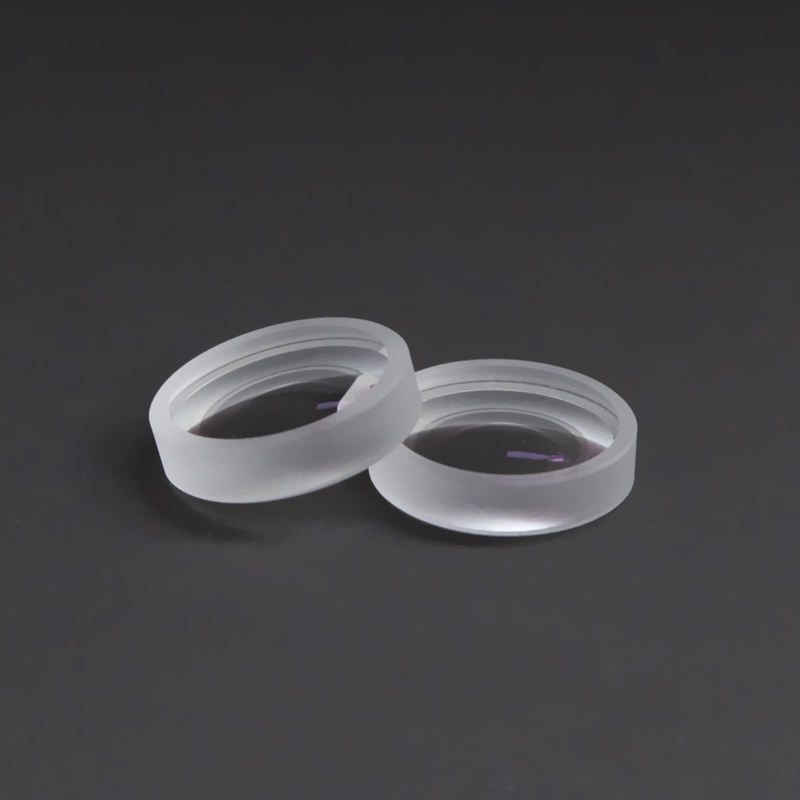

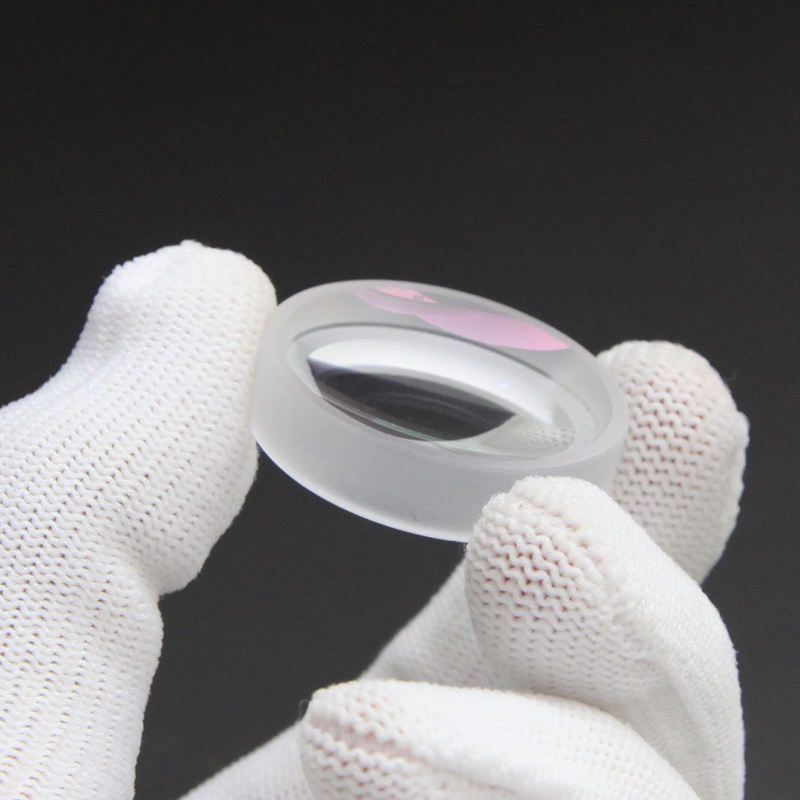

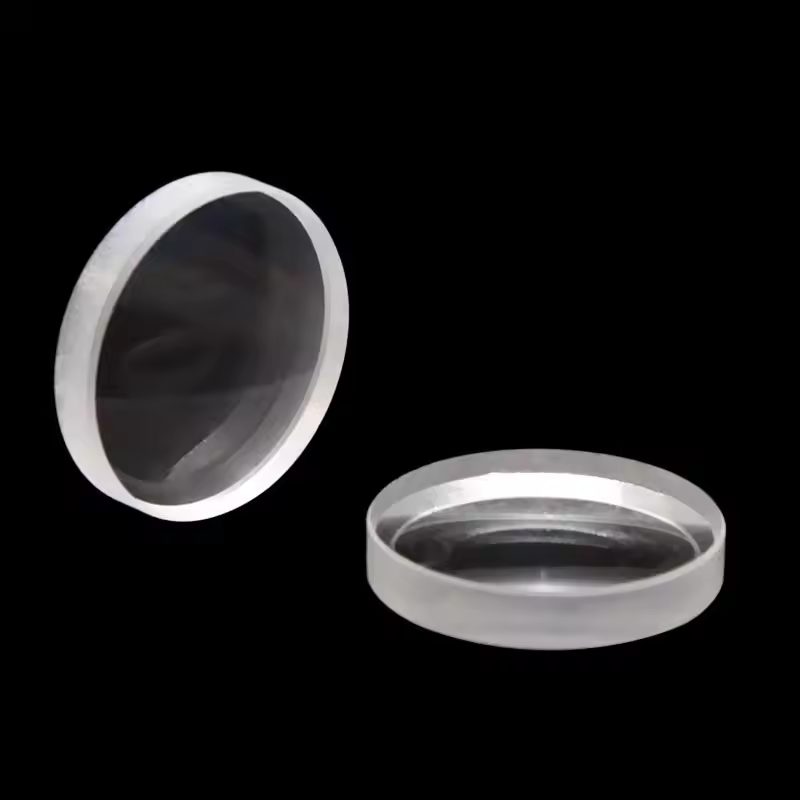

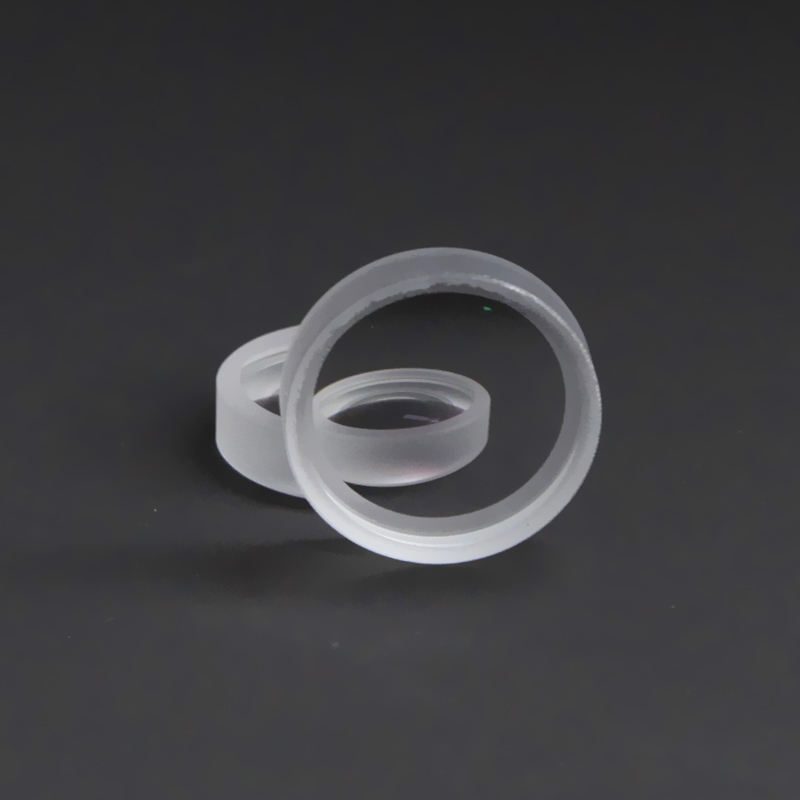

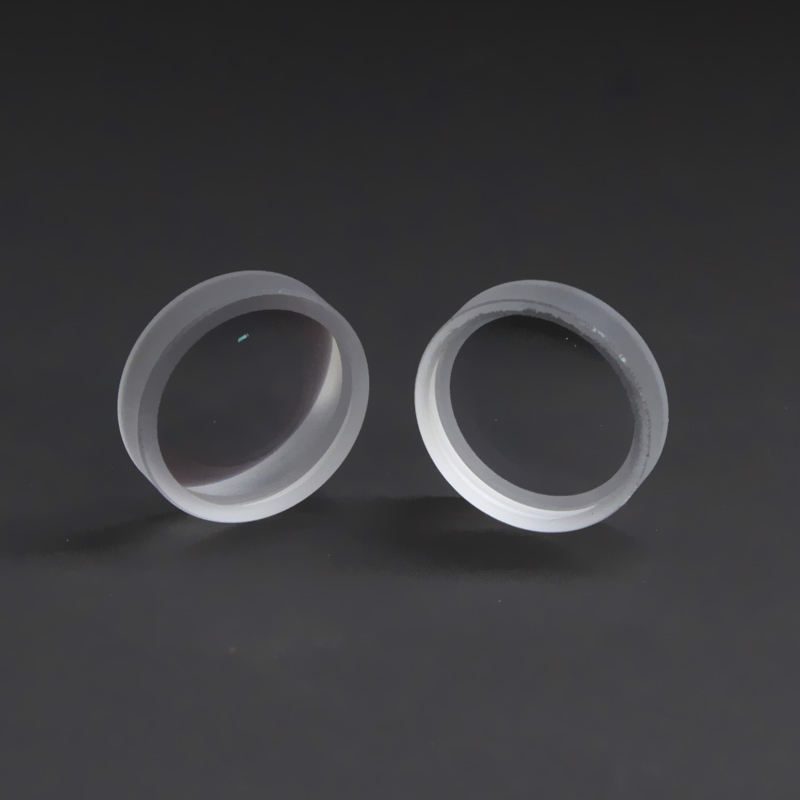

10x30 mm N-BK7 Meniscus Lens, AR Coated

Product description

The N-BK7 meniscus lens is designed to enhance optical systems by reducing beam waste and minimizing spherical aberration. With a focal length range of 30 mm to 263 mm, it is ideal for applications requiring precise beam control and improved image resolution. This lens features a diameter of 10 mm and a surface quality of 60/40, ensuring reliable performance in various optical setups. Its transparent construction and anti-reflective coatings further optimize light transmission, making it suitable for diverse applications in imaging and laser systems.

Key Features

Focal length range: 30 mm to 263 mm for versatile application fit.
Diameter of 10 mm with a clear aperture of 85% to 95% for efficient light passage.
Surface quality of 60/40 ensures minimal distortion for enhanced image clarity.
Meniscus shape reduces beam waste and improves numerical aperture.
Customizable edge and center thickness to meet specific design requirements.

Available Sizes

Diameter x Focal Length (mm)
10 x 146.5

Specification Summary

Item	Value
Material	N-BK7
Shape	Meniscus
Diameter	10 mm
Focal Length	30 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Concave Lens; Meniscus lens
Weight	0.5
Color	Transparent
Clear Aperture	85% ~95%

FAQ

Can the lens be customized for different sizes?

Yes, the lens can be customized with diameter and thickness options to fit specific applications.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity (MOQ) is not specified, allowing flexibility in procurement.
