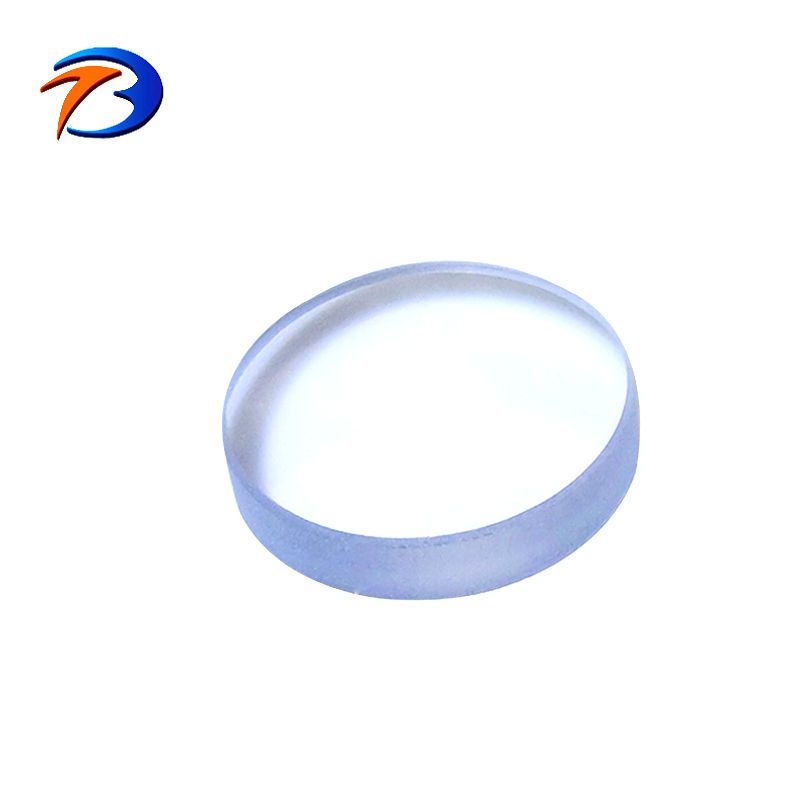

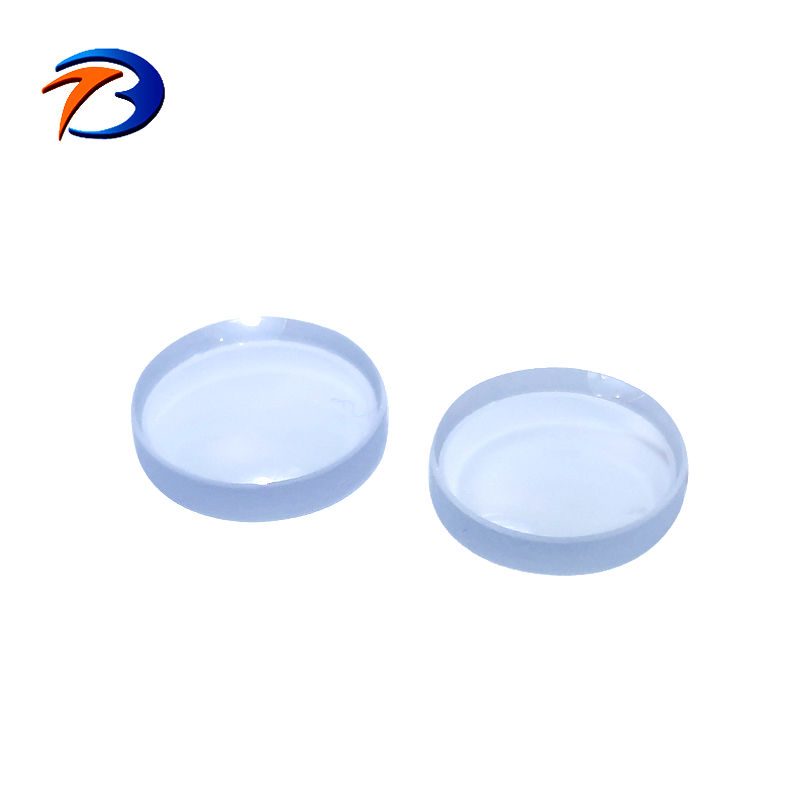

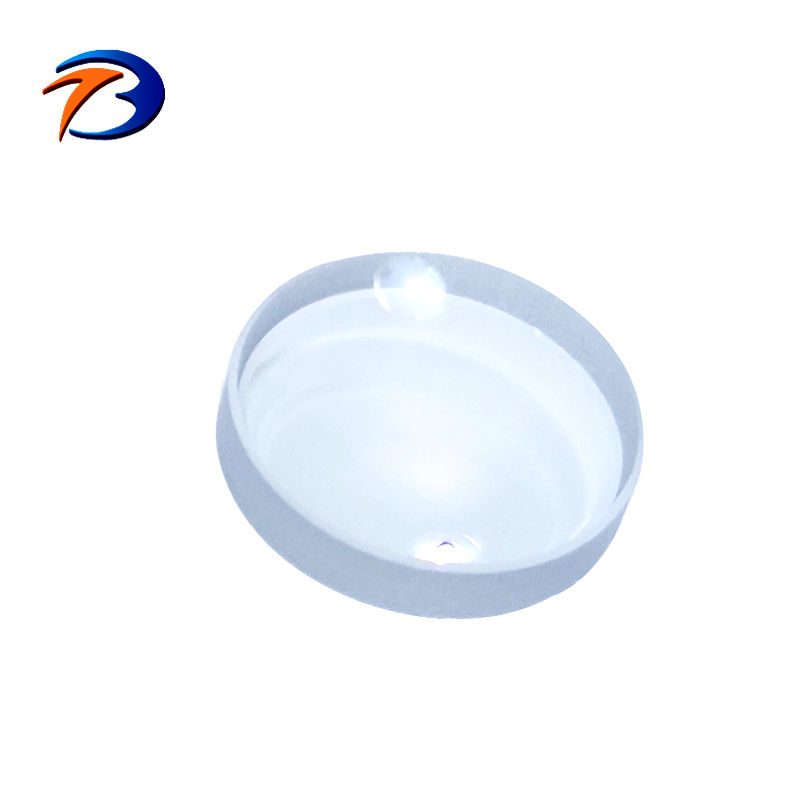

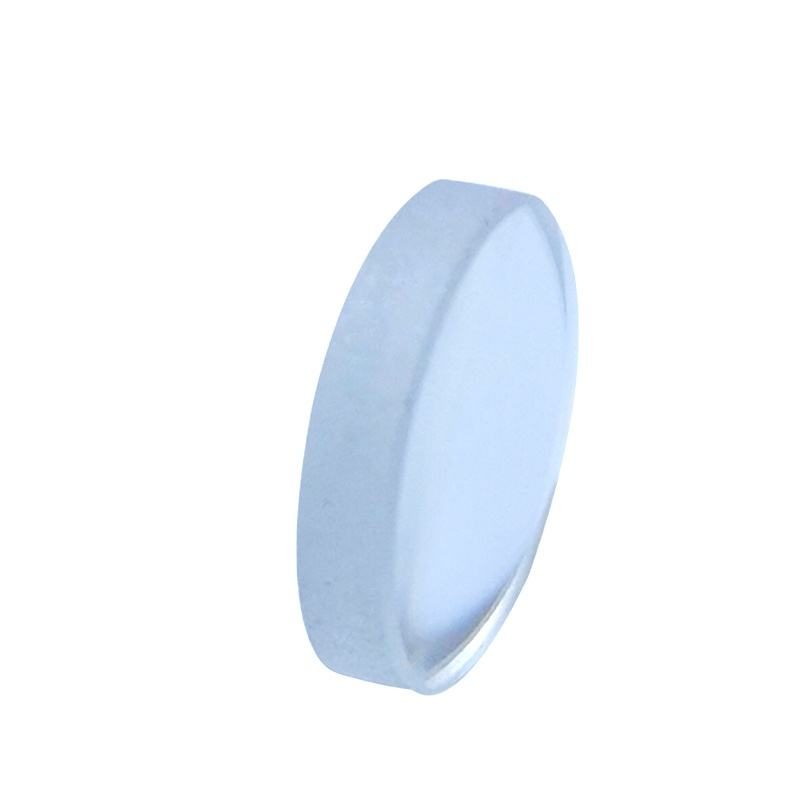

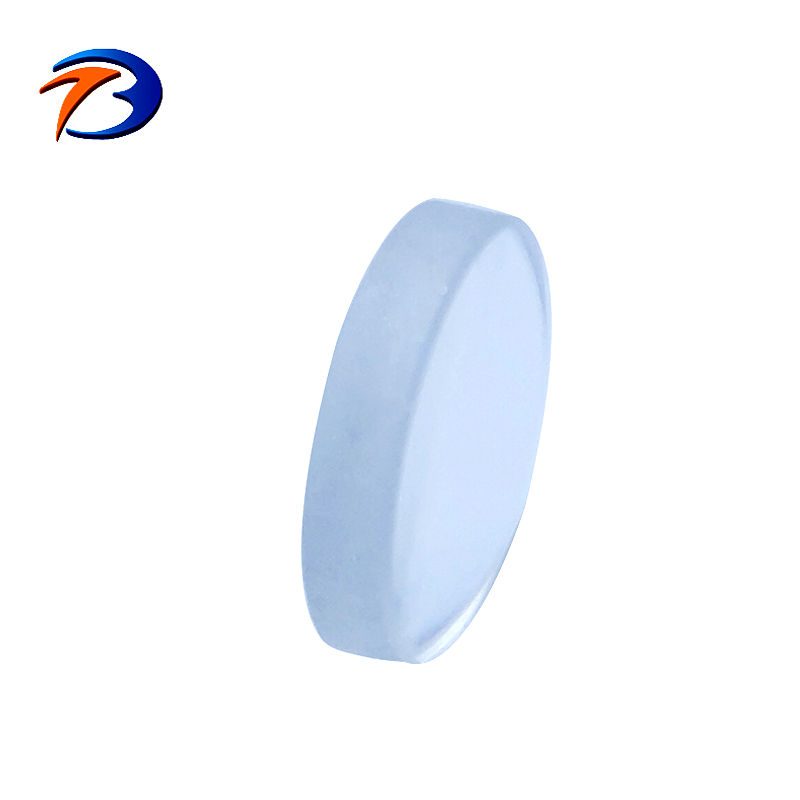

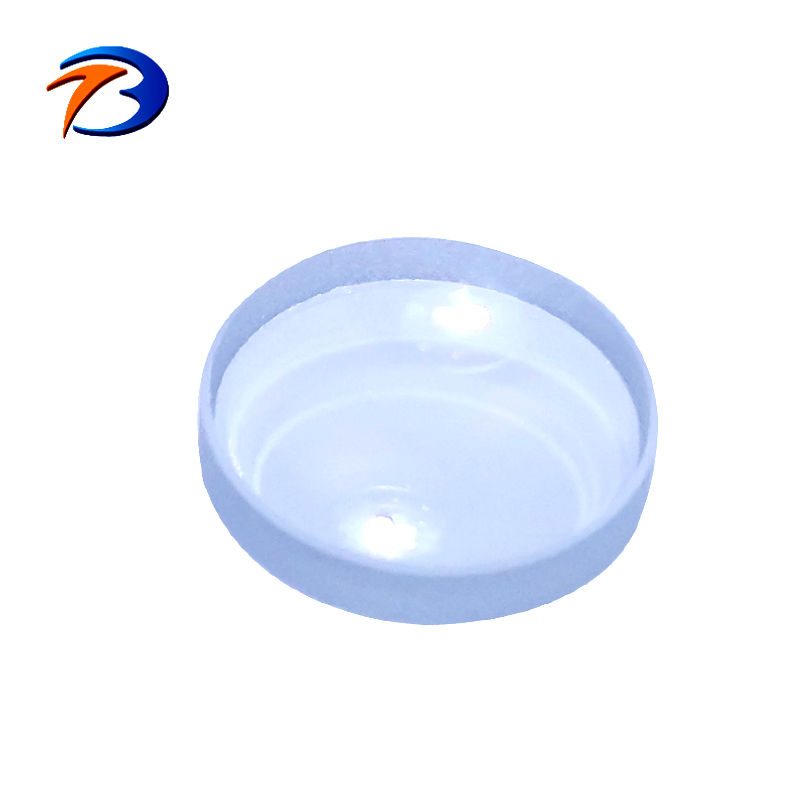

10 mm N-BK7 Meniscus Lens, AR Coated
N-BK7 meniscus lens for thermal imaging, security, and microscopy applications, with high surface quality and customizable options.
Core attributes
- Material
- N-BK7
- Shape
- Meniscus
- Diameter
- 10 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Meniscus
- Diameter
- 10 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- UV (<400 nm)
Product description
This N-BK7 meniscus lens is engineered for applications in thermal imaging, security, microscopy, and general imaging within the wavelength range of less than 400 nm. Its superior surface quality of 60/40 and a clear aperture greater than 90% ensure optimal light transmission and focus. The lens is available in a standard diameter of 10 mm, making it suitable for compact optical systems. With options for anti-reflection coatings, it enhances performance in various optical applications.
Key Features
- Surface quality of 60/40 ensures minimal distortion, enhancing image clarity.
- Clear aperture greater than 90% maximizes light transmission for improved performance.
- Centration of 5 arc min guarantees precise alignment in optical assemblies.
- Available in a standard diameter of 10 mm, suitable for various compact applications.
- Custom OEM/ODM support available to meet specific design requirements.
Applications
Thermal Imaging, Security, Microscopy, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Meniscus |
| Diameter | 10 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 1 YEAR |
| Use | Meniscus Lens, Optical |
| Centration | 5 arc min |
| Clear Aperture | >90% |
| Structure | Plano-convex |
FAQ
Can I get custom sizes for this lens?
Custom sizes are supported through OEM and ODM options.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
