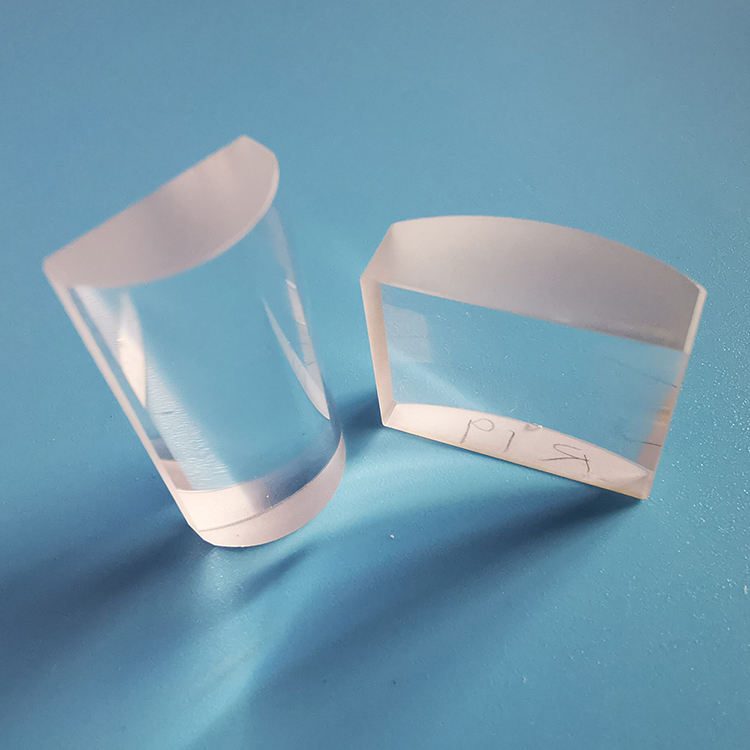

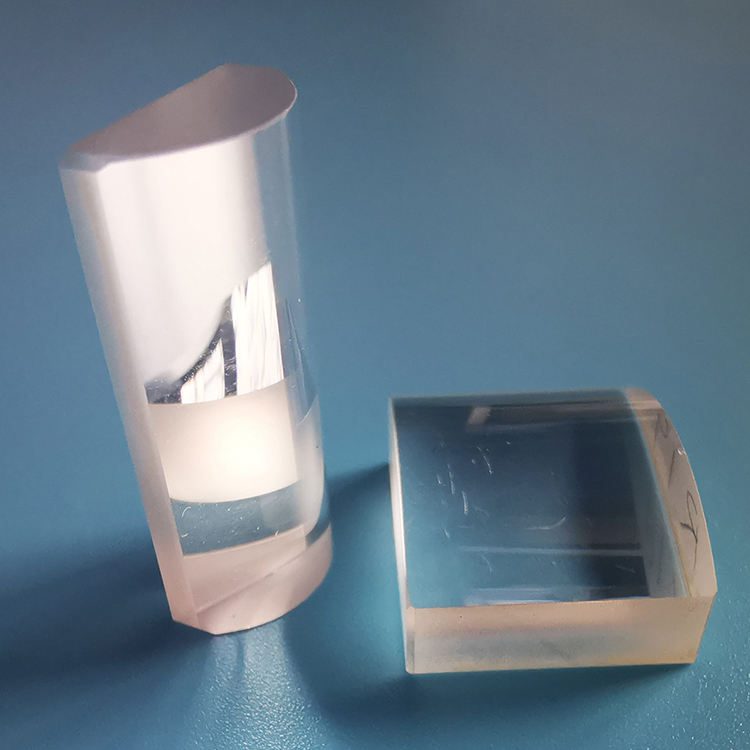

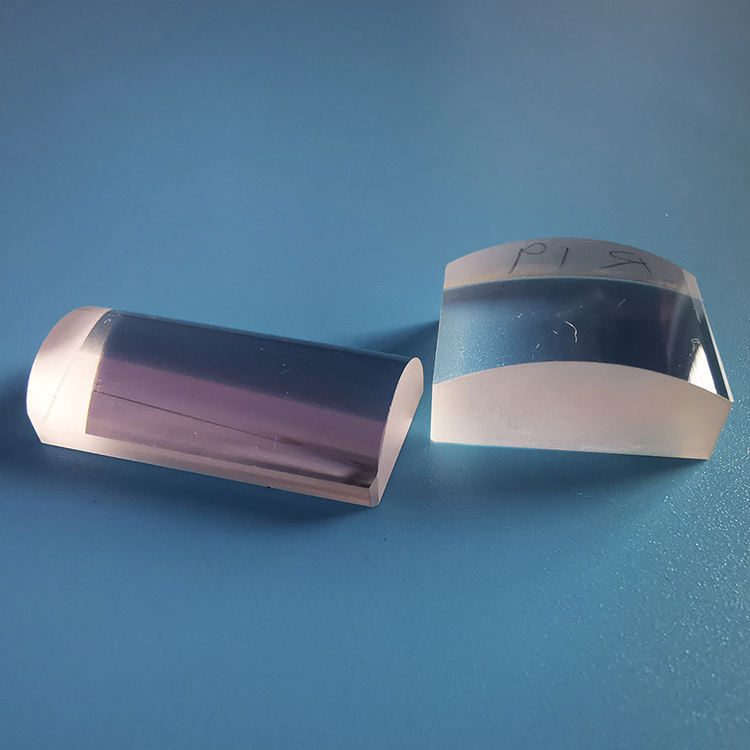

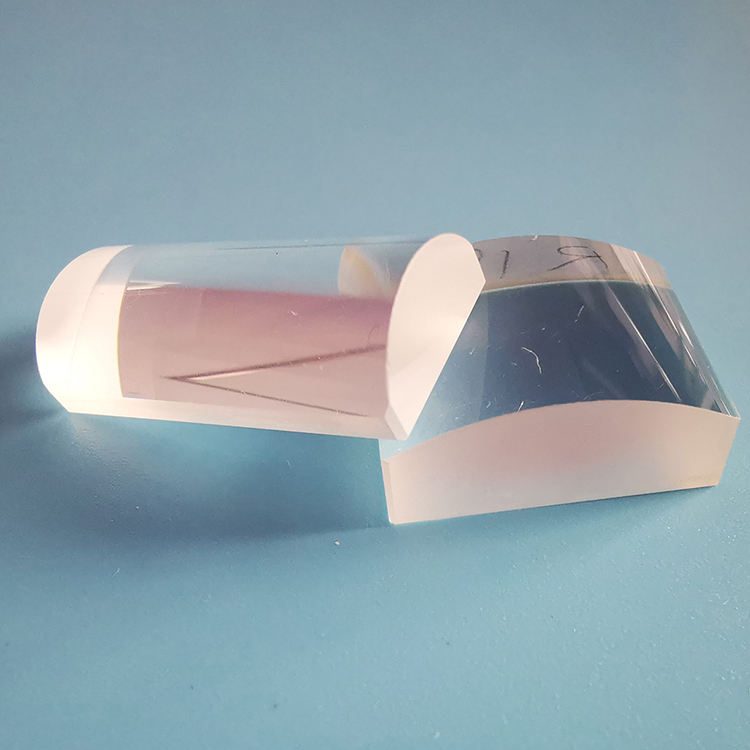

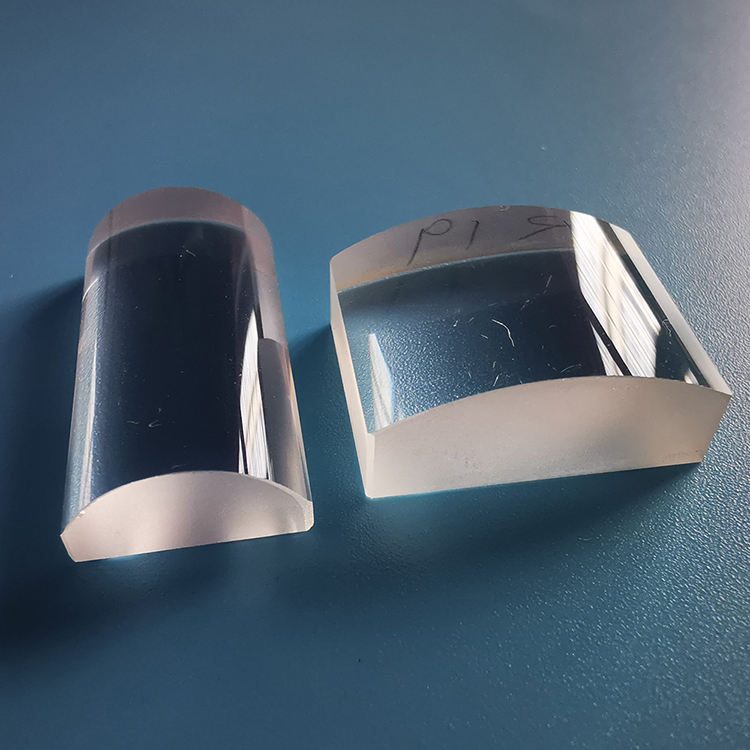

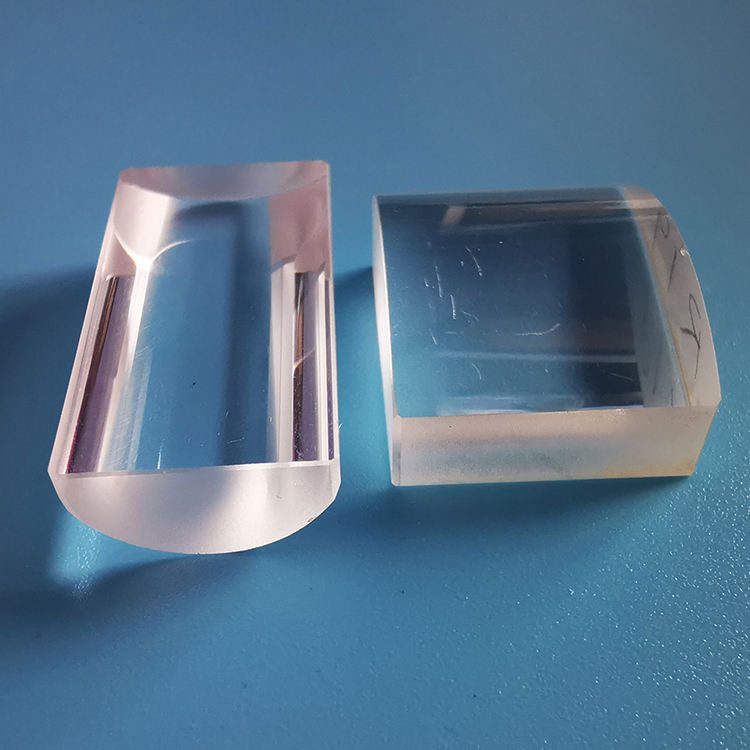

1 mm N-BK7 Meniscus Lens, AR Coated

Product description

The N-BK7 meniscus lens is designed for applications in the 3-5 μm and 8-14 μm spectral bands, making it ideal for IR imaging, LIDAR, and laser systems. With a diameter range from 1.0 mm to 400.0 mm and a surface quality of 60/40, this lens provides reliable performance for various optical applications. Its anti-reflection coatings enhance transmittance, ensuring effective light management. The lens is suitable for OEM projects, allowing for customization to meet specific requirements.

Key Features

Diameter range: 1.0 mm to 400.0 mm for versatile application fit.
Surface quality of 60/40 ensures minimal light distortion.
Clear aperture greater than 90% maximizes light transmission.
Flatness of L/4 supports high precision in optical systems.
OEM customization available to meet specific project needs.

Specification Summary

Item	Value
Material	N-BK7
Shape	Meniscus
Diameter	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM
Warranty	3 months
Weight	0.01
Flatness	L/4
Clear Aperture	>90%

FAQ

Can I get custom sizes for the lens?

Yes, the lens is available in a diameter range from 1.0 mm to 400.0 mm, allowing for custom sizing.

What is the surface quality of the lens?

The lens has a surface quality of 60/40, ensuring adequate performance for various applications.
