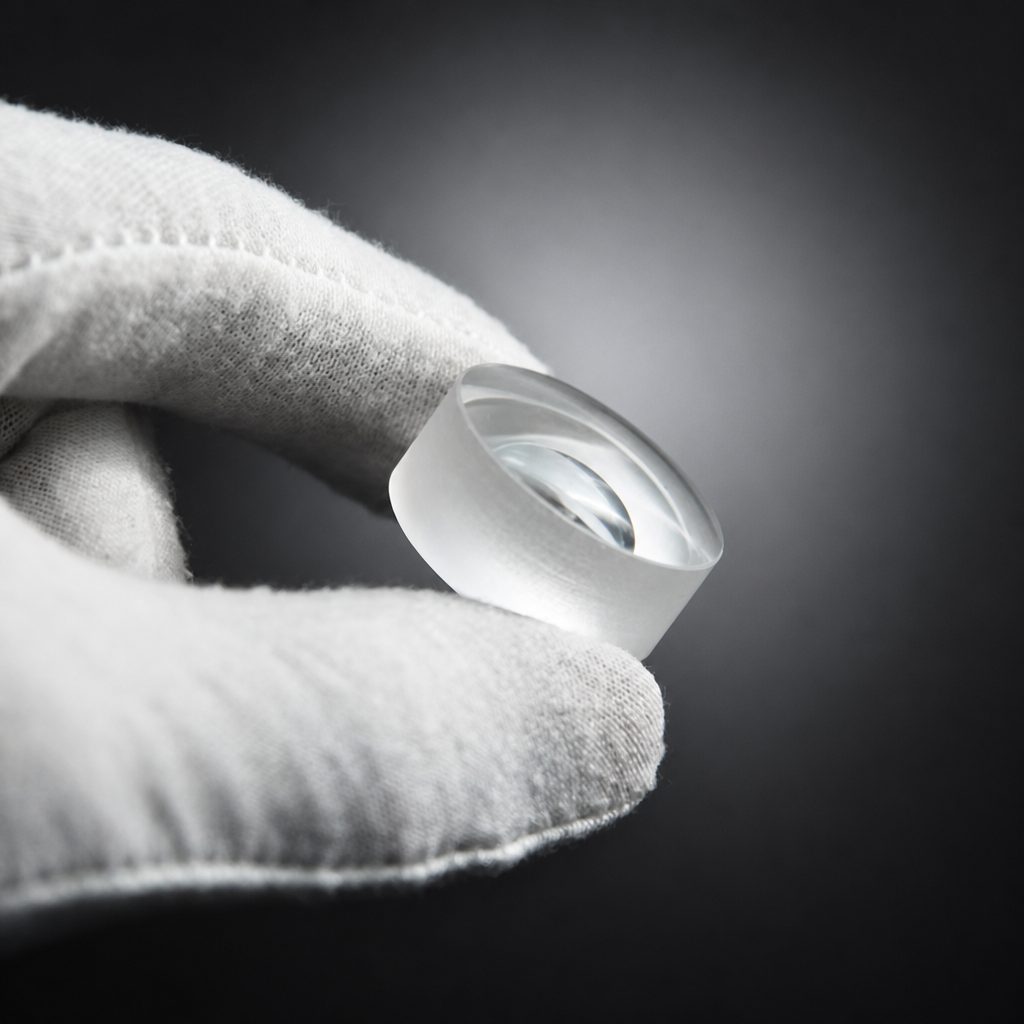

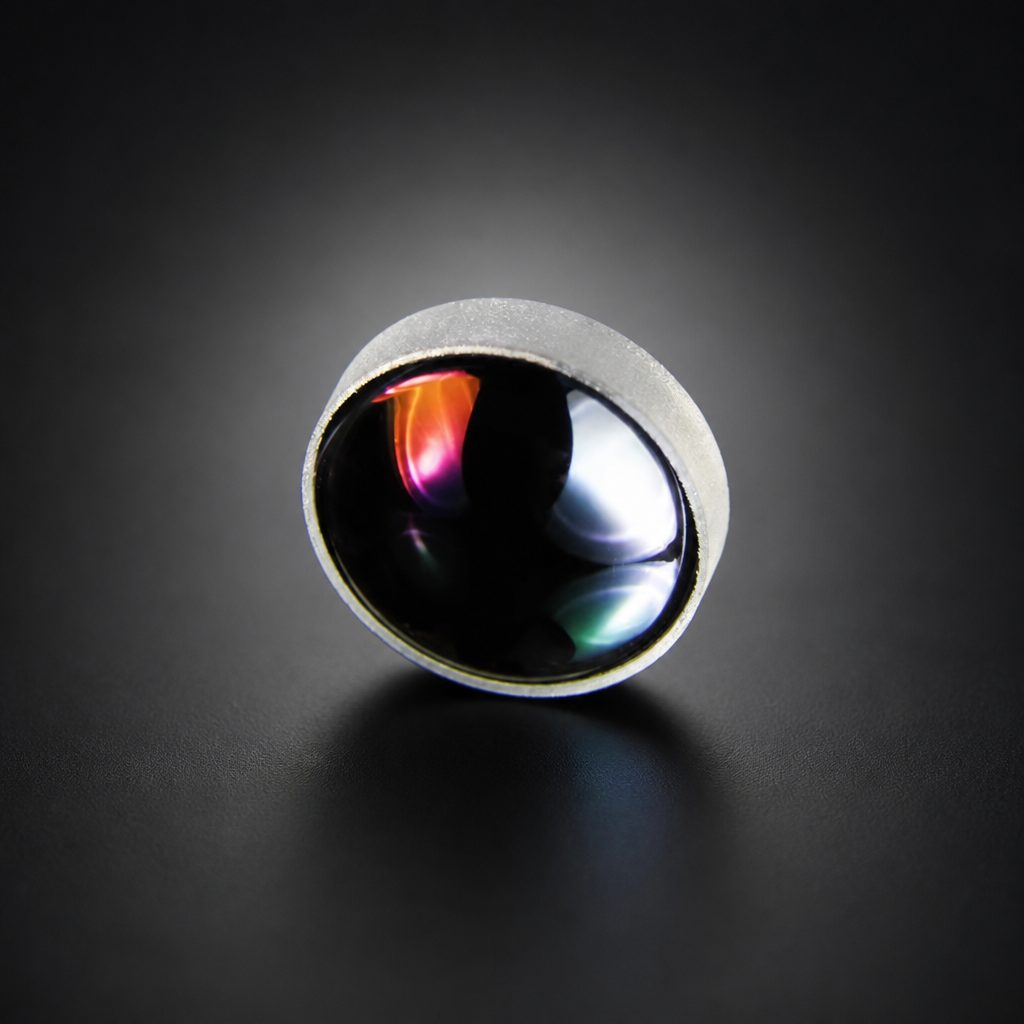

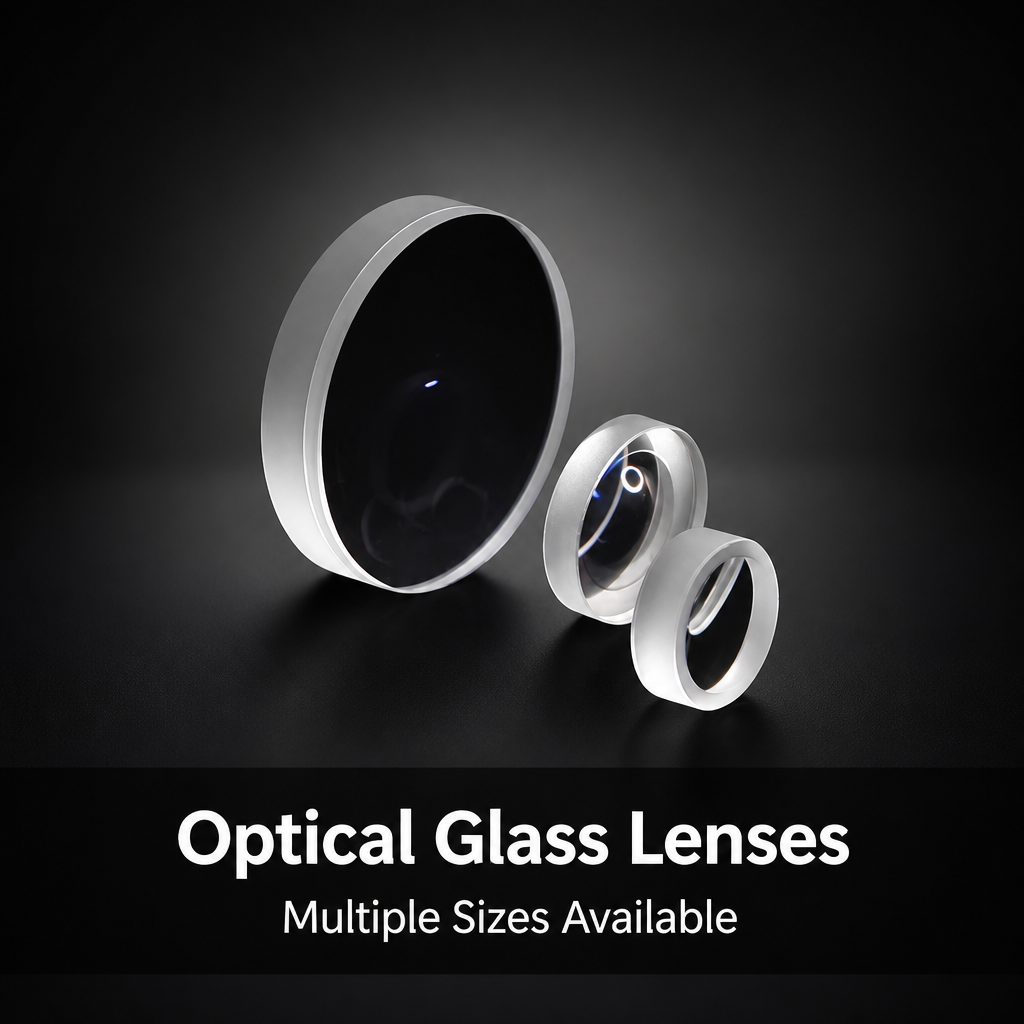

25.4x50 mm N-BK7 Meniscus Lens, AR Coated

Product description

This meniscus lens made from N-BK7 material is designed for applications across the 0.7-1.7 μm and 400-700 nm wavelength ranges. With a focal length of 50.0 mm and a diameter of 25.4 mm, it offers superior clarity and durability, making it ideal for precision optical systems. The anti-reflective coating enhances image quality by minimizing light reflections. Custom sizes are available, ensuring compatibility with specific project requirements.

Key Features

Wavelength range: 0.7-1.7 μm and 400-700 nm for versatile application fit.
Focal length of 50.0 mm for optimized imaging performance.
Surface quality rated at 60/40 for reliable optical clarity.
Customizable options available (OEM, ODM, OBM) to meet unique specifications.
ISO9001 certified for consistent quality and supplier reliability.

Available Sizes

Diameter x Focal Length (mm)
25.4 x 50

Specification Summary

Item	Value
Material	N-BK7
Shape	Meniscus
Diameter	25.4 mm
Focal Length	50 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Meniscus Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	20g
Color	tranplate
Certification	CE,ISO9001

FAQ

What custom sizes are available?

Available sizes include 25.4 mm diameter with a focal length of 50.0 mm, and custom options can be discussed.

What is the minimum order quantity (MOQ)?

The MOQ is not specified; please inquire for details on ordering.
