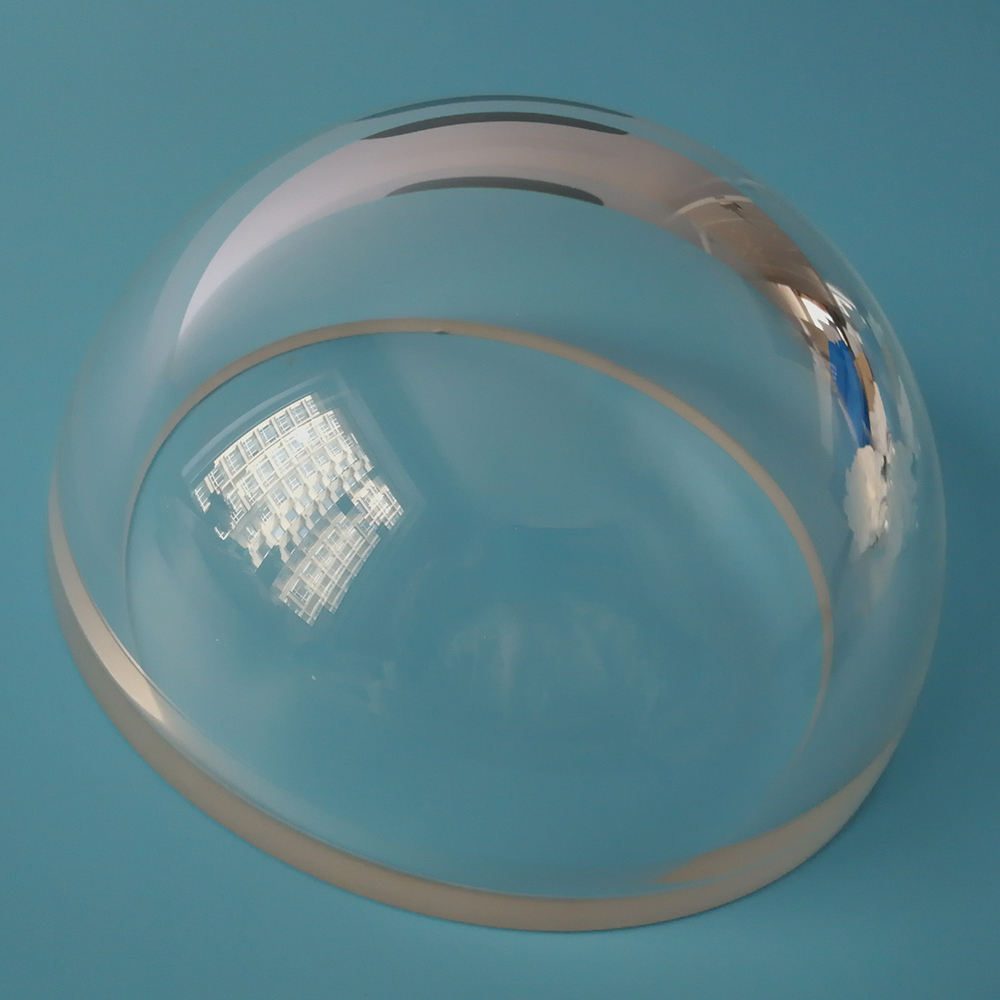

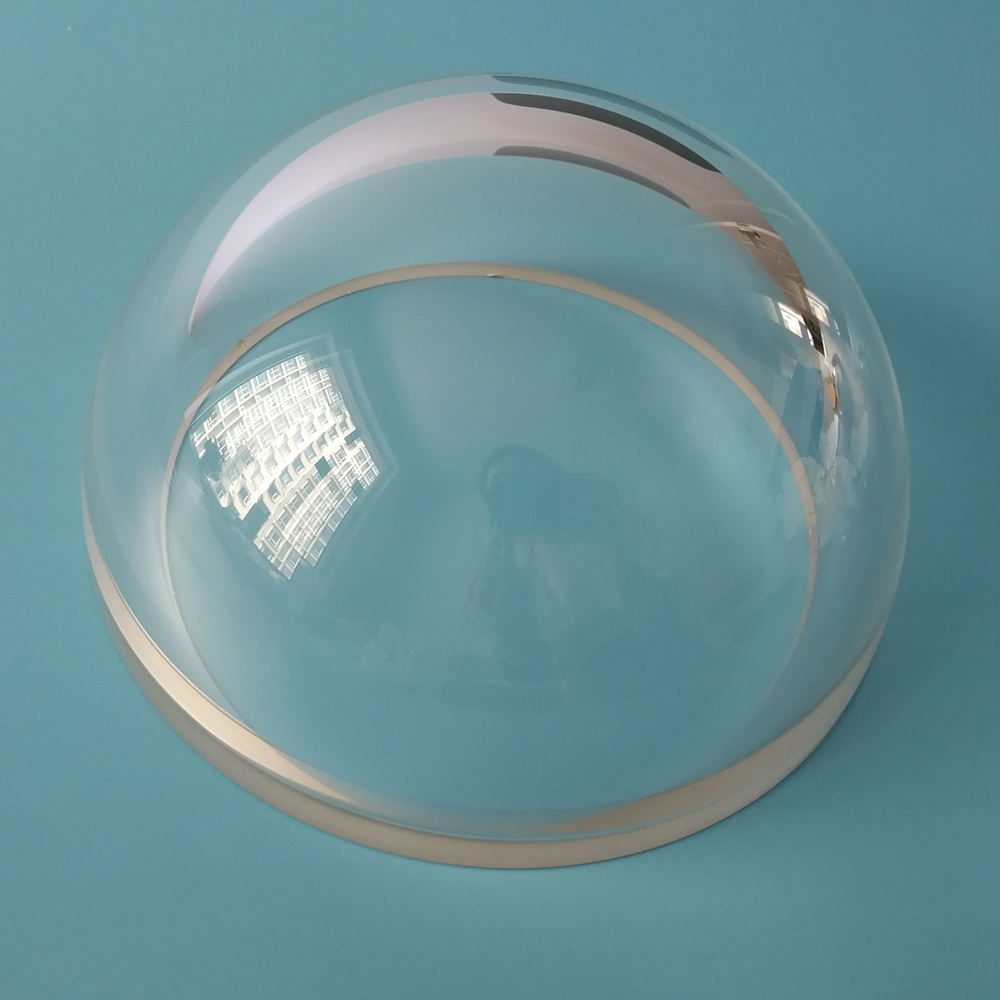

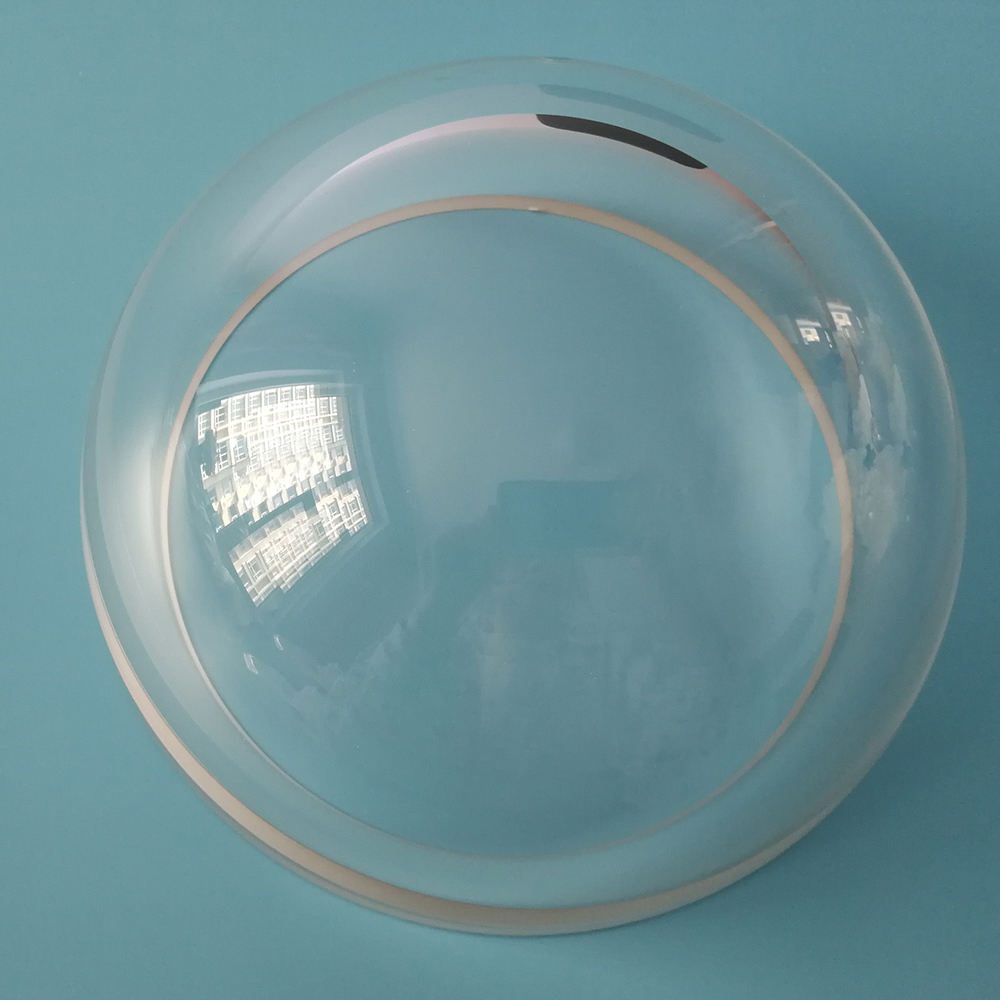

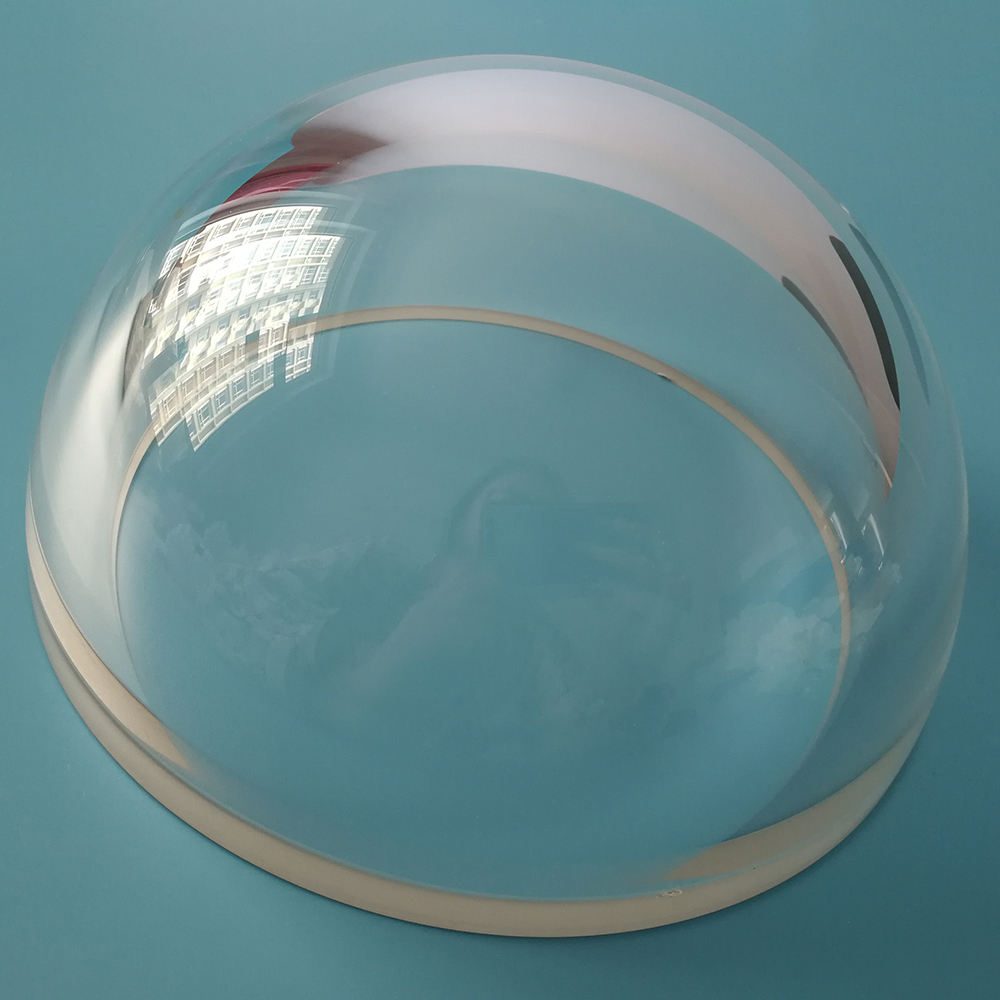

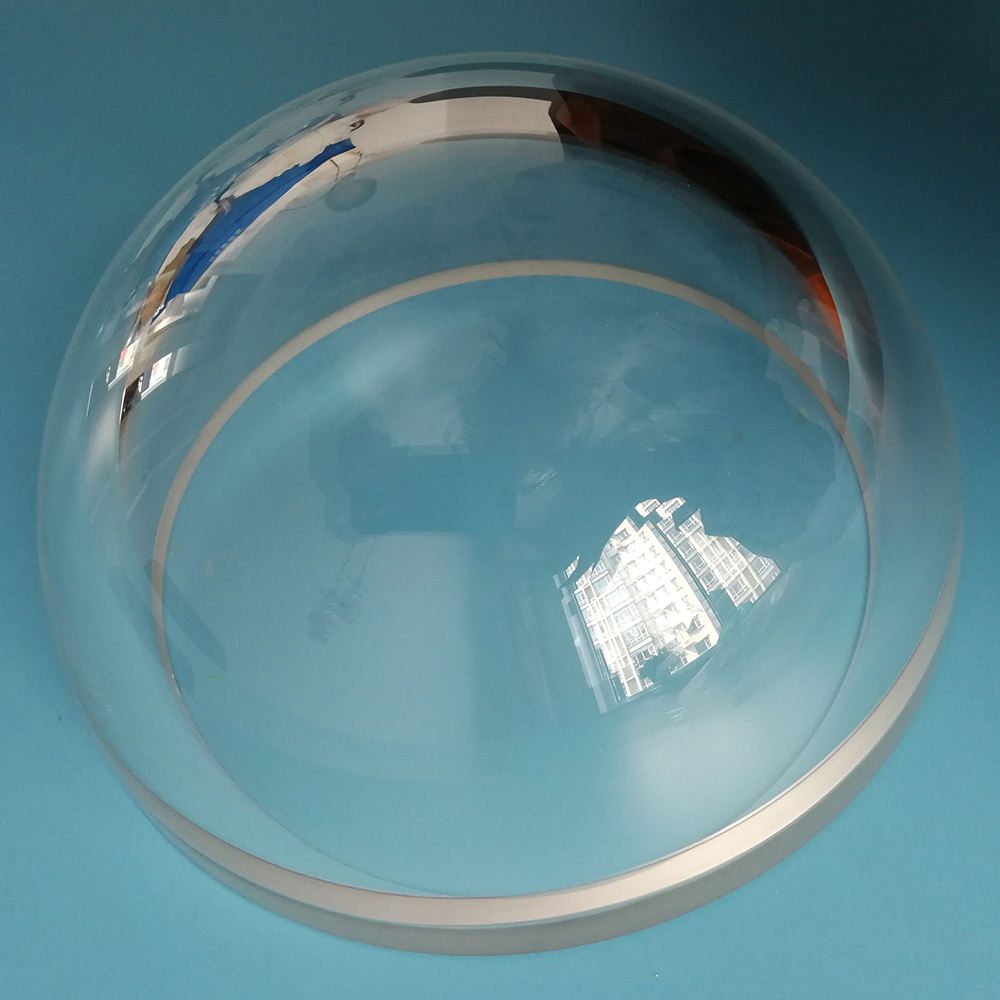

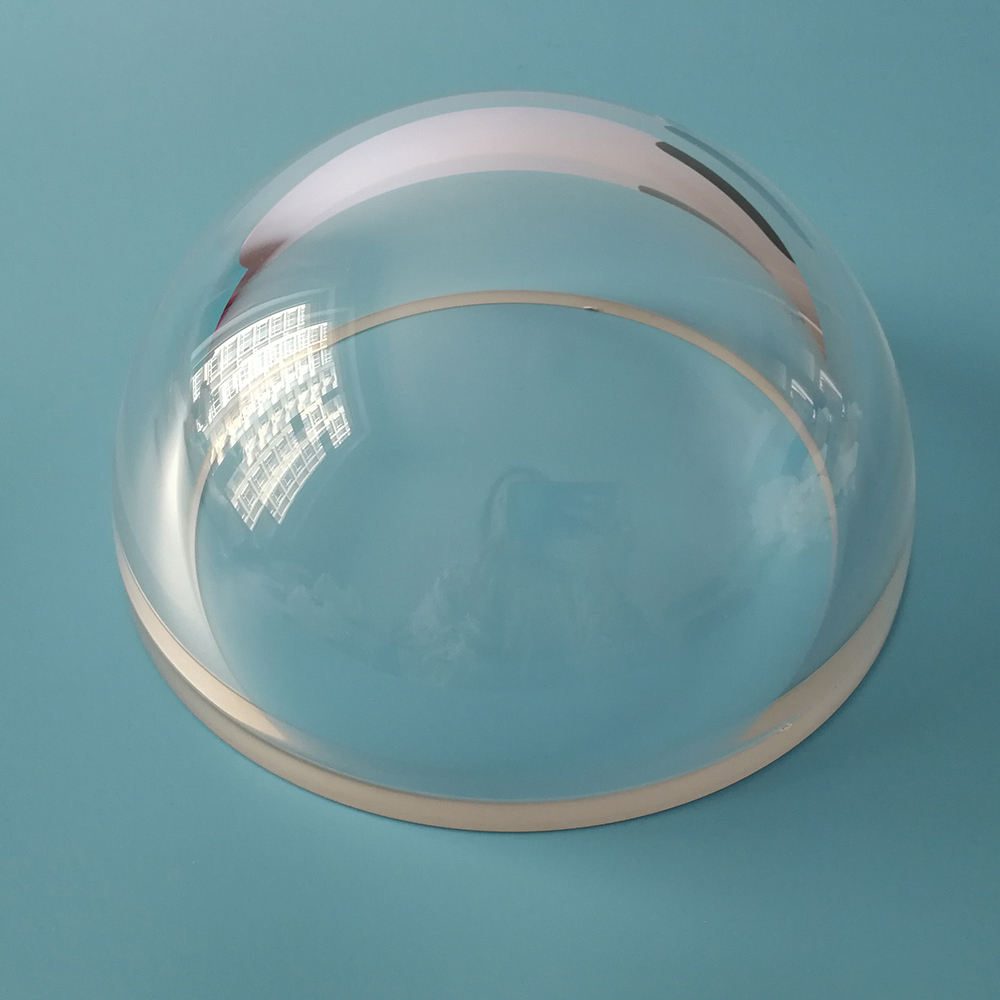

Custom Size N-BK7 Meniscus Lens, AR Coated

Product description

The N-BK7 meniscus dome lens is designed for collimation applications across various industries, including industrial and pharmaceutical sectors. Its unique structure ensures minimal optical effect, making it ideal for focusing applications with monochromatic illumination. With a thickness of 7.6 mm and a clear aperture greater than 90%, this lens provides reliable performance for precision optical systems. The lens is manufactured in Jilin and supports OEM customization for specific project needs.

Key Features

Material: N-BK7 for superior optical clarity and durability.
Thickness: 7.6 mm, ensuring compatibility with various optical setups.
Surface Quality: 60/40, providing adequate clarity for most applications.
Clear Aperture: >90%, maximizing light transmission for enhanced performance.
Customization: OEM support available for tailored solutions.

Applications

Collimation

Specification Summary

Item	Value
Material	N-BK7
Shape	Meniscus
Thickness	7.6 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Dome; dome lens
Customized Support	OEM
Warranty	3 months
Weight	0.02
Flatness	L/4
Clear Aperture	>90%

FAQ

Can this lens be customized in size?

Yes, the N-BK7 dome lens can be customized in diameter from 1-500 mm.

What are the tolerances for this lens?

The lens has a tolerance of +/-0.1 mm, ensuring precise fitting.
