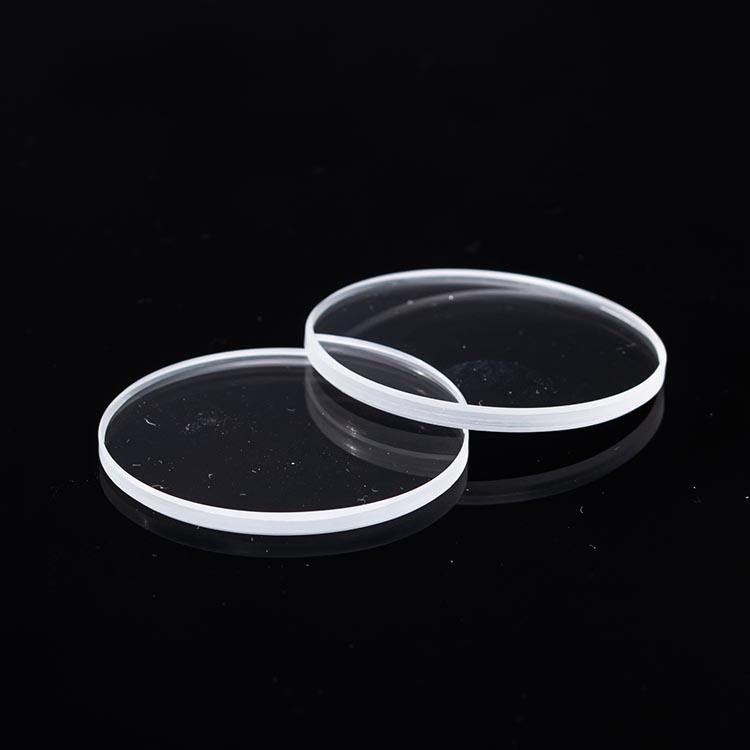

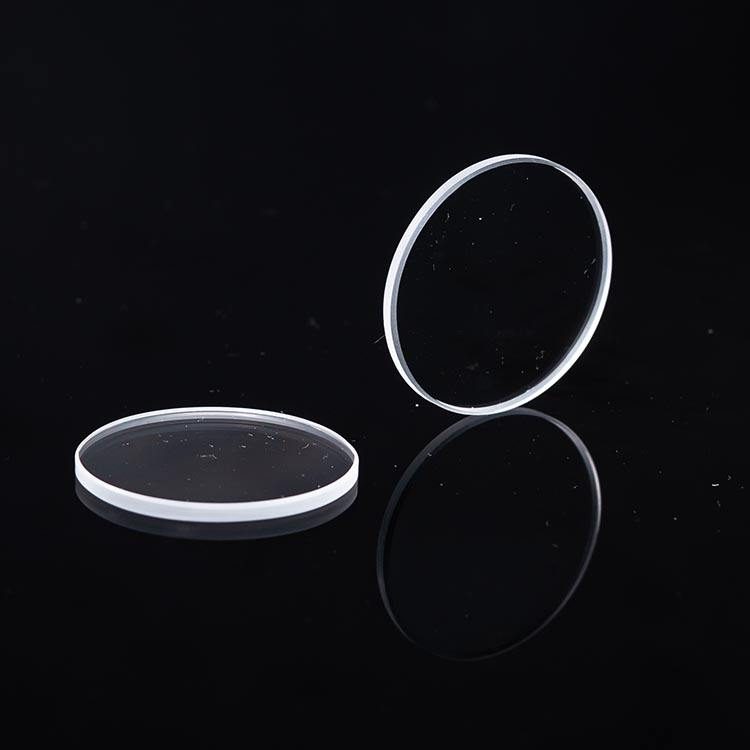

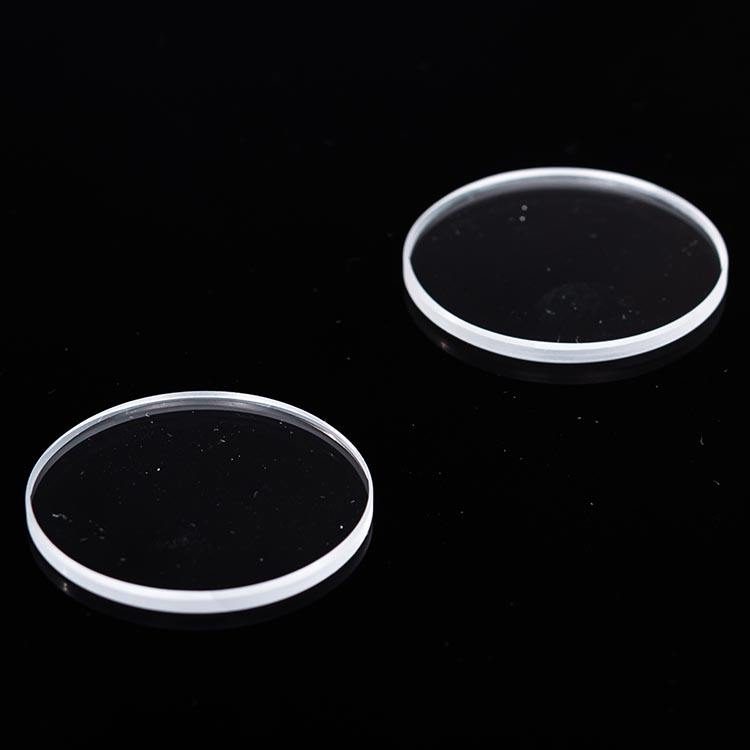

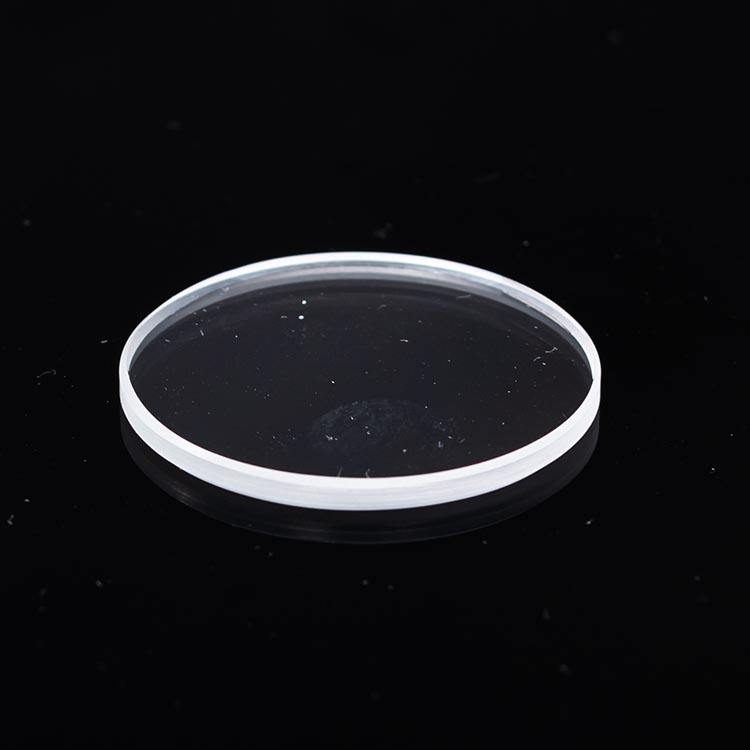

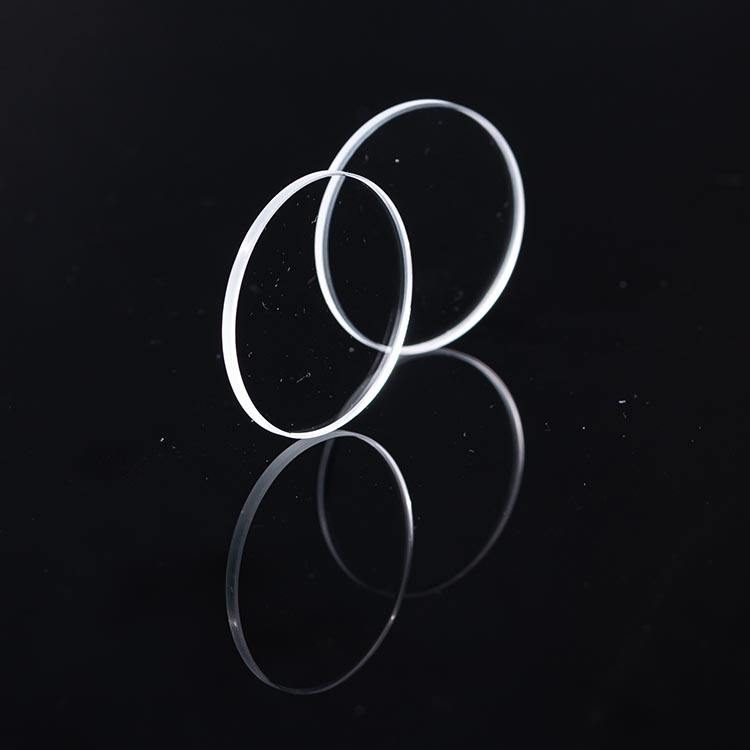

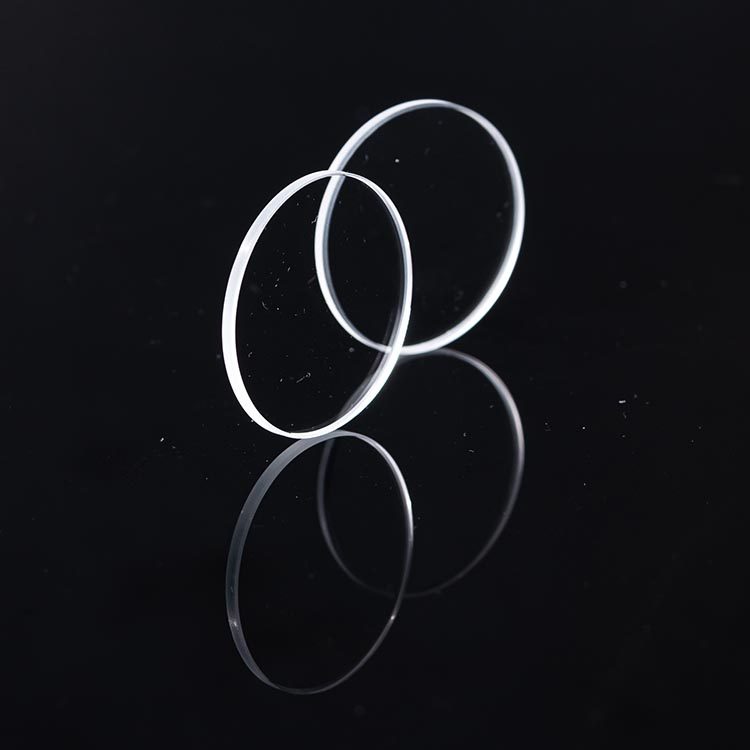

10x2 mm N-BK7 Optical Window, AR Coated

Product description

This N-BK7 optical window is ideal for applications in the 400-700 nm and <400 nm bands, providing high transmittance and surface quality. With a diameter of 10 mm and a thickness of 2 mm, it is suitable for various optical systems requiring precise light transmission. The window features an AR coating that enhances performance, making it a reliable choice for R&D and procurement engineers in IR imaging, LIDAR, and medical devices.

Key Features

Diameter of 10 mm and thickness of 2 mm for compact applications.
Surface quality rated at 40/20 ensures minimal distortion.
AR coating for enhanced transmittance across specified wavelengths.
Thickness tolerance of +/-0.2 mm for precise fitting.
Customizable support for OEM and ODM projects.

Available Sizes

Diameter x Thickness (mm)
10 x 2

Specification Summary

Item	Value
Material	N-BK7
Diameter	10 mm
Thickness	2 mm
Surface Quality	40/20
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	optical Windows
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg
Clear Aperture	90%
Thickness Tolerance	+/-0.2mm
Parallel	<30 arcsec

FAQ

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing flexibility in procurement.

Can I get custom sizes?

Yes, custom sizes are supported through OEM and ODM options.
