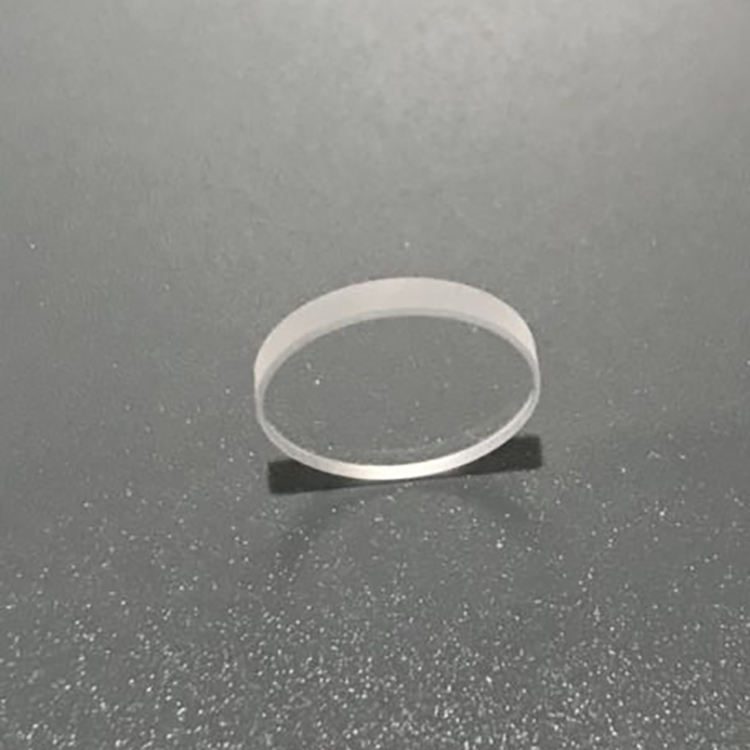

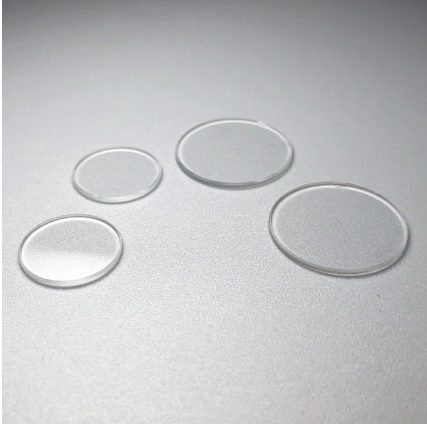

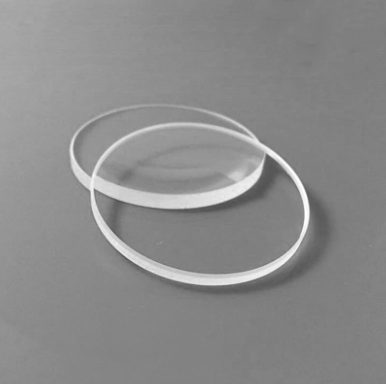

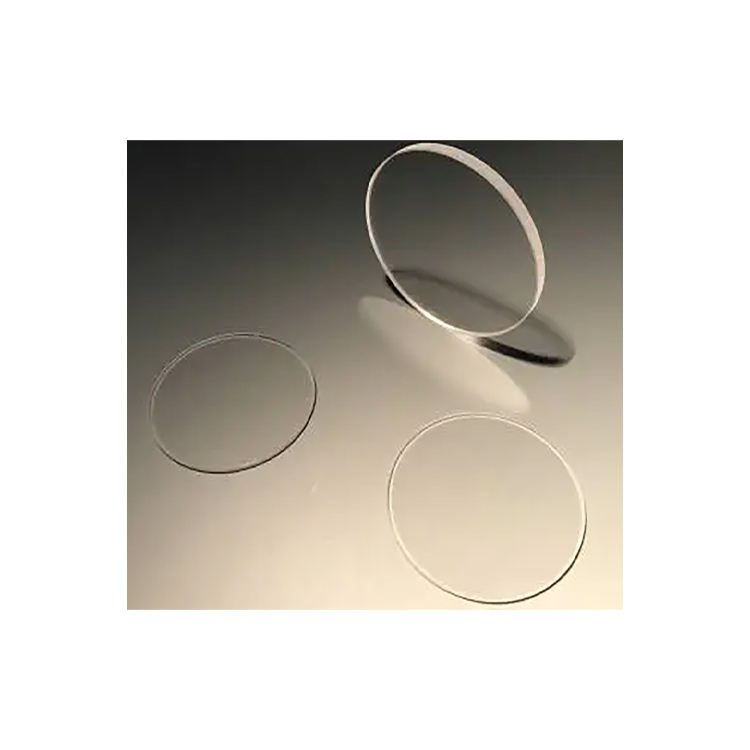

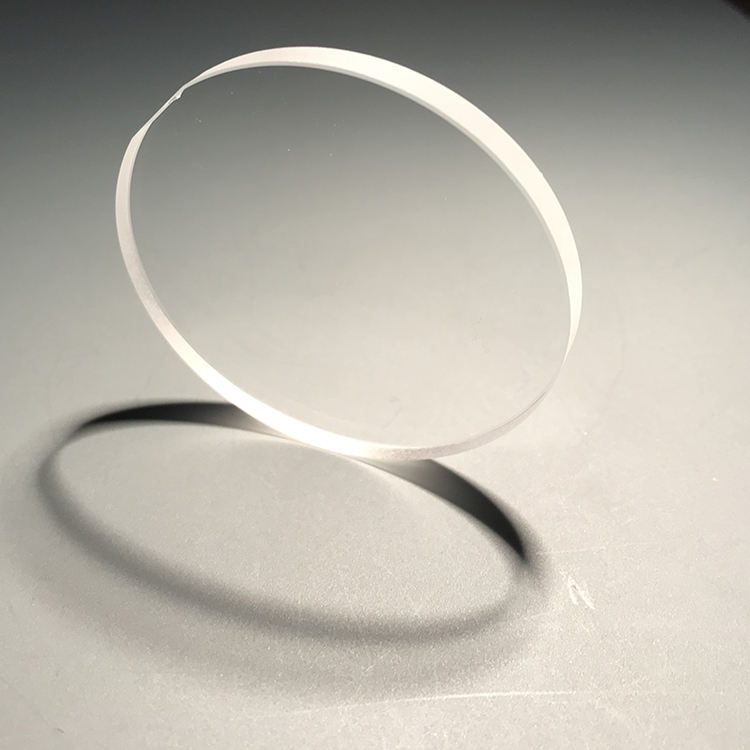

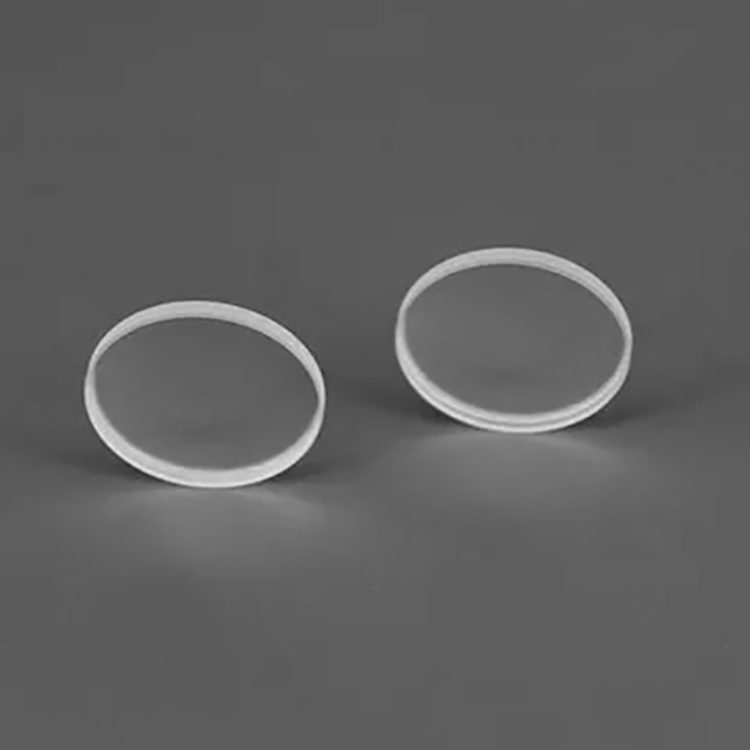

12.5x1.1 mm N-BK7 Optical Window
N-BK7 optical window for 400-700 nm applications, customizable with high surface quality and precise tolerances.
Core attributes
- Material
- N-BK7
- Diameter range
- 12.5 mm
- Thickness
- 1.1 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- N-BK7
- Diameter range
- 12.5 mm
- Thickness
- 1.1 mm
- Coating
- uncoated
Product description
This N-BK7 optical window is designed for applications in the 400-700 nm wavelength range, making it ideal for various optical systems. With a diameter of 12.5 mm and a thickness of 1.1 mm, it offers high transmittance and excellent surface quality (60/40). Its transparent design ensures minimal distortion, suitable for imaging and laser applications. This window can be customized for specific needs, ensuring compatibility with your project requirements.
Key Features
- Wavelength Range: 400-700 nm for versatile application in optical systems.
- Diameter: 12.5 mm with a tolerance of ±0.01 mm for precise fitting.
- Surface Quality: 60/40 ensures minimal optical distortion.
- Clear Aperture: >95% for maximum light transmission.
- Customization: Available OEM and ODM support for tailored solutions.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 12.5 x 1.1 |
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | 12.5 mm |
| Thickness | 1.1 mm |
| Surface Quality | 60/40 |
| Coating | uncoated |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Diameter Tolerance | 0.01mm |
| Color | Transparent |
| Clear Aperture | 95% |
| Surface Flatness | 1/4@633nm |
FAQ
Can I get custom sizes?
Yes, customization is supported, including OEM and ODM options.
What is the diameter tolerance?
The diameter tolerance is ±0.01 mm.
