1 / 6Optical Windows

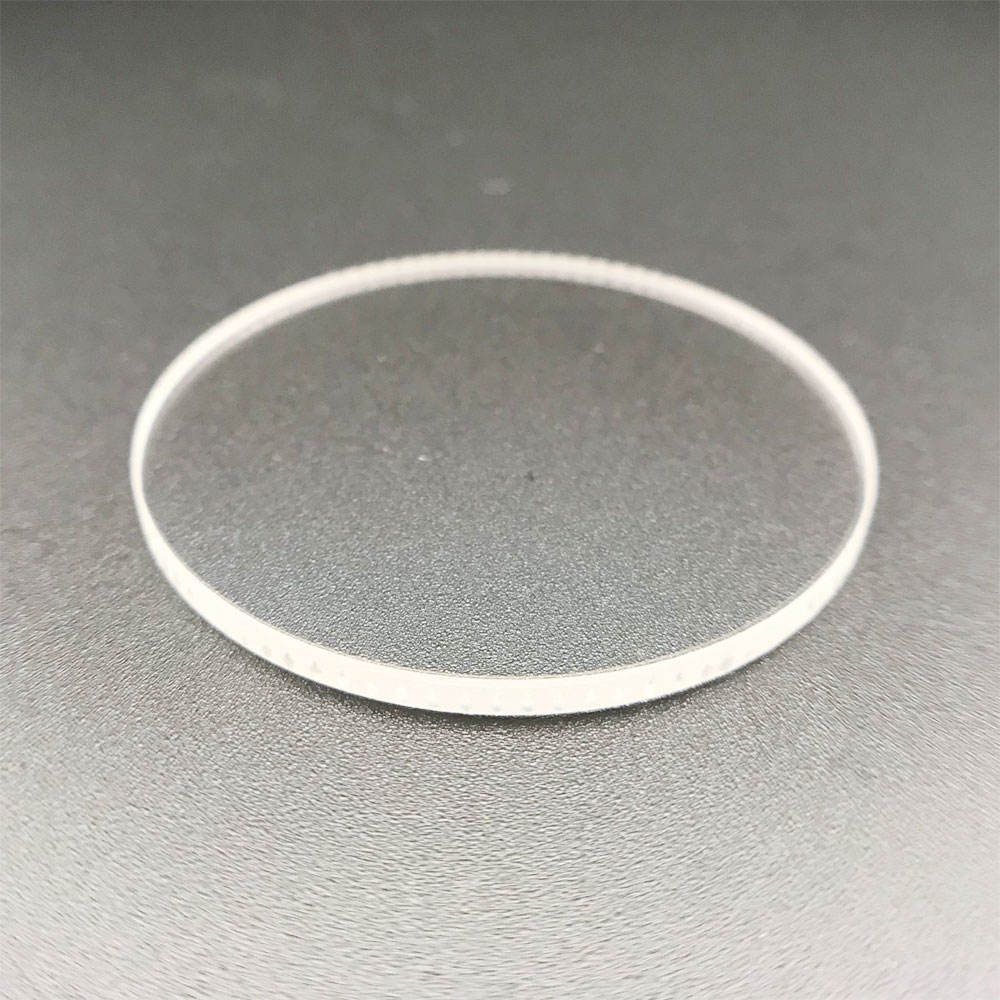

150x1 mm N-BK7 Optical Window, AR Coated
N-BK7 optical window for laser testing, customizable sizes, high surface quality, and precision engineering.
Core attributes
- Material
- N-BK7
- Diameter range
- 150–700 mm
- Thickness
- 1–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- N-BK7
- Diameter range
- 150–700 mm
- Thickness
- 1–50 mm
- Coating
- ar
Product description
The N-BK7 optical window is designed for precision applications in laser system testing, featuring a diameter range of 150 to 700 mm and thickness options from 1 to 50 mm. Its high surface quality of 60/40 ensures reliable performance across various optical setups. With customizable coatings and dimensions, this window meets diverse application requirements while maintaining high flatness and parallelism for accurate measurements.
Key Features
- Diameter range of 150-700 mm for versatile application fit.
- Thickness options from 1 to 50 mm for tailored solutions.
- Surface quality of 60/40 ensures reliable optical performance.
- Flatness options of L/2 to L/10 for precise measurements.
- Customizable with OEM/ODM support for unique project needs.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 425 x 25.5 |
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | 150 mm |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical window |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 2kg |
| Flatness | L/2, L/4, L/8, L/10 |
| Parallelism | < 3 arcmin |
| Bevel | 0.1-0.5mm*45° |
| Dimension Tolerance | ±0.1mm |
FAQ
What are the available thickness options?
Thickness options range from 1 mm to 50 mm.
Can I get custom sizes?
Yes, the optical window is customizable with various diameter and thickness options.
