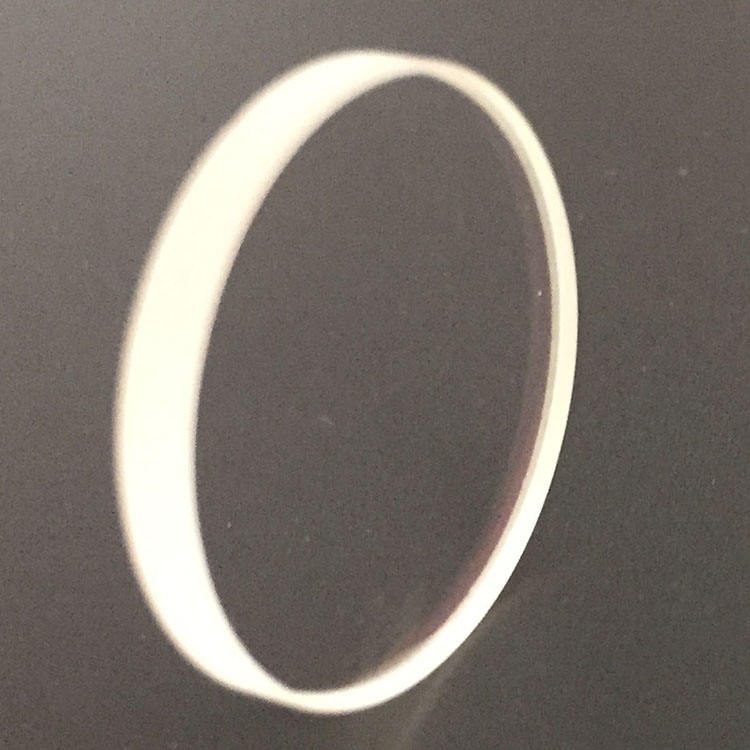

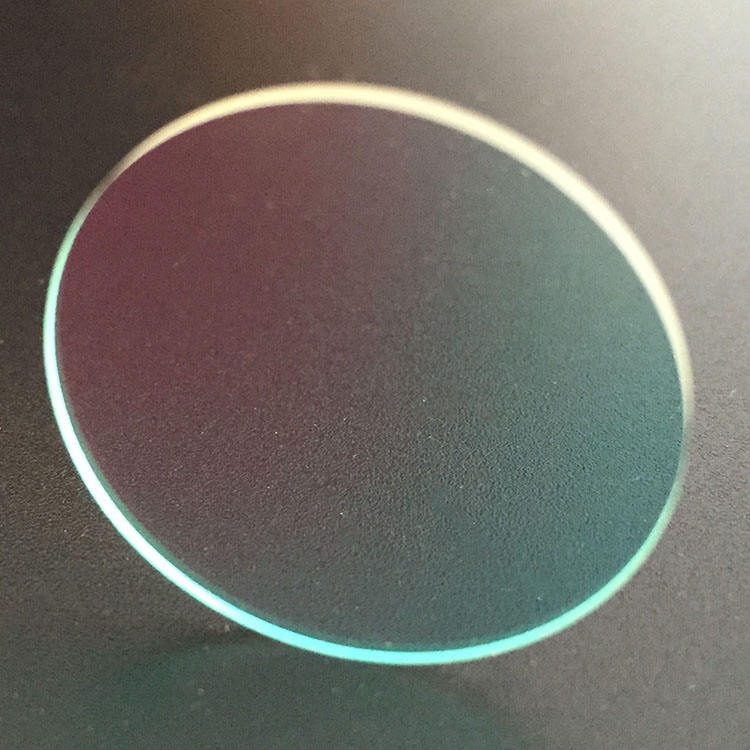

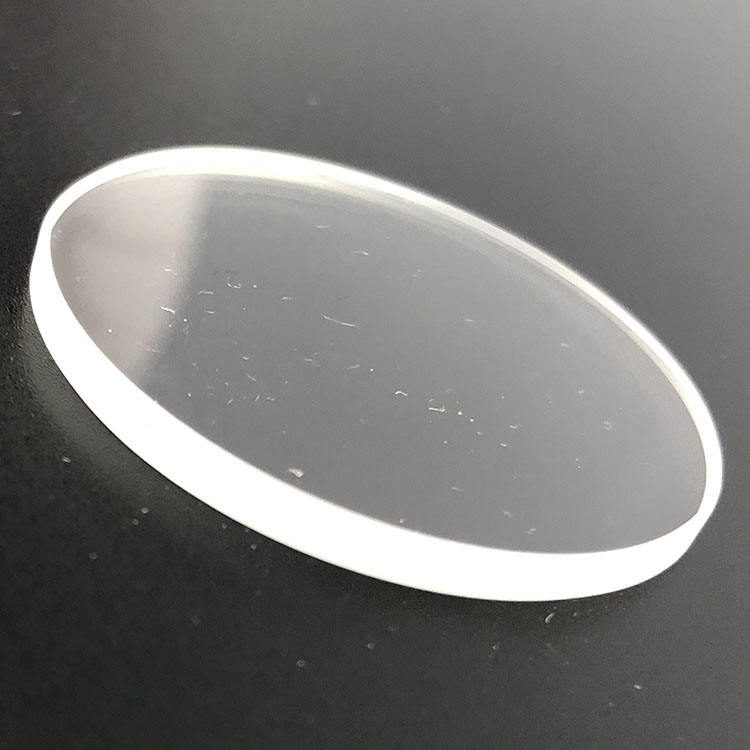

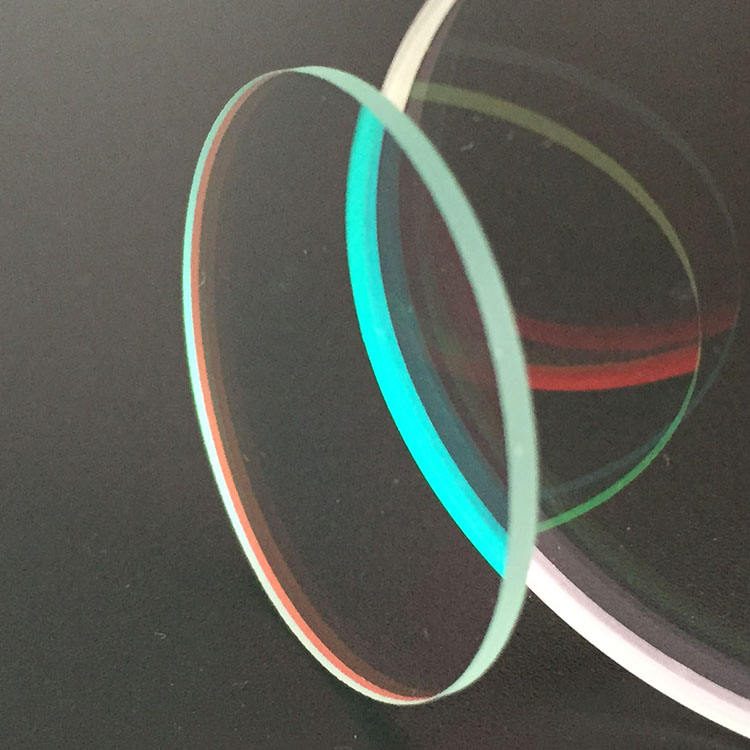

1 mm N-BK7 Optical Window

Product description

This N-BK7 optical window is ideal for medical applications, providing excellent mechanical properties and low impurities. With a diameter range of 1.0 to 250.0 mm, it supports various optical systems. The window features a surface quality of 60/40 and a clear aperture greater than 95%, ensuring high performance in demanding environments. Its customizable options and reliable sourcing from Jilin make it suitable for both prototyping and large-scale production.

Key Features

Diameter range: 1.0 to 250.0 mm for versatile application fit.
Surface quality of 60/40 ensures minimal distortion and high clarity.
Clear aperture greater than 95% maximizes light transmission.
Diameter tolerance of +/-0.1 mm for precise fitting in optical systems.
OEM support available for custom designs and specifications.

Applications

Medical

Specification Summary

Item	Value
Material	N-BK7
Diameter	1 mm
Thickness	Custom
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Warranty	3 months
Customized Support	OEM
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	+0/-0.1mm
Clear Aperture	> 95%
Flatness	L/2
Bevel	0.25 mm*45°

FAQ

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.1 mm, while thickness tolerance is +0/-0.1 mm.

Can I order custom sizes?

Yes, OEM support is available for customized designs.
