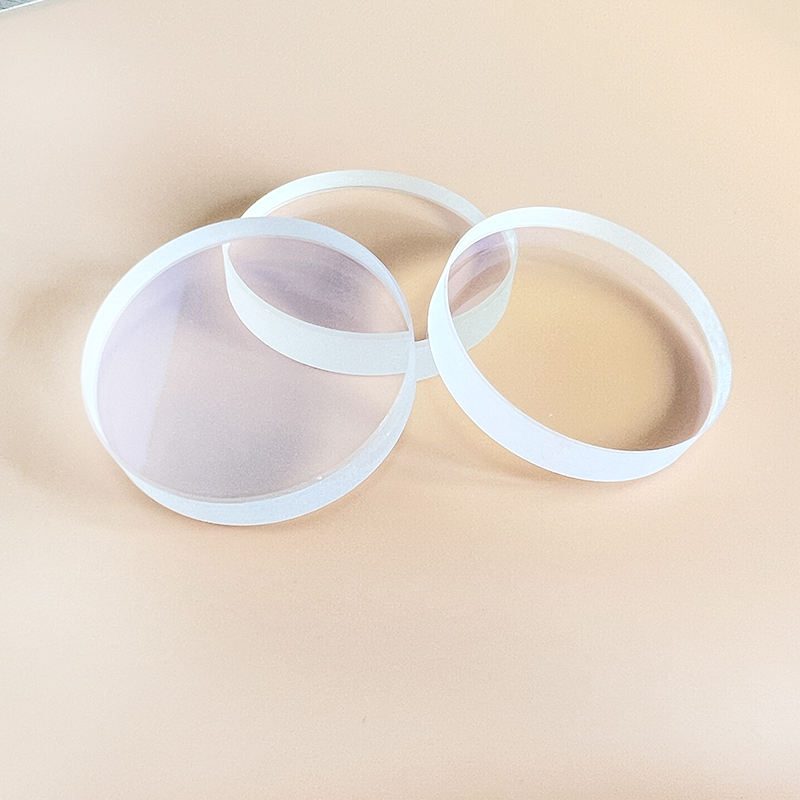

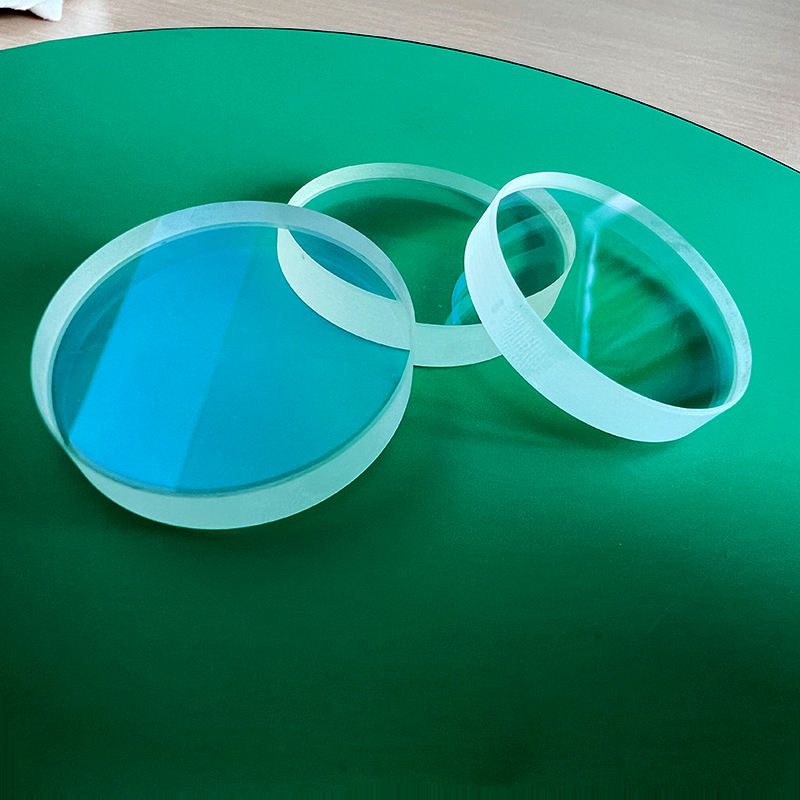

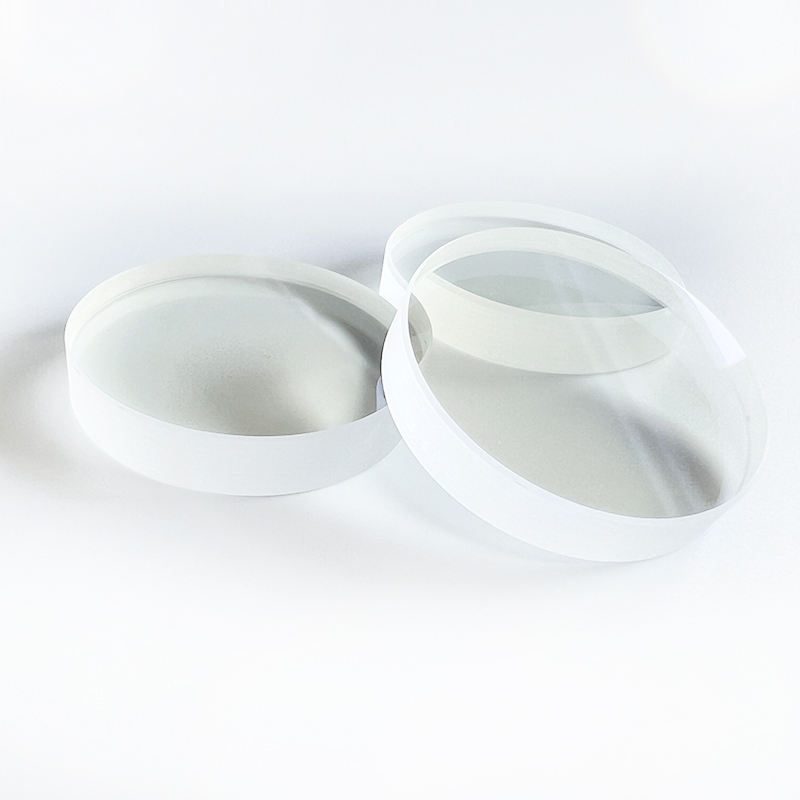

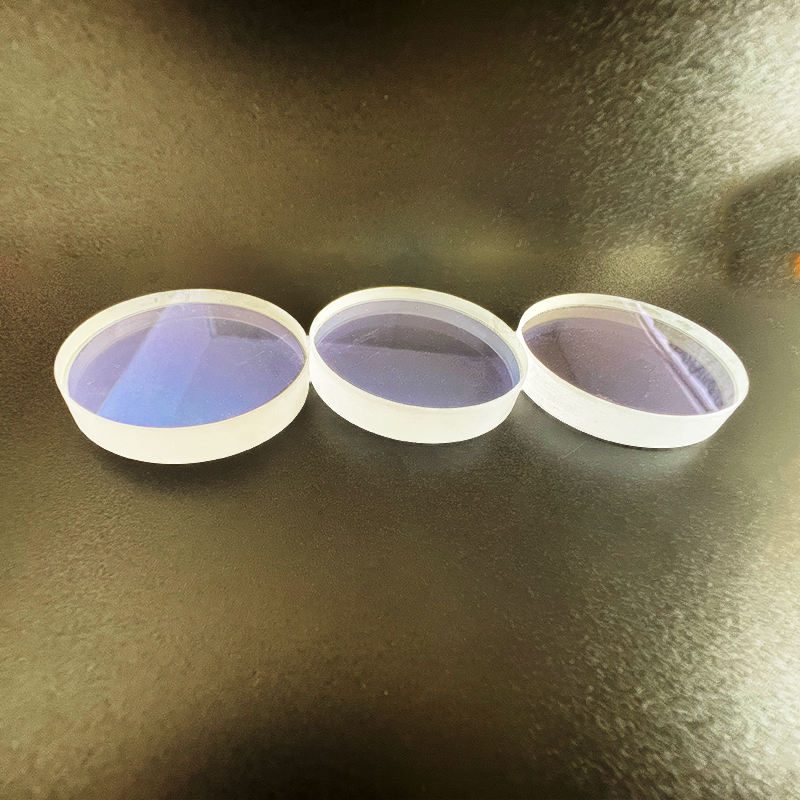

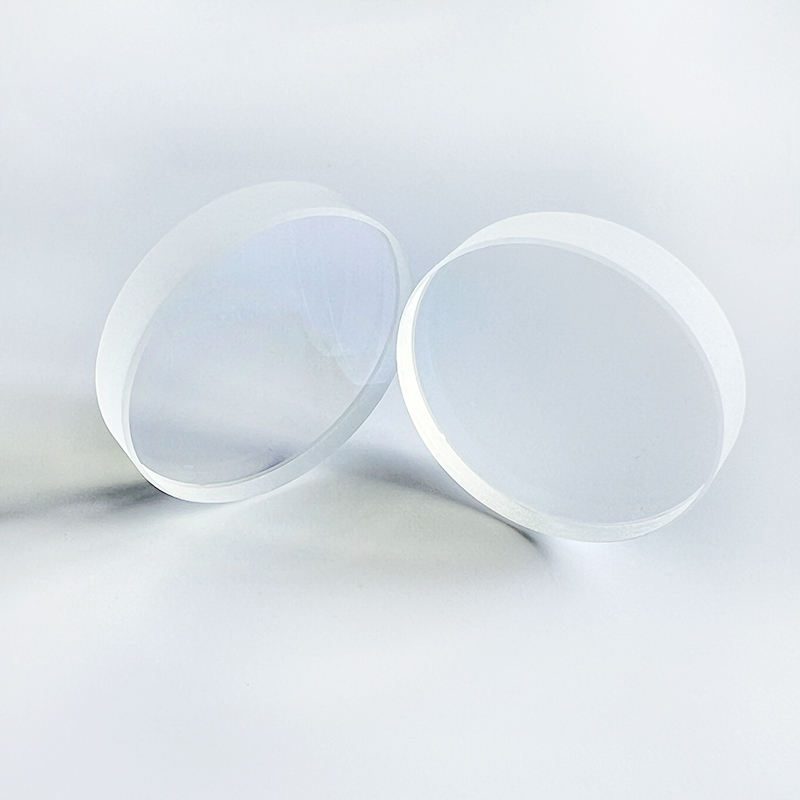

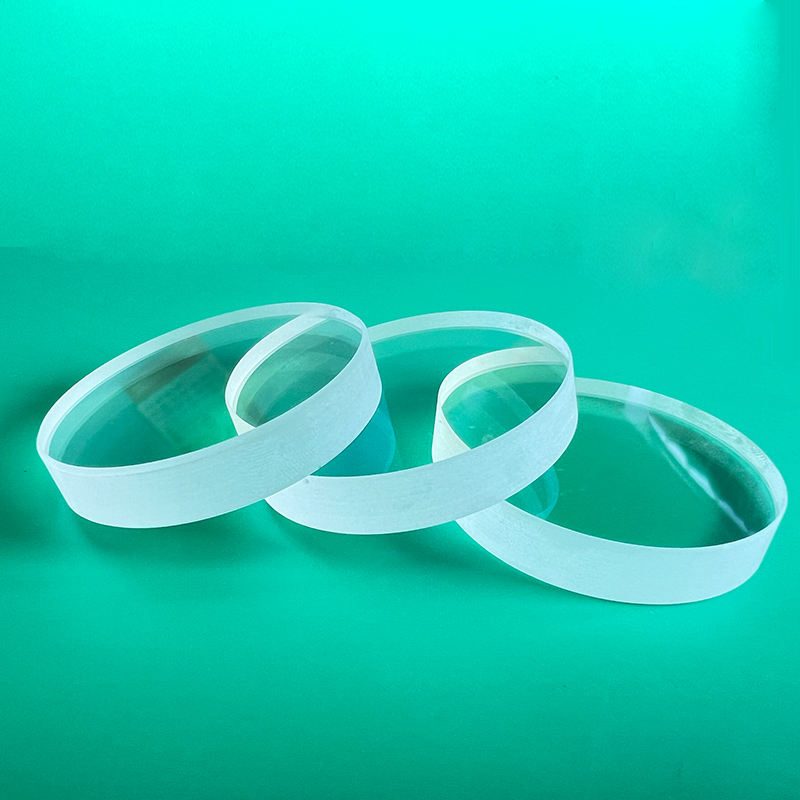

3x0.5 mm N-BK7 Optical Window, AR Coated
N-BK7 laser protective window for medical applications, customizable sizes, low MOQ, and high precision.
Core attributes
- Material
- N-BK7
- Diameter range
- 3–300 mm
- Thickness
- 0.5–50 mm
- Coating
- ar
- MOQ
- 10pcs
Product facts
Key attributes
- Material
- N-BK7
- Diameter range
- 3–300 mm
- Thickness
- 0.5–50 mm
- Coating
- ar
- MOQ
- 10pcs
Product description
The N-BK7 laser protective window is designed for applications in the medical field, offering excellent performance across a broad wavelength range of 0.4 to 1.7 μm. With customizable sizes from 3 to 300 mm in diameter and thicknesses between 0.5 and 50 mm, this window meets diverse project requirements. Its surface quality is rated at 60/40, ensuring reliable optical performance for sensitive applications.
Key Features
- Broad wavelength compatibility (0.4 - 1.7 μm) for versatile applications.
- Customizable sizes (3-300 mm diameter) to fit specific project needs.
- Low minimum order quantity (MOQ of 10 pcs) for flexible procurement.
- Surface flatness tolerance of Lambda/10 to Lambda/4 for high precision.
- OEM and ODM support available for tailored solutions.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 151.5 x 25.2 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | 3 mm |
| Thickness | 0.5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | 10pcs |
Full Specifications
| Parameter | Value |
|---|---|
| Type | laser protective window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | custom |
| Moq | 10pcs |
| Surface Flatness | Lambda/10~ Lambda/4 |
| Wavelength | 1064nm |
| Diameter Tolerance | 0.00/-0.05mm |
FAQ
What is the minimum order quantity?
The minimum order quantity is 10 pieces.
Can I get custom sizes?
Yes, sizes can be customized from 3 to 300 mm in diameter.
