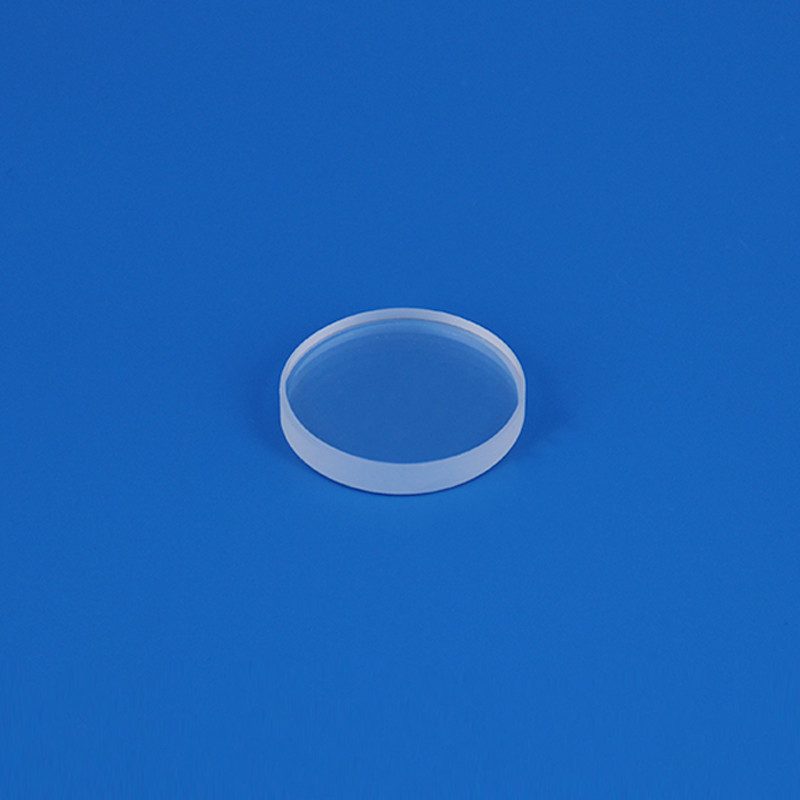

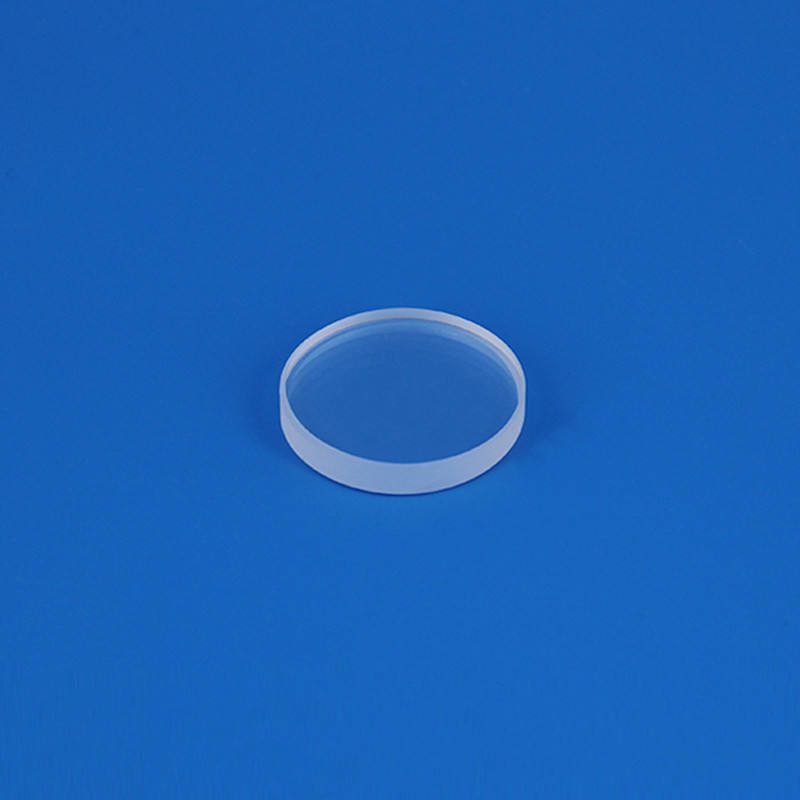

50x3 mm N-BK7 Optical Window
N-BK7 optical window with 10/5 surface quality, L/4 flatness, and customizable options for precision applications.
Core attributes
- Material
- N-BK7
- Diameter range
- 50 mm
- Thickness
- 3 mm
Product facts
Key attributes
- Material
- N-BK7
- Diameter range
- 50 mm
- Thickness
- 3 mm
Product description
This N-BK7 optical window is designed for various applications requiring high-quality transmission and surface precision. With a thickness of 3.0 mm and a diameter of 50.0 mm, it is suitable for use in optical systems where surface quality and flatness are critical. The window features a surface quality rating of 10/5 and a surface flatness of L/4 at 633 nm, ensuring minimal distortion and high performance in demanding environments.
Key Features
- Surface quality of 10/5 for minimal optical distortion.
- Thickness tolerance of ±0.1 mm for precise fitting.
- Surface flatness of L/4 @ 633 nm for high accuracy applications.
- Customizable options available for OEM and ODM projects.
- Diameter of 50.0 mm suitable for a variety of optical setups.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 50 x 3 |
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | 50 mm |
| Thickness | 3 mm |
| Surface Quality | 10/5 |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | CUSTOM |
| Customized Support | OEM, ODM |
| Thickness Tolerance | ±0.1mm |
| Surface Flatness | L/4 @633nm |
| Parallelism | 3" |
FAQ
Is custom sizing available?
Yes, customizable options are available for OEM and ODM projects.
What is the thickness tolerance?
The thickness tolerance is ±0.1 mm.
