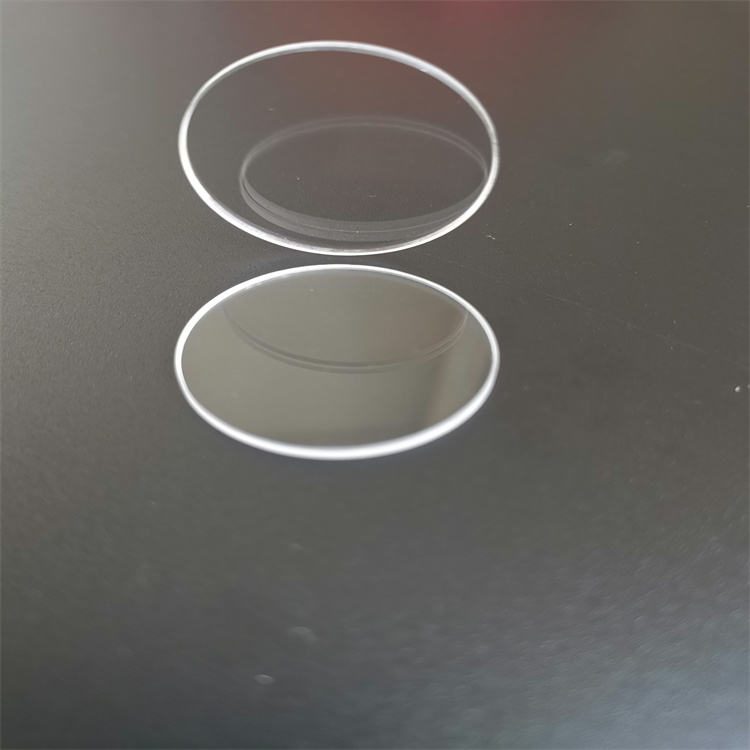

5 mm N-BK7 Optical Window, AR Coated
Custom N-BK7 glass windows with diameter options from 5.0 to 200.0 mm for various optical applications.
Core attributes
- Material
- N-BK7
- Diameter range
- 5–200 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- N-BK7
- Diameter range
- 5–200 mm
- Coating
- ar, uncoated
Product description
This N-BK7 glass window is designed for diverse optical applications, including IR imaging and laser systems. With a diameter range of 5.0 to 200.0 mm, it supports various configurations such as convex, concave, and achromatic lenses. The uncoated option allows for flexibility in transmittance requirements, making it suitable for custom applications in research and medical devices.
Key Features
- Diameter range: 5.0 to 200.0 mm for versatile application fit.
- Customizable options available for OEM, ODM, and OBM projects.
- Surface quality options of 40/20 to 60/40 for varying precision needs.
- Clear aperture of 90% ensures high light transmission efficiency.
- Centering tolerance of <1 arcmin for improved optical performance.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | 5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR), uncoated |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex Lens… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 year |
| Weight | based on design |
FAQ
Can I get custom sizes?
Yes, diameters can be customized from 5.0 mm to 200.0 mm.
What are the tolerances for this product?
The tolerance for edge thickness is +/-0.1 mm.
