1 / 6Optical Windows

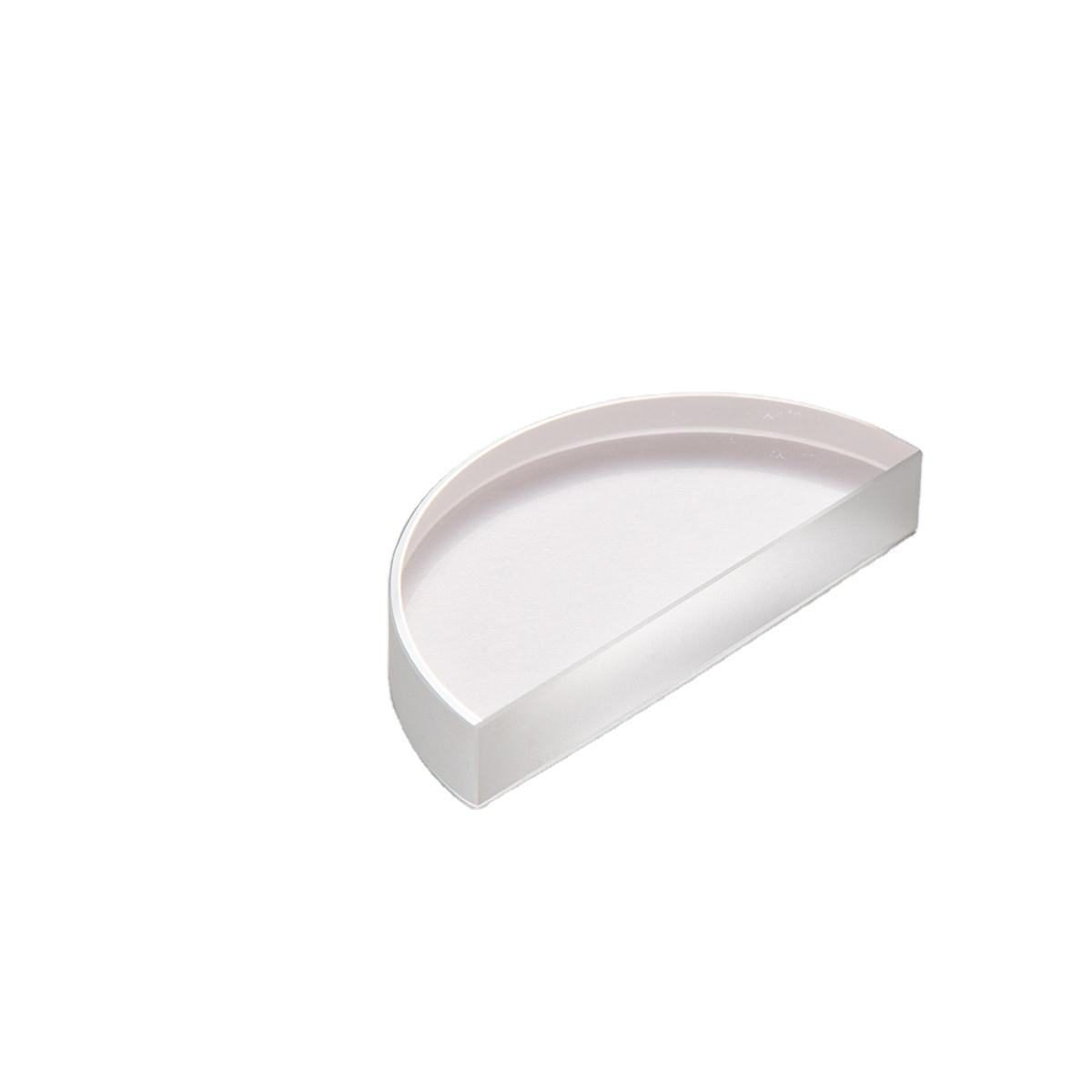

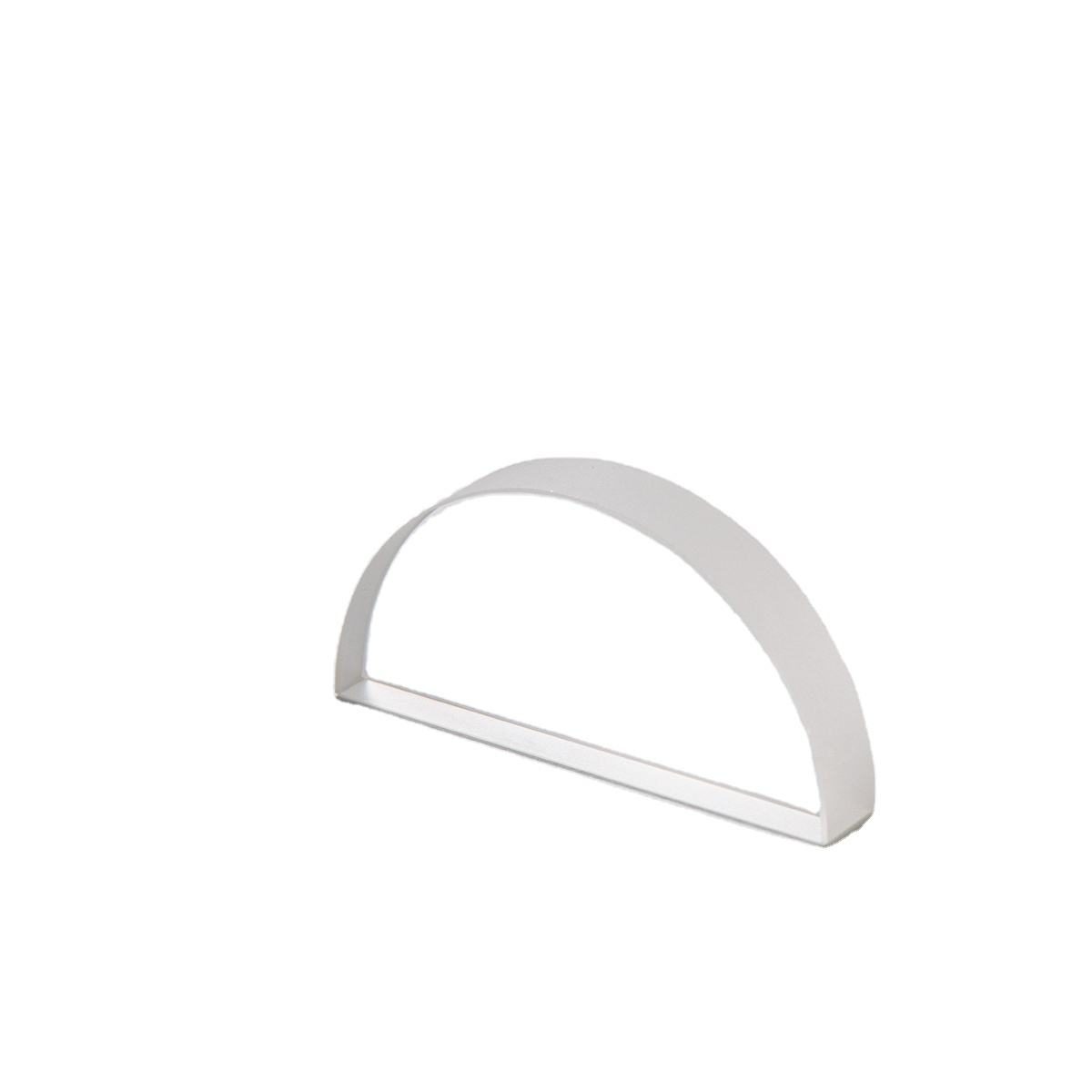

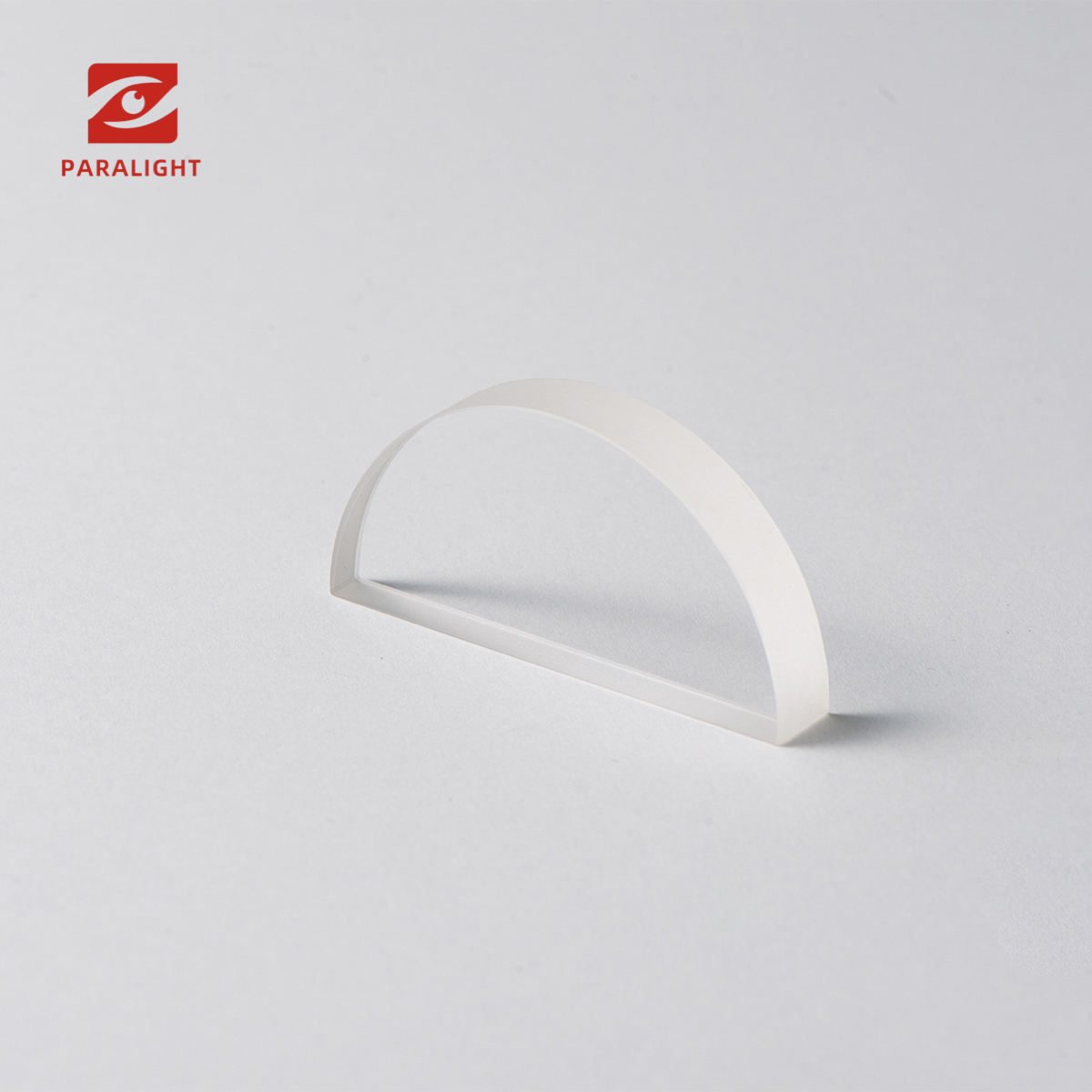

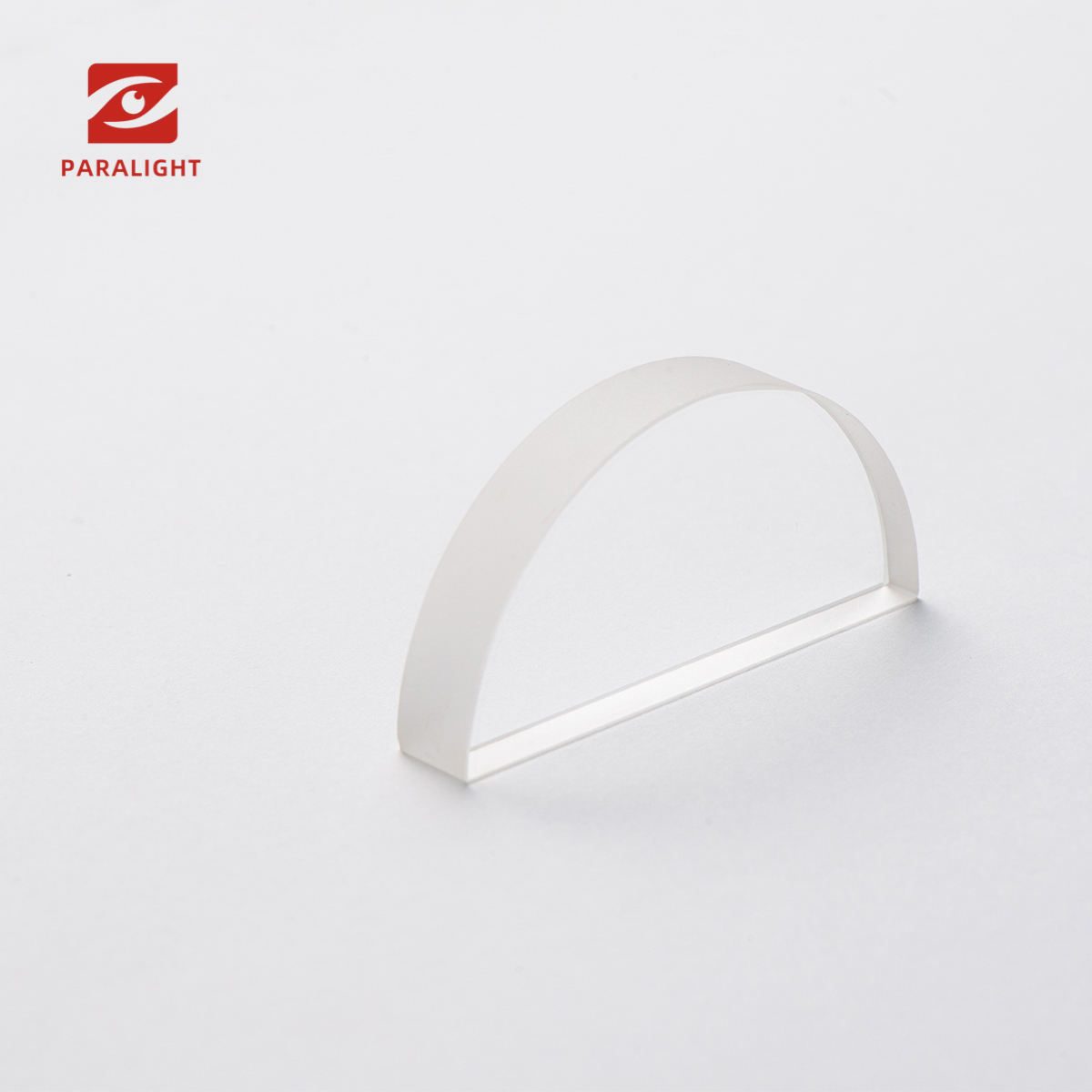

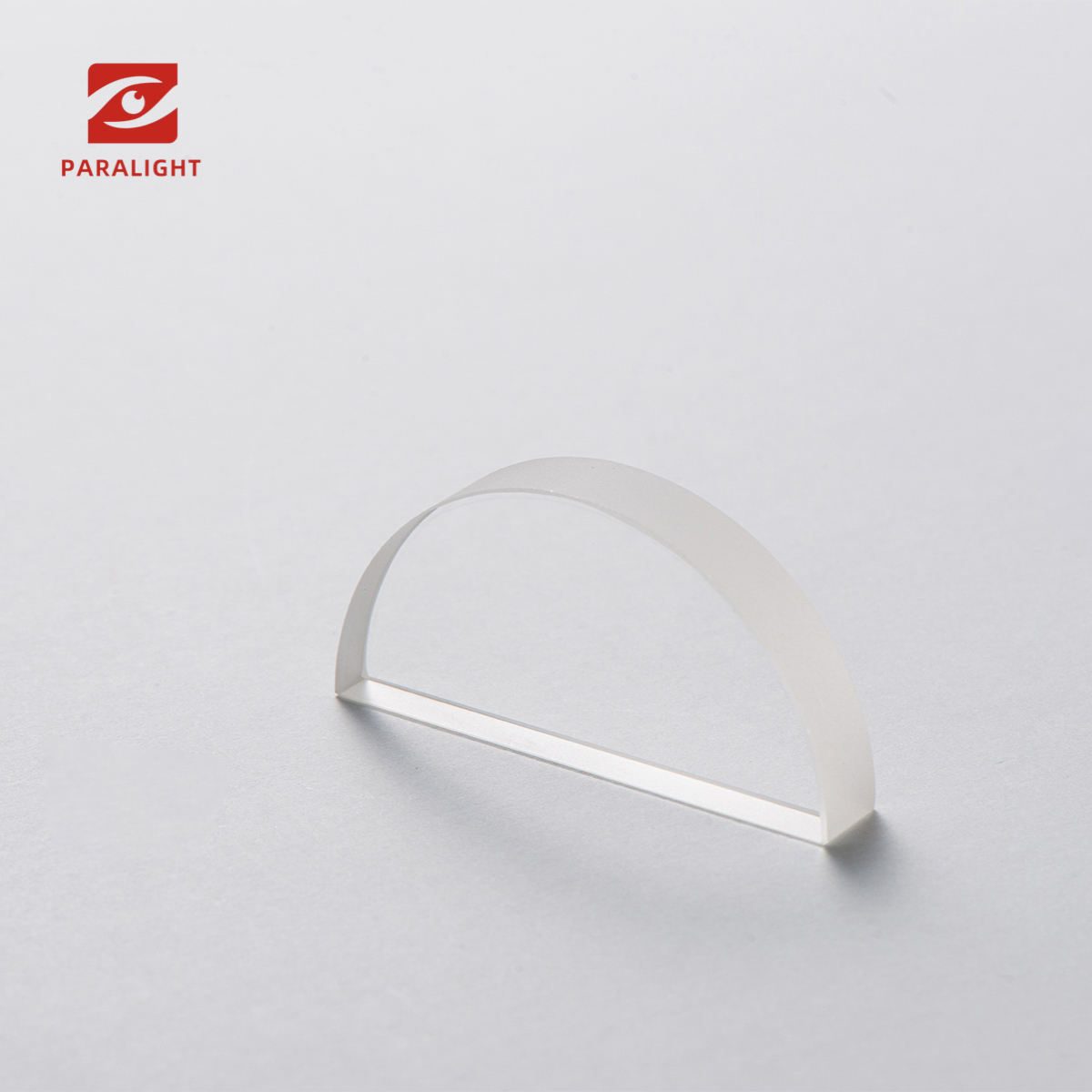

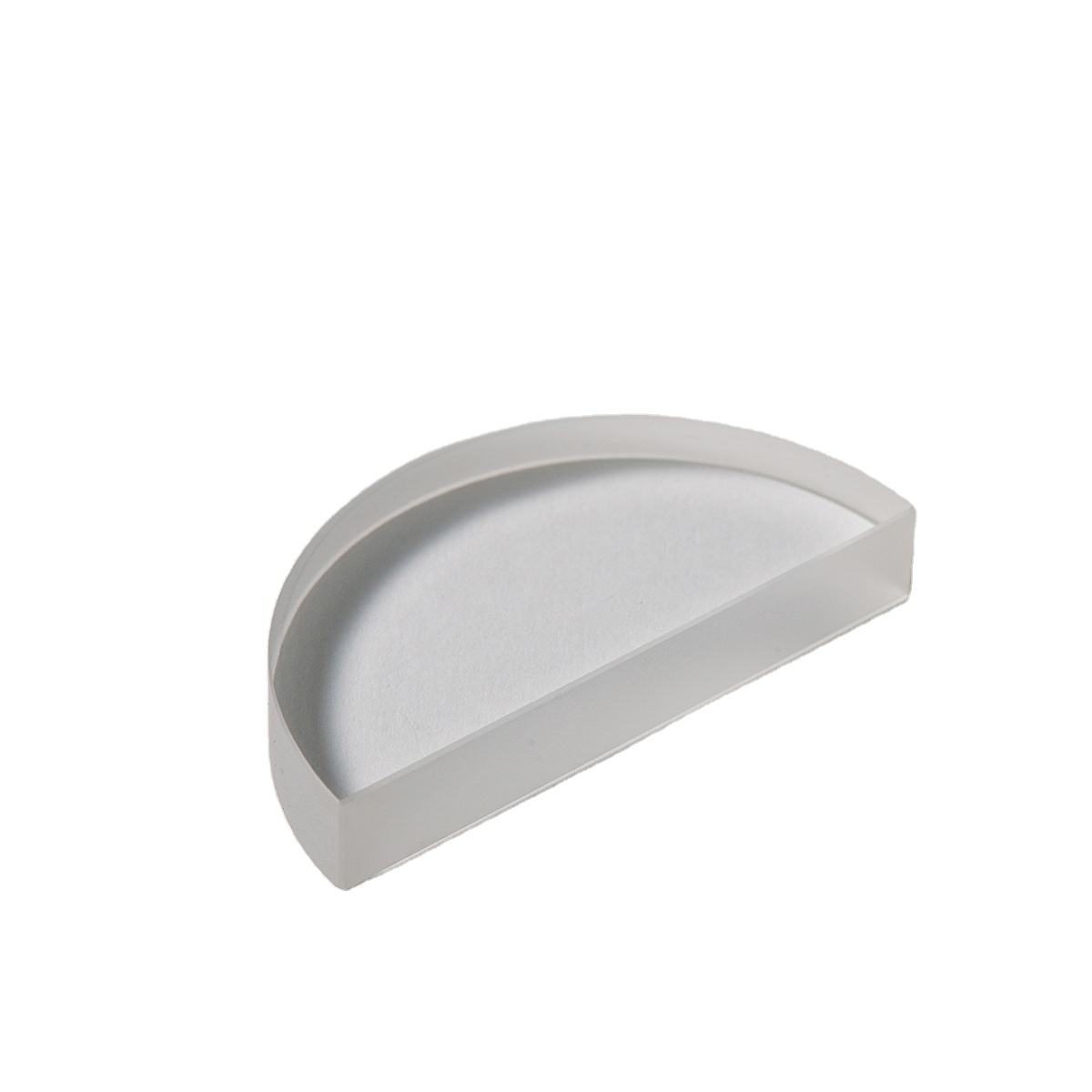

Custom Size N-BK7 Optical Window, AR Coated
Convex lens in N-BK7 with customizable thickness and anti-reflective coating for clear imaging.
Core attributes
- Material
- N-BK7
- Thickness
- 1–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- N-BK7
- Thickness
- 1–50 mm
- Coating
- ar
Product description
This convex lens made from N-BK7 material is designed to enhance optical performance across various applications, including solar panels and telescopes. With thickness options ranging from 1.0 mm to 50.0 mm, it provides versatility for different imaging needs. The anti-reflective coating minimizes glare, ensuring clear imaging and high light permeability. This lens is ideal for applications requiring precision and reliability.
Key Features
- Thickness range: 1.0 mm to 50.0 mm for versatile application fit.
- Anti-reflective coating reduces glare, enhancing visibility in various conditions.
- Diameter tolerance of +0/-0.1 mm ensures precise fitting.
- Thickness tolerance of ±0.1 mm guarantees consistent performance.
- Clear aperture greater than 90% for optimal light transmission.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | Custom |
| Thickness | 1 mm |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM; OBM OEM ODM |
| Warranty | 3 Years |
| Weight | 0.05kg(0.11lb) |
| Diameter Tolerance | +0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Clear Aperture | >90% |
FAQ
What are the available thickness options?
Thickness options range from 1.0 mm to 50.0 mm.
Is custom sizing available?
Yes, customizable design options are available for specific needs.
