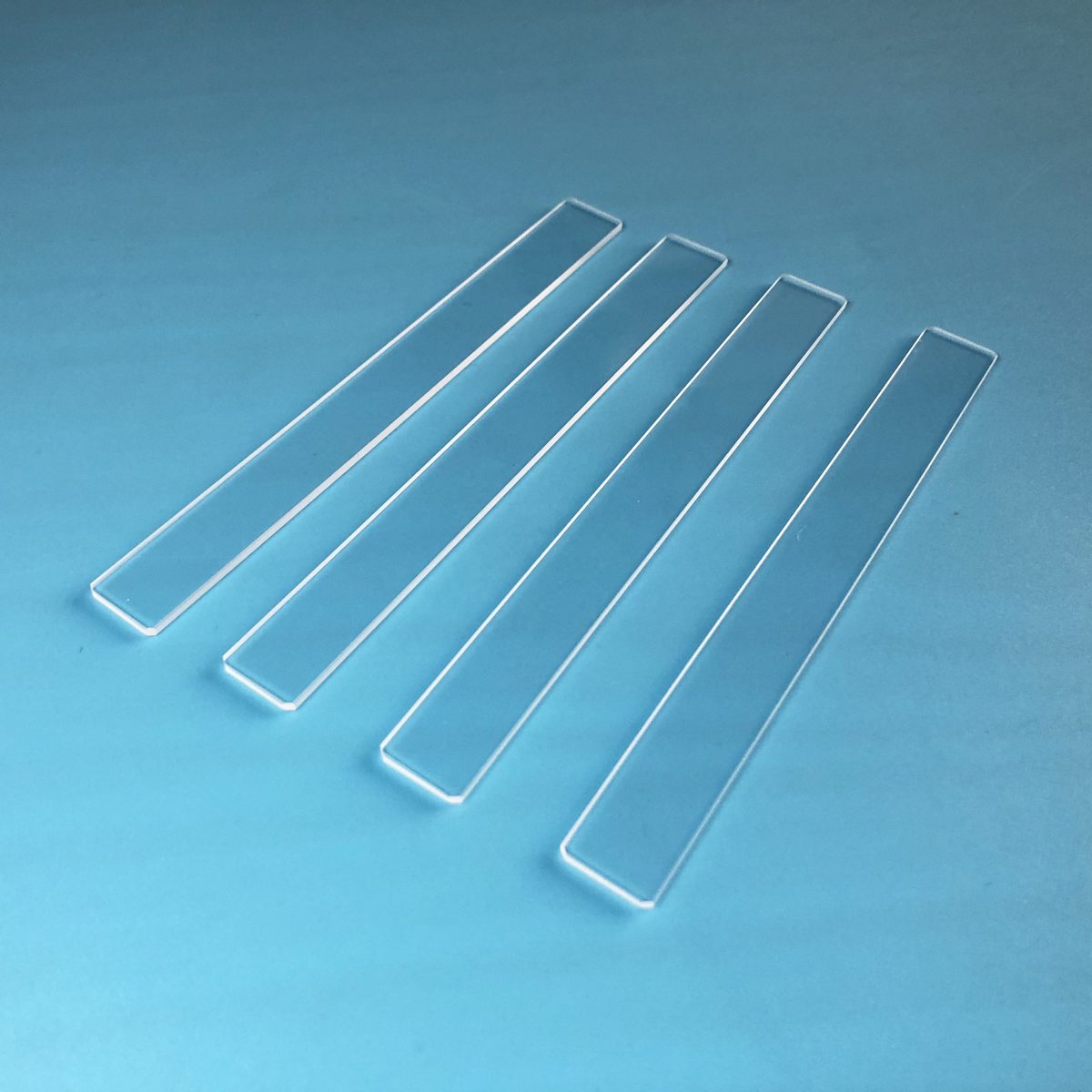

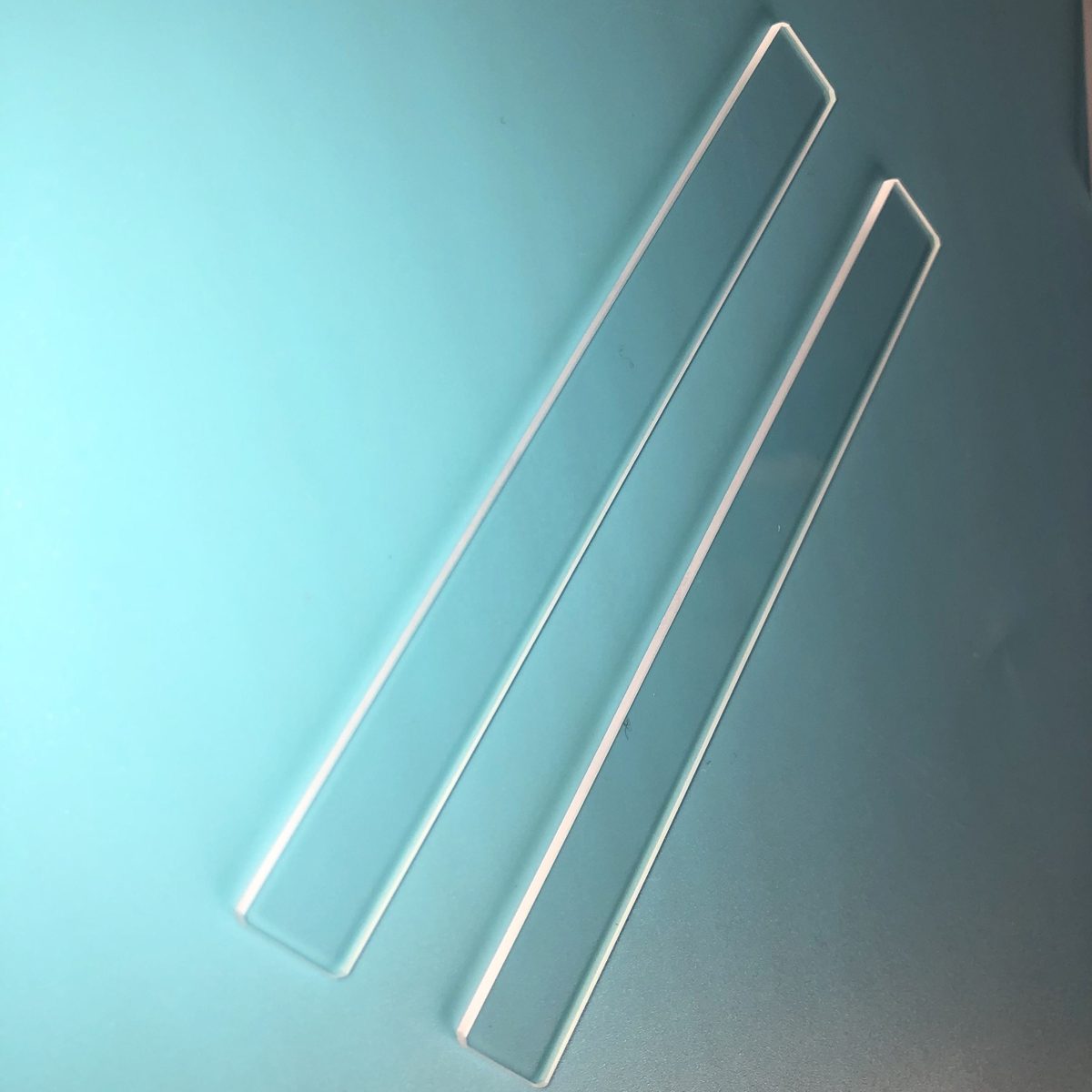

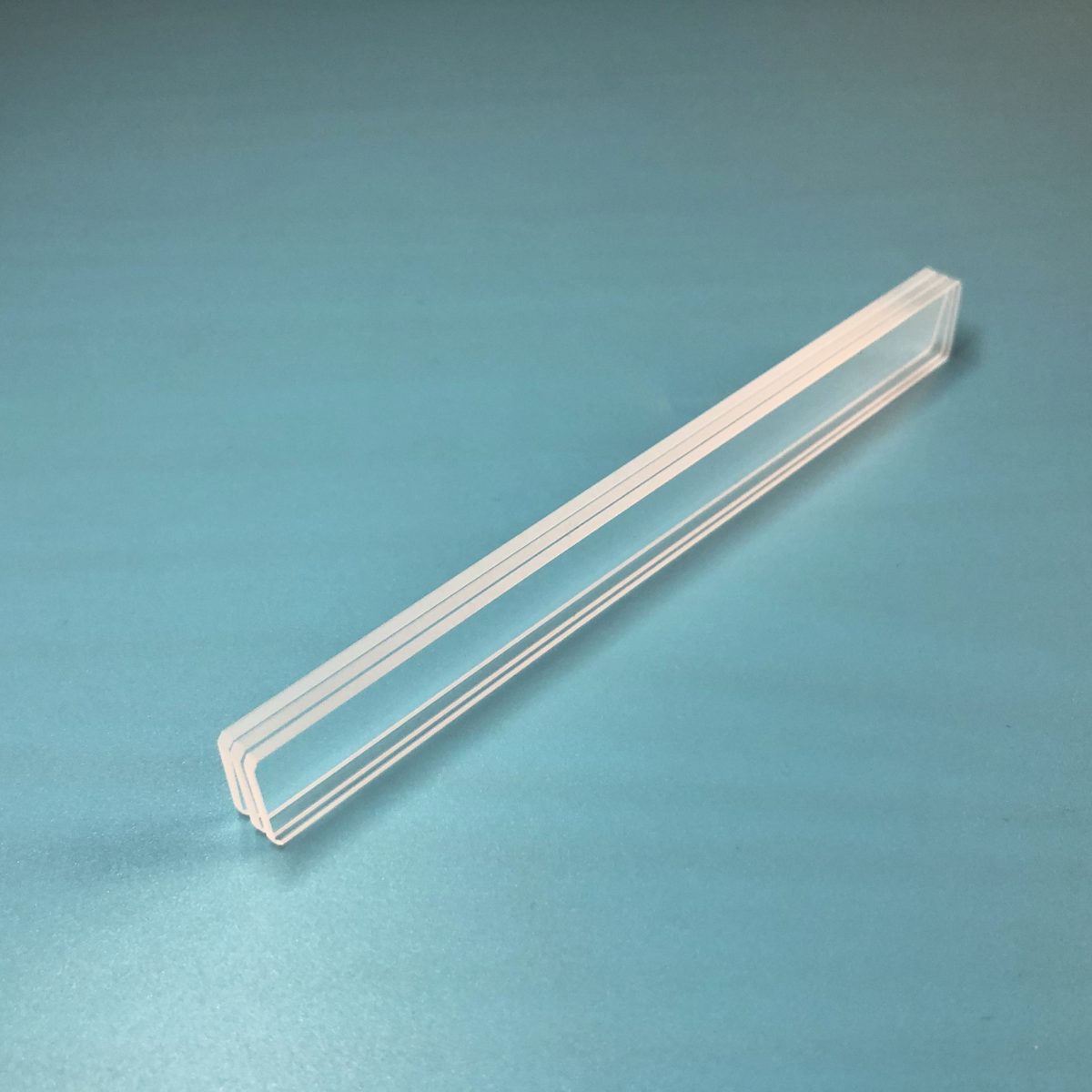

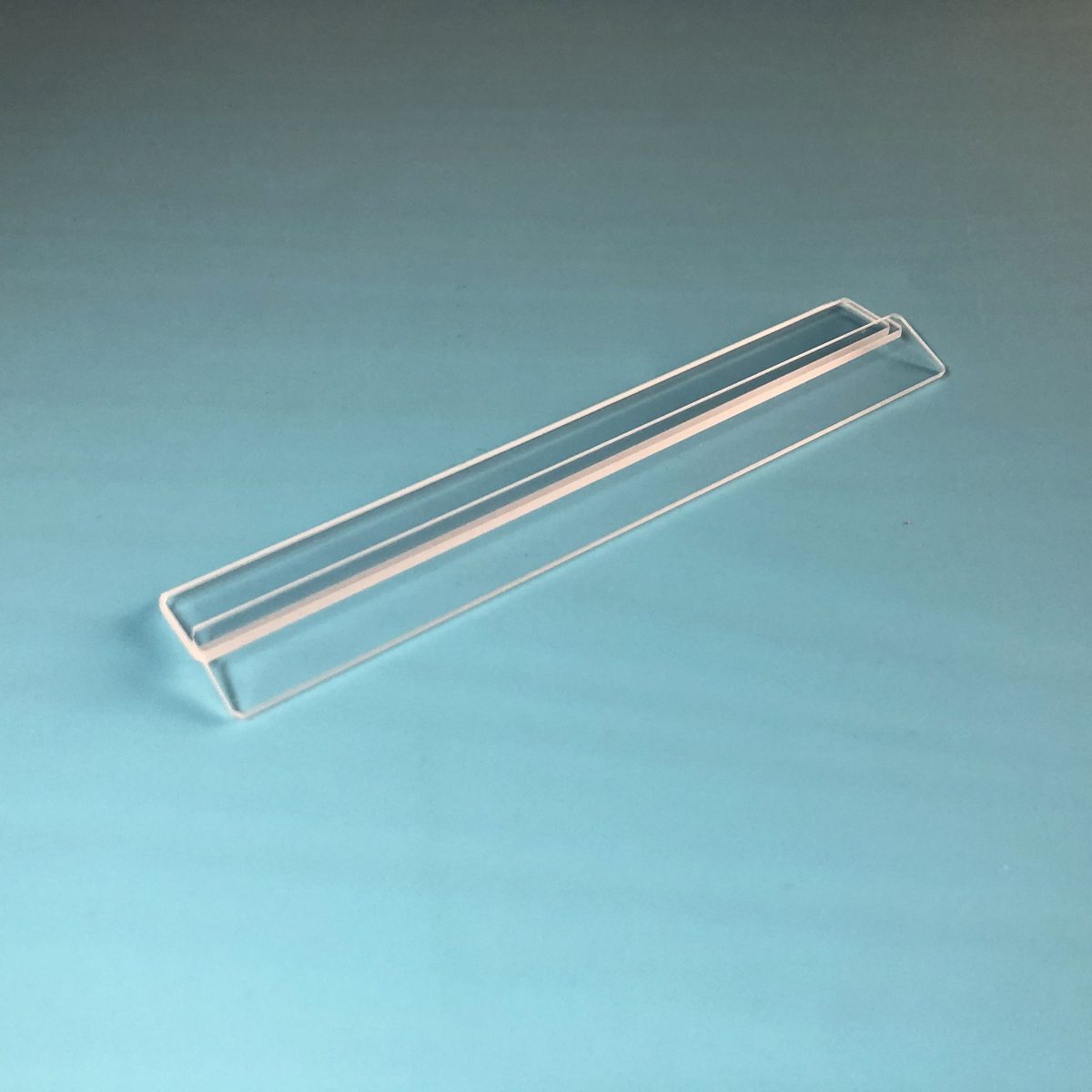

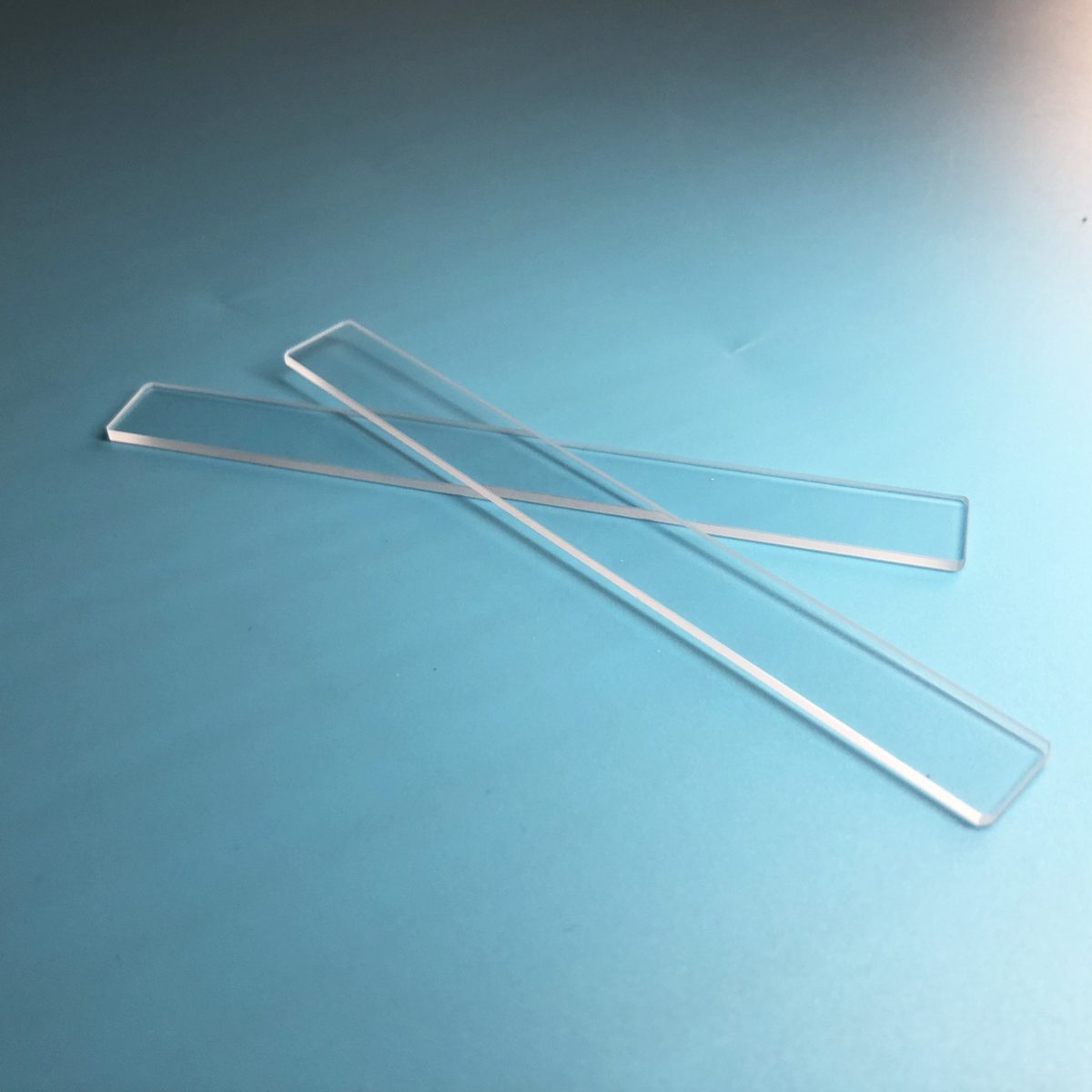

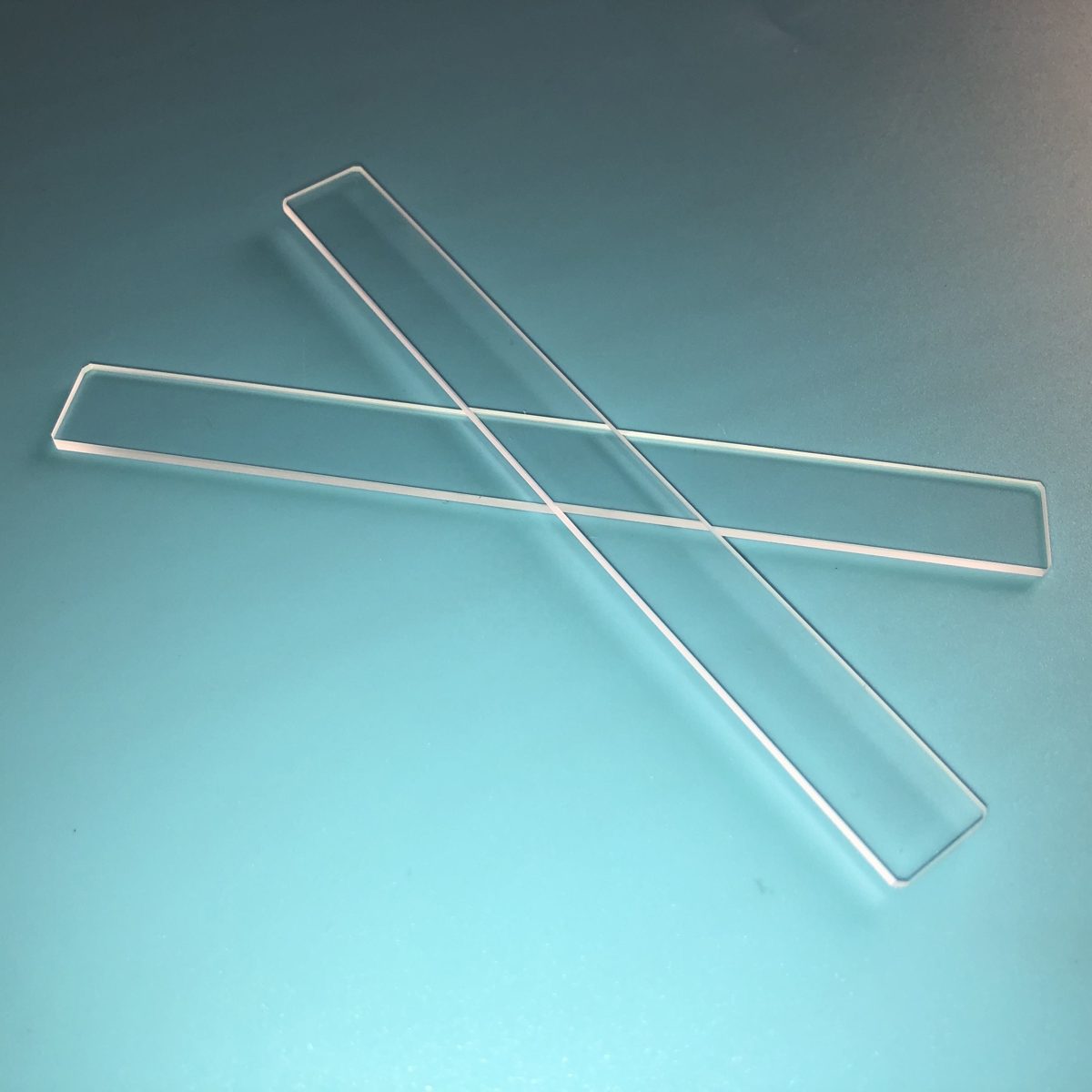

Custom Size N-BK7 Optical Window
N-BK7 Precision Windows for medical applications with high tolerance, customizable sizes, and minimal distortion.
Core attributes
- Material
- N-BK7
- Thickness
- 1–20 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- N-BK7
- Thickness
- 1–20 mm
- Coating
- uncoated
Product description
N-BK7 Precision Windows are optimized for medical applications, providing high tolerance designs that minimize beam distortion and scatter. With a thickness range of 1.0 to 20.0 mm and a clear aperture of 90%, these uncoated windows are suitable for a variety of optical setups. Their surface quality of 60/40 ensures reliable performance in sensitive environments, making them ideal for low power laser applications and medical analyzers.
Key Features
- Thickness range: 1.0 to 20.0 mm for versatile application fit.
- Surface quality: 60/40 ensures minimal distortion and scatter.
- Clear aperture: 90% maximizes light transmission.
- Parallelism: 3 arcmin for precise optical alignment.
- Custom OEM support available for tailored solutions.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Diameter | Custom |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Coating | uncoated |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat; Precision Windows |
| Customized Support | OEM |
| Warranty | 1 Year |
| Weight | 0.1 |
| Substrate | K9 glass |
| Clear Aperture | 90% |
| Parallelism | 3arcmin |
| Surface Flatness | L/4 |
FAQ
What are the dimensional tolerances for these windows?
Dimensional tolerance is +/-0.1 mm.
Can I get custom sizes for these precision windows?
Yes, the diameter can be 100 mm or customized to customer requirements.
