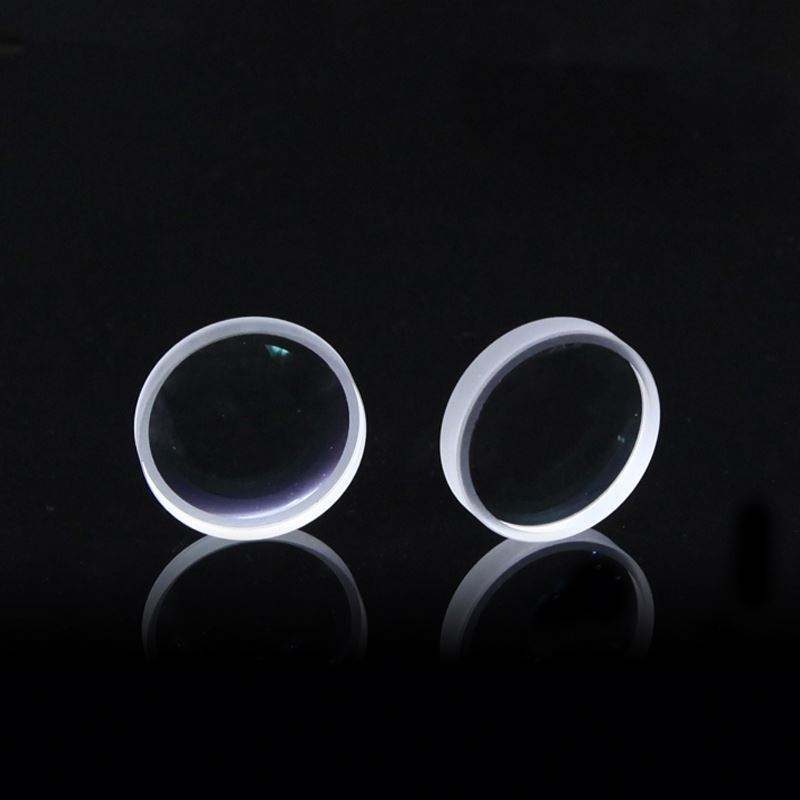

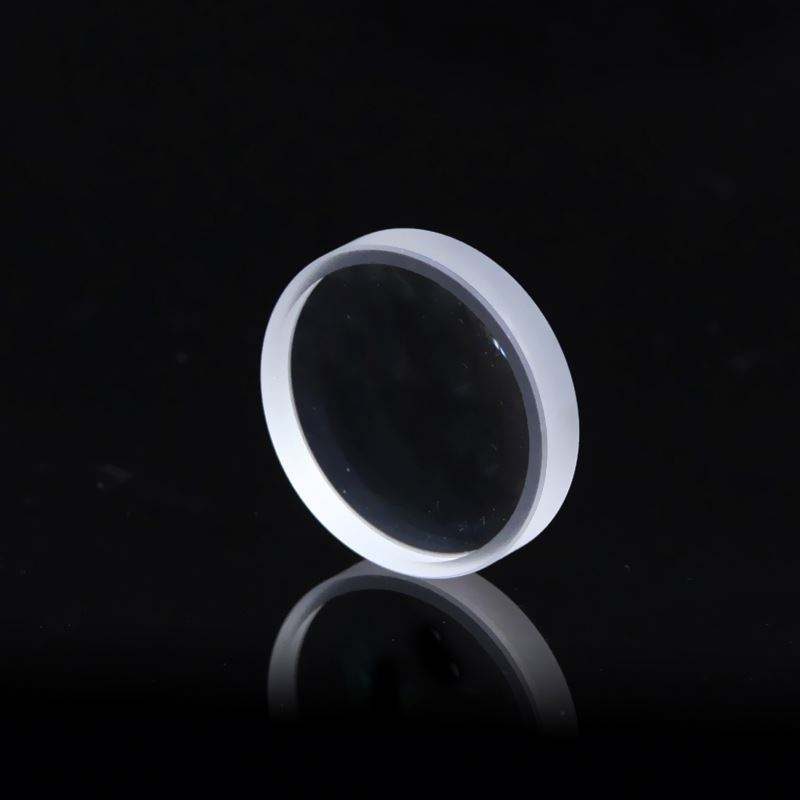

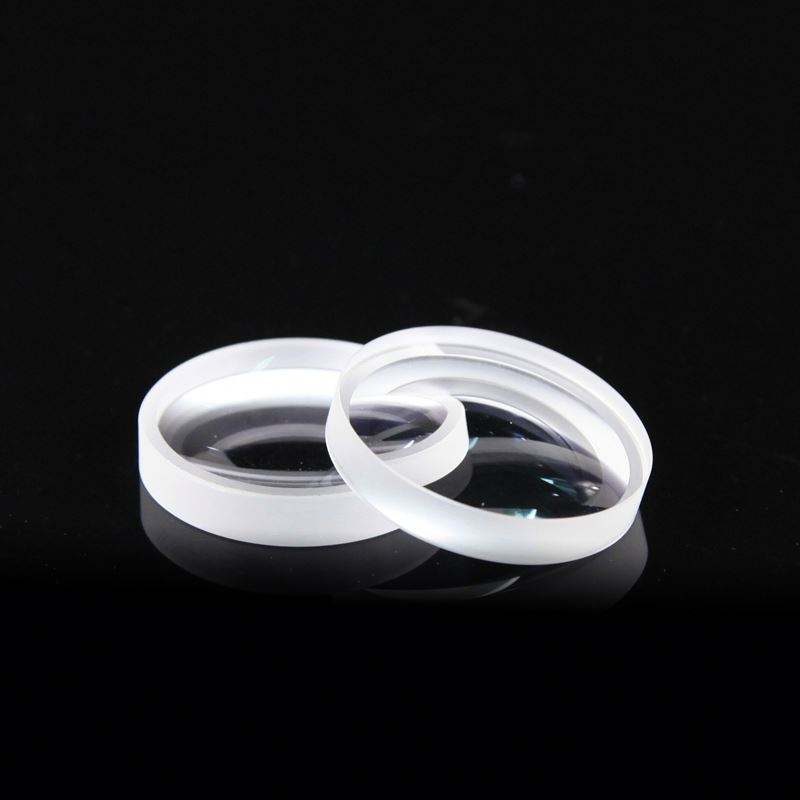

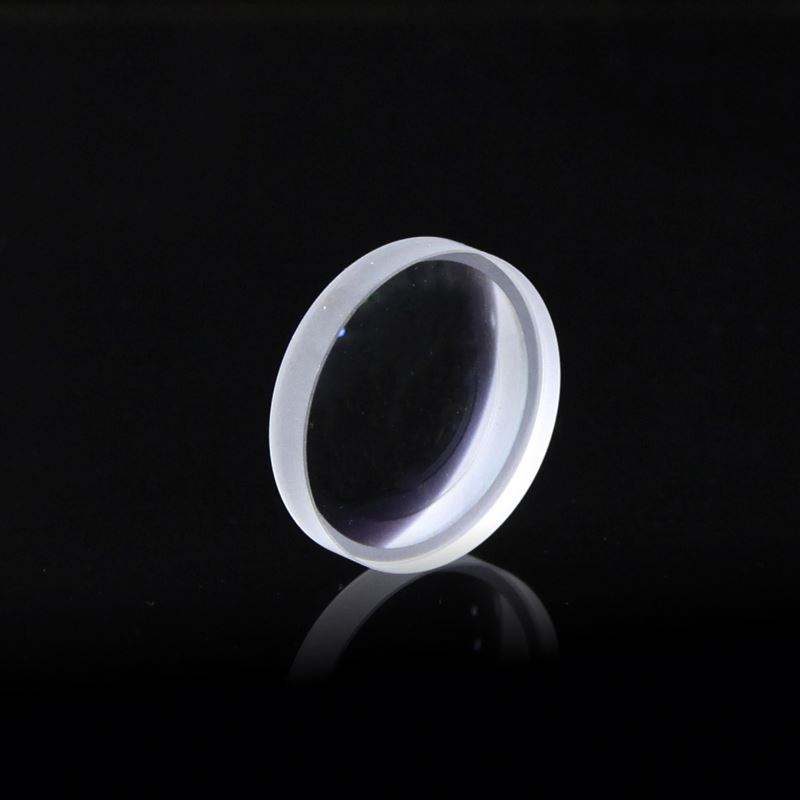

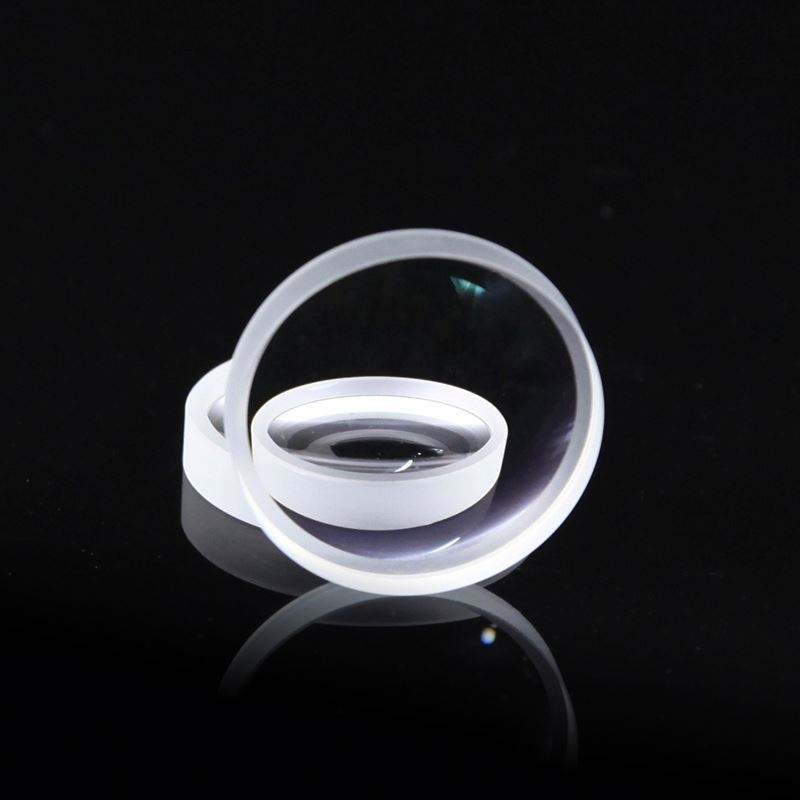

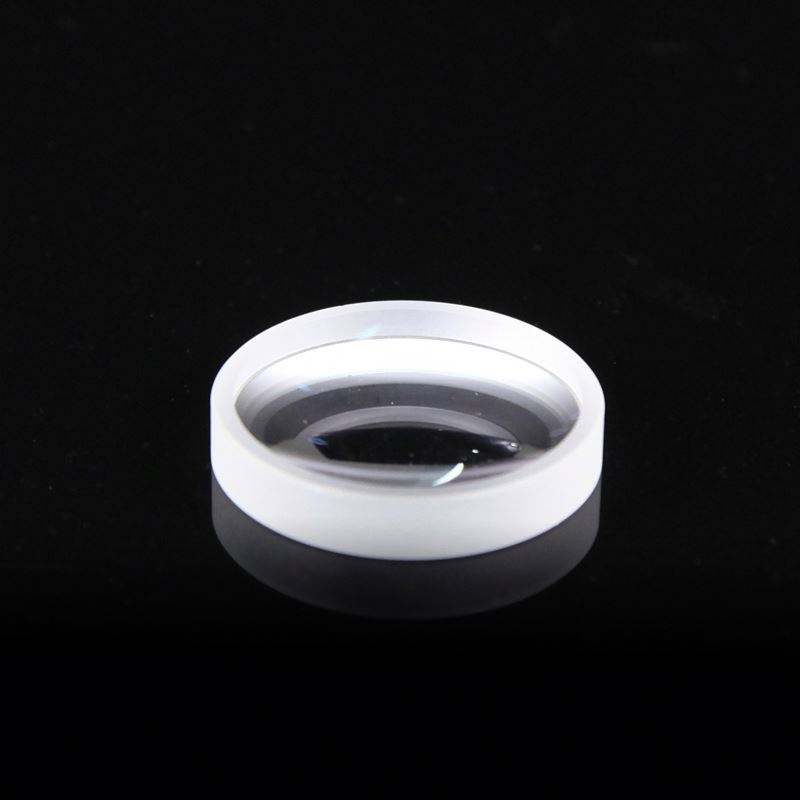

12 mm N-BK7 Plano-concave Lens, AR Coated
Explore our N-BK7 plano-concave lens for medical and microscopy applications, featuring a 12mm diameter and 60/40 surface quality.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 12 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 12 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The plano-concave lens made from N-BK7 material is designed to expand beams and project images in medical and microscopy applications. With a diameter of 12mm and a surface quality of 60/40, it ensures reliable optical performance. The lens features anti-reflective coatings, enhancing transmittance and minimizing losses. Its central 90% clear aperture allows for optimal light passage, making it suitable for various imaging systems. This lens is an ideal choice for engineers seeking precision in their optical setups.
Key Features
- Diameter: 12mm for versatile integration in optical systems.
- Surface quality of 60/40 ensures reliable imaging performance.
- Central 90% clear aperture maximizes light transmission.
- Flatness of lambda/4 enhances optical clarity.
- OEM, ODM, and OBM support available for custom solutions.
Applications
Medical, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Diameter | 12 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.02 |
| Color | Transparent |
| Edge Thickness | 2mm |
| Flatness | lambda/4 |
| Clear Aperture | Central 90% |
FAQ
Is custom sizing available?
Custom sizing options are available through OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
