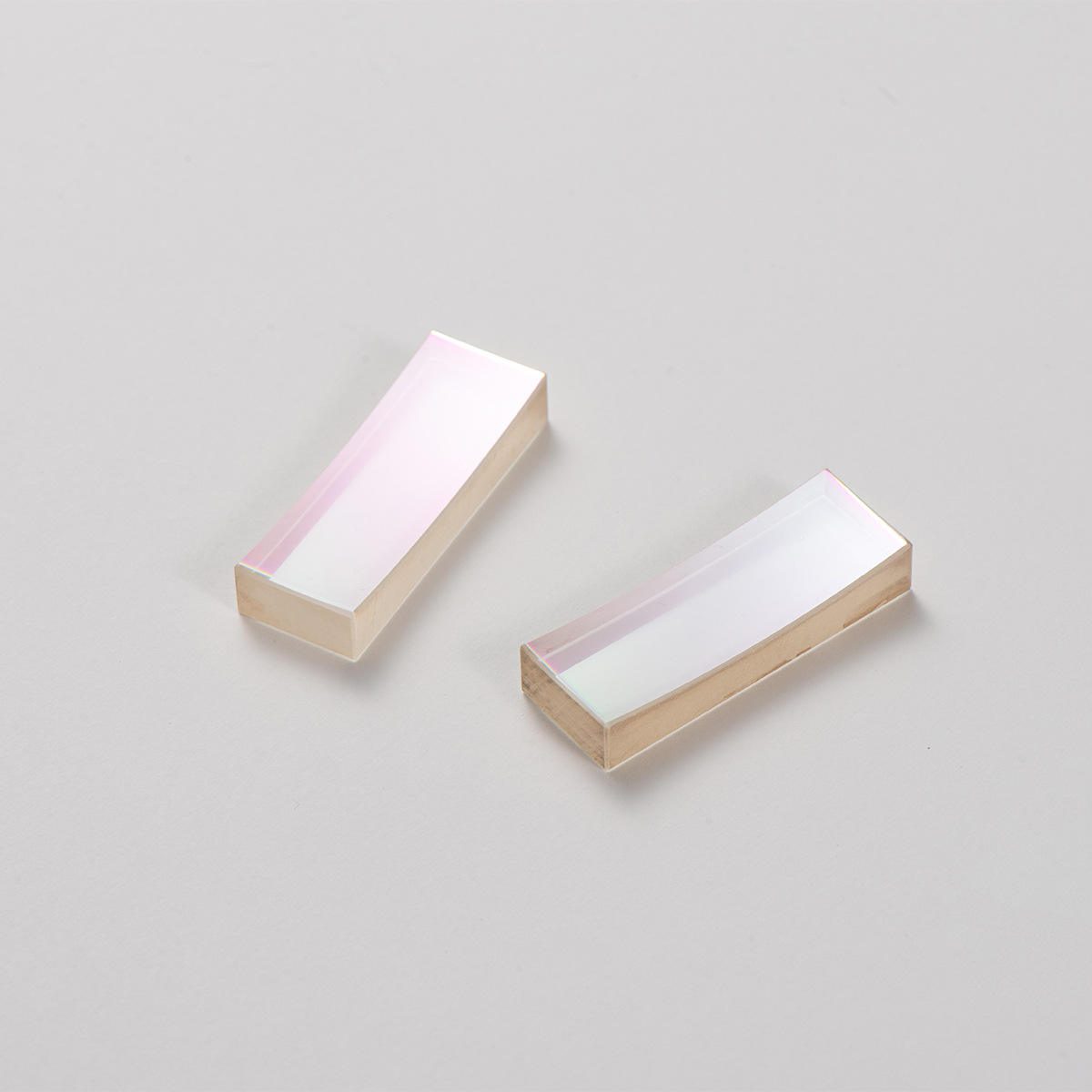

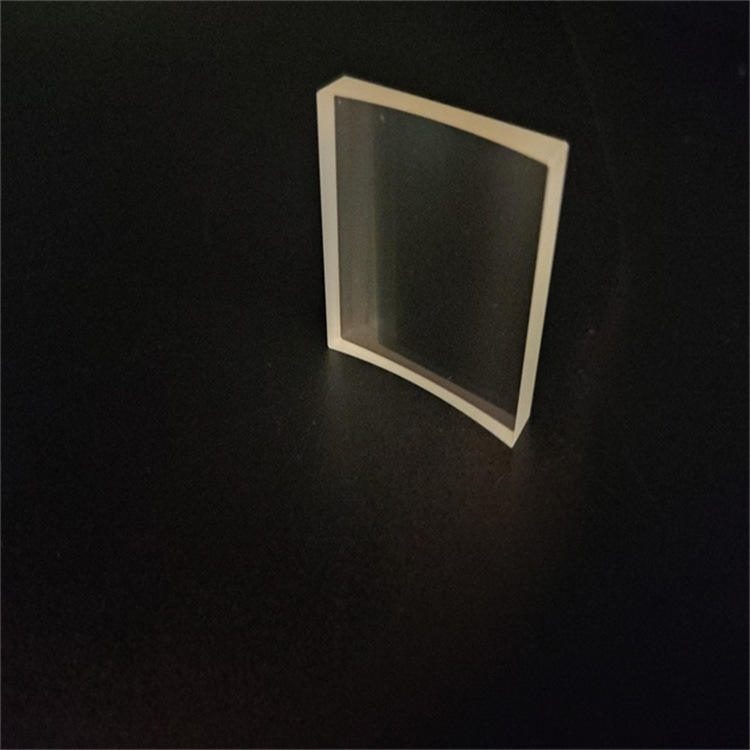

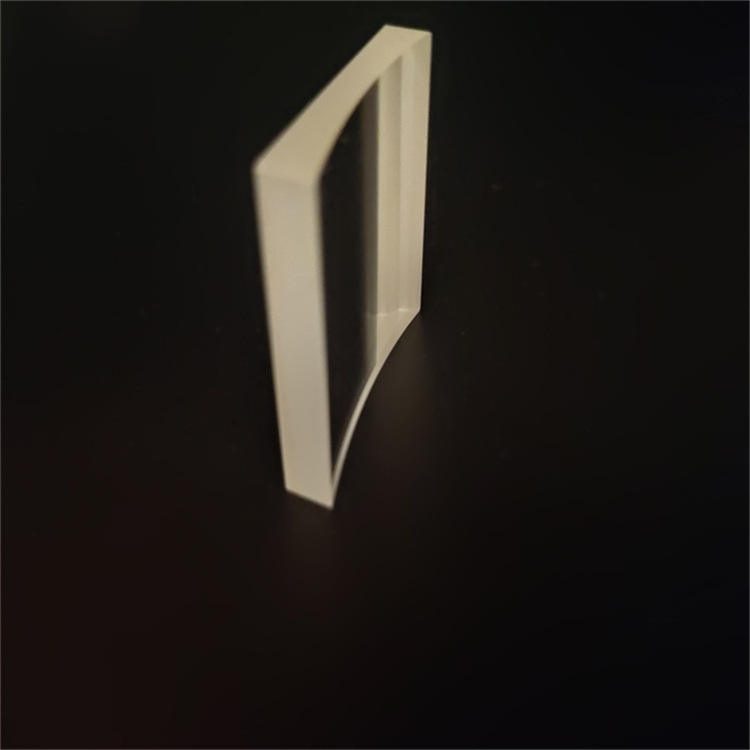

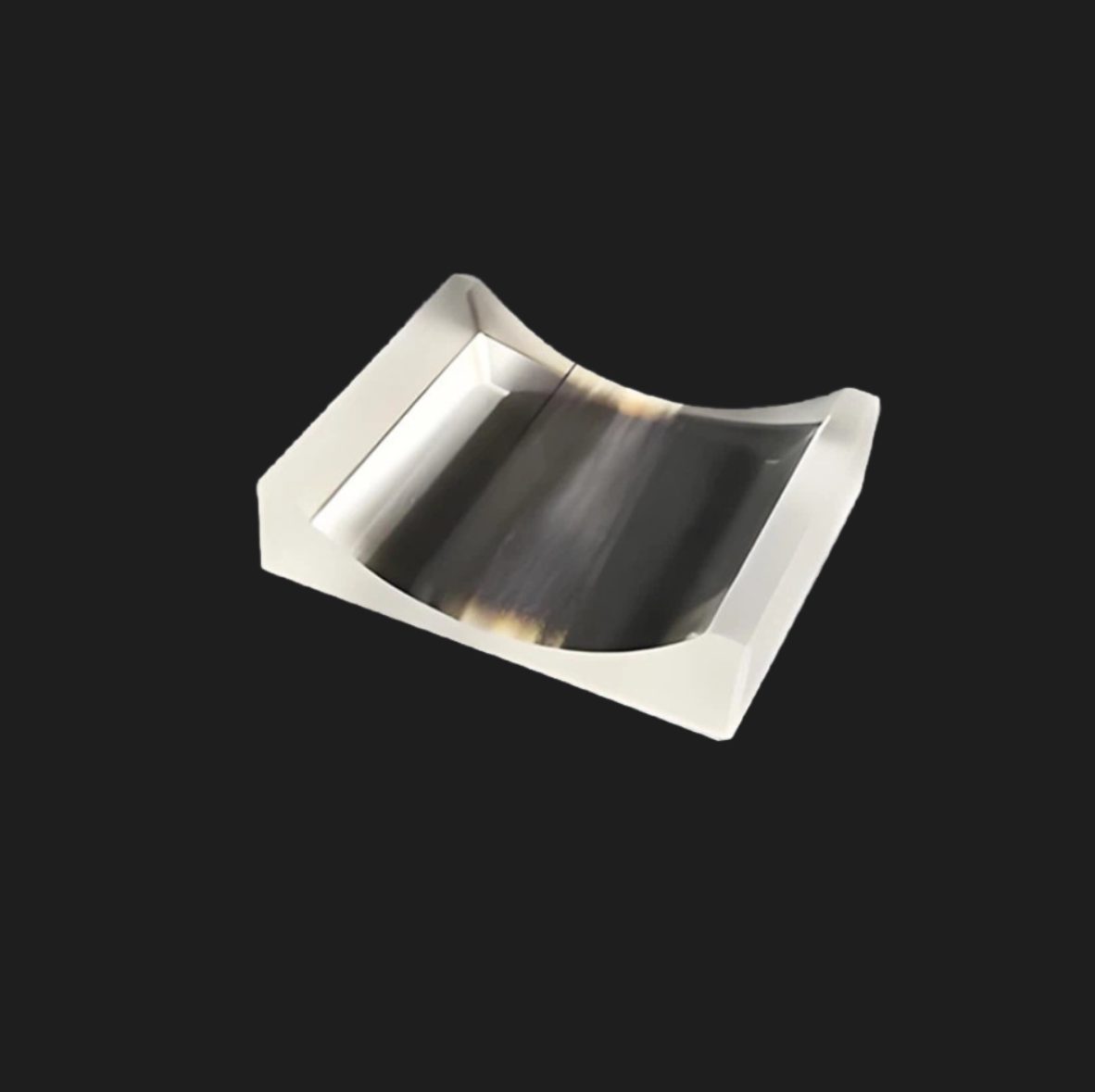

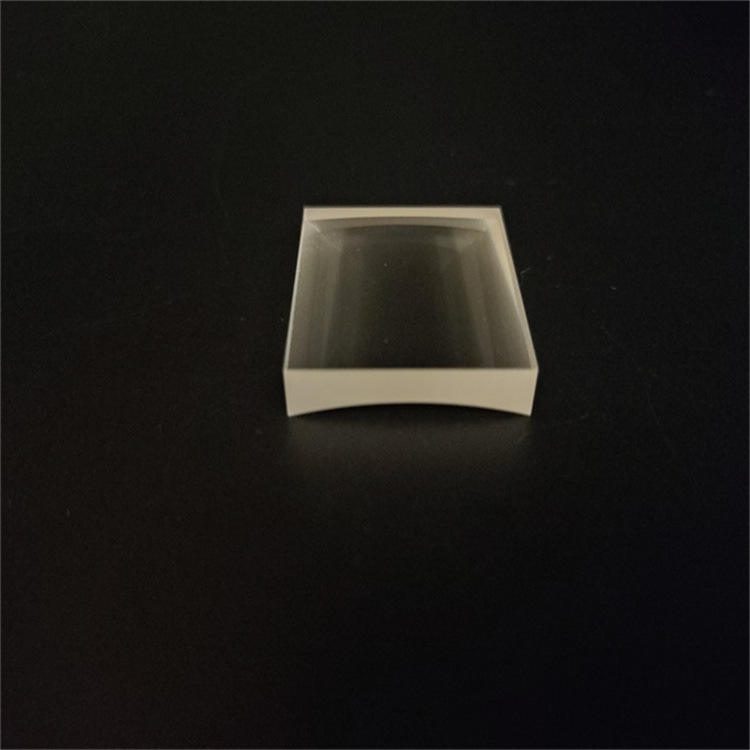

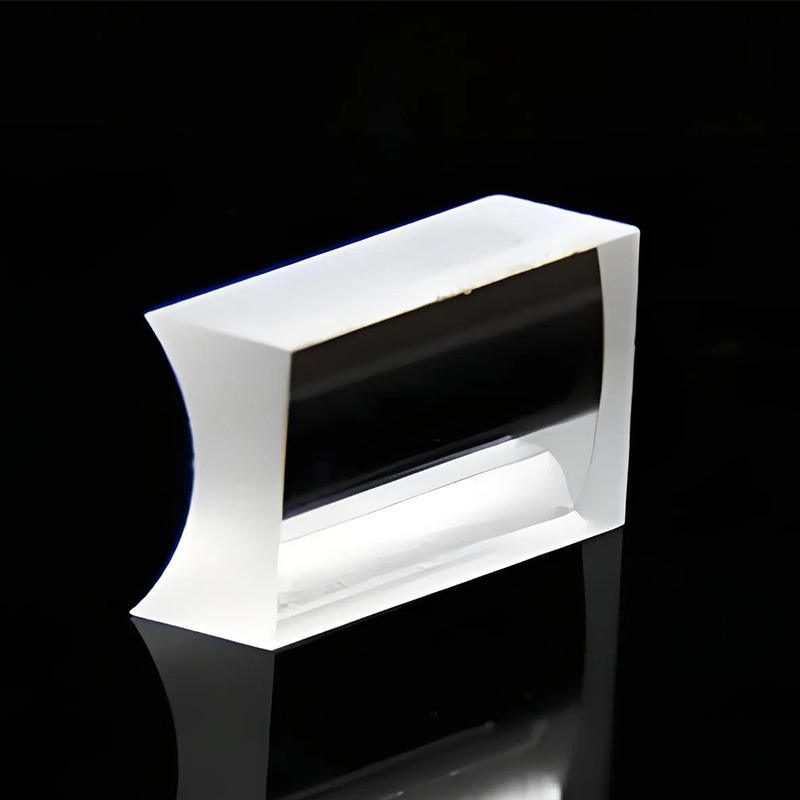

150 mm N-BK7 Plano-concave Lens, AR Coated
Explore our plano-concave cylindrical lens, ideal for thermal imaging and machine vision applications, with high transmittance and customizable options.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 150 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 150 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The plano-concave cylindrical lens made from N-BK7 is ideal for applications in thermal imaging, machine vision, and medical devices. With a diameter of 150 mm and a transmittance of 99.5% in the 400-700 nm range, this lens ensures high optical performance for various imaging systems. Its AR coating enhances efficiency, making it suitable for a wide range of optical instruments. Custom sizes can be accommodated, providing flexibility for specific applications.
Key Features
- High transmittance of 99.5% @ 400-700 nm for optimal light efficiency.
- Diameter of 150 mm, suitable for various imaging applications.
- Customizable through OEM and ODM services for tailored solutions.
- Lightweight design at 0.03 kg for easy integration into devices.
- Robust support for rapid prototyping to meet project timelines.
Applications
Thermal Imaging, Machine Vision, Security, Medical, Microscopy, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Diameter | 150 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano concave cylindrical lens; cylindrical lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 0.03 |
| Use | Optical Instrumetns |
| Wavelength | 400-700nm |
| Transmittance | 99.5@400-700nm |
FAQ
Can I get custom sizes?
Yes, custom sizes from 1 mm to 300 mm are available.
What is the minimum order quantity?
The minimum order quantity is not specified; please inquire for details.
