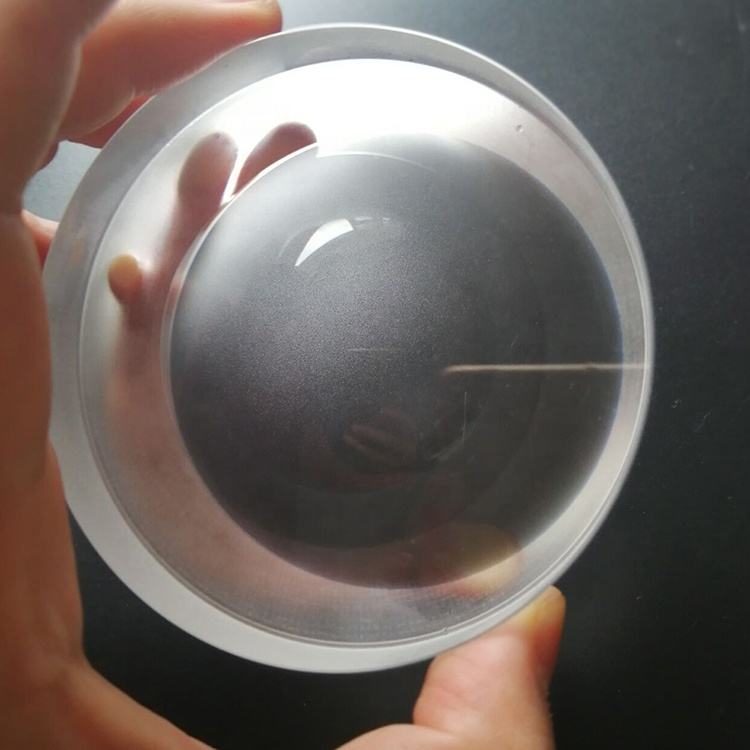

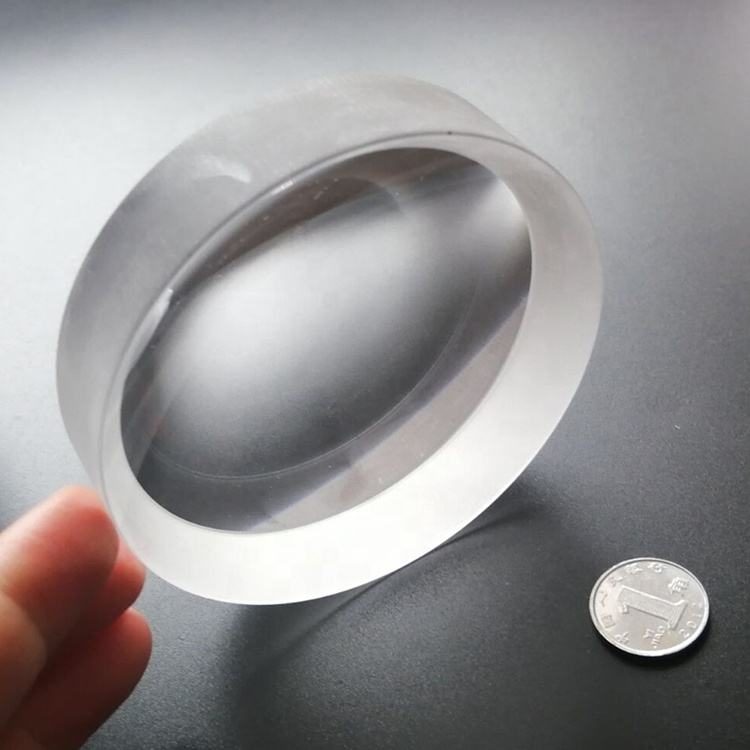

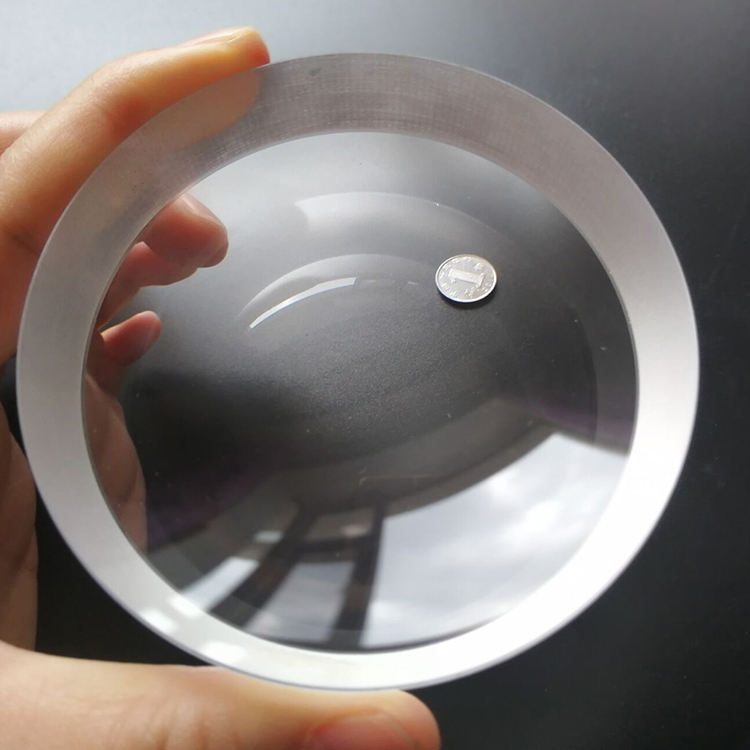

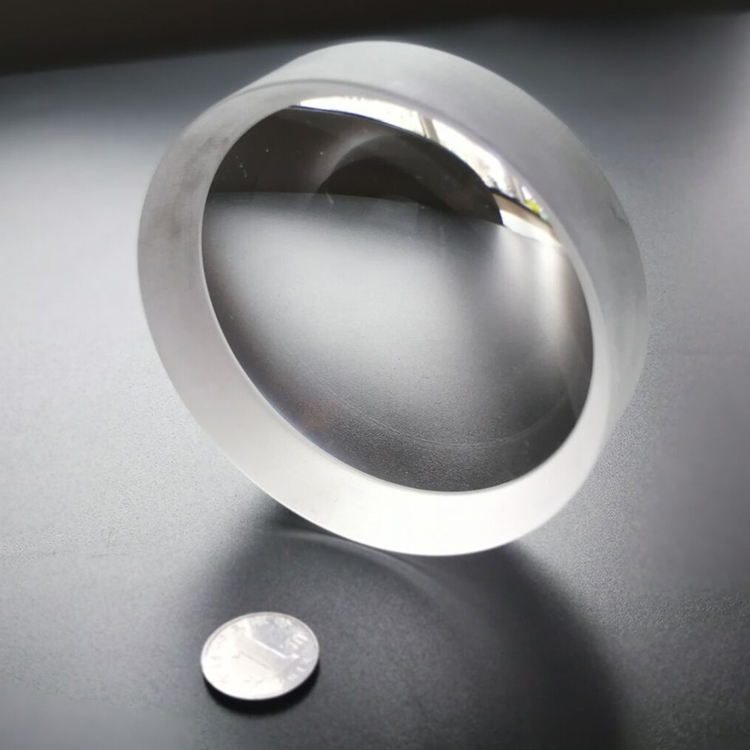

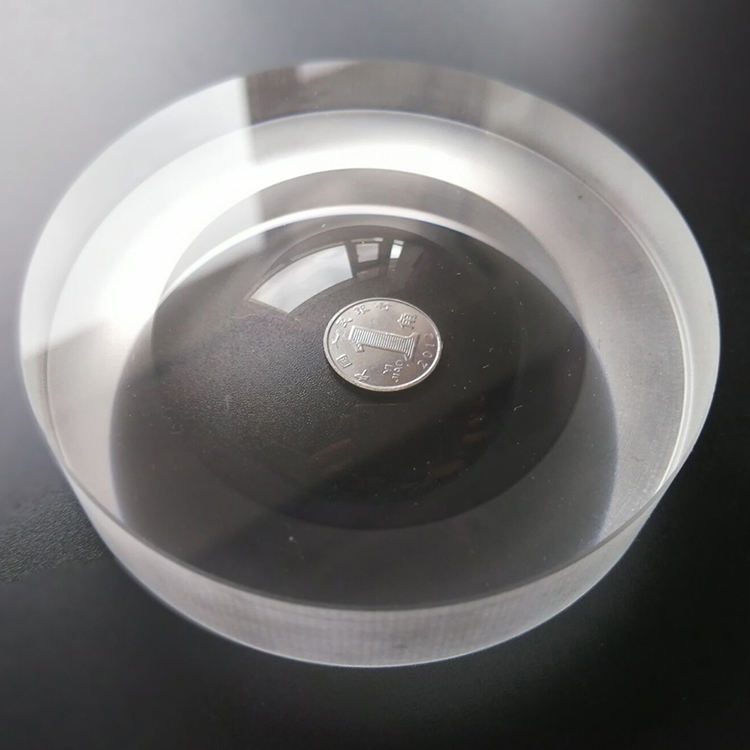

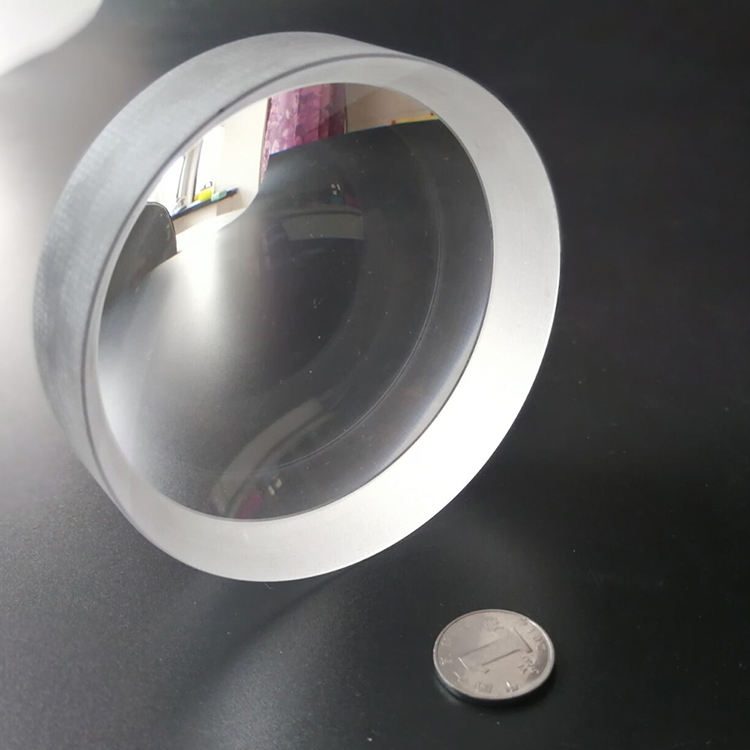

1x150 mm N-BK7 Plano-concave Lens, AR Coated
Plano-concave lens for collimation and imaging, with customizable sizes and coatings for various applications.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 1 mm
- Focal Length
- 150 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 1 mm
- Focal Length
- 150 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This plano-concave lens is designed for applications in collimation and imaging across multiple wavelength bands, including 0.7-1.7 μm and 400-700 nm. With a focal length of 150 mm and a diameter range from 1.0 mm to 400.0 mm, it offers flexibility for various optical setups. The lens features a surface quality of 60/40 and is available with anti-reflection coatings or uncoated options, making it suitable for both visible and near-infrared applications. Sourced from Jilin, this lens ensures reliability for demanding R&D and production environments.
Key Features
- Focal length of 150 mm enables precise imaging and collimation.
- Diameter options from 1.0 mm to 400.0 mm for versatile application fit.
- Surface quality of 60/40 ensures adequate optical performance.
- Available in AR-coated and uncoated variants for tailored performance.
- Supports OEM and ODM customization for specific project needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 200.5 x 150 |
Applications
Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Diameter | 1 mm |
| Focal Length | 150 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.01 |
| Clear Aperture | > 90% |
| Bevel | 0.25 mm*45° |
| Packing | Standard Carton |
FAQ
What custom sizes are available?
Diameter options range from 1.0 mm to 400.0 mm, with variant sizes including 200.5 mm.
What is the minimum order quantity?
The minimum order quantity is not specified, allowing for flexible procurement.
