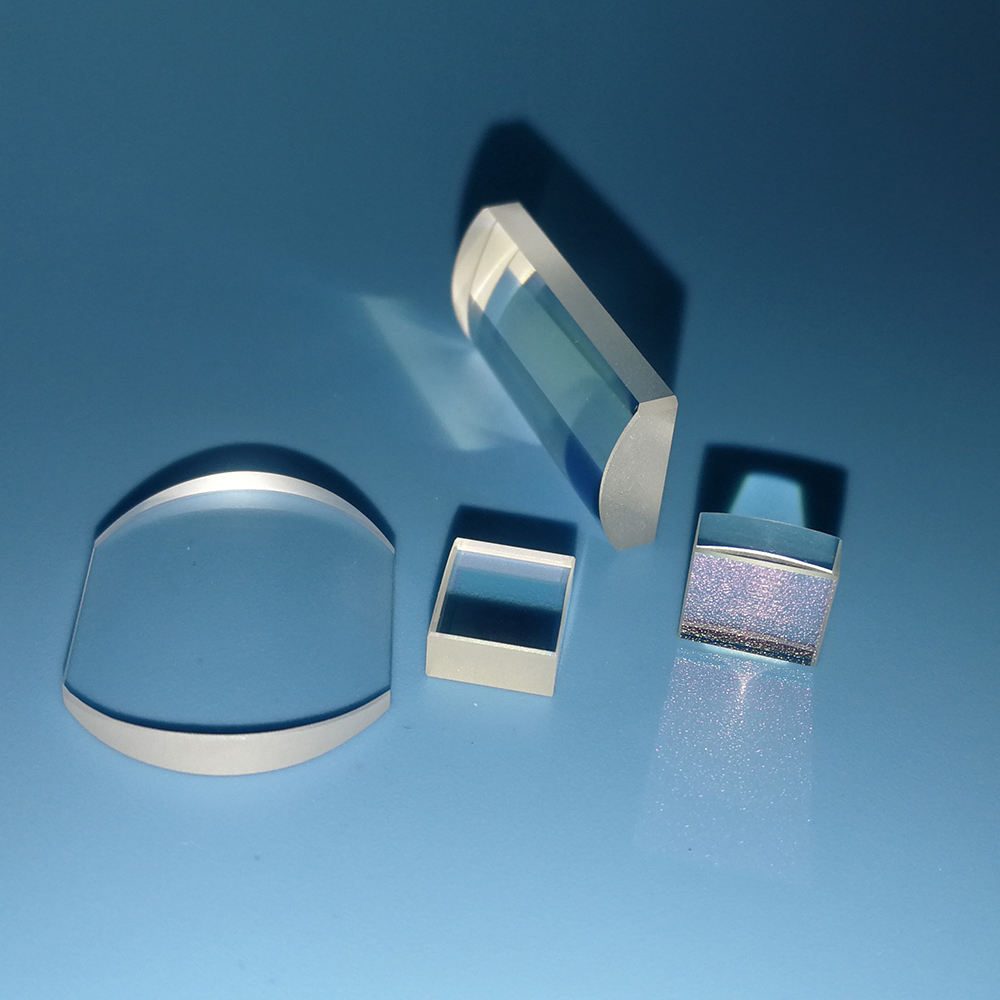

1 mm N-BK7 Plano-concave Lens, AR Coated

Product description

The plano-concave cylindrical lens made from N-BK7 is designed to focus incoming light into a line or alter the aspect ratio of images. With applications in laser line generation and anamorphic beam shaping, it effectively manages light in the 3-5 μm and 8-14 μm wavelength ranges. This lens is ideal for R&D and production environments requiring precision optical components.

Key Features

Material: N-BK7 for high optical clarity and durability.
Surface Quality: 60/40 ensures minimal distortion in optical applications.
Clear Aperture: >90% maximizes light transmission for effective performance.
Flatness: L/4 provides excellent surface uniformity for precise imaging.
Diameter Range: 1.0 mm to 400.0 mm allows for versatile application in various setups.

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-concave
Diameter	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm)

Full Specifications

Parameter	Value
Type	cylindrical lens
Customized Support	OEM
Warranty	3 months
Weight	0.01
Flatness	L/4
Clear Aperture	>90%

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes are available to meet specific application requirements.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexibility in ordering.
