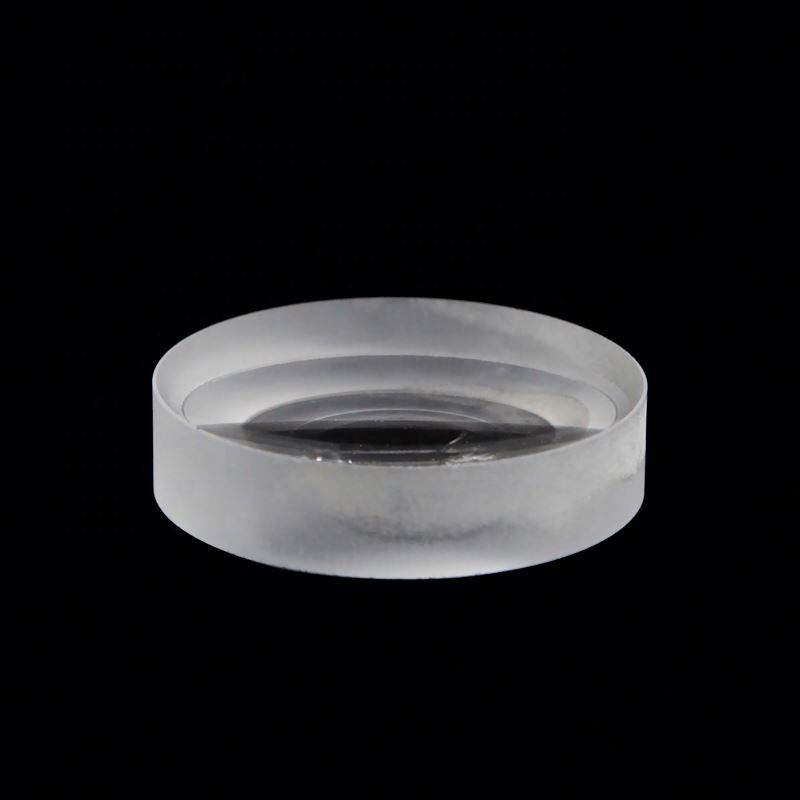

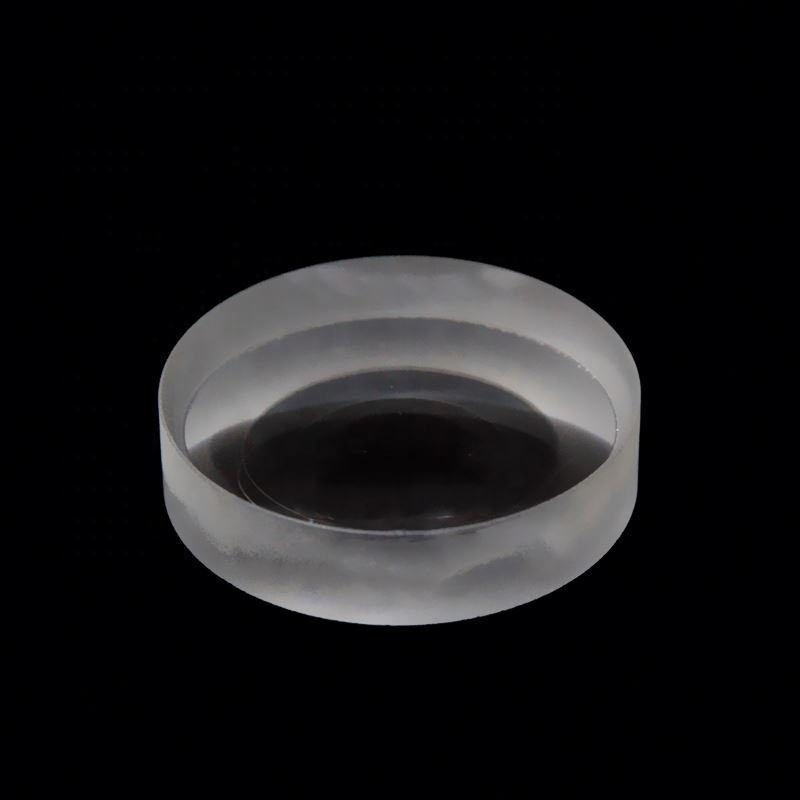

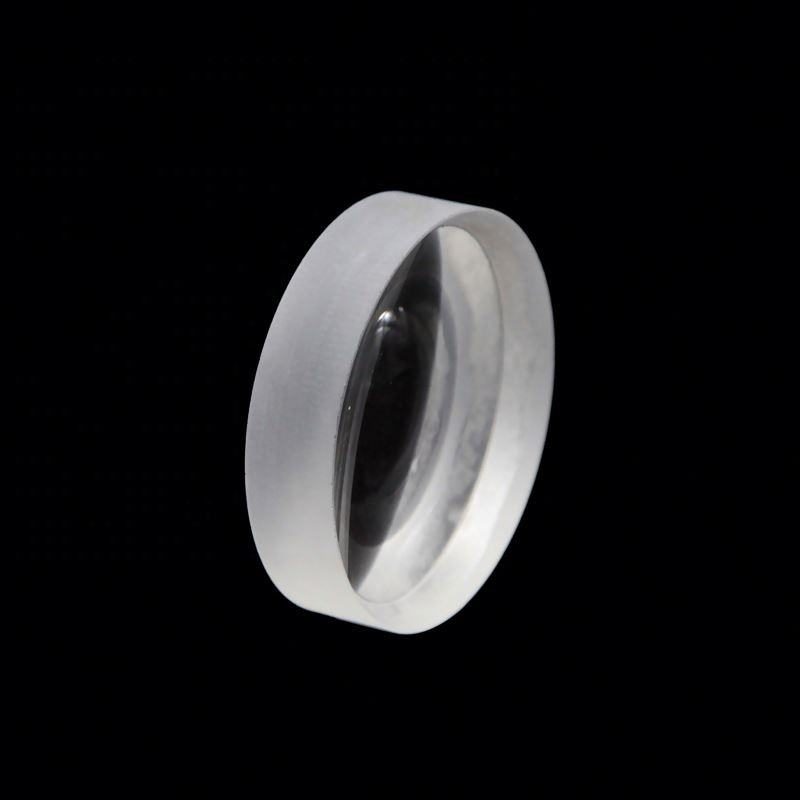

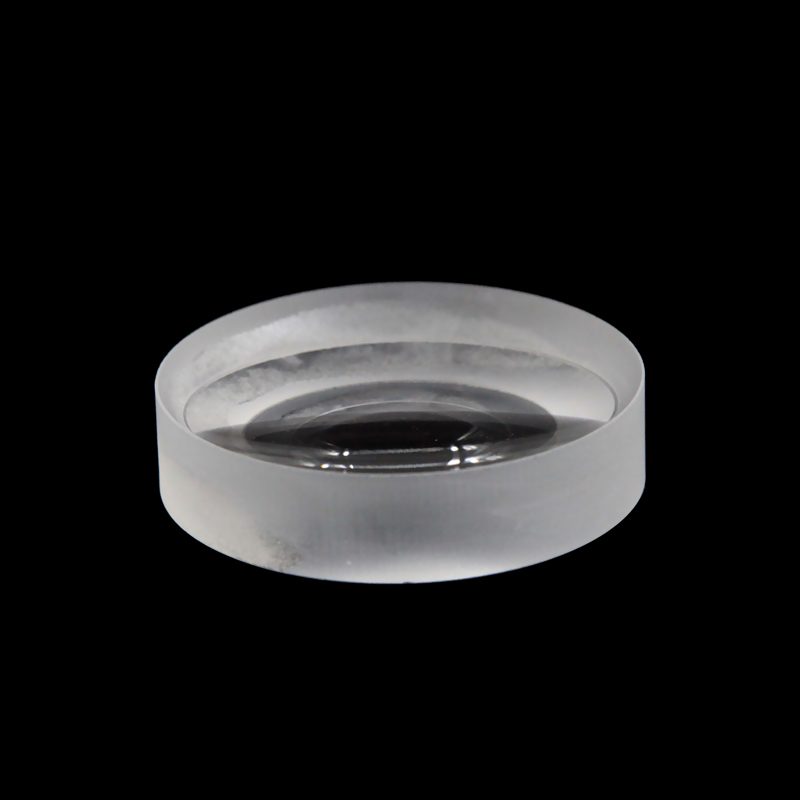

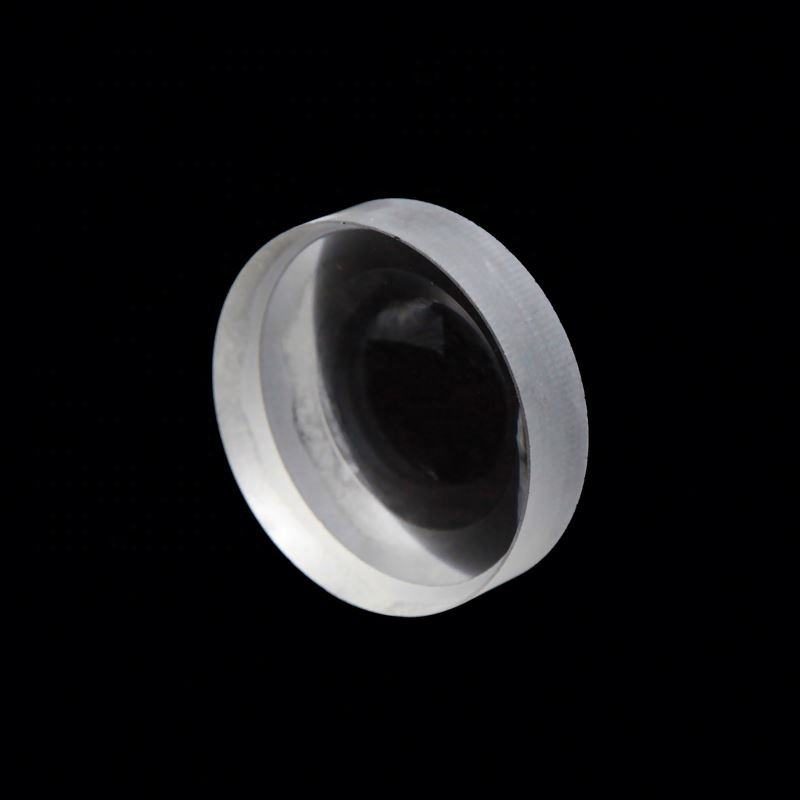

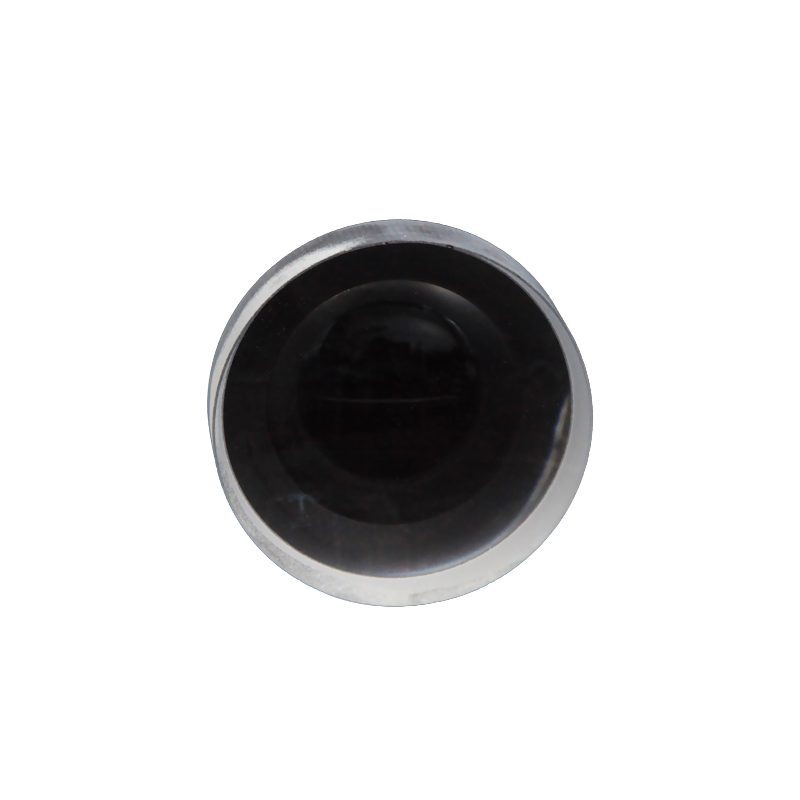

2 mm N-BK7 Plano-concave Lens, AR Coated
Explore N-BK7 plano-concave lenses for beam expansion in various applications with 90% transmittance.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 2 mm
- Transmittance
- 90%
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 2 mm
- Transmittance
- 90%
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), UV (<400 nm)
Product description
The plano-concave lens made from N-BK7 material is designed for applications requiring beam expansion and projection across multiple wavelength bands, including 0.7-1.7 μm, 1.7-3 μm, and <400 nm. With a high transmittance of 90%, this lens effectively directs light with a negative focal length, making it ideal for optical instruments and high-end equipment. Its reliable performance is backed by ISO9001 certification, ensuring consistent quality for R&D and procurement engineers.
Key Features
- Material: N-BK7 for excellent optical clarity and durability.
- Transmittance of 90% ensures efficient light transmission.
- Diameter of 2.0 mm suitable for compact optical systems.
- Available with AR coatings for enhanced performance in specific bands.
- Lightweight design at 40g for easy integration into various applications.
Applications
Projection
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Diameter | 2 mm |
| Transmittance | 90% |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens, Achromatic Lens; Plano-Concave Lens |
| Customized Support | other, ODM, OEM |
| Weight | 40g |
| Transmittance | 90% |
| Certification | ISO9001 |
FAQ
Is custom sizing available for this lens?
This lens is not customizable in size.
What is the minimum order quantity (MOQ)?
No specific MOQ is mentioned for this lens.
