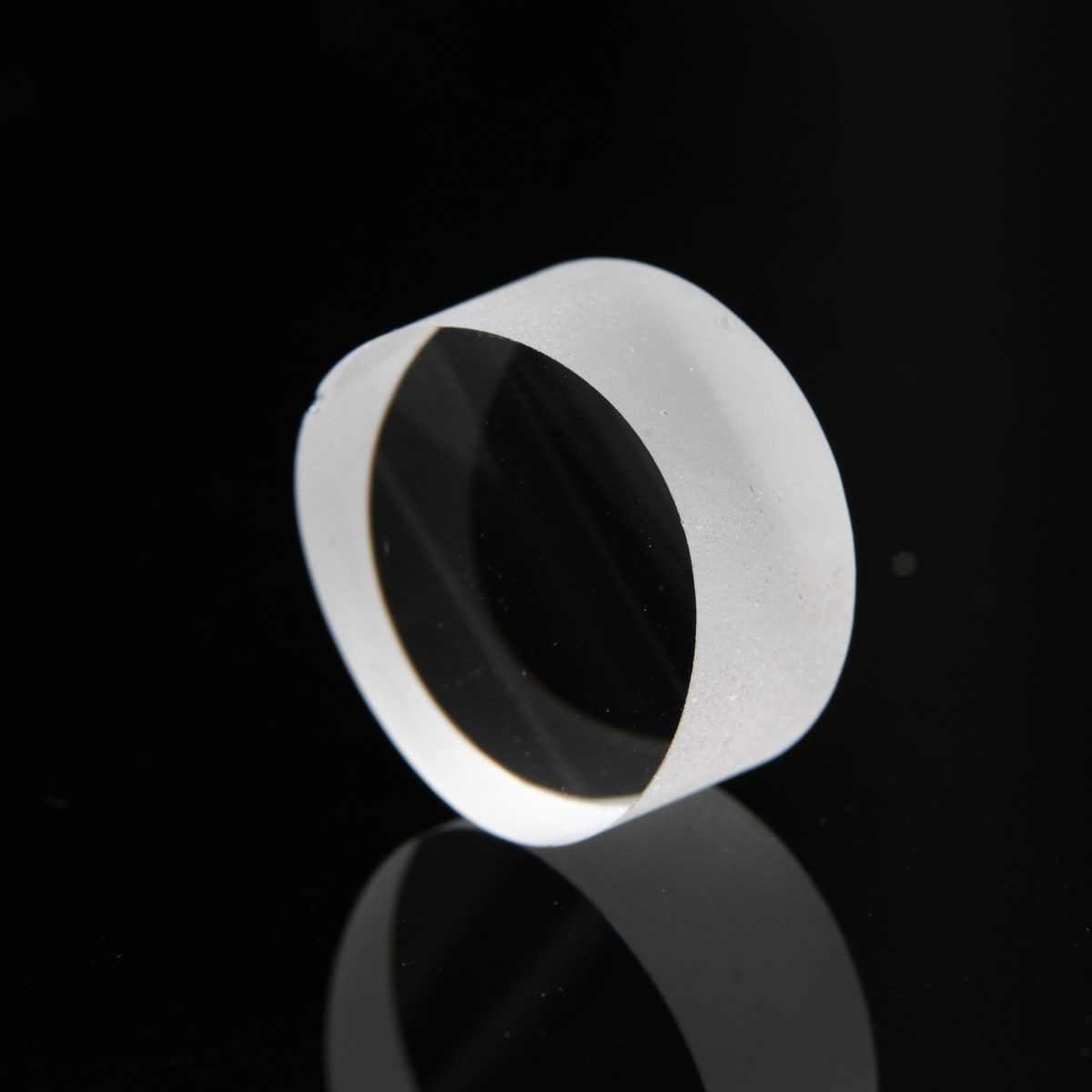

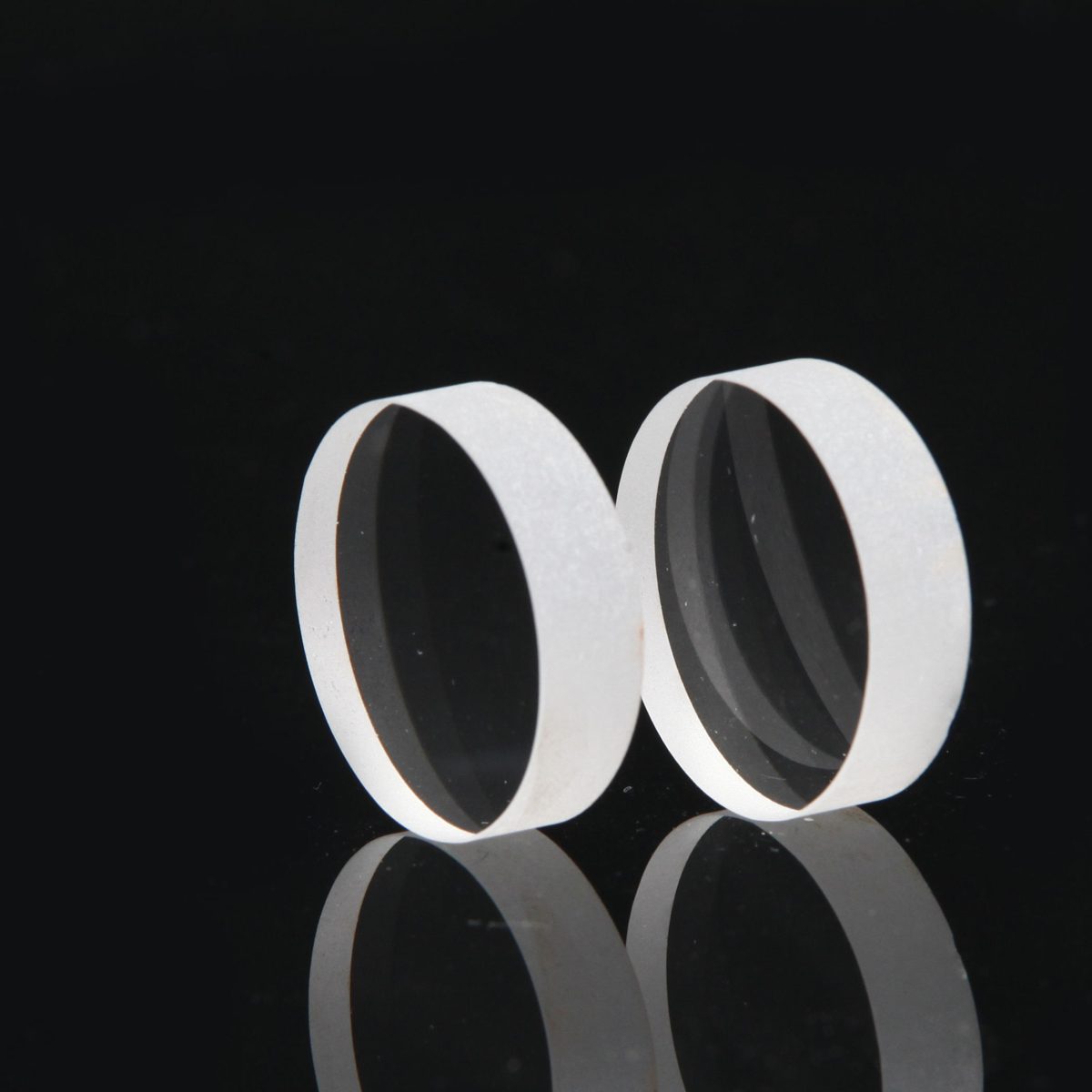

3x1 mm N-BK7 Plano-concave Lens, AR Coated
Discover customizable plano-concave lenses made from N-BK7 for medical applications, offering high optical clarity and precision fit.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 3 mm
- Focal Length
- 1 mm
- Thickness
- 0.1 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Diameter
- 3 mm
- Focal Length
- 1 mm
- Thickness
- 0.1 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product description
The plano-concave lens made from N-BK7 material is designed for medical applications, providing high optical clarity and precision fit. With customizable diameters ranging from 3mm to 300mm and focal lengths from 1mm to 1000mm, this lens effectively minimizes light loss, ensuring optimal performance in various medical instruments. Its durable construction and excellent surface quality (20/10) make it a reliable choice for precision optics.
Key Features
- Customizable diameters from 3mm to 300mm for versatile applications.
- Focal lengths ranging from 1mm to 1000mm to fit specific optical requirements.
- High optical clarity with 90% light transmittance minimizes loss.
- Surface quality rated at 20/10 ensures reliable performance.
- Durable N-BK7 material suitable for precision instruments.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 151.5 x 500.5 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Diameter | 3 mm |
| Focal Length | 1 mm |
| Thickness | 0.1 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens, cylindrical lens; Concave Lens |
| Warranty | 1 Year |
| Weight | 0.3 |
| Customized Support | OEM, ODM, OBM |
| Flatness | 1/2 Lambda~1/10 Lambda |
| Dimension | 5-200mm |
FAQ
What are the available custom sizes?
Custom diameters can be tailored from 3mm to 300mm.
What is the minimum order quantity?
Minimum order quantity details are not specified.
