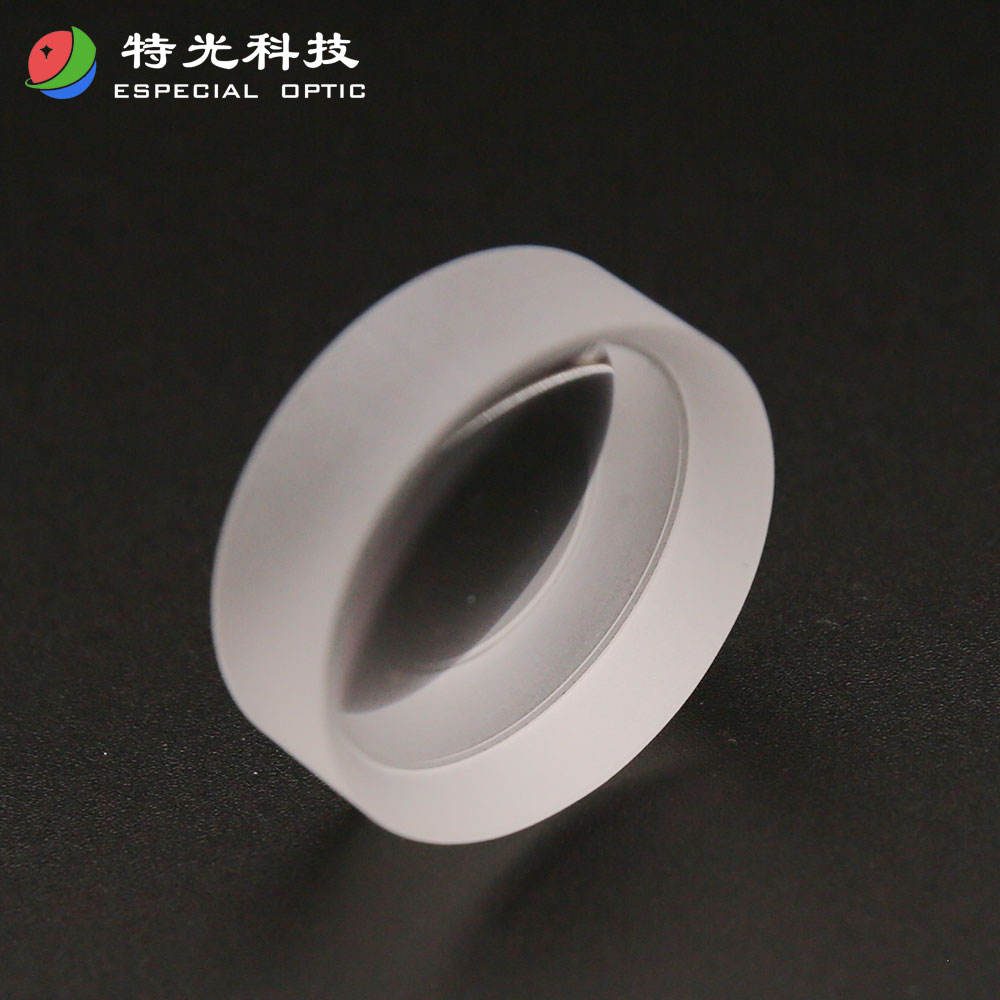

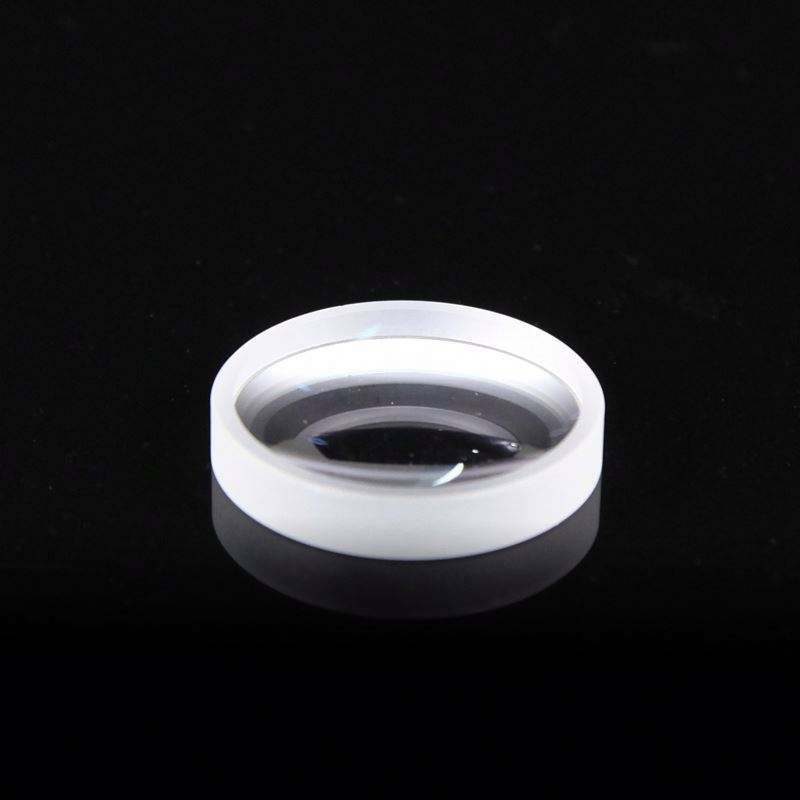

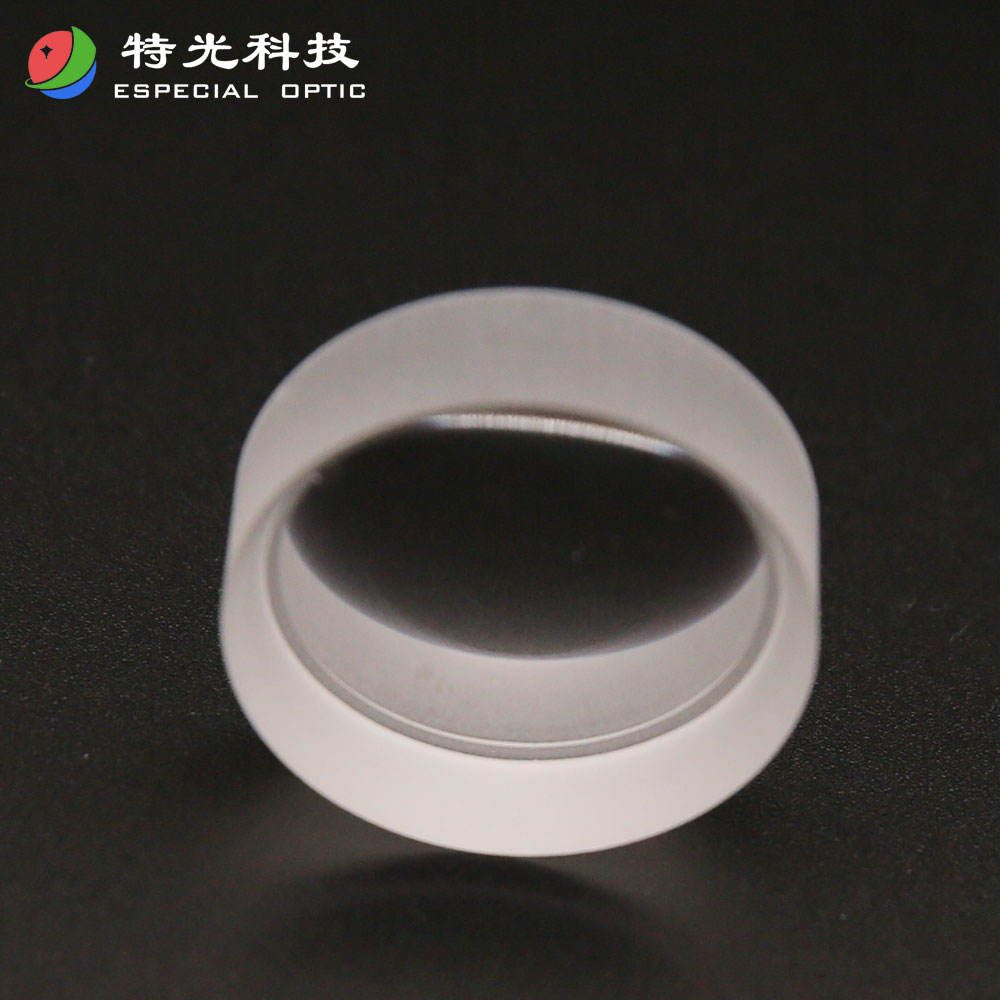

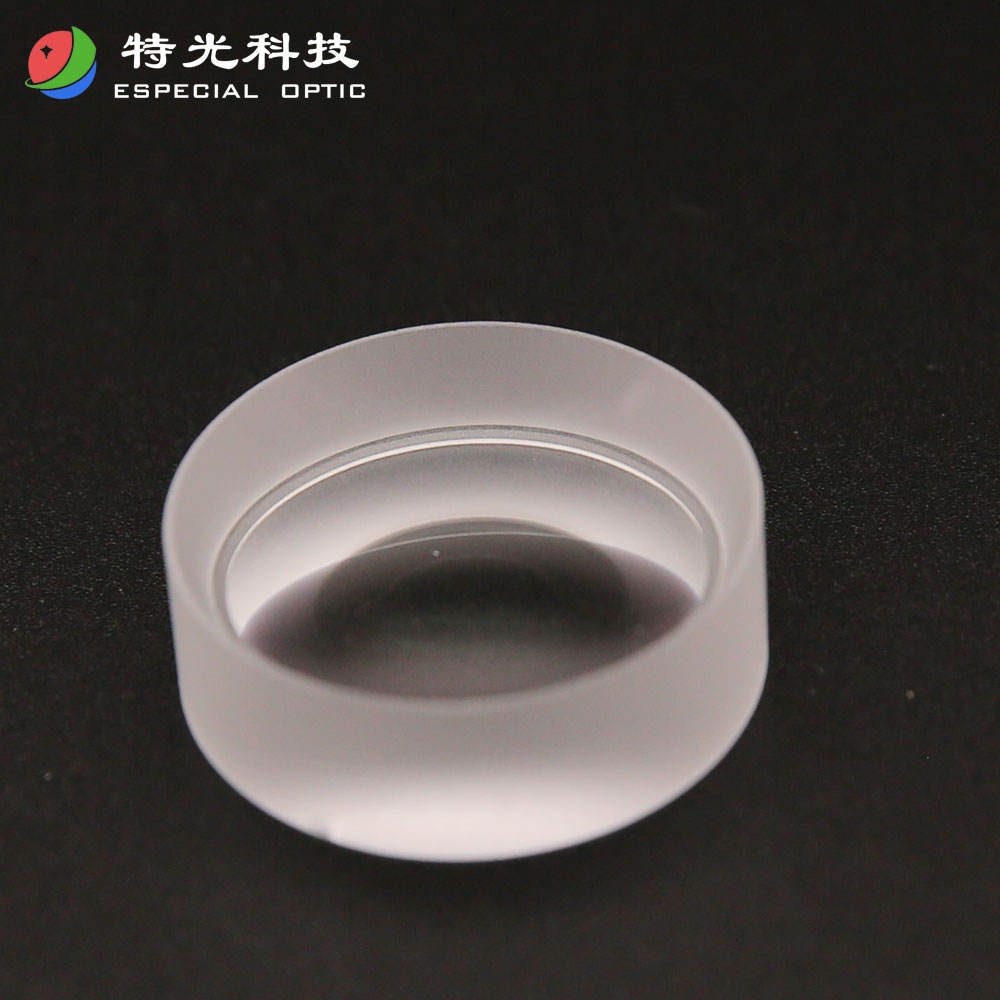

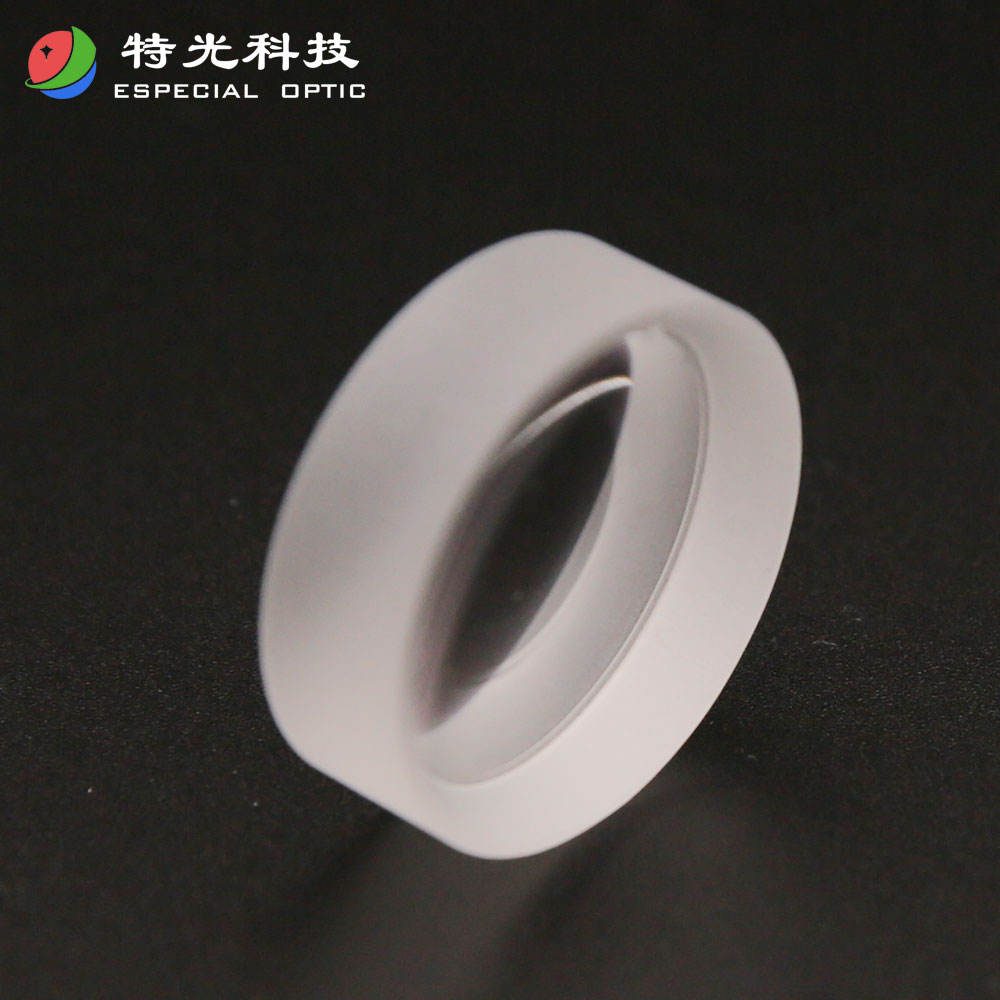

5 mm N-BK7 Plano-concave Lens, AR Coated

Product description

The plano-concave achromatic lens made from N-BK7 is designed for applications requiring precise optical alignment, particularly in laser equipment. With a broad transmission range of 0.7-1.7 μm and 400-700 nm, it effectively reduces glare and enhances light transmission efficiency. This lens is ideal for R&D and procurement engineers seeking reliable optical components that minimize distortion and ensure superior clarity in critical applications.

Key Features

Broad transmission range: 0.7-1.7 μm and 400-700 nm for versatile application fit.
Customizable dimensions with a tolerance of +/-0.1mm to meet specific project needs.
High precision with parallelism of < 3 arcmin for minimal distortion.
Anti-reflective coating enhances light transmission efficiency.
Lightweight design at 0.05g for easy integration into various systems.

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-concave
Diameter	5 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g(0oz)
Dimension Tolerance	+/-0.1mm
Focal Length Tolerance	±2%
Parallelism	< 3 arcmin
Clear Aperture	>90%

FAQ

What are the available custom sizes?

The lens is customizable with diameter options ranging from 5.0 mm to 500.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible purchasing.
