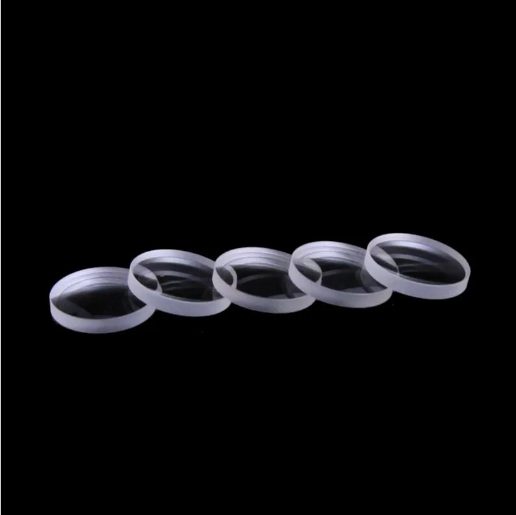

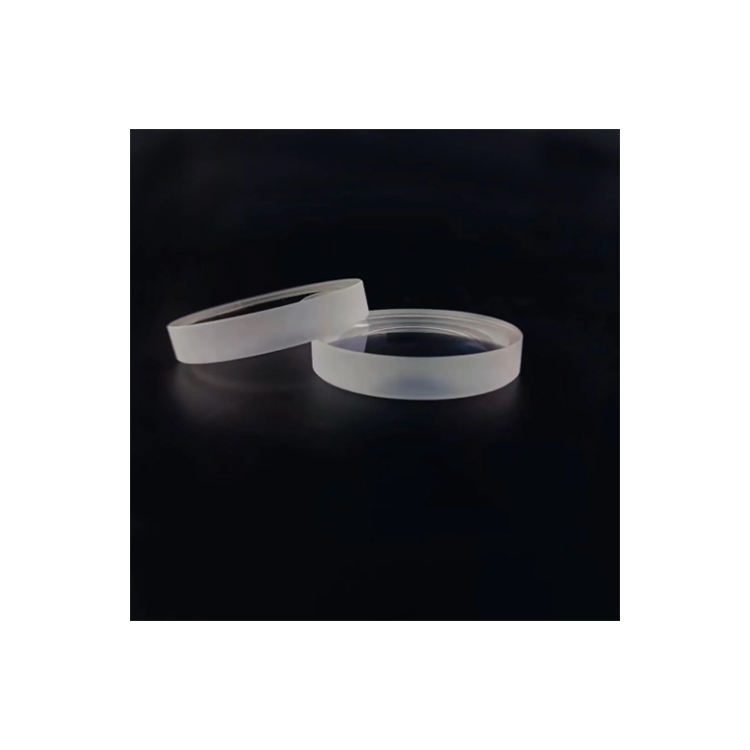

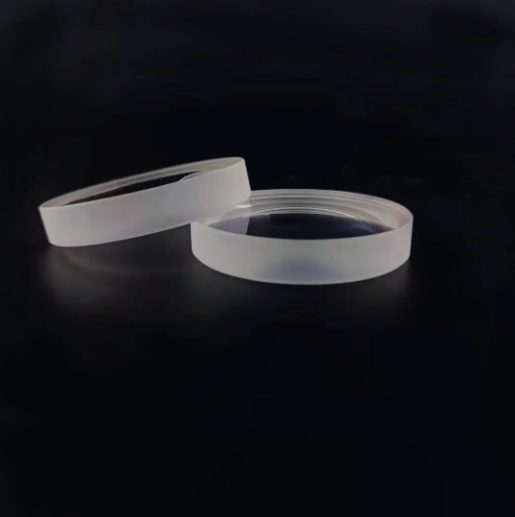

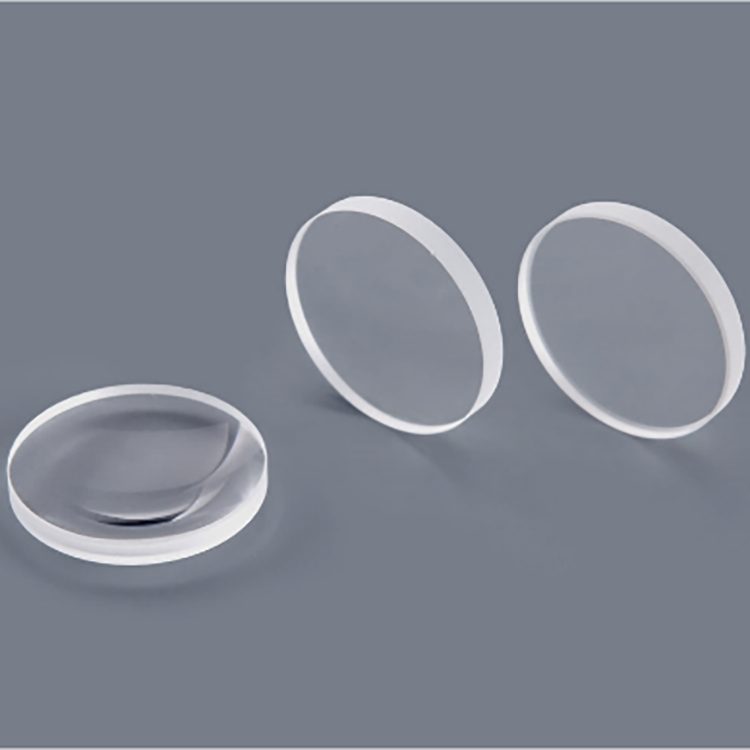

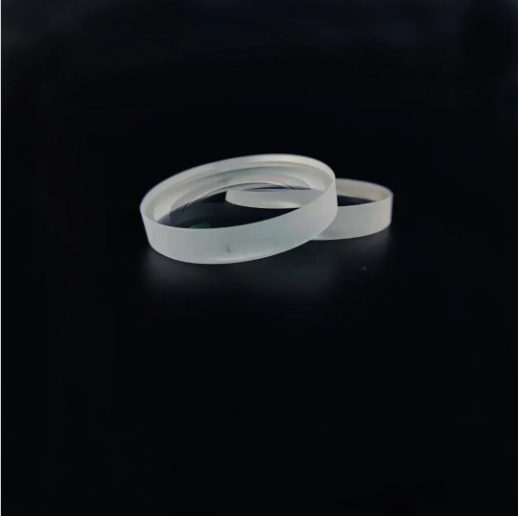

5 mm N-BK7 Plano-concave Lens, AR Coated

Product description

The plano-concave lens made from N-BK7 optical glass is designed for applications within the 400-700 nm wavelength range. Its unique shape allows for light divergence, making it ideal for various optical systems including imaging and laser applications. With a diameter range of 5.0 to 300.0 mm and a thickness from 0.1 to 100.0 mm, this lens can be tailored to fit specific project requirements, ensuring optimal performance across diverse applications.

Key Features

Diameter range: 5.0 to 300.0 mm for versatile application fit.
Surface quality of 60/40 ensures clarity and precision in imaging.
Customized support available for OEM and ODM projects.
Weight of 0.5 kg (1.10 lb) for manageable handling and installation.
Surface flatness of 1/4 @ 633 nm enhances optical performance.

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-concave
Diameter	5 mm
Thickness	0.1 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Concave Lens
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.5kg(1.10lb)
Dimension	5-300mm
Color	Transparent
Surface Flatness	1/4@633nm
Parallel	10 Arc Seconds

FAQ

Can I get custom sizes for this lens?

Yes, the lens is available in a diameter range of 5.0 to 300.0 mm and thickness from 0.1 to 100.0 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing flexibility for various procurement needs.
