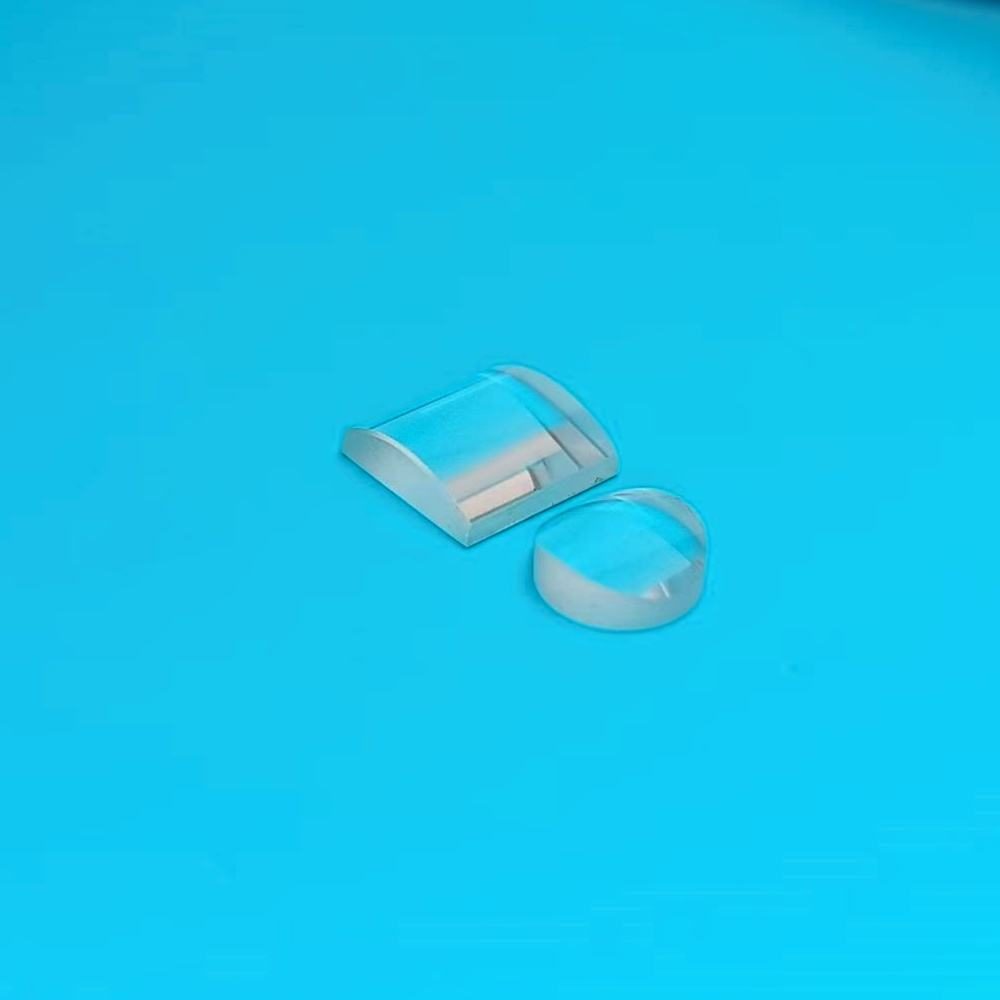

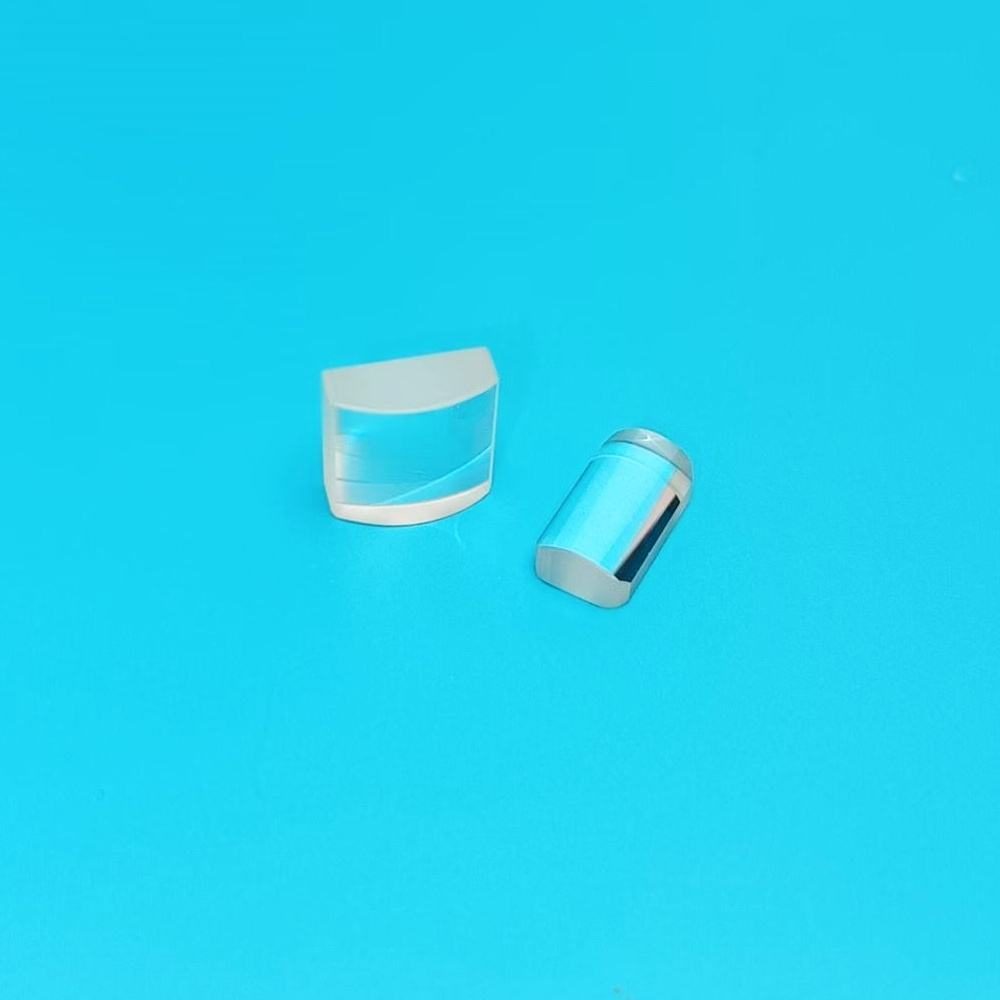

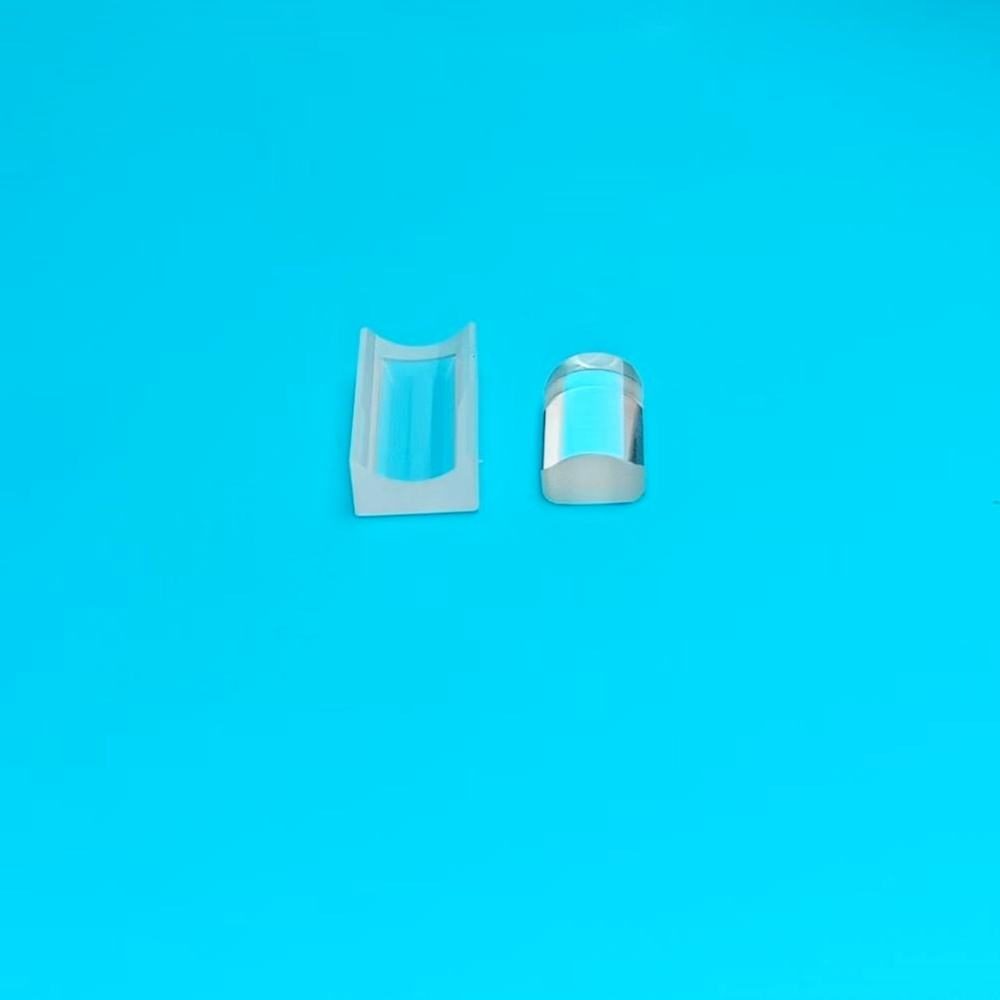

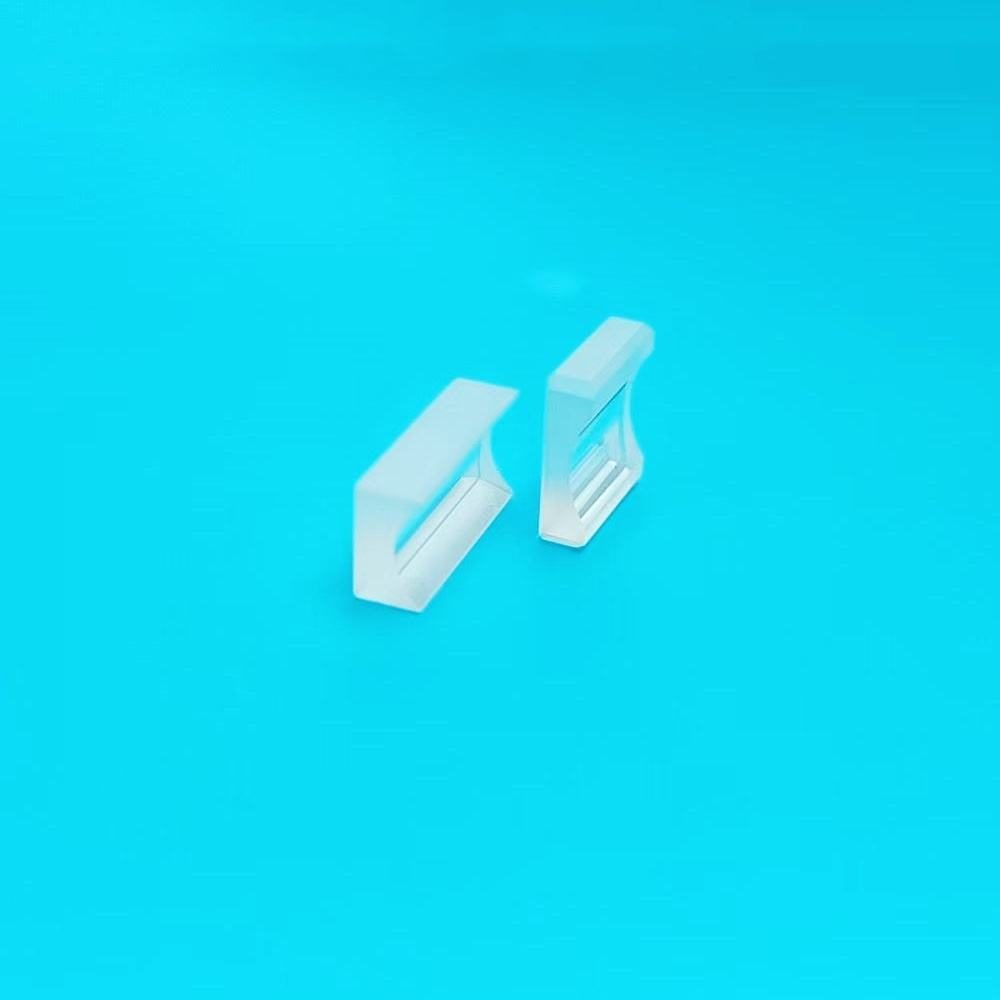

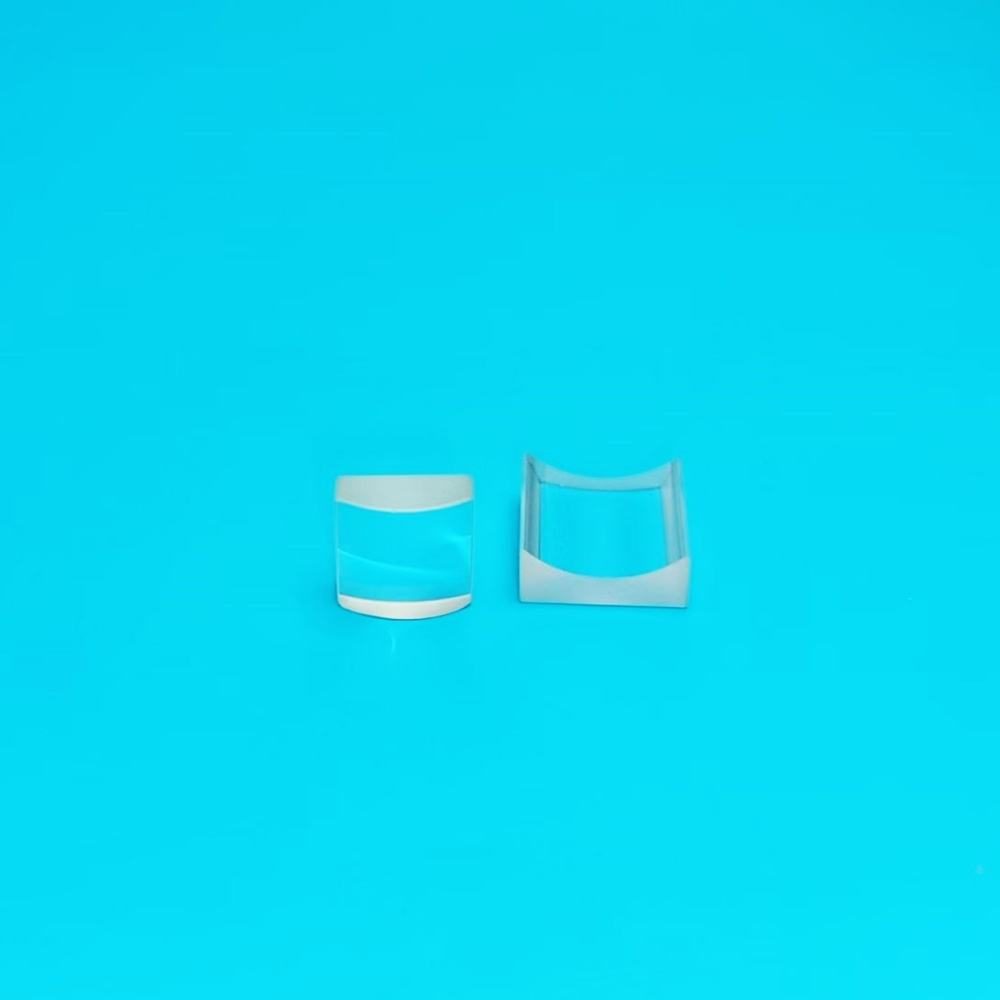

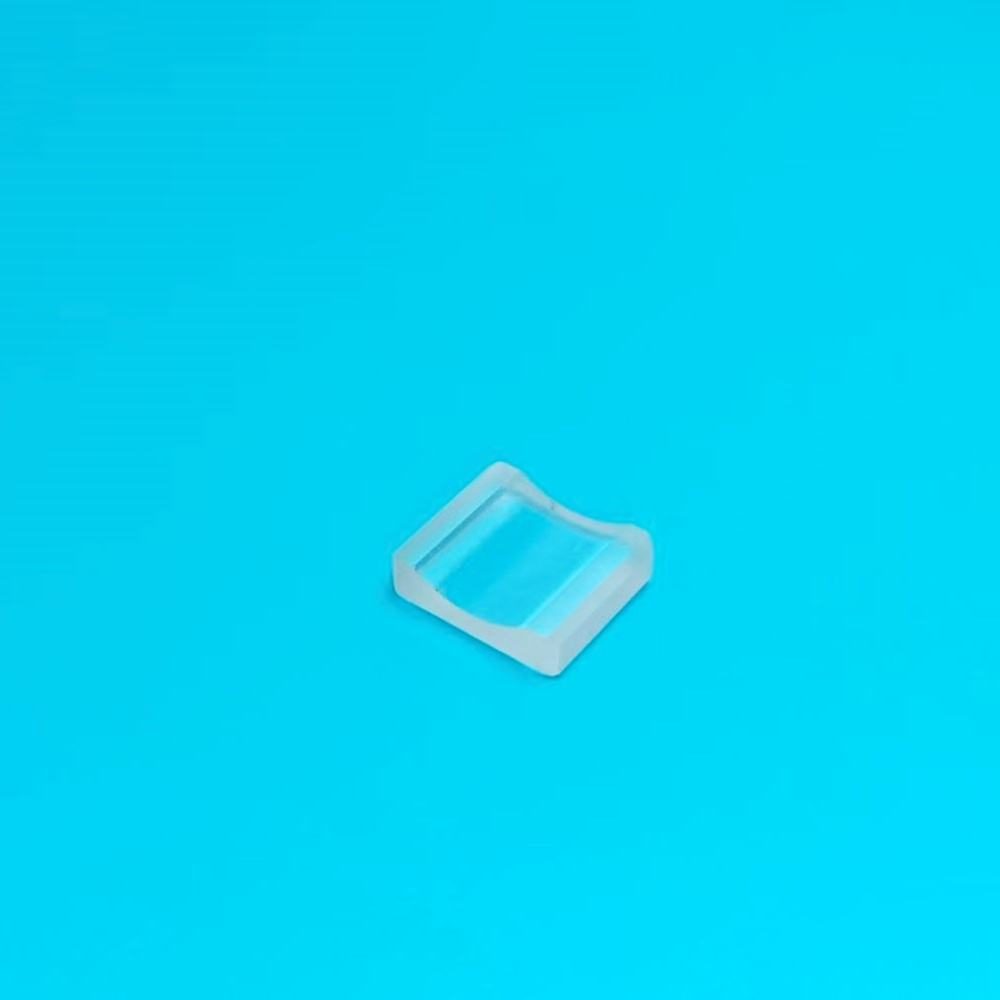

Custom Size N-BK7 Plano-concave Lens, AR Coated
Plano-concave N-BK7 lens for 0.7-1.7 μm applications, customizable sizes, and OEM/ODM support.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
The plano-concave lens made from N-BK7 material is designed for applications requiring beam expansion or light divergence in the 0.7-1.7 μm wavelength range. With a focal length of 5.0 mm and a surface quality of 20/10, this lens is ideal for use in IR imaging, LIDAR, and laser systems. Its anti-reflective coatings enhance transmittance, making it suitable for precision optical applications.
Key Features
- Focal length of 5.0 mm for effective light divergence.
- Surface quality of 20/10 ensures minimal distortion.
- Compatible with 0.7-1.7 μm wavelengths for versatile applications.
- Custom dimensions available from 1 mm to 300 mm with ±0.03 mm tolerance.
- OEM and ODM support for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Focal Length | 5 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | 0.01 |
| Dimension | 1mm-300mm |
| Dimension Tolerance | ±0.03 |
FAQ
What are the available custom sizes?
Custom sizes range from 1 mm to 300 mm.
What is the tolerance for custom dimensions?
The dimension tolerance is ±0.03 mm.
