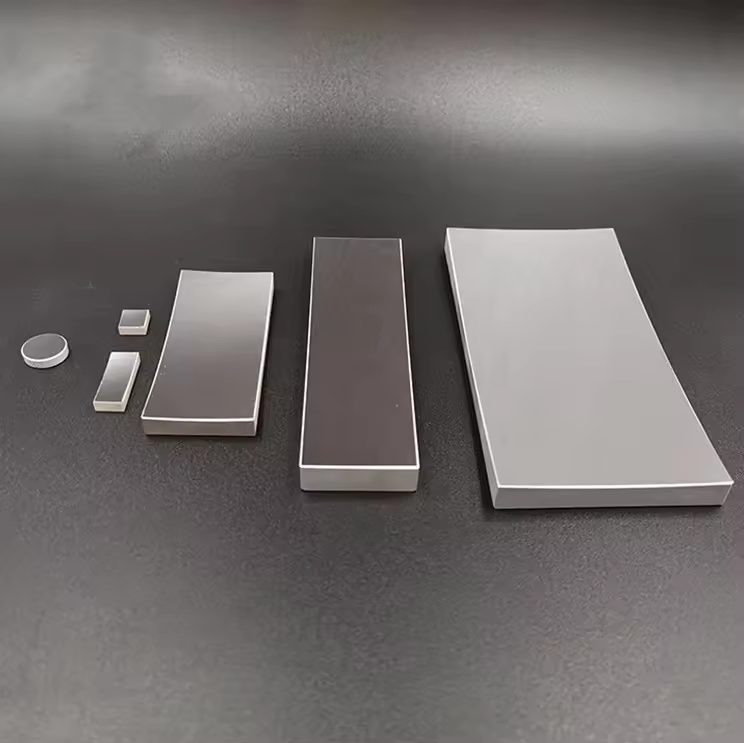

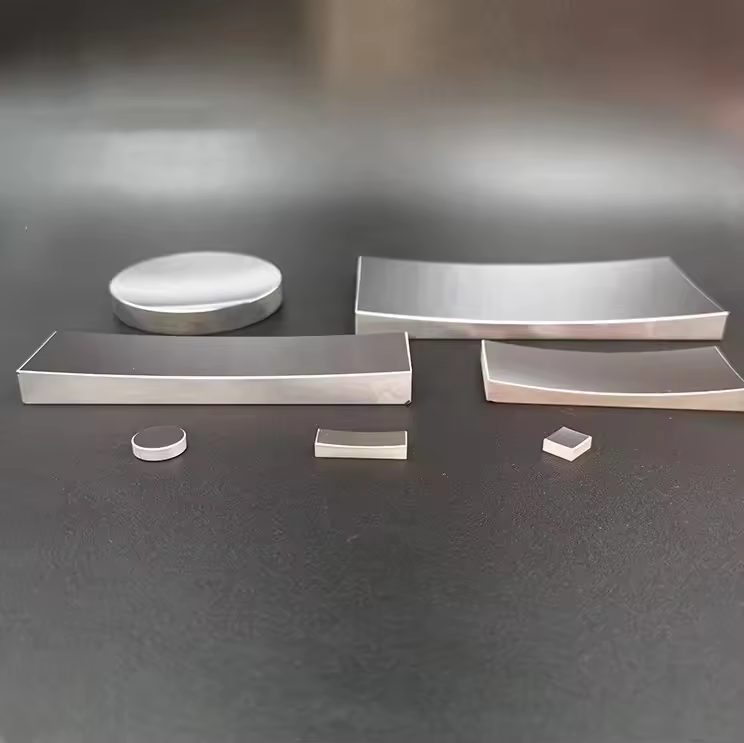

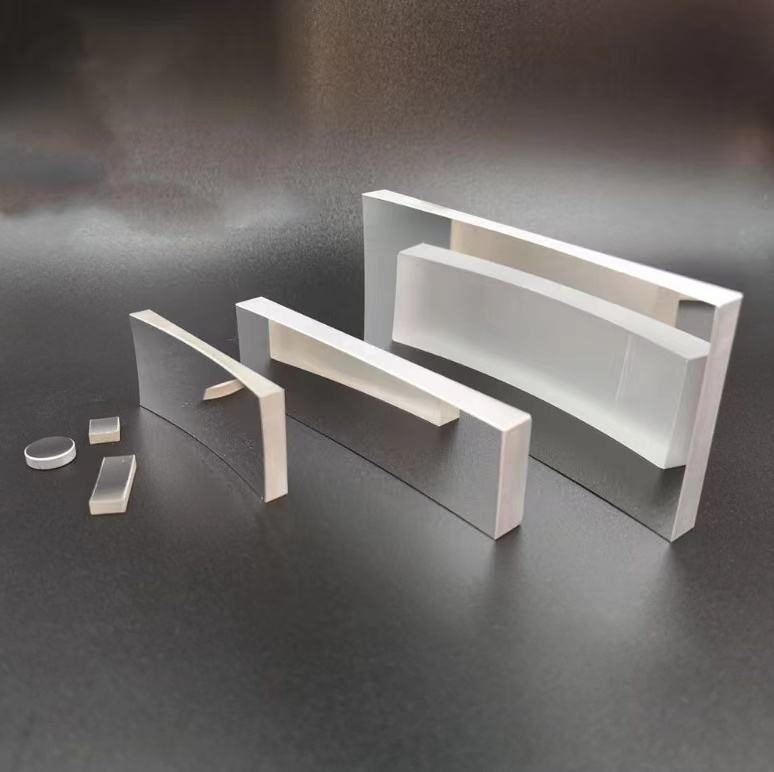

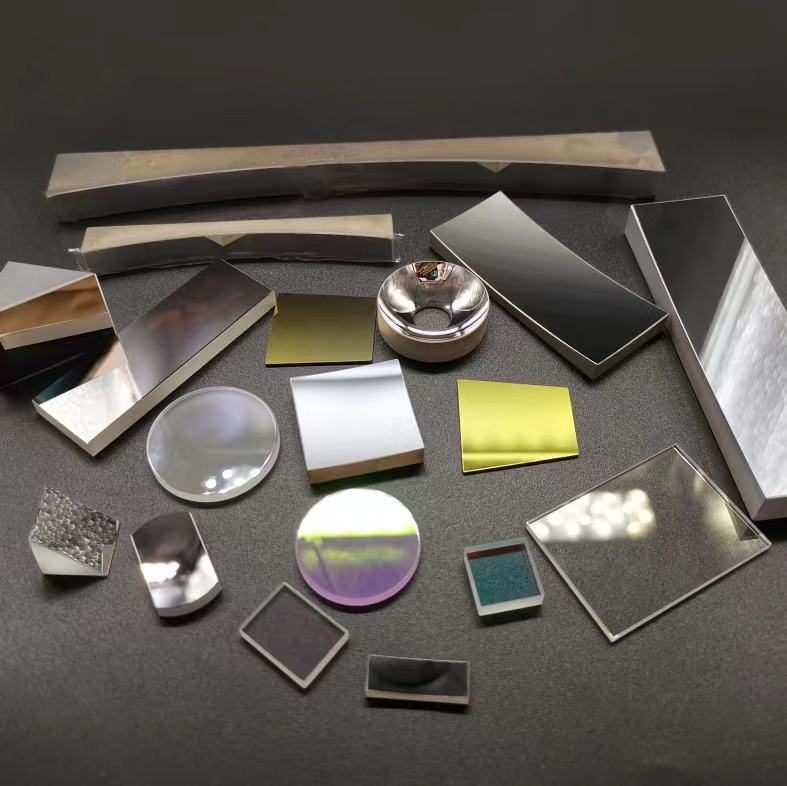

Custom Size N-BK7 Plano-concave Lens, AR Coated
Explore N-BK7 plano-concave lenses for thermal imaging, LIDAR, and medical applications with customizable options.
Core attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Thickness
- 1 mm
- Coating
- anti-reflective (AR), high-reflective (HR), mgf2
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-concave
- Thickness
- 1 mm
- Coating
- anti-reflective (AR), high-reflective (HR), mgf2
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The N-BK7 plano-concave lens is designed for applications in thermal imaging, LIDAR, medical devices, and general imaging. Its coatings, including anti-reflective (AR) and high-reflective (HR) options, enhance performance across multiple wavelength bands (400-700 nm, 0.7-1.7 μm, and 1.7-3 μm). This lens effectively reduces stray light and improves image quality, making it ideal for precision optical systems.
Key Features
- Material: N-BK7 ensures high optical quality and durability.
- Coating options (AR, HR, MGF2) provide versatility for various applications.
- Flatness of Lambda/10 to Lambda/4 for superior imaging performance.
- Clear aperture ≥98% maximizes light transmission for enhanced efficiency.
- Customizable support for OEM, ODM, and OBM projects.
Applications
Thermal Imaging, Lidar, Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-concave |
| Thickness | 1 mm |
| Coating | anti-reflective (AR), high-reflective (HR), mgf2 |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Mirror |
| Customized Support | OEM, ODM, OBM |
| Warranty | None |
| Weight | 0.003 |
| Substrate | Optical glass k9/bk7 |
| Flatness | Lambda/10~ Lambda/4 |
| Clear Aperture | ≥98% |
FAQ
What are the available thicknesses for this lens?
The lens thickness ranges from 1.0 mm to 10.0 mm.
Is custom sizing available?
Customization options are available for OEM, ODM, and OBM projects.
