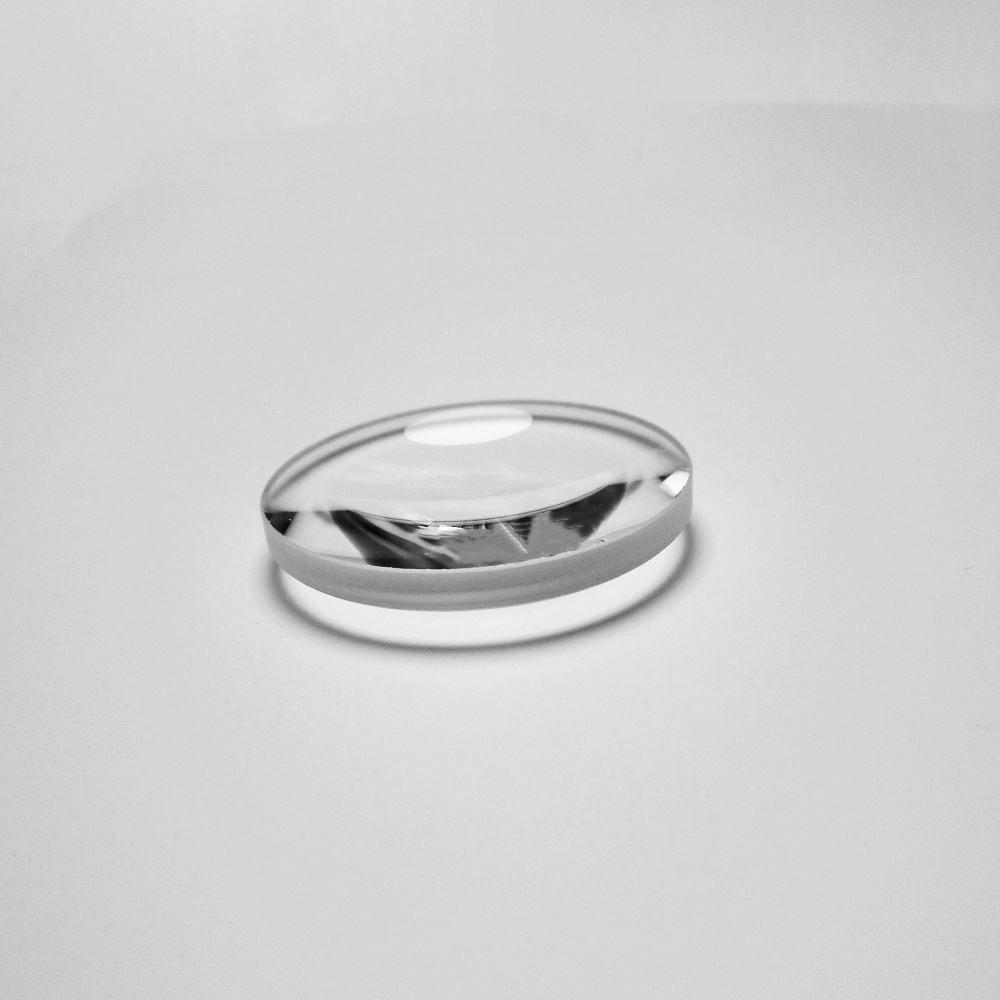

0.6x5 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 material is ideal for applications in microscopy, projection, and imaging across the spectral bands of 1.7-3 μm and <400 nm. This lens effectively focuses light, making it suitable for various optical systems requiring precise light manipulation. With a diameter of 0.6 mm and a focal length of 5.0 mm, it provides versatility for different optical setups. The lens can be sourced from Jilin, ensuring reliable supply and consistent quality for your projects.

Key Features

Material: N-BK7 ensures high optical clarity and durability.
Focal length of 5.0 mm provides effective light focusing capabilities.
Diameter of 0.6 mm suitable for compact optical designs.
Coated with anti-reflective coatings for improved transmittance.
Custom sizes available from 0.6 mm to 5.0 mm to fit specific applications.

Available Sizes

Diameter x Focal Length (mm)
0.6 x 5

Applications

Microscopy, Projection, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	0.6 mm
Focal Length	5 mm
Coating	anti-reflective (AR)
Transmission bands	SWIR (1.7-3 μm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Convex Lens; Optical Led Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.02KG
Use	Optics

FAQ

Is custom sizing available?

Yes, custom sizes can be provided, ranging from 0.6 mm to 5.0 mm.

What are the tolerances for this lens?

The dimension tolerance is ±0.02 mm, and thickness tolerance is also ±0.02 mm.
