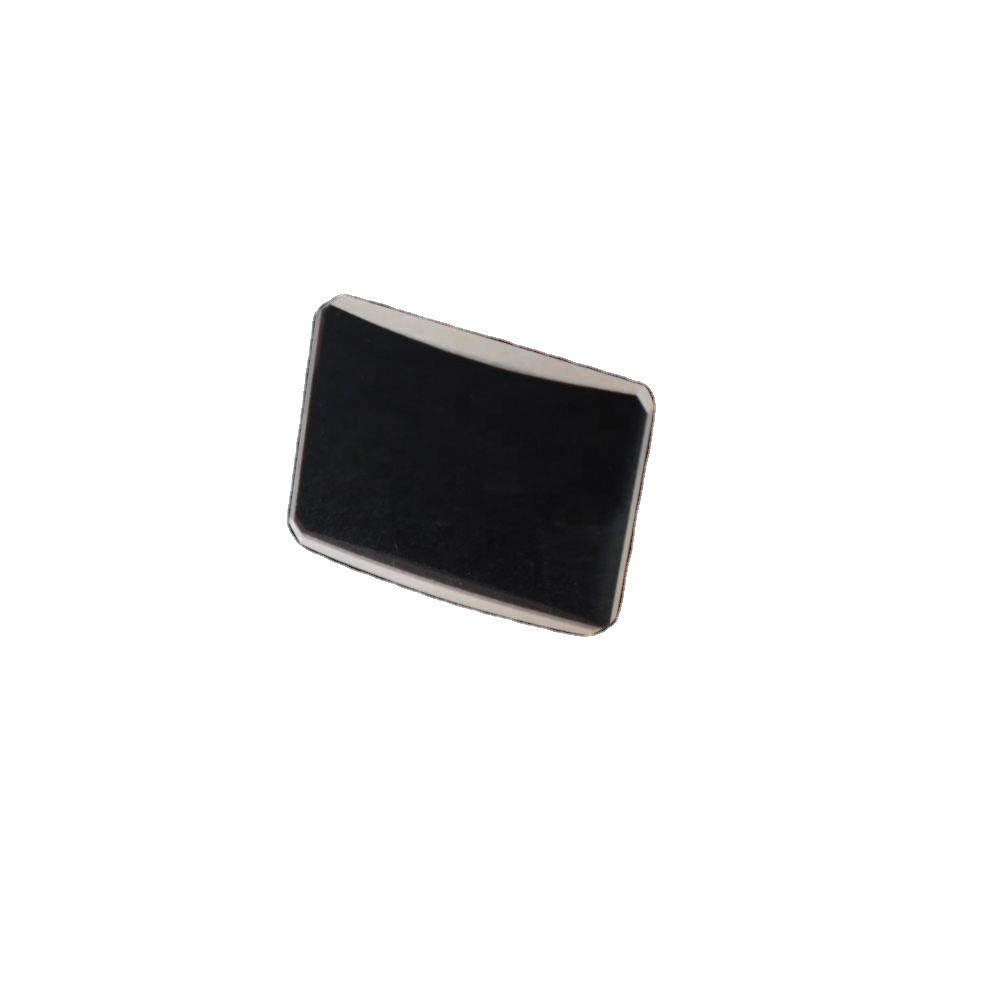

10x4 mm N-BK7 Plano-convex Lens, AR Coated
Explore our plano-convex cylindrical lens for medical and imaging applications, featuring a 4.0 mm focal length and high surface quality.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 10 mm
- Focal Length
- 4 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 10 mm
- Focal Length
- 4 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description

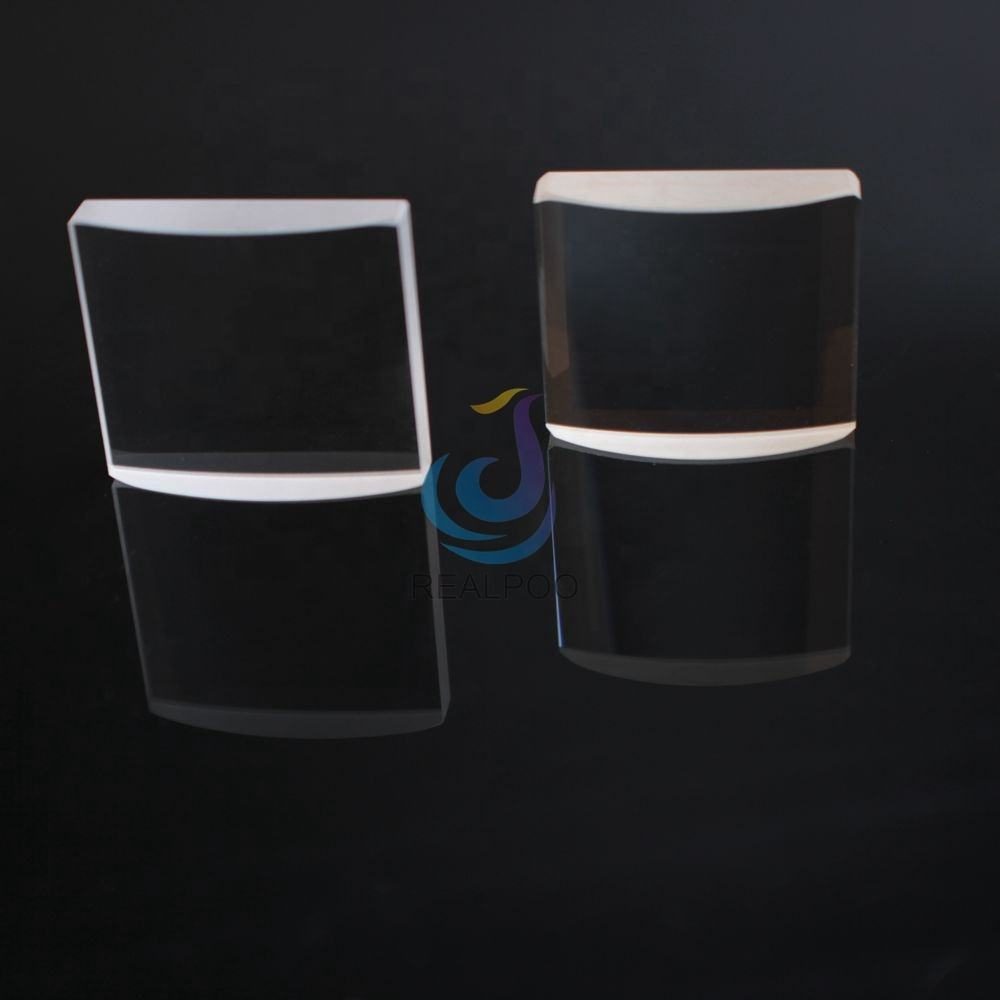

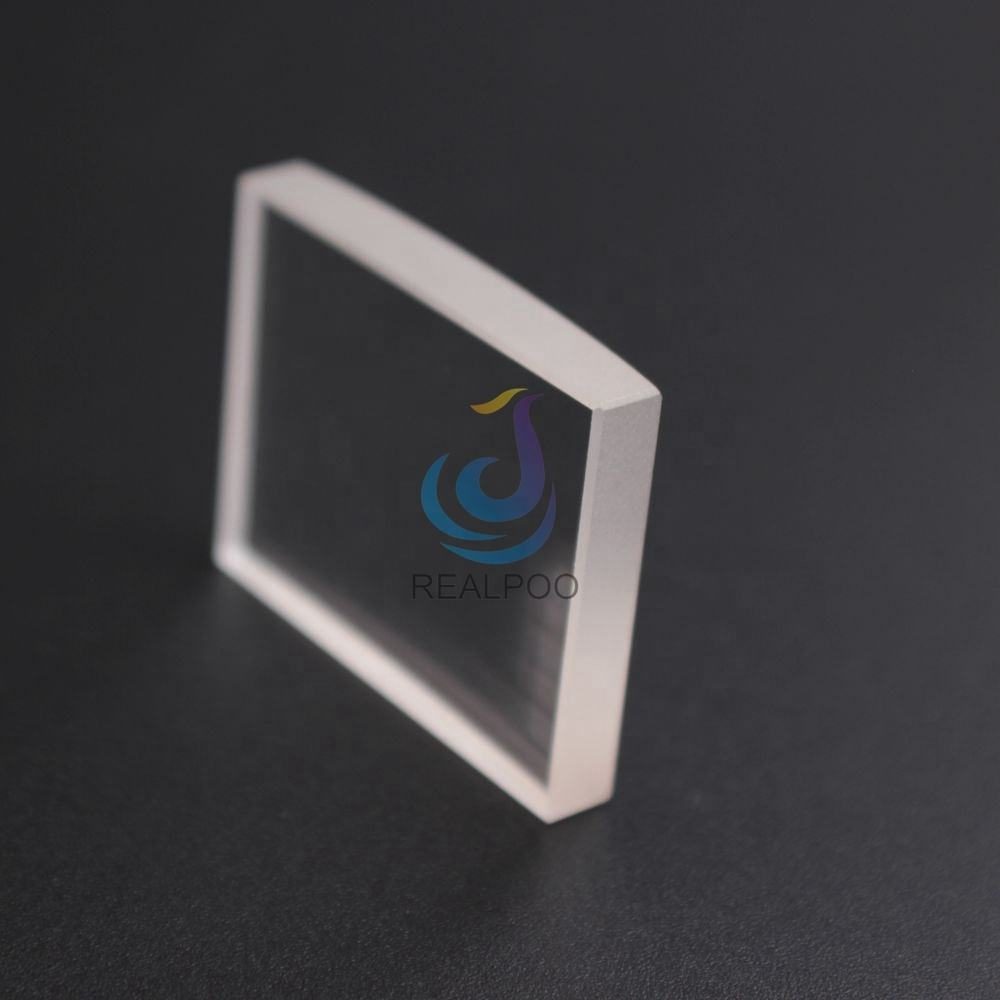

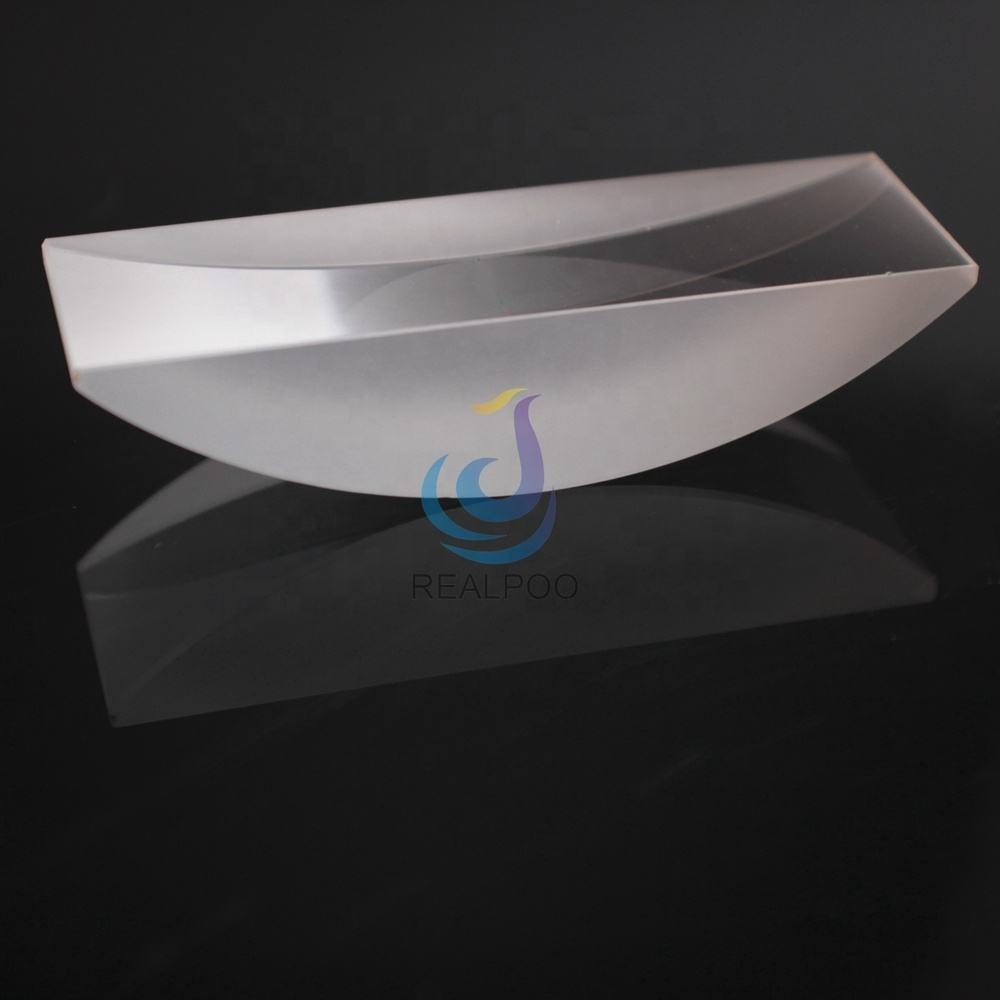

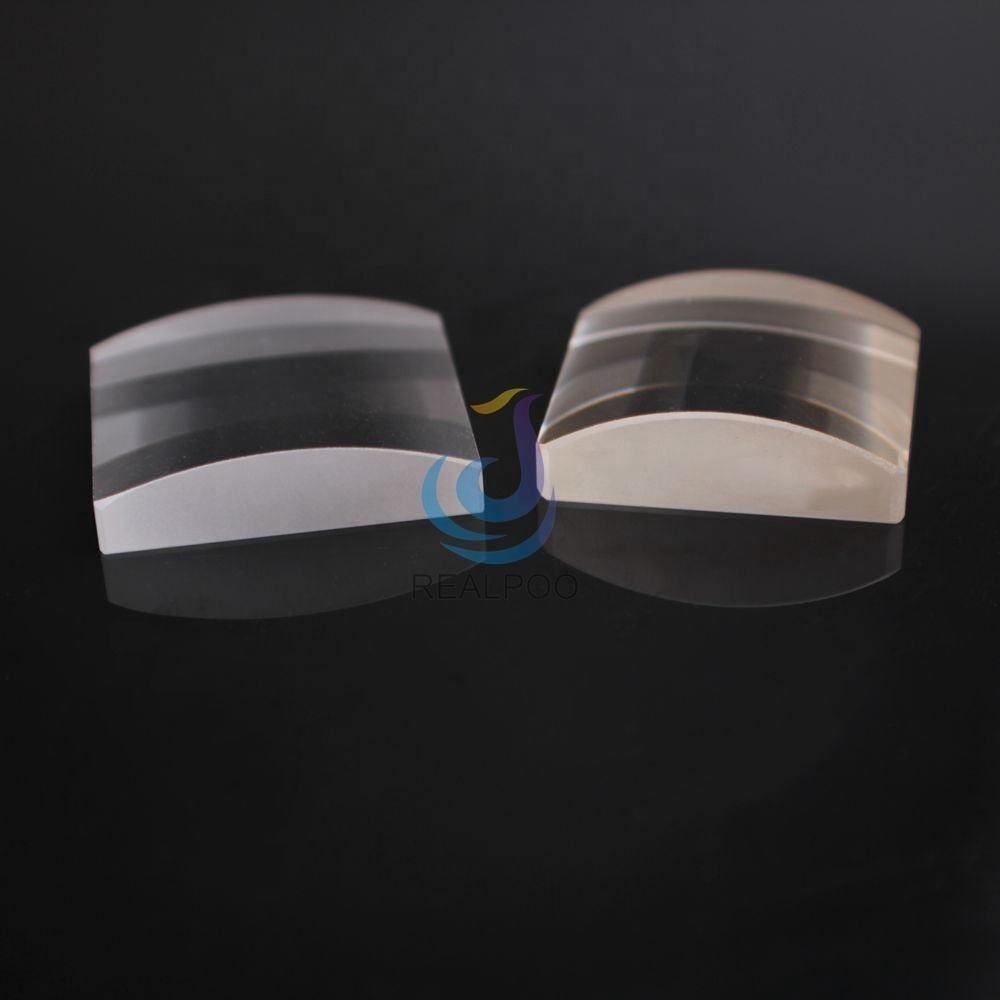

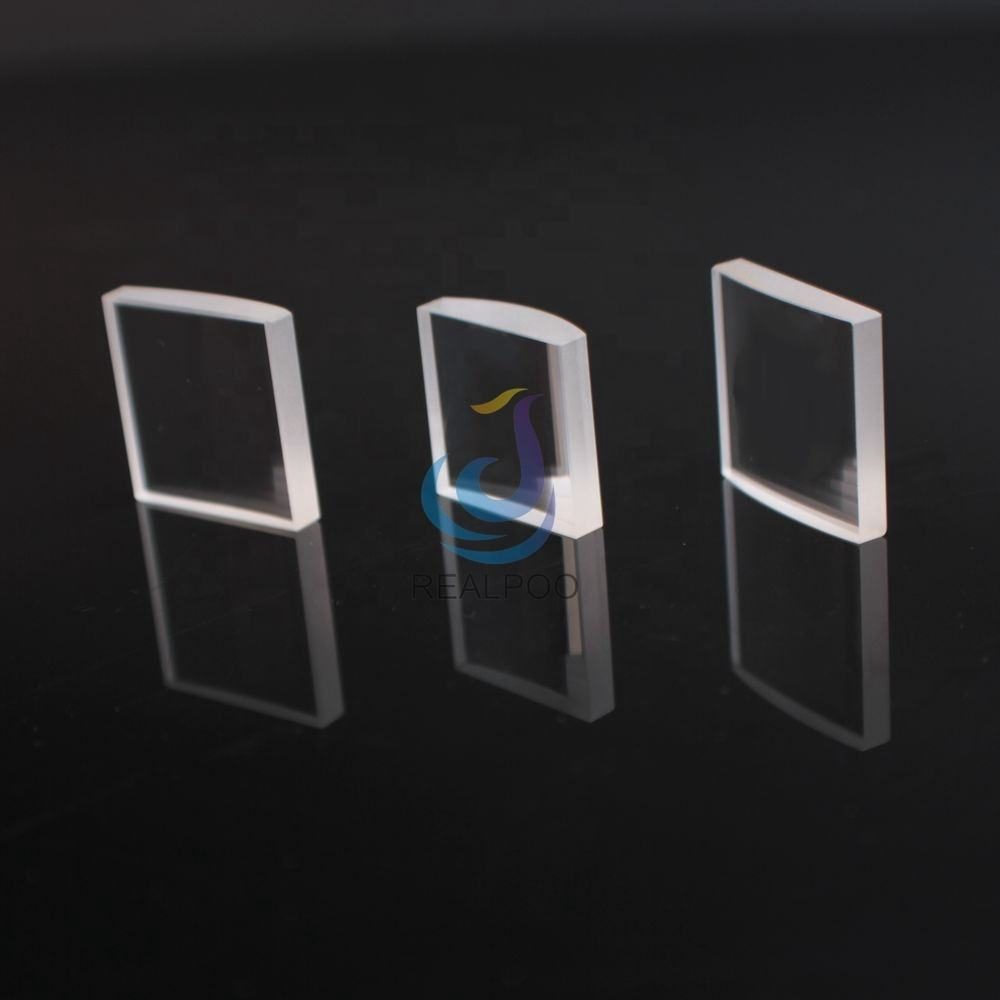

This plano-convex cylindrical lens is designed for applications in medical imaging, microscopy, and semiconductor technologies, operating effectively within the 0.7-1.7 μm and 400-700 nm wavelength bands. With a focal length of 4.0 mm and a diameter of 10.0 mm, it provides precise light focusing capabilities. The lens is available in both anti-reflective and uncoated options, ensuring versatility for various optical setups. Its high surface quality of 40/20 ensures minimal distortion, making it suitable for high-precision applications.
Key Features
- Focal length of 4.0 mm for effective light focusing.
- Surface quality of 40/20 ensures minimal optical distortion.
- Available in N-BK7 glass for enhanced durability.
- Diameter of 10.0 mm with a tolerance of +/-0.1 mm for precise fitting.
- Custom OEM options available for tailored applications.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 10 x 4 |
Applications
Medical, Microscopy, Projection, Semiconductor, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 10 mm |
| Focal Length | 4 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | cylindrical lens |
| Customized Support | OEM |
| Weight | 0.1 |
| Dimension Tolerance | +/-0.1 |
FAQ
Can I get custom sizes for this lens?
Yes, custom sizes are available upon request.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
