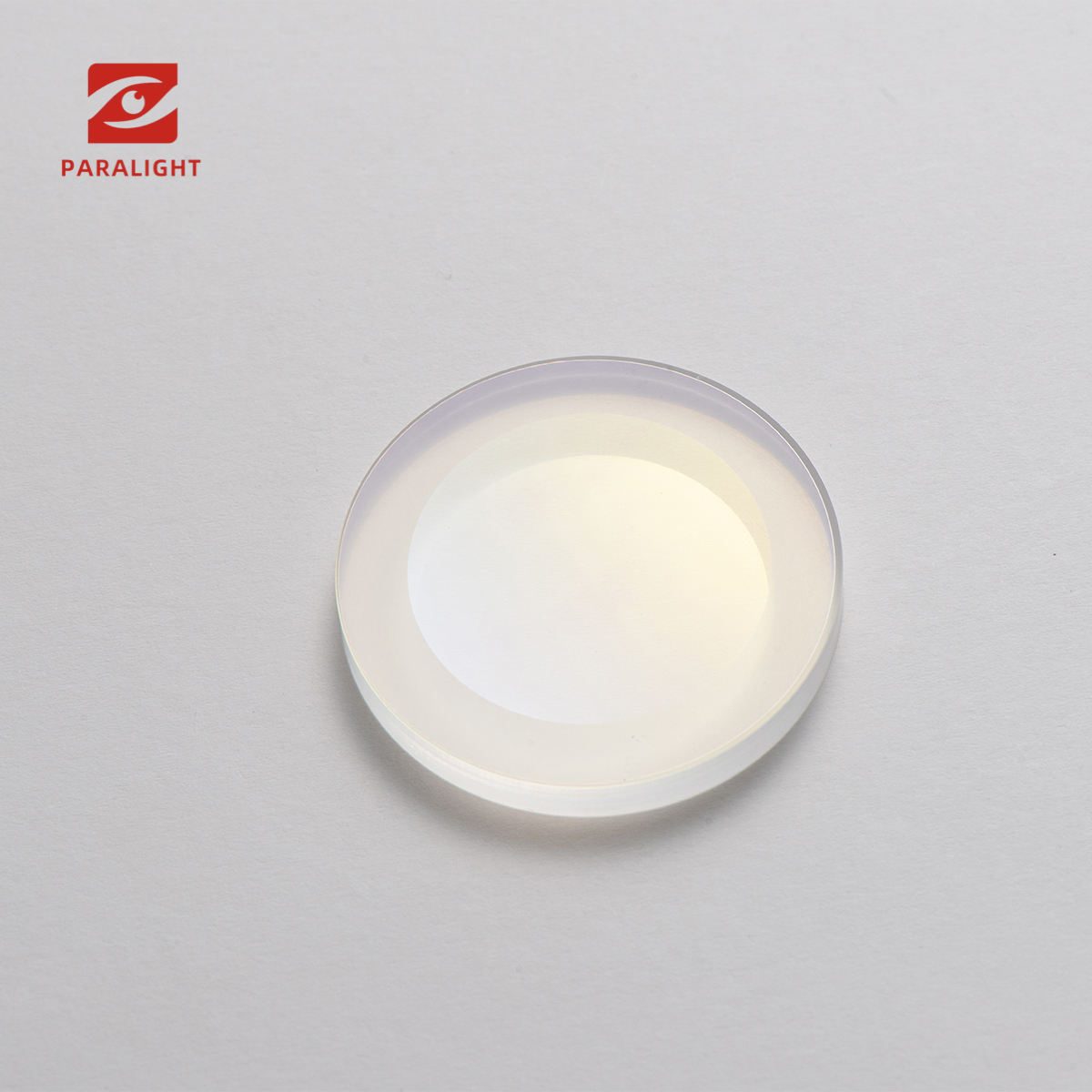

10x5 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 glass provides superior optical clarity, making it ideal for applications such as laser cutting, medical devices, projection, collimation, and imaging. With a focal length of 5.0 mm and a diameter of 10.0 mm, this lens ensures high light transmission and minimal distortion. Its advanced aspheric design effectively eliminates spherical aberration, enhancing beam quality for precision imaging tasks.

Key Features

Focal length of 5.0 mm for precise focusing capabilities.
Surface quality of 20/10 ensures minimal distortion for high-end applications.
Broadband AR coating maximizes efficiency and reduces ghosting in laser systems.
Customizable diameters from 5 mm to 1000 mm to fit specific project needs.
Manufactured under ISO9001 certification for quality assurance.

Available Sizes

Diameter x Focal Length (mm)
10 x 5

Applications

Laser Cutting, Medical, Projection, Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	10 mm
Focal Length	5 mm
Surface Quality	20/10
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Plano Convex Lens; Optical Led Lens
Customized Support	OEM, ODM
Warranty	1 years
Weight	0.02KG(0.04lb)
Color	Transparent Clear
Certification	ISO9001
Structure	Plano-convex

FAQ

Can I get custom sizes for this lens?

Yes, the lens supports a wide range of diameters from 5 mm to 1000 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
