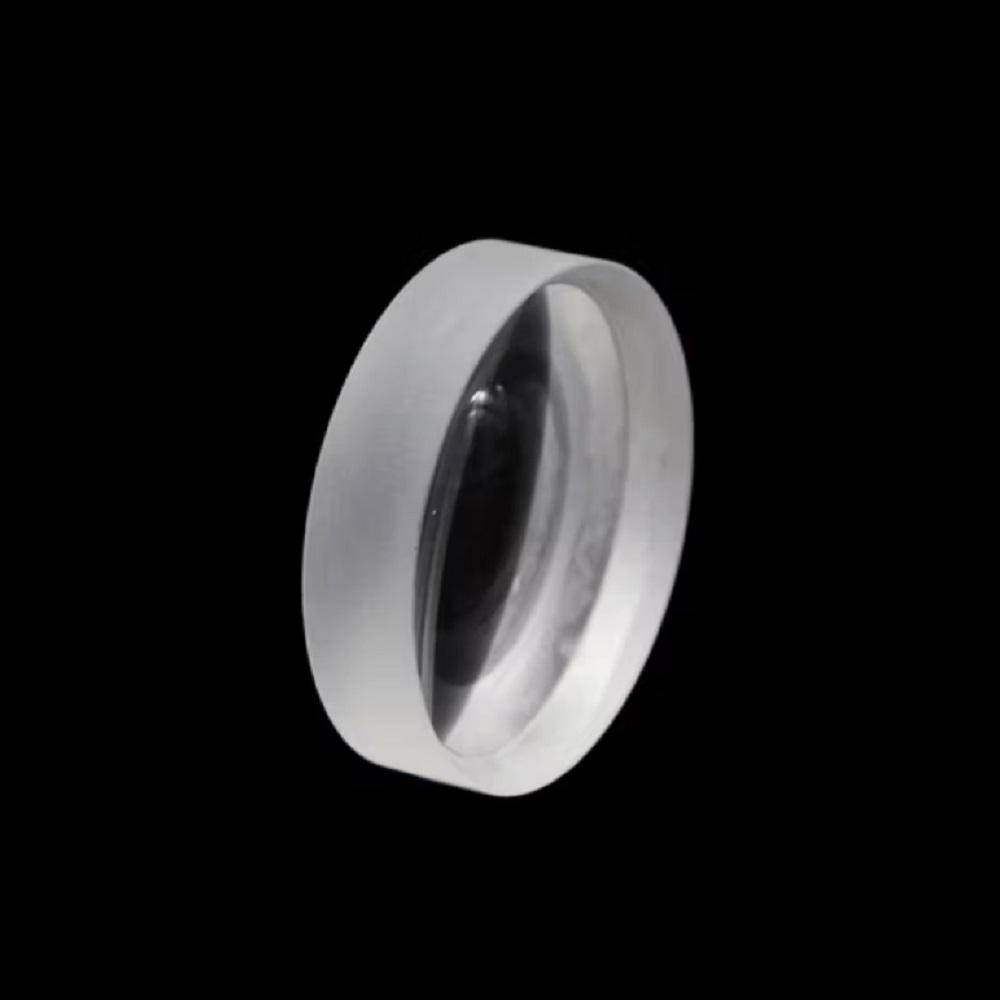

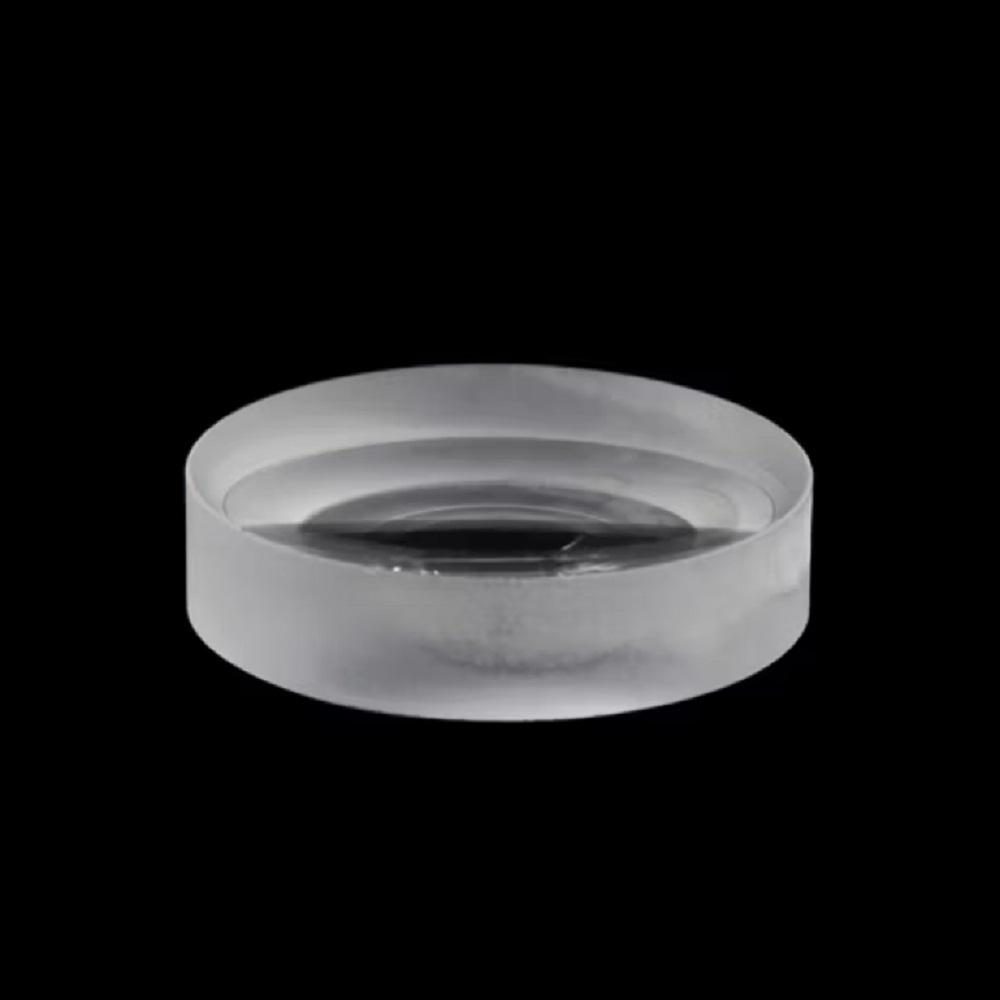

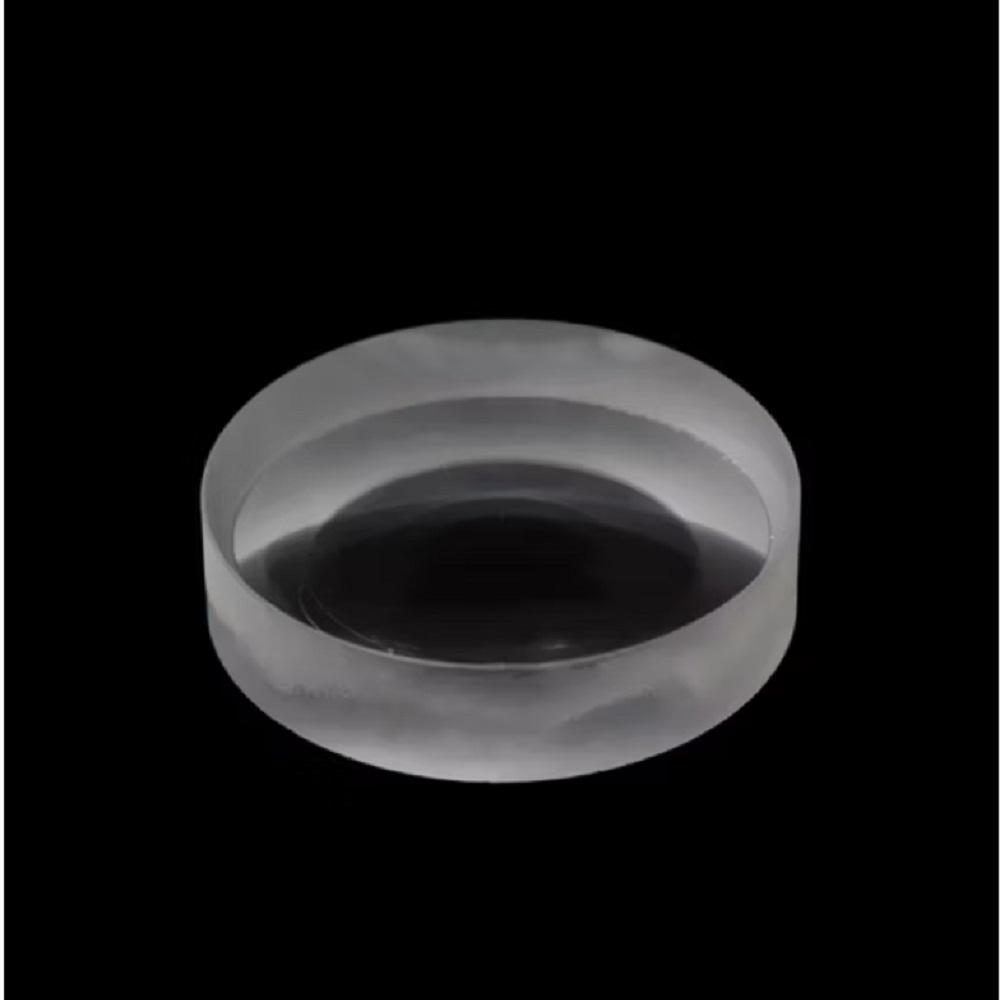

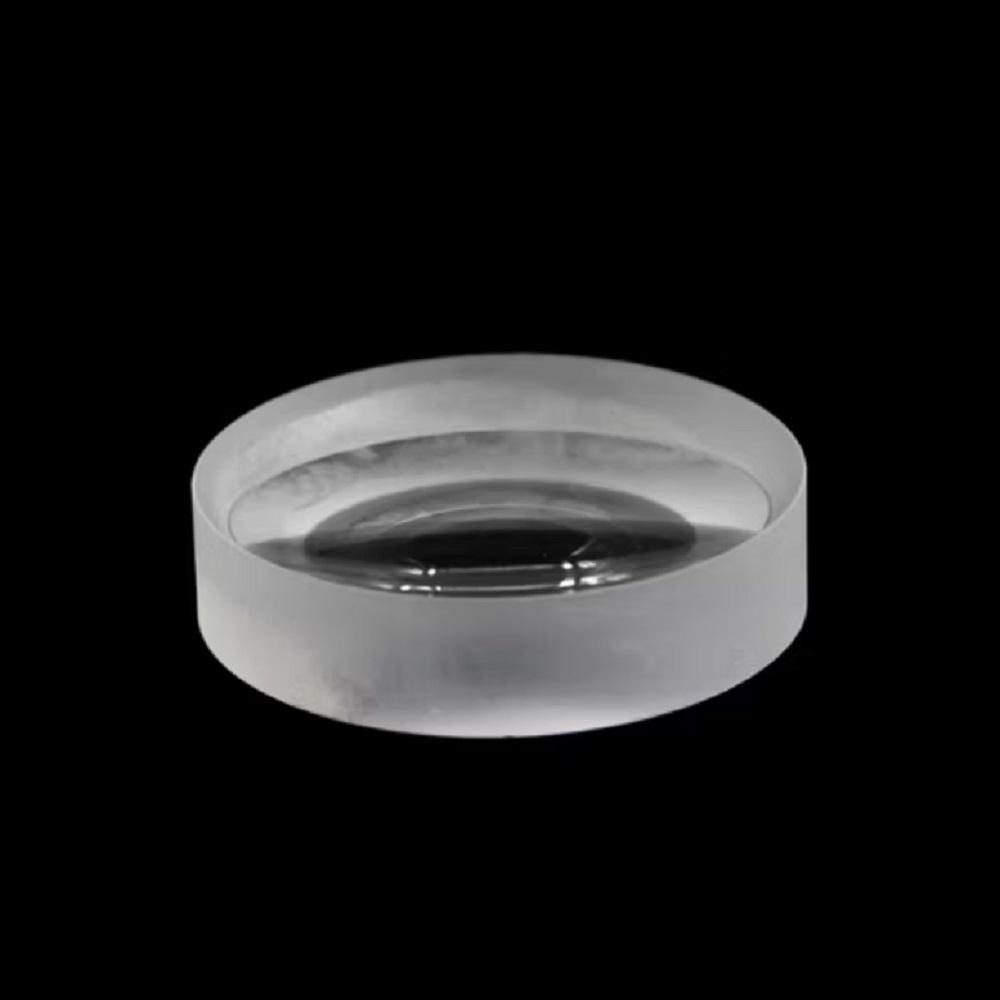

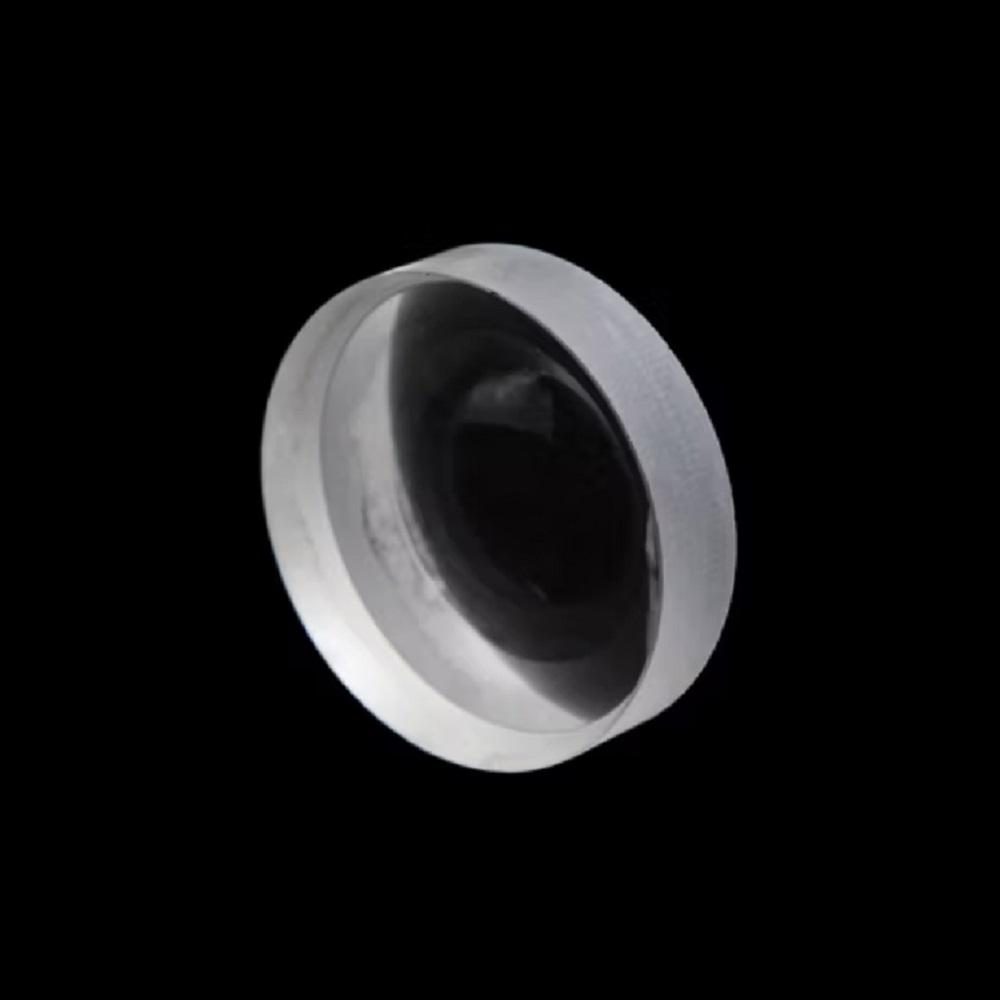

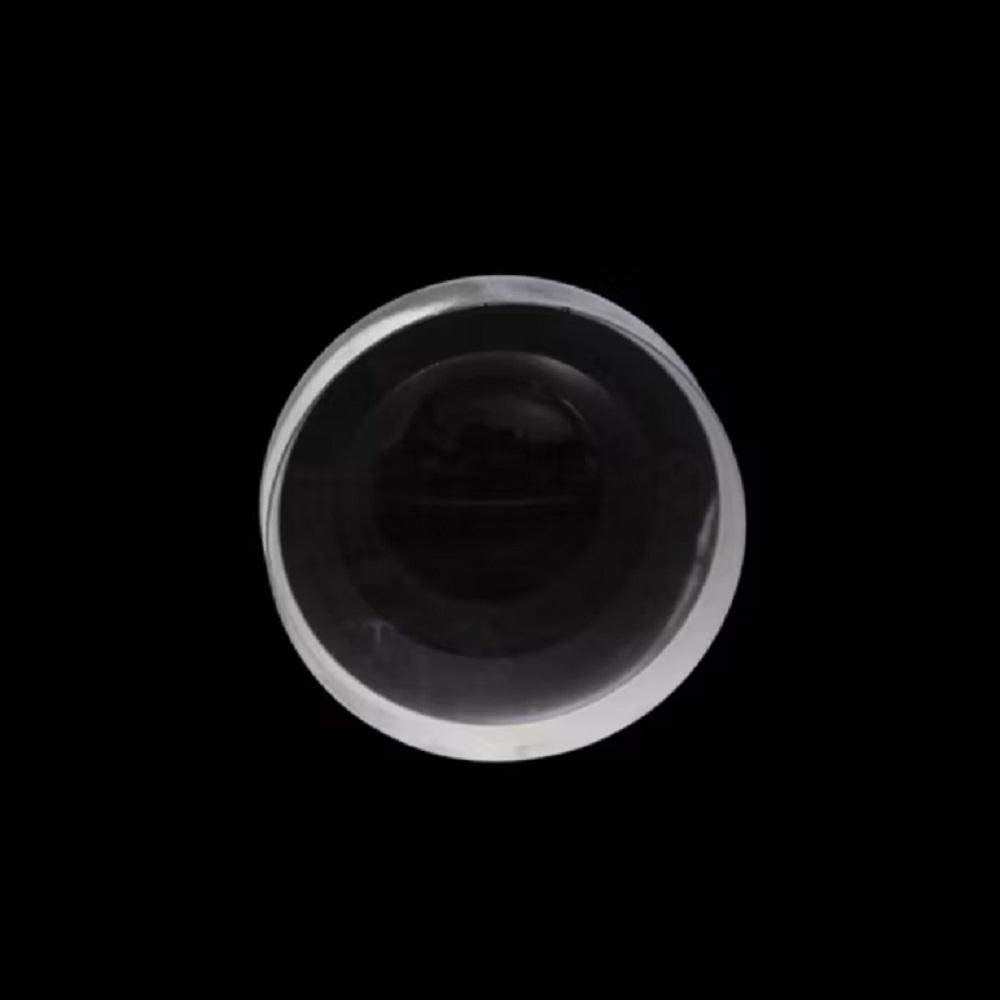

150 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 glass is designed for a variety of applications including thermal imaging, machine vision, and medical devices. With a diameter of 150 mm and a surface quality of 10/5, this lens ensures high performance in imaging applications. It features anti-reflective coatings to enhance transmittance, making it suitable for precision optical systems. The lens is manufactured in Beijing, ensuring reliable quality and consistency.

Key Features

Diameter of 150 mm for versatile application fit.
Surface quality of 10/5 ensures minimal distortion in imaging.
Clear aperture of ≥90% for optimal light transmission.
Dimension tolerance of ±0.1 mm for precise integration.
OEM and ODM support available for custom solutions.

Applications

Thermal Imaging, Machine Vision, Security, Medical, Microscopy, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	150 mm
Surface Quality	10/5
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.3
Clear Aperture	≥central 90% of diameter
Structure	Plano-convex
Dimension Tolerance	+/-0.1-0.1mm

FAQ

Can this lens be customized in size?

Yes, custom sizes are available, with flexible production for diameters ranging from 1 mm to 300 mm.

What are the tolerances for this lens?

The dimension tolerance is ±0.1 mm, with focal length tolerances of ±1%.
