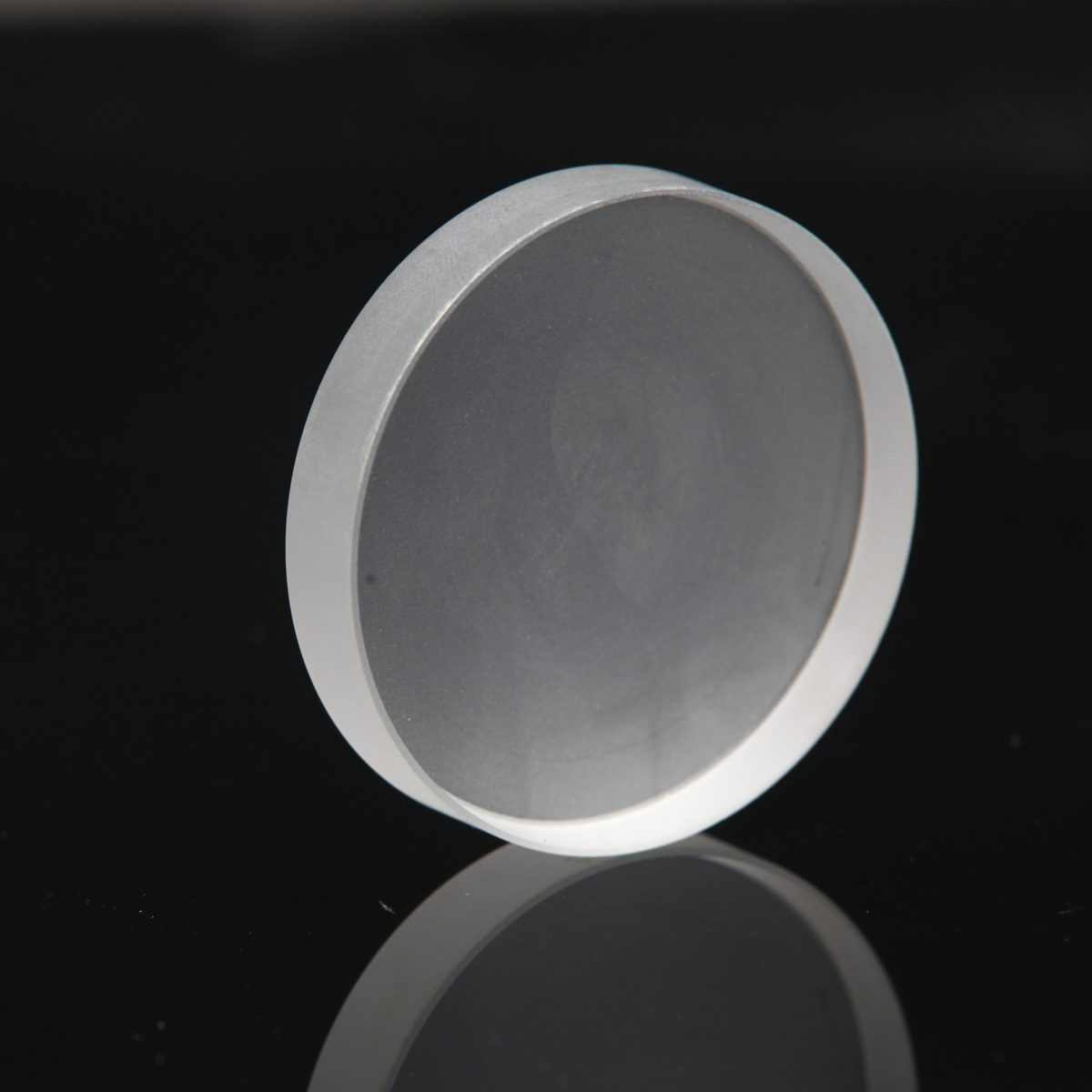

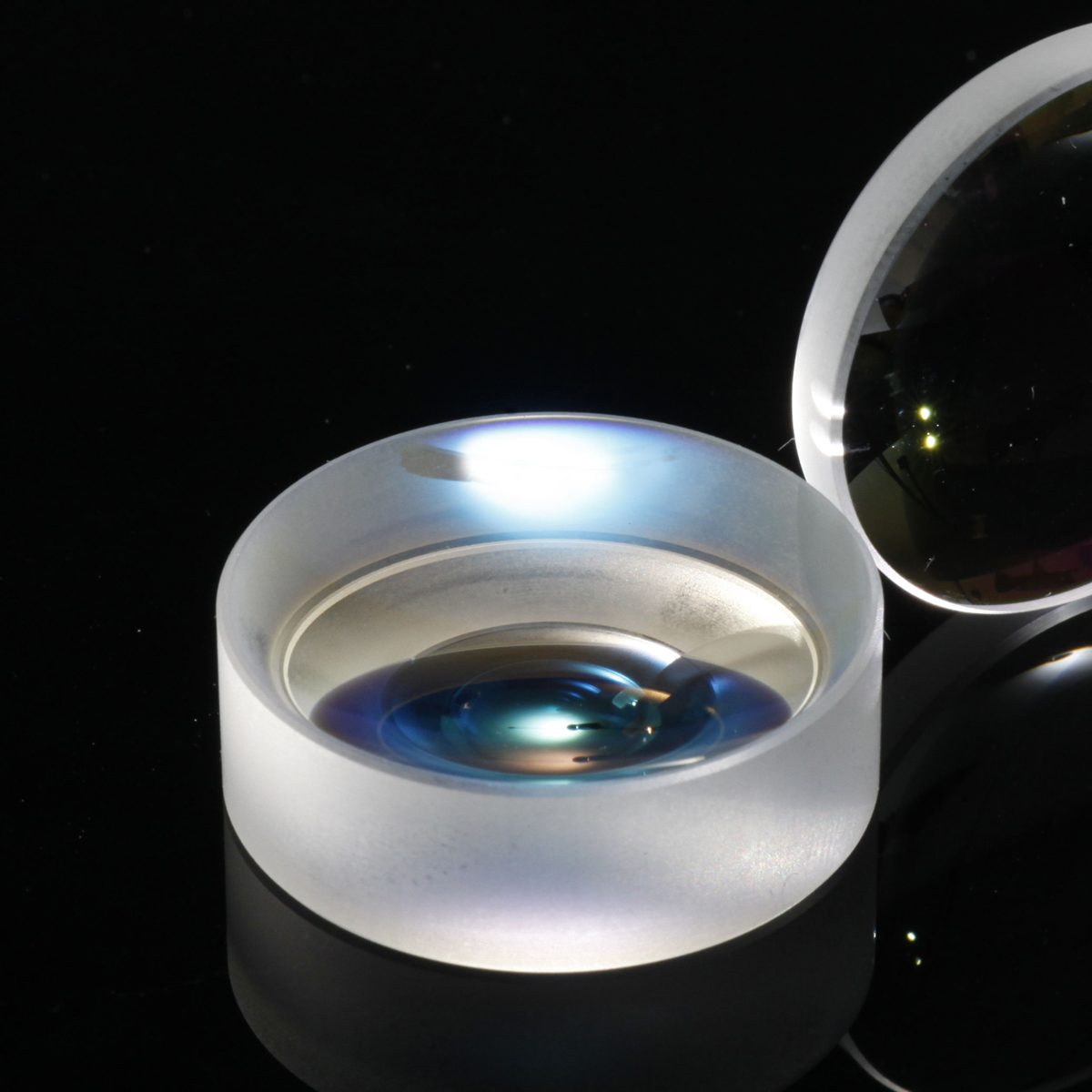

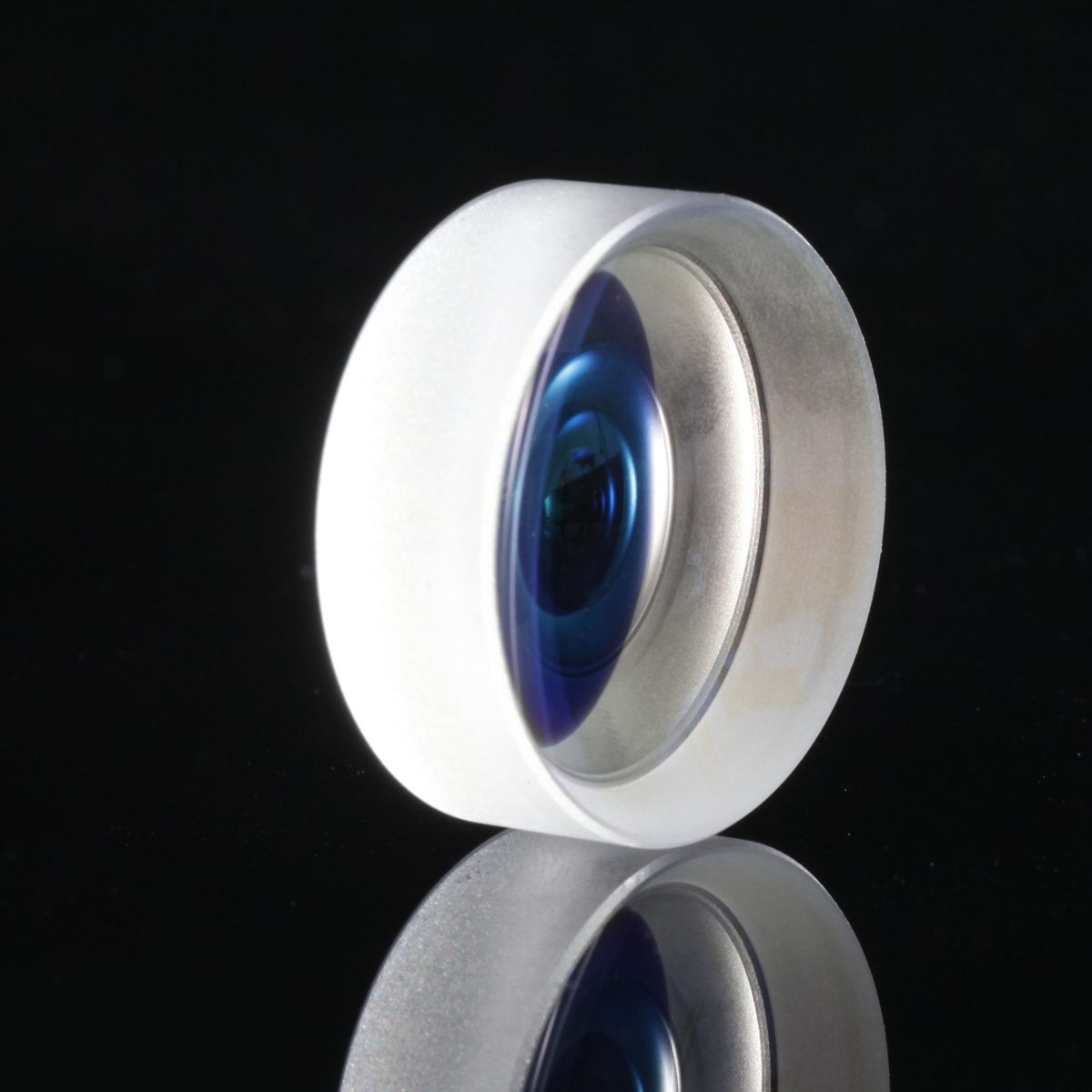

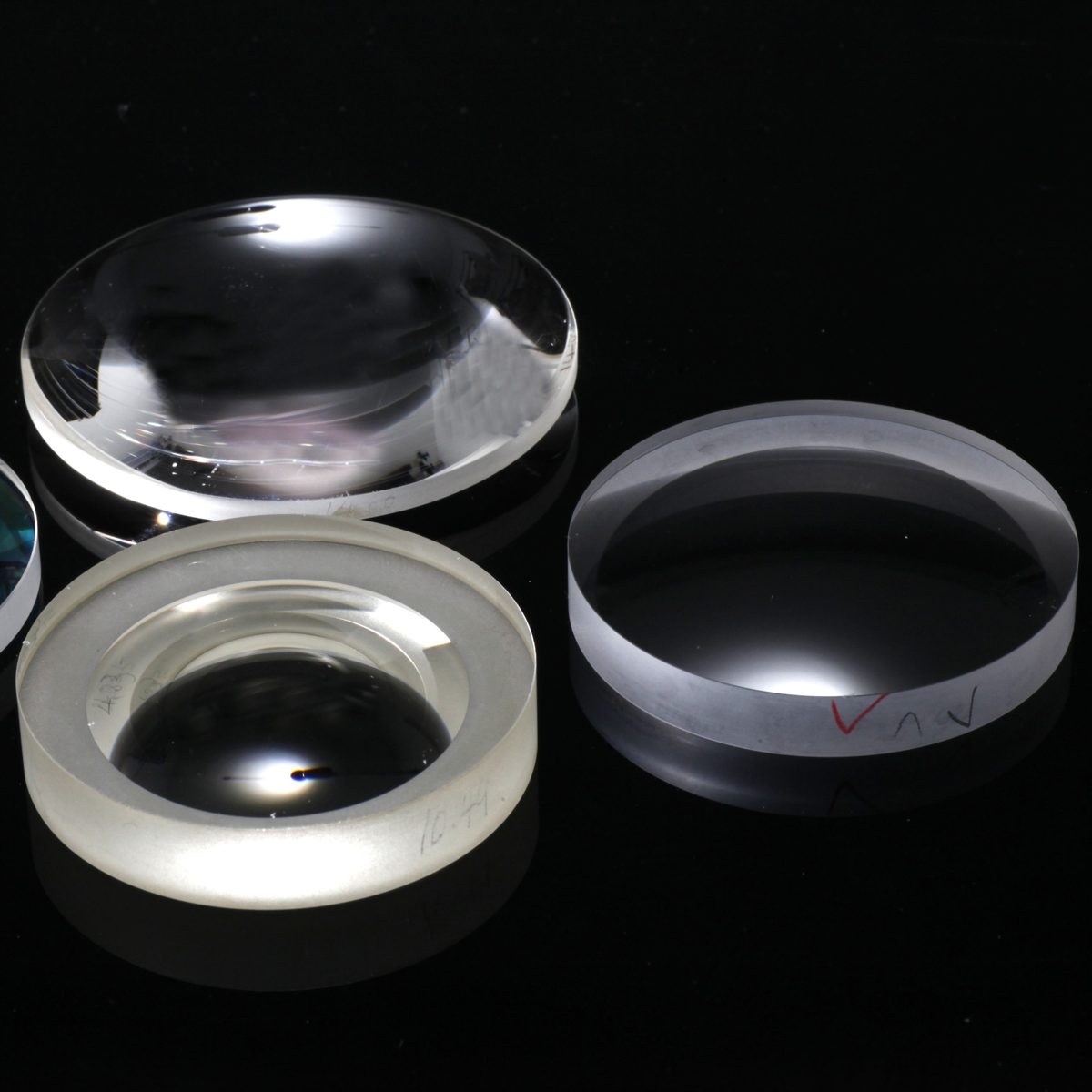

1x1 mm N-BK7 Plano-convex Lens, AR Coated

Product description

This plano-convex lens made from N-BK7 glass is ideal for microscopy applications, providing high optical clarity with 90% transmittance across the 400-700 nm wavelength range. Its versatile design accommodates a wide range of diameters from 1 mm to 500 mm, ensuring compatibility with various optical instruments. The lens also features a surface flatness of 1/4@633nm, making it suitable for precision applications. Custom sizes and OEM/ODM support enhance sourcing flexibility for specific project requirements.

Key Features

High optical clarity with 90% transmittance for minimal light loss.
Available diameters from 1 mm to 500 mm for diverse applications.
Surface flatness of 1/4@633nm ensures precision in optical performance.
Customizable options available for tailored application needs.
Durable N-BK7 material suitable for precision instruments.

Available Sizes

Diameter x Focal Length (mm)
250.5 x 500.5

Applications

Microscopy

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	1 mm
Focal Length	1 mm
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Meniscus Lens
Warranty	1 Year
Weight	0.3
Clear Aperture	≥Central 95% of diameter
Customized Support	OEM, ODM, OBM
Structure	Plano-convex
Surface Flatness	1/4@633nm

FAQ

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified.

Can I get custom sizes?

Yes, custom sizes are available, including variant sizes from 250.5 mm to 500.5 mm.
