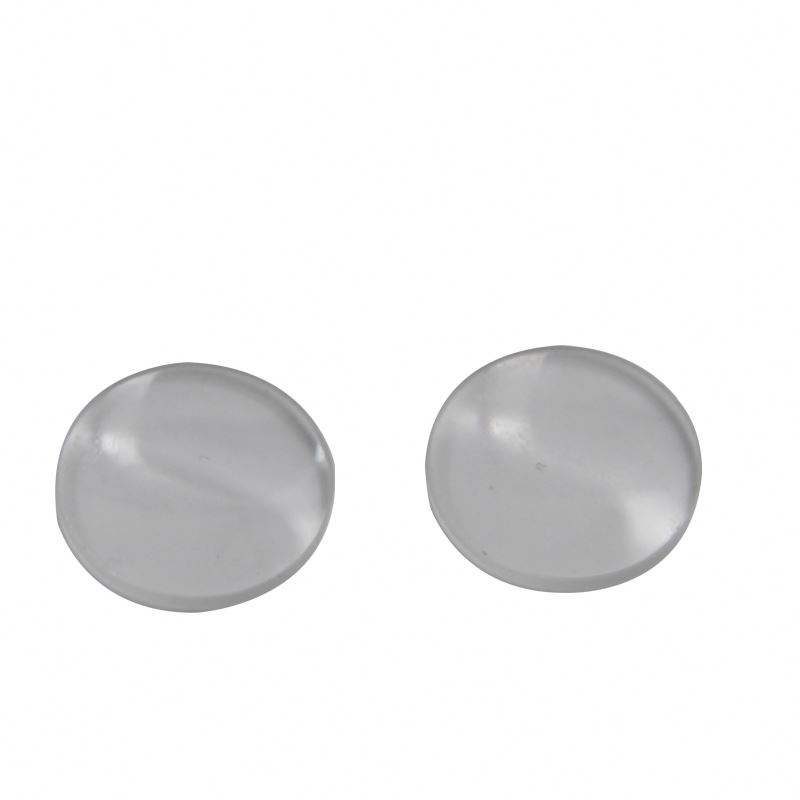

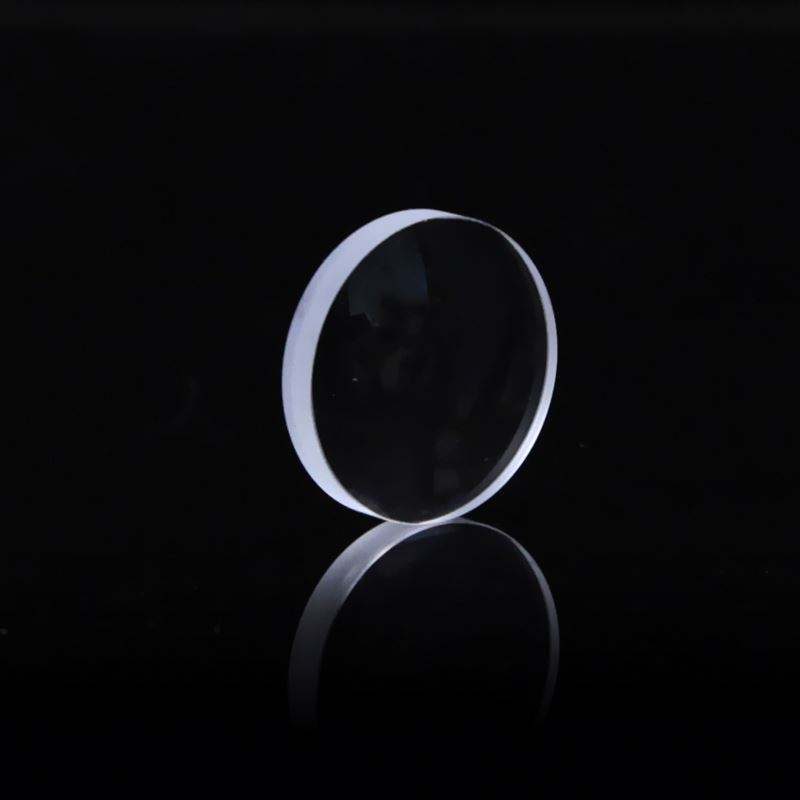

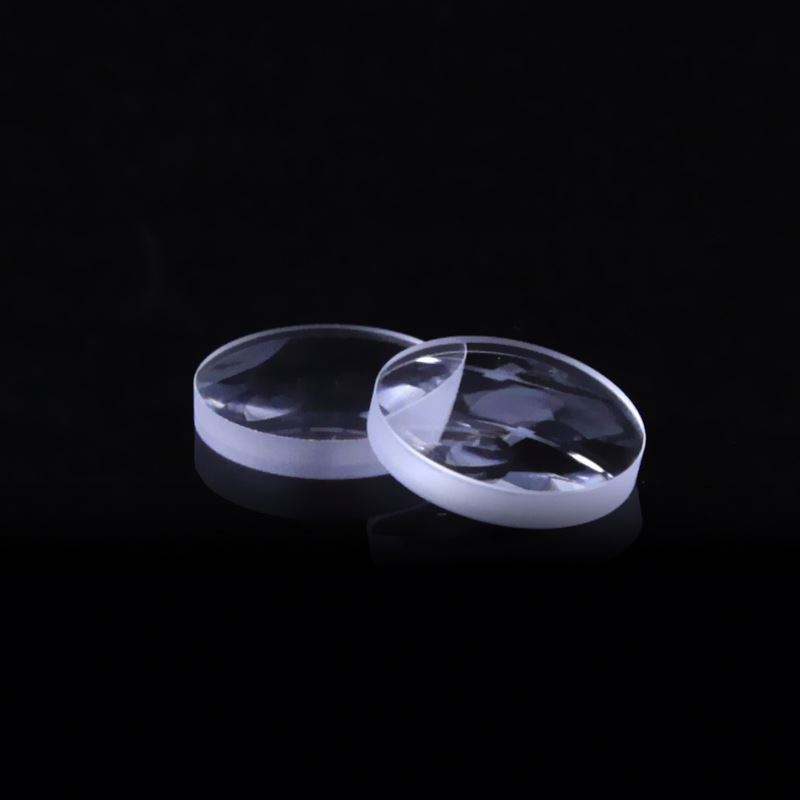

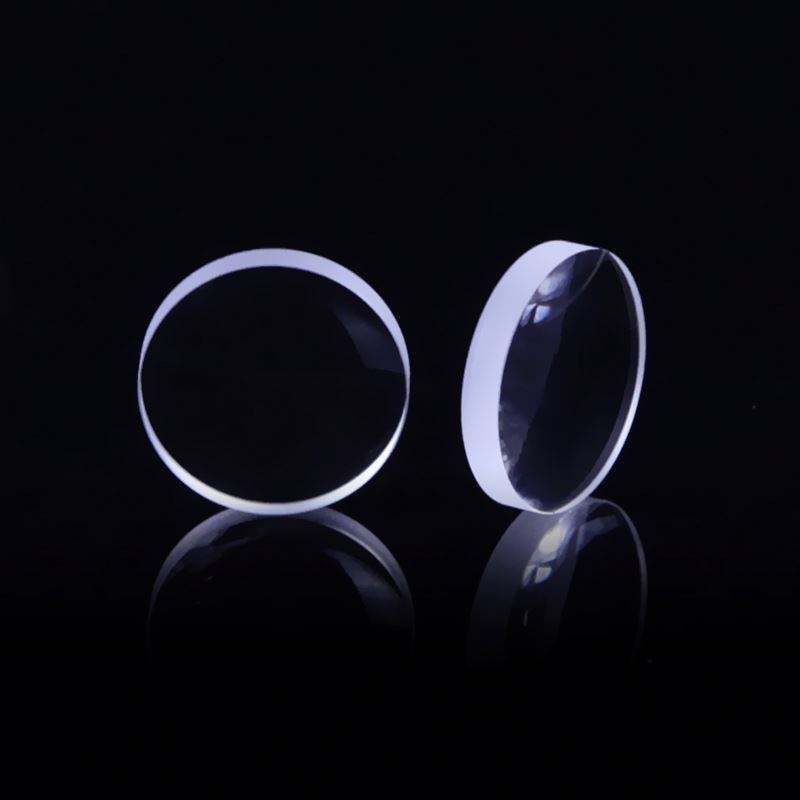

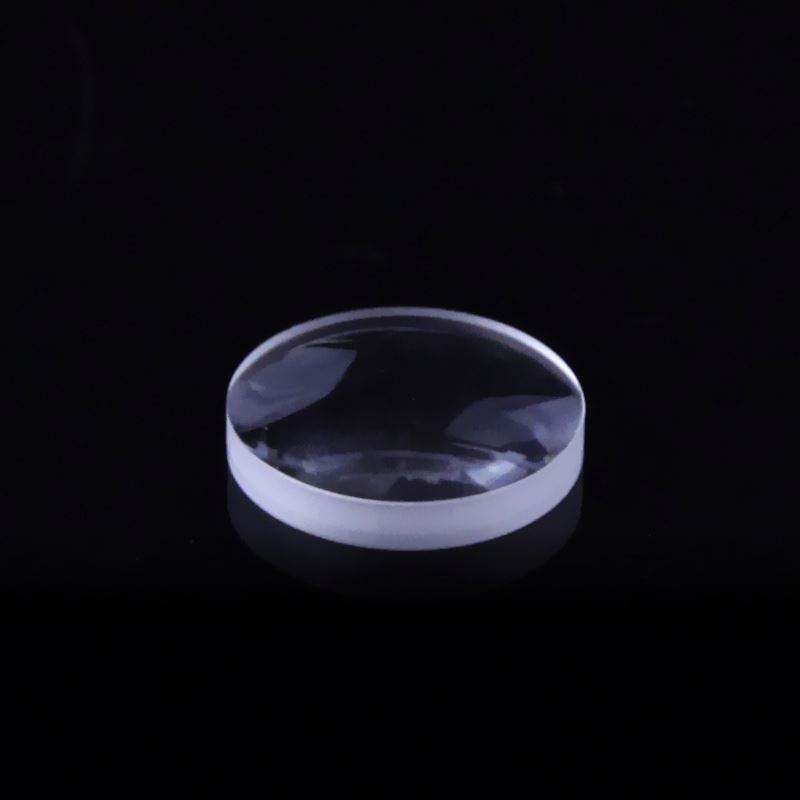

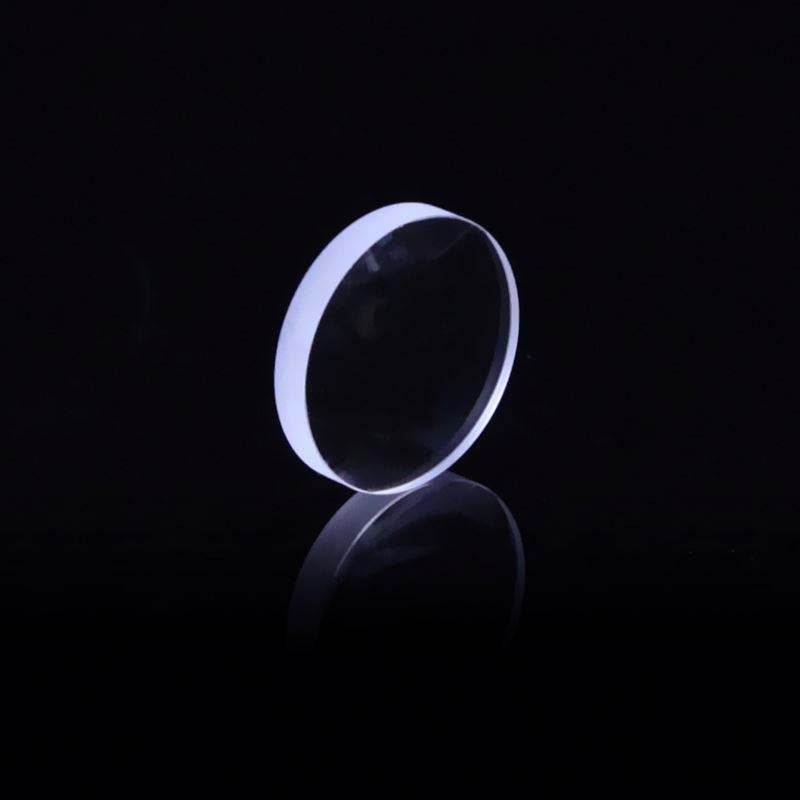

1 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 is ideal for applications in medical imaging and optical systems. With a diameter range of 1.0 to 100.0 mm, these lenses are designed to collect and focus light efficiently, making them suitable for various imaging tasks. The lens features a surface quality of 60/40 and a flatness of lambda/4, ensuring high performance in non-critical applications. Coated with anti-reflective coatings, they provide optimal light transmission for enhanced imaging quality.

Key Features

Diameter range: 1.0 to 100.0 mm for versatile applications.
Surface quality of 60/40 ensures reliable performance.
Flatness of lambda/4 for precise light focusing.
Central 90% clear aperture maximizes light throughput.
Custom manufacturing options available for tailored solutions.

Applications

Medical, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Color	Transparent
Edge Thickness	2mm
Flatness	lambda/4
Clear Aperture	Central 90%

FAQ

Can I get custom sizes for these lenses?

Yes, custom sizes can be manufactured according to the specifications provided.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; inquire for details.
