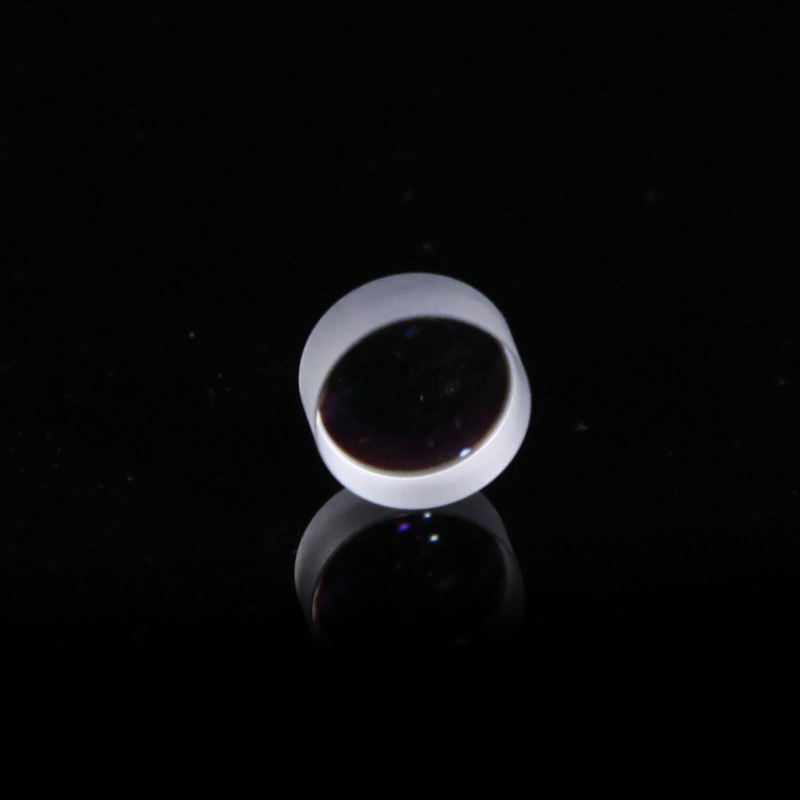

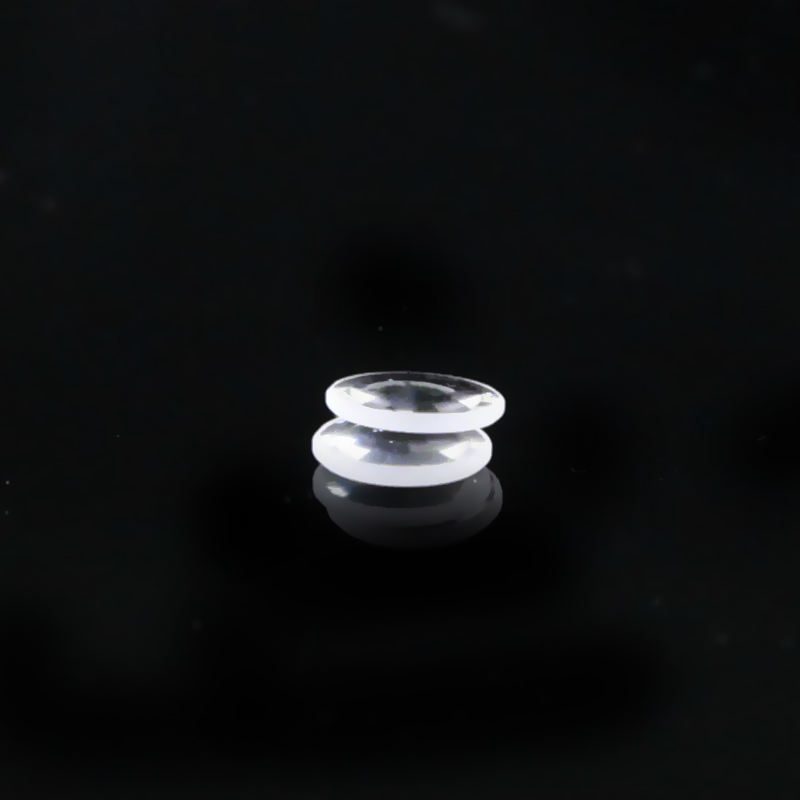

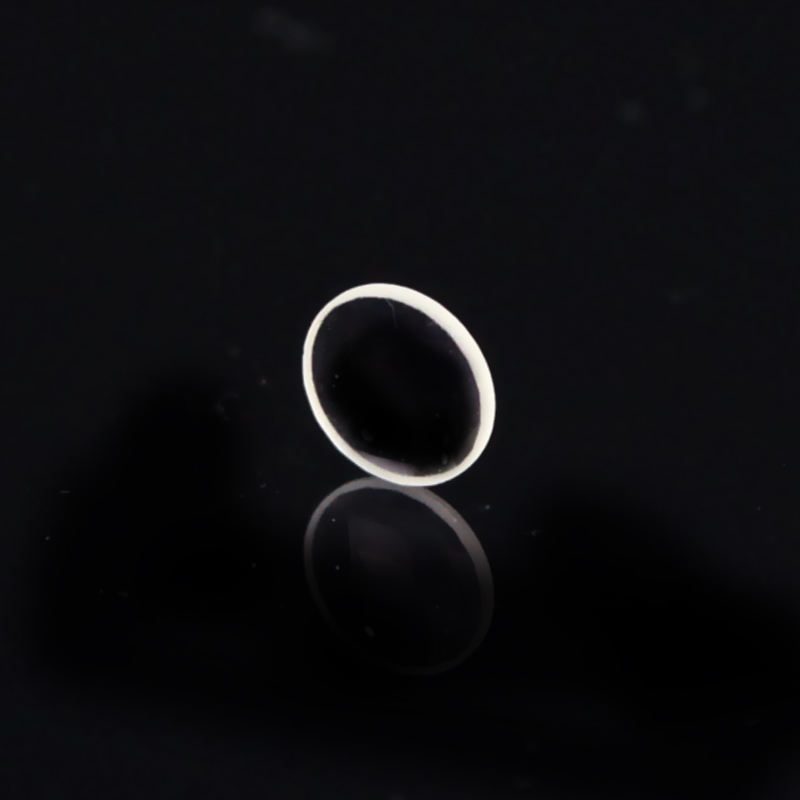

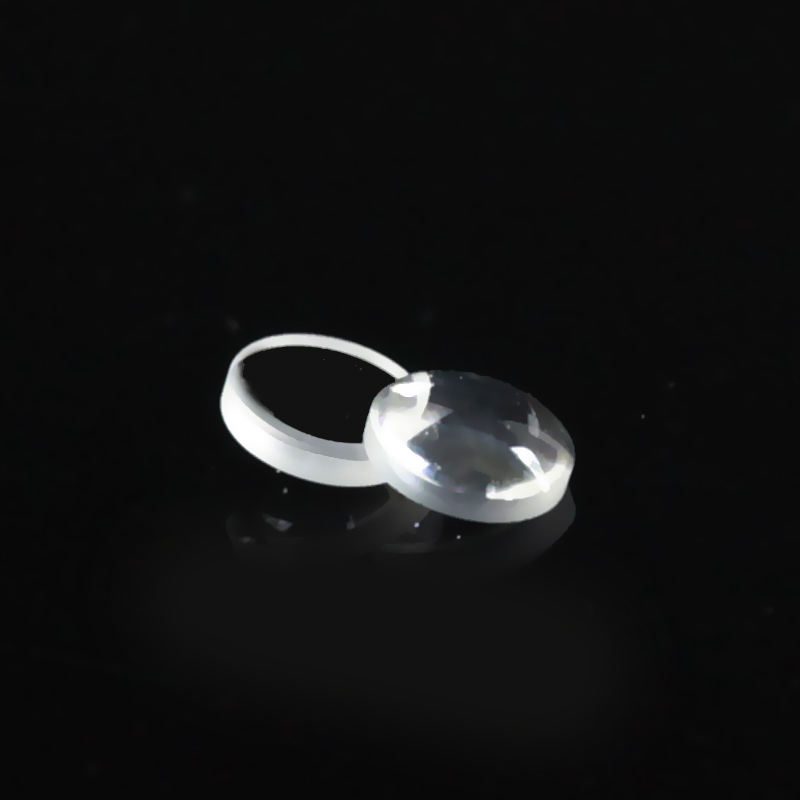

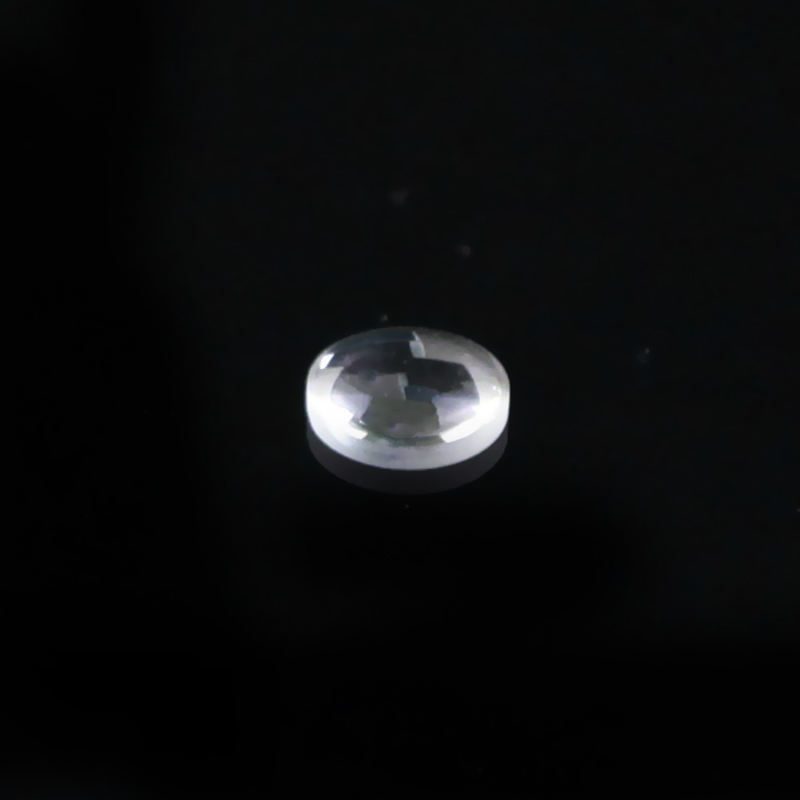

1 mm N-BK7 Plano-convex Lens, AR Coated
Explore N-BK7 plano-convex lenses for imaging applications, customizable with high optical quality and clear aperture.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The plano-convex lens made from N-BK7 material is ideal for imaging applications across a broad wavelength range of 0.7-1.7 μm and 400-700 nm. Its design minimizes chromatic and spherical aberrations, making it suitable for optical instruments. With a clear aperture of 85% to 95%, this lens ensures high transmittance and performance in various imaging scenarios. Sourced from Henan, it offers reliable quality with a surface quality rating of 60/40, ensuring clarity and precision in optical applications.
Key Features
- Material: N-BK7 for excellent optical performance.
- Coated with anti-reflection layers for enhanced transmittance.
- Surface quality rating of 60/40 for reliable imaging clarity.
- Clear aperture of 85% to 95% for optimal light transmission.
- Customizable through OEM support for specific application needs.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens; Bi-convex Lenses |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Clear Aperture | 85% ~95% |
| Flatness | 1/4lambda |
FAQ
Can I get custom sizes for this lens?
Yes, custom sizes can be provided according to your specifications.
What is the tolerance for diameter?
The diameter tolerance is -0.2 mm.
