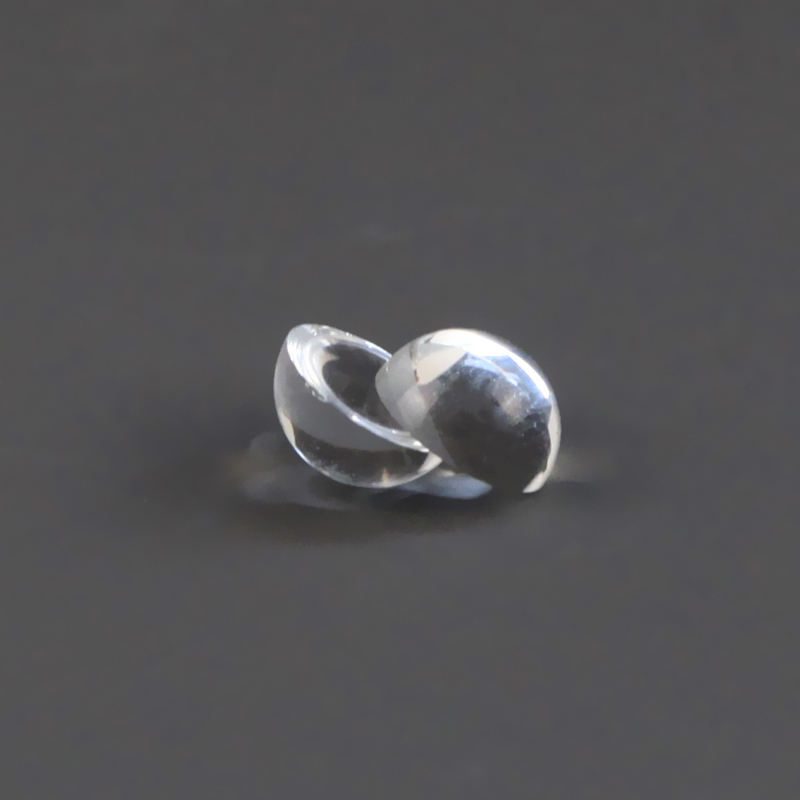

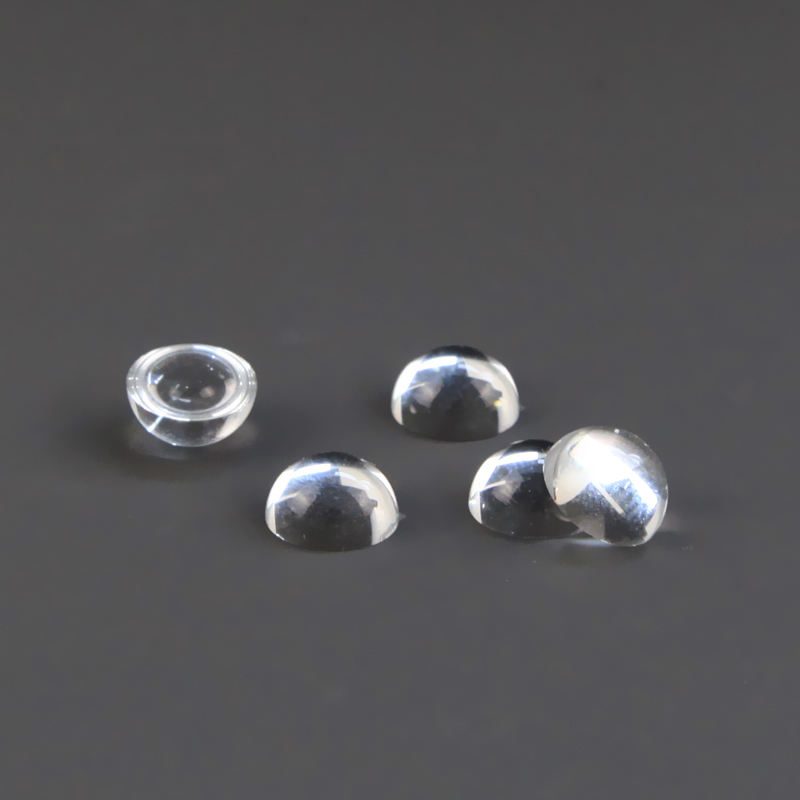

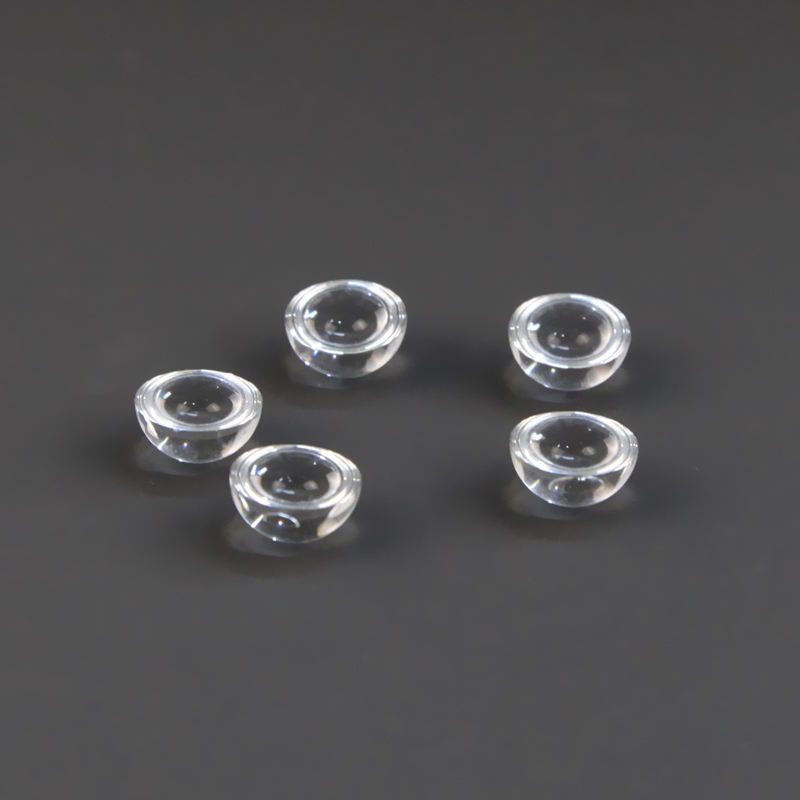

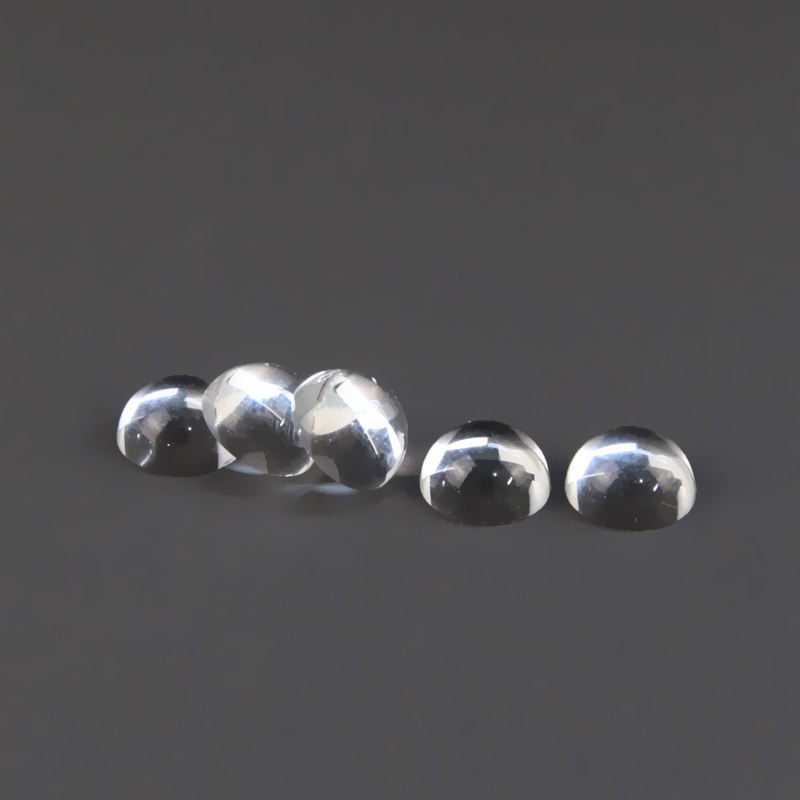

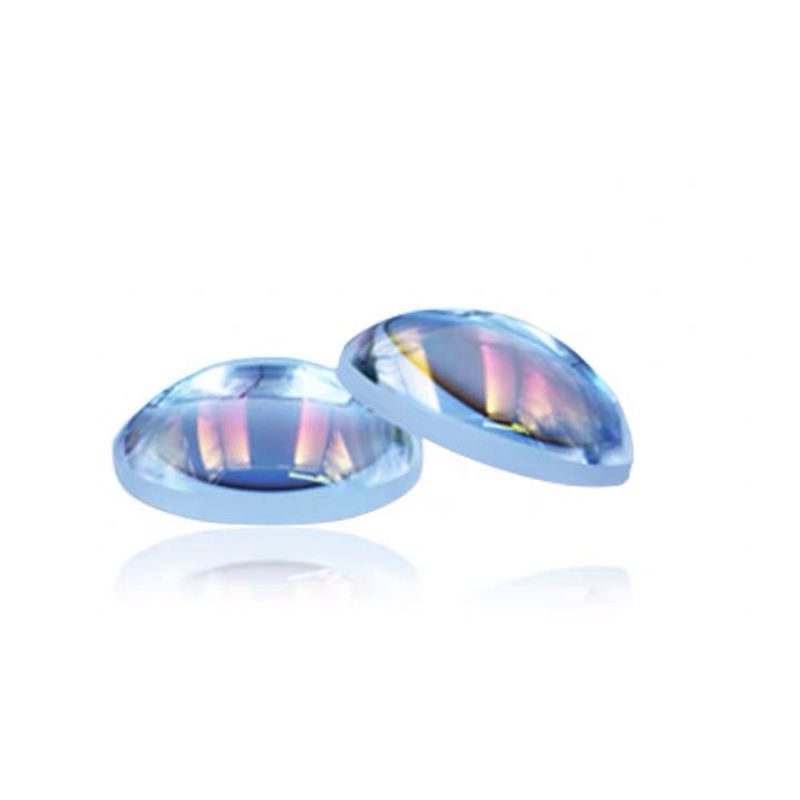

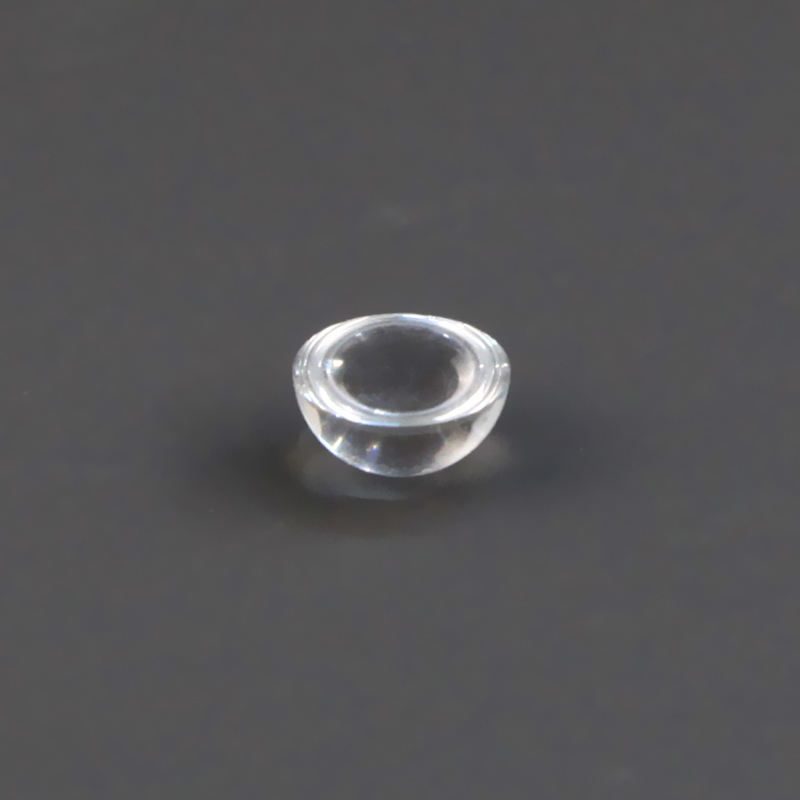

1 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The N-BK7 plano-convex lens is designed for applications in medical, microscopy, and collimation, effectively transmitting wavelengths from 0.7 to 1.7 μm and below 400 nm. Its high surface quality (60/40) ensures reliable performance in optical systems, making it suitable for laser collimating, fiber coupling, and endoscopy. With a compact diameter of 1.0 mm, this lens meets the demands of precision optics in various applications.

Key Features

Material: N-BK7 for excellent optical performance.
Surface quality of 60/40 ensures minimal distortion.
Diameter tolerance of +/-0.1 mm for consistent sizing.
Customizable options available for OEM, ODM, and OBM.
Lightweight design at 0.02 g for easy integration.

Applications

Medical, Microscopy, Collimation

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	dome lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.02
Color	transparents
Diameter Tolerance	+/-0.1

FAQ

Can I get custom sizes for this lens?

Yes, customizable options are available for OEM, ODM, and OBM.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering.
