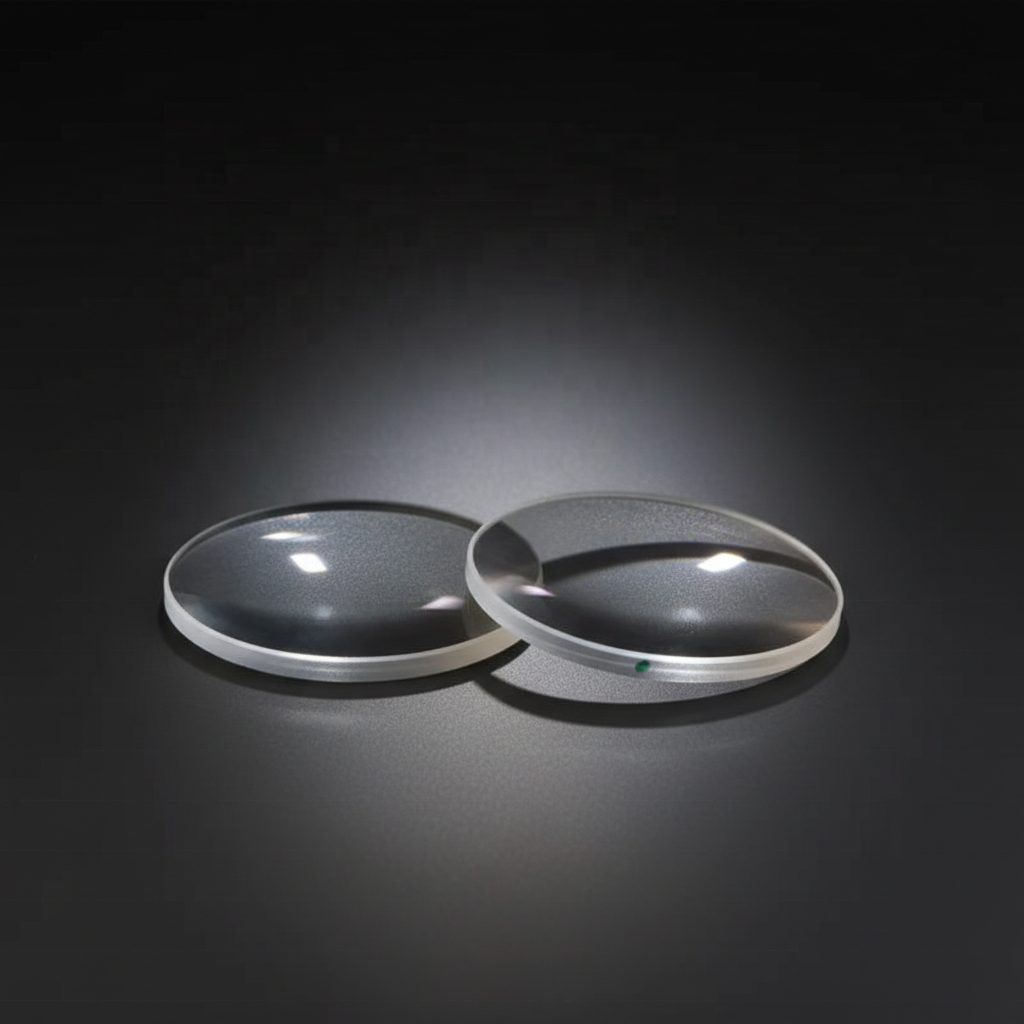

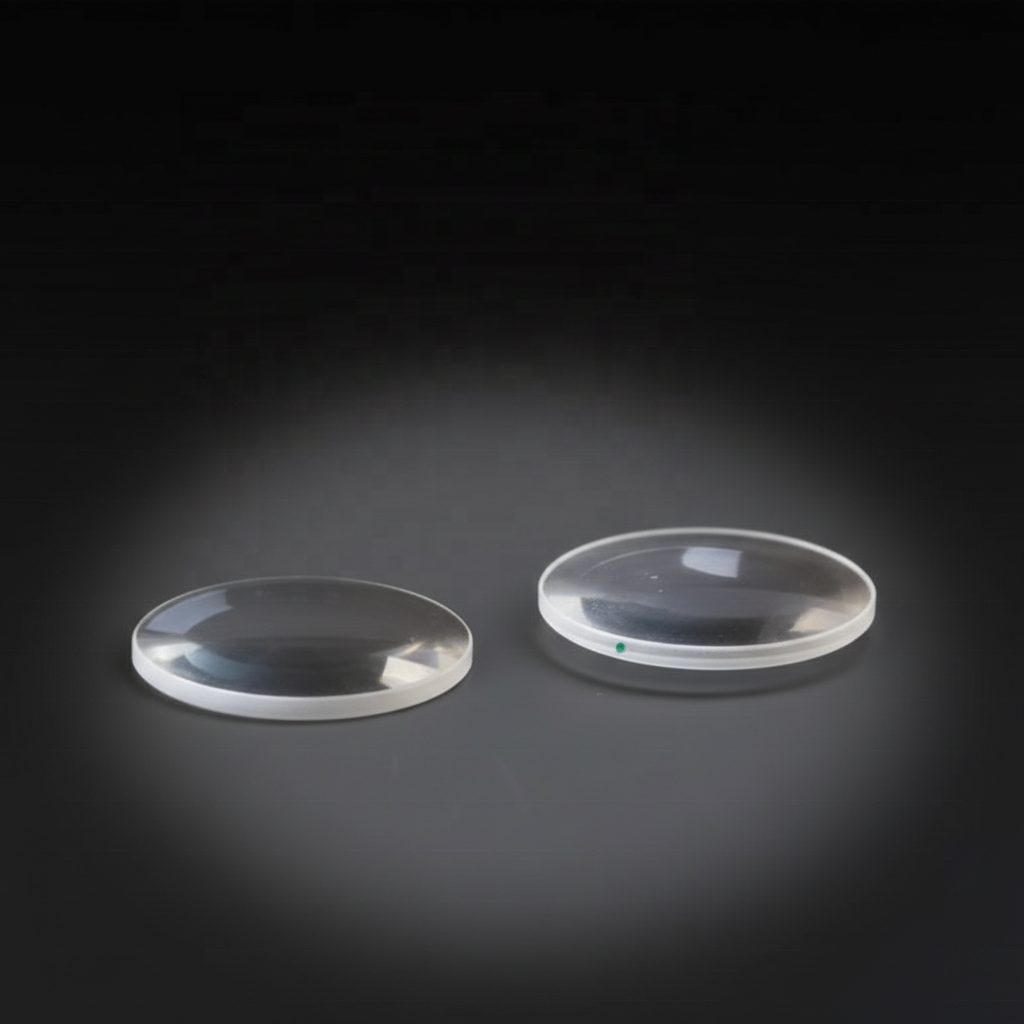

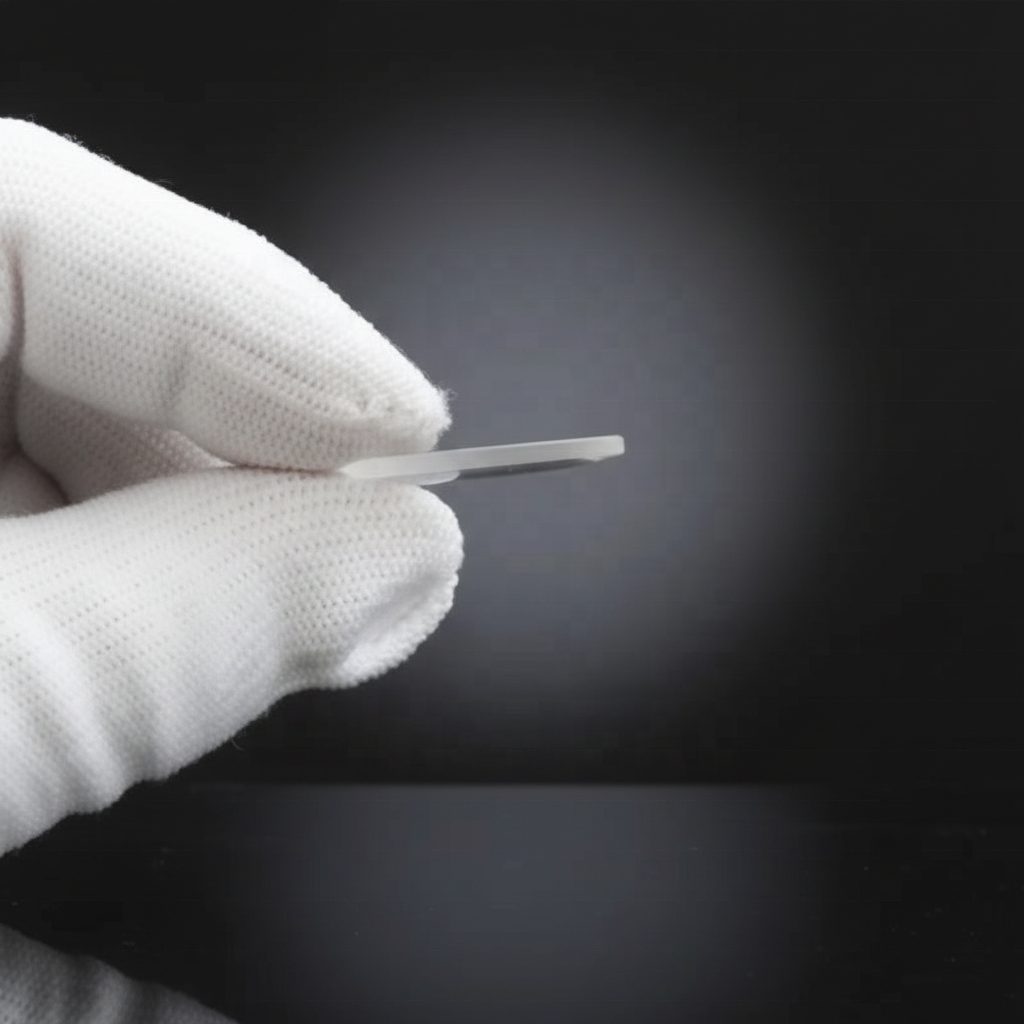

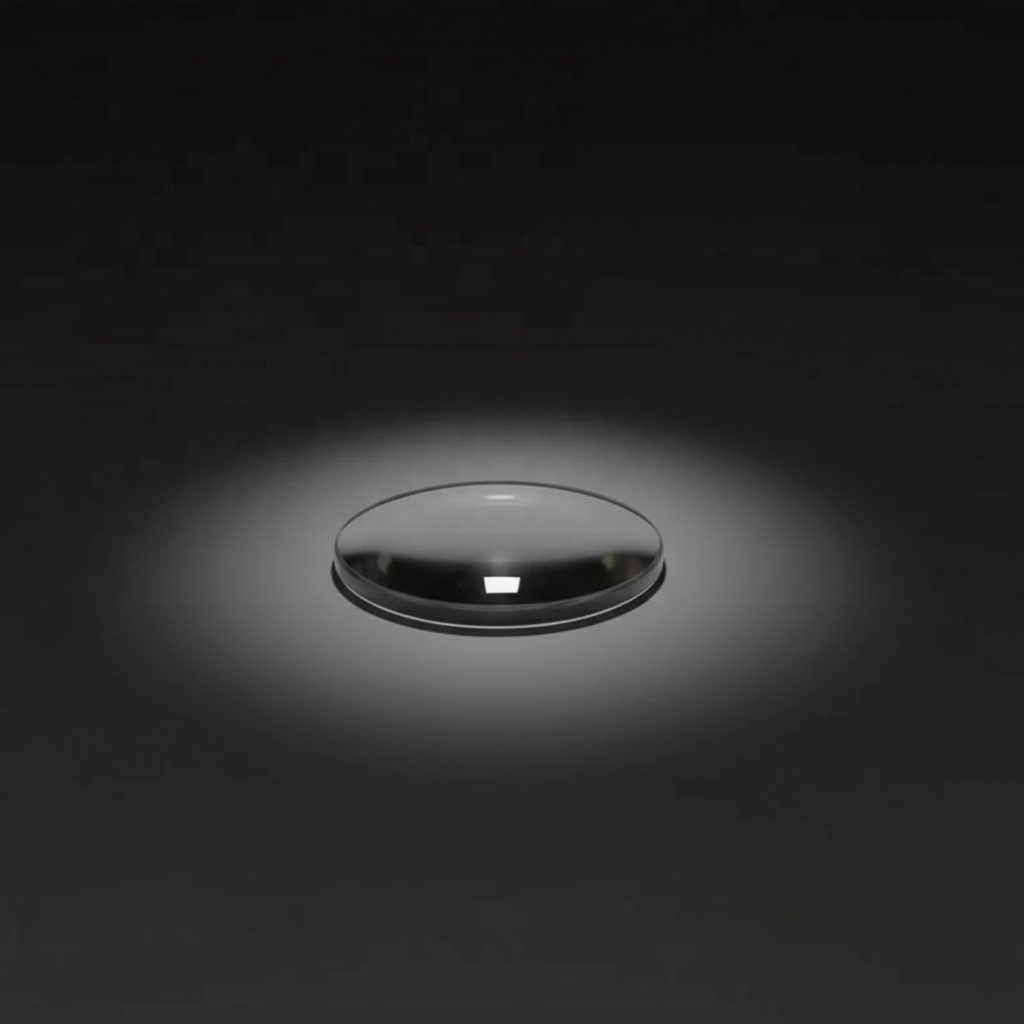

25x75 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 is ideal for imaging applications in the 400-700 nm wavelength range. It offers high visible light transmittance and low optical loss, ensuring sharp imaging and excellent optical uniformity. With customizable focal lengths and sizes, this lens can be tailored to meet specific project requirements, making it suitable for various R&D and procurement needs.

Key Features

Focal length of 75 mm for optimized imaging performance.
Diameter of 25 mm with a tolerance of +/-0.1 mm for precise fitting.
Surface quality rated at 60/40 for enhanced optical clarity.
AR coating to minimize reflections and improve transmittance.
Customizable options available for OEM, ODM, and OBM projects.

Available Sizes

Diameter x Focal Length (mm)
25 x 75

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	25 mm
Focal Length	75 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.03
Diameter Tolerance	+/-0.1
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

Can I get custom sizes for this lens?

Yes, the lens is customizable in focal length and size to meet specific application needs.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing flexibility for various order sizes.
