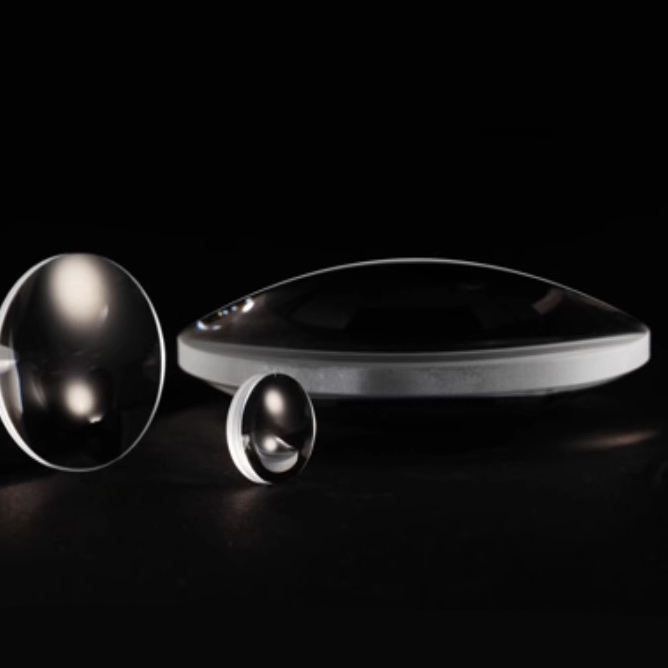

25 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 material is designed for imaging applications across the 0.7-1.7 μm and 400-700 nm wavelength bands. Its construction minimizes chromatic and spherical aberrations, making it ideal for optical instruments. With a diameter of 25 mm and a clear aperture of 85% to 95%, this lens ensures high-quality imaging performance. It is suitable for various optical setups, providing reliable performance in demanding environments.

Key Features

Surface quality of 60/40 enhances imaging clarity and reduces defects.
Anti-reflection coatings improve transmittance for better light management.
Customizable through OEM support for tailored optical solutions.
Flatness of 1/4 lambda ensures minimal wavefront distortion.
Lightweight at 0.5 kg, facilitating easy integration into devices.

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	25 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens; Bi-convex Lenses
Customized Support	OEM
Warranty	3 Years
Weight	0.5
Color	Transparent
Clear Aperture	85% ~95%
Flatness	1/4lambda

FAQ

What custom sizes are available?

Custom sizes can be accommodated based on specific requirements; please inquire for available options.

What is the MOQ for this lens?

Minimum order quantity details are not specified; please contact for more information.
