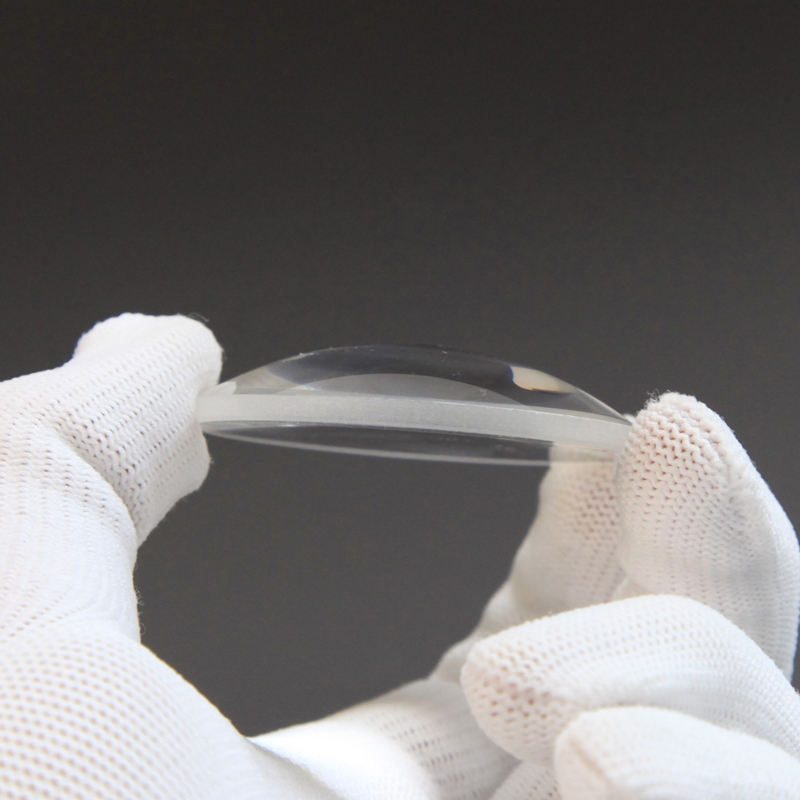

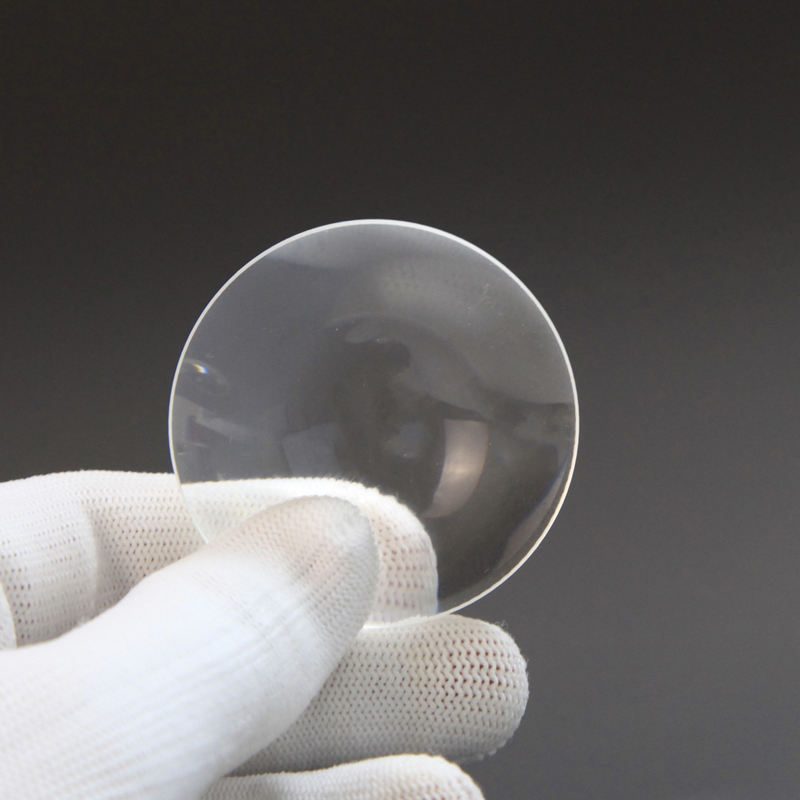

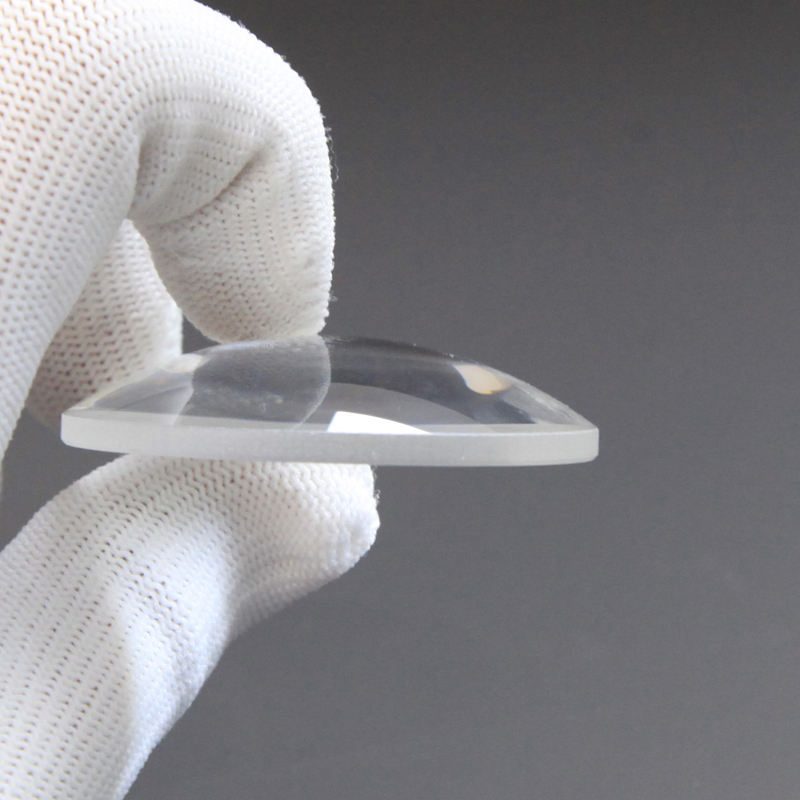

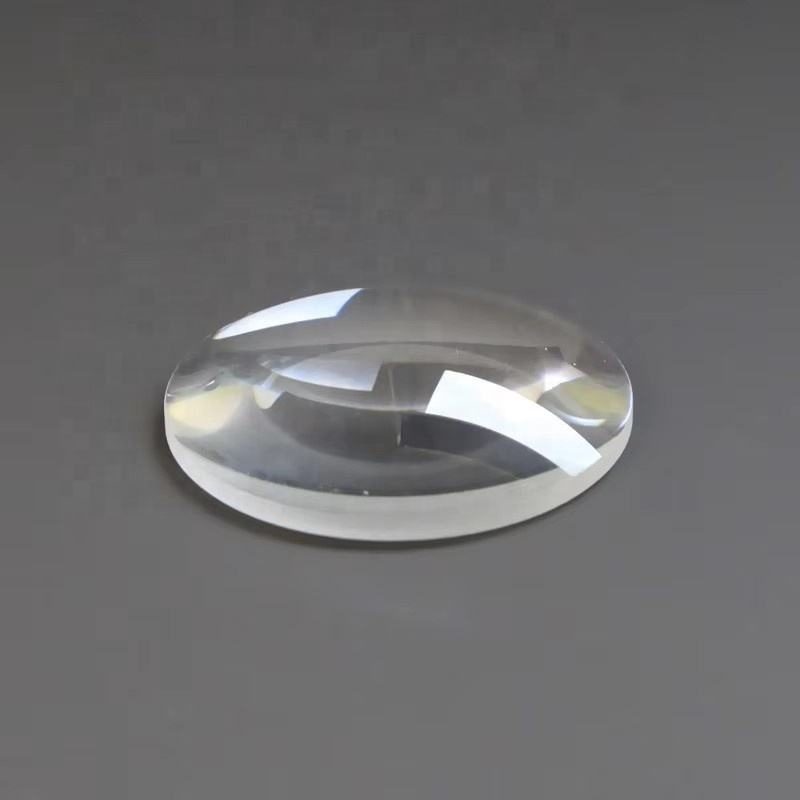

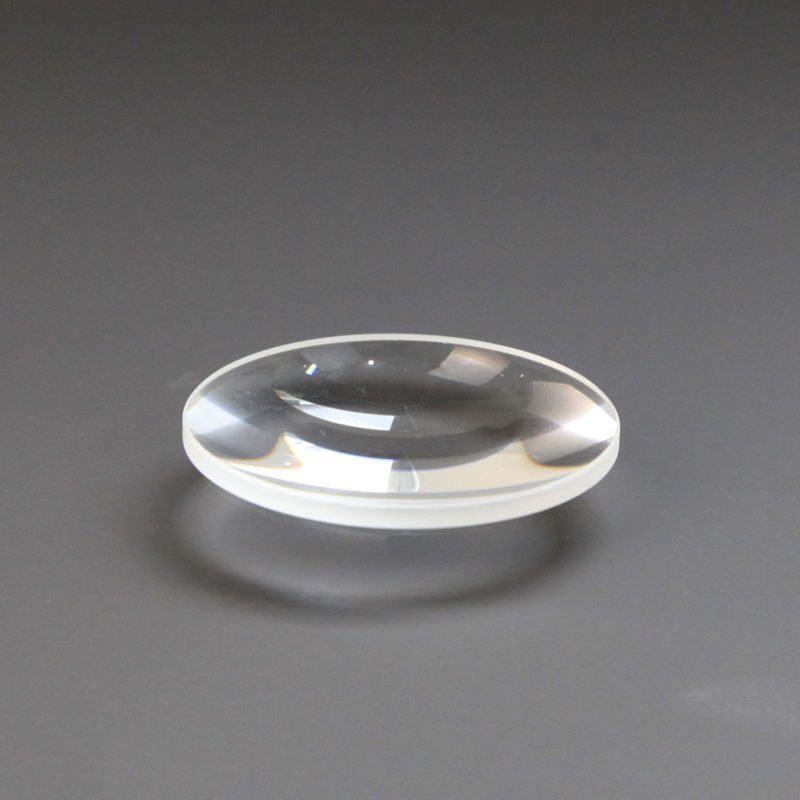

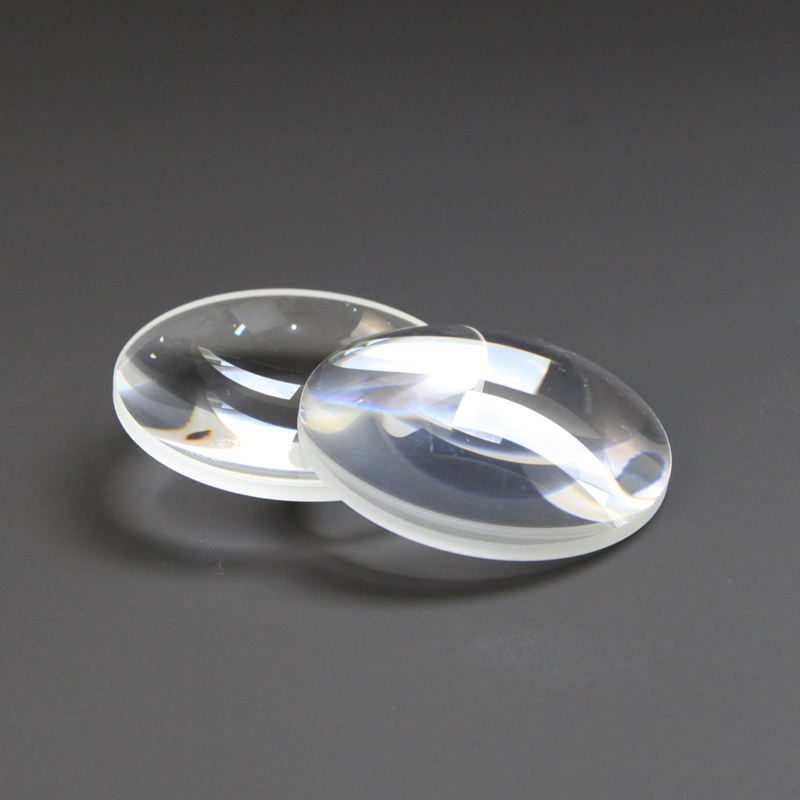

50x113 mm N-BK7 Plano-convex Lens, AR Coated
Explore our plano-convex N-BK7 lens with AR coating, ideal for optical applications in various wavelength bands.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 50 mm
- Focal Length
- 113 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 50 mm
- Focal Length
- 113 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The plano-convex lens made from N-BK7 material is ideal for applications in optical equipment, particularly for focusing parallel light rays or correcting out-of-light rays. With a diameter of 50 mm and a focal length of 113 mm, it operates effectively across the 0.7-1.7 μm and 400-700 nm wavelength bands. Its AR coating enhances transmittance, making it suitable for laser heat treatment, welding, and infrared radiation acquisition. This lens offers a cost-effective solution for various optical systems, ensuring reliable performance in demanding environments.
Key Features
- Diameter: 50 mm for versatile application fit.
- Focal Length: 113 mm for effective light focusing.
- AR Coating enhances transmittance across specified bands.
- Clear Aperture: 95% ensures minimal light loss.
- Dimension Tolerance: +/-0.05 mm for consistent quality.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 50 x 113 |
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 50 mm |
| Focal Length | 113 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM |
| Weight | 0.5 |
| Clear Aperture | 95% |
| Color | Transparent |
| Center Thickness | 8.2mm |
| Edge Thickness | 2.9mm |
| Dimension Tolerance | +/-0.05 |
FAQ
Can I get custom sizes for this lens?
Yes, custom sizes are available upon request.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
