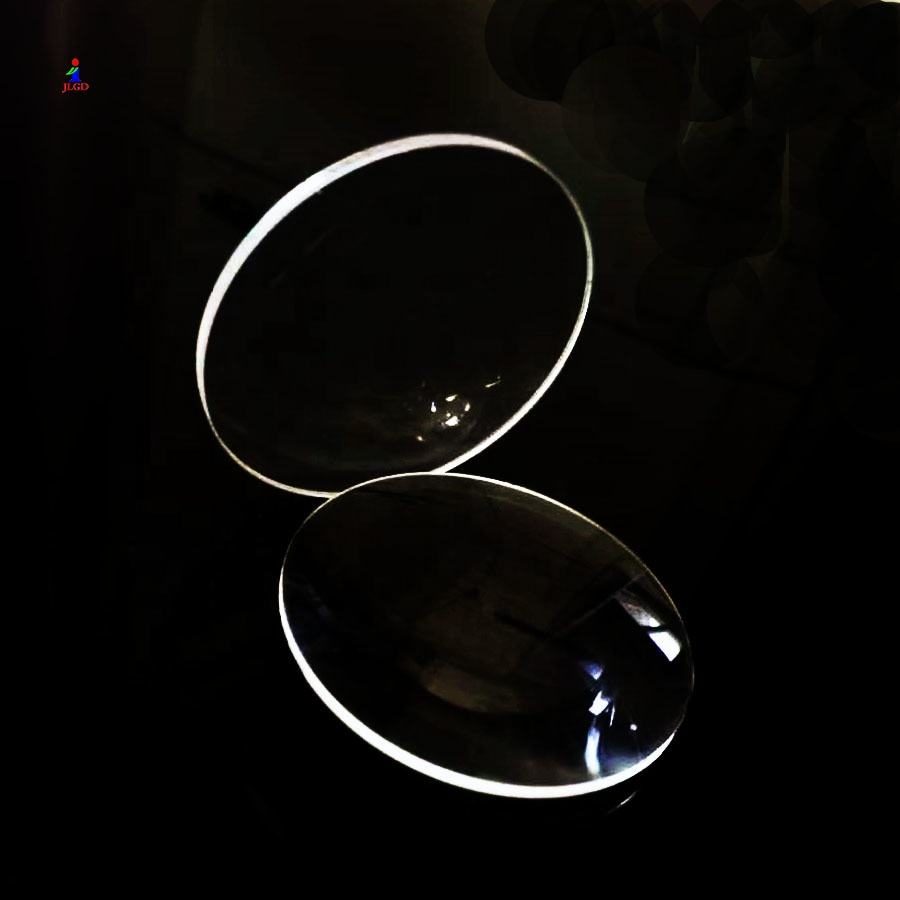

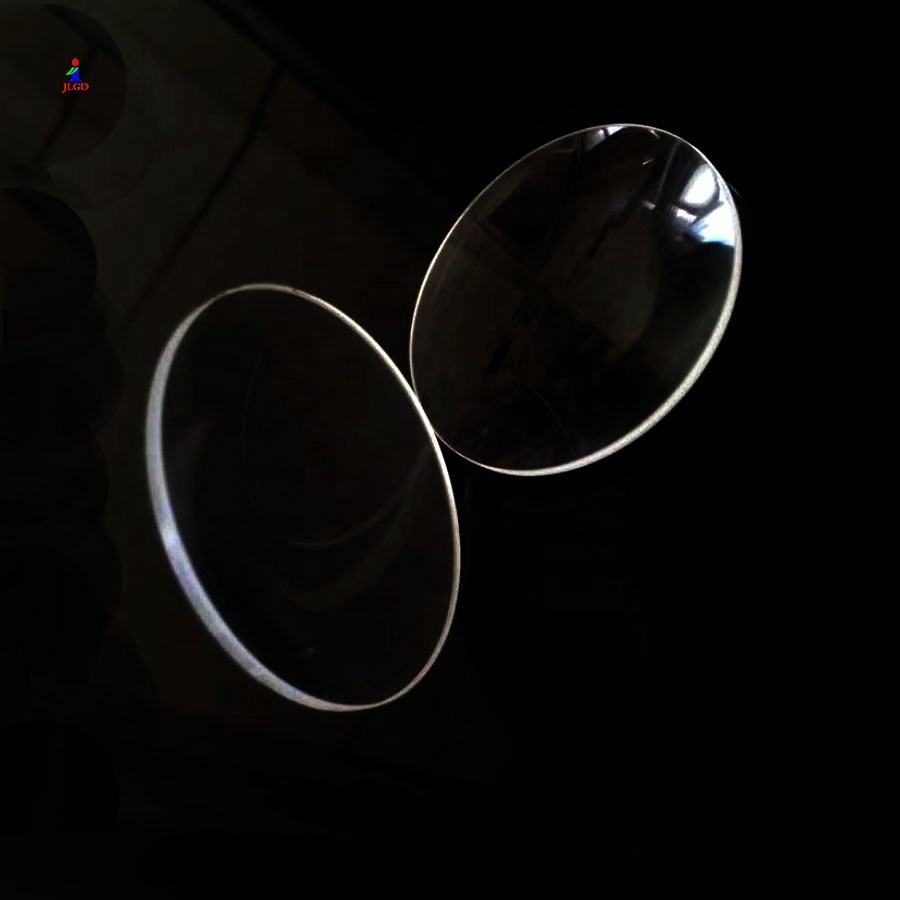

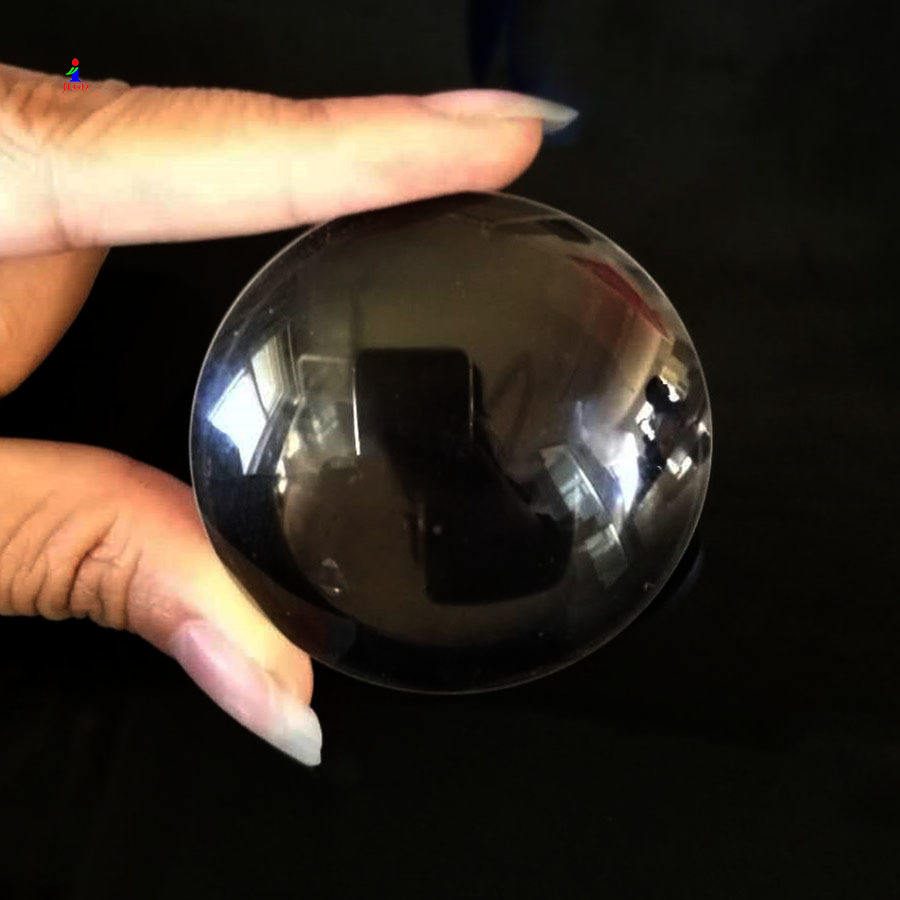

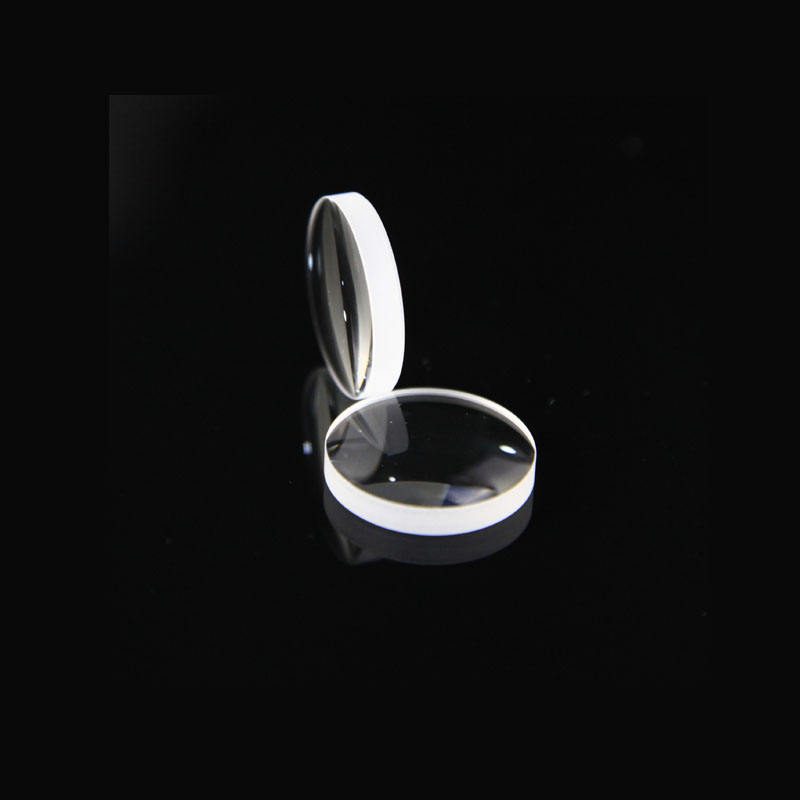

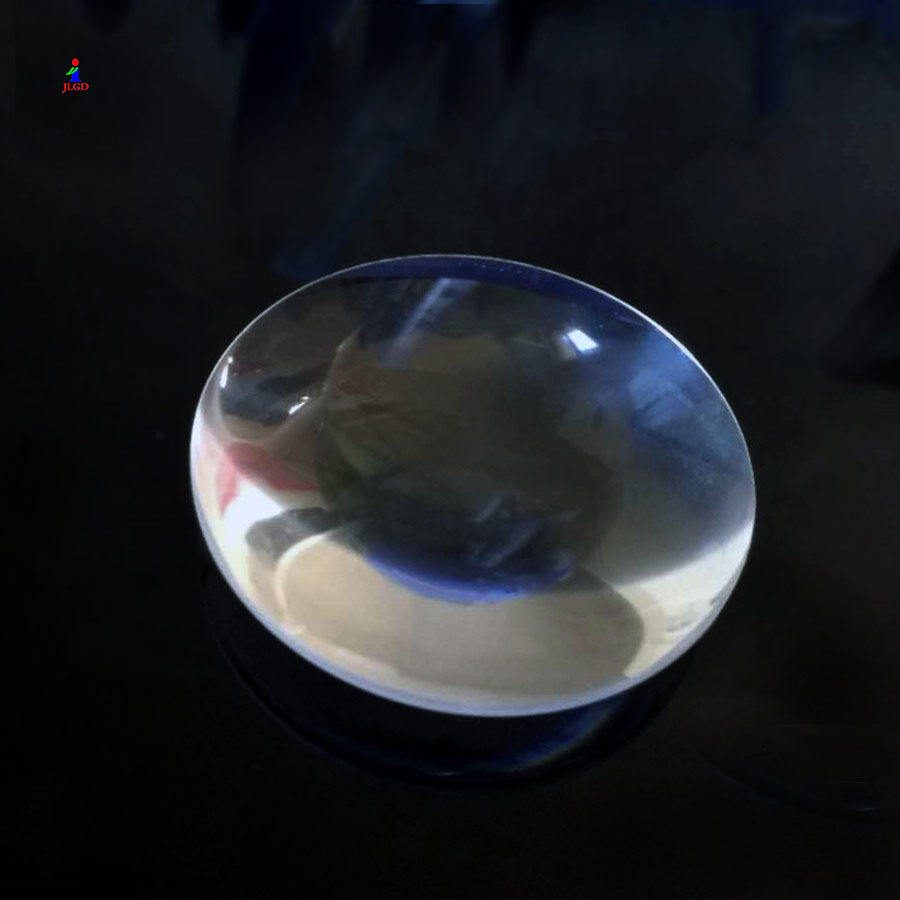

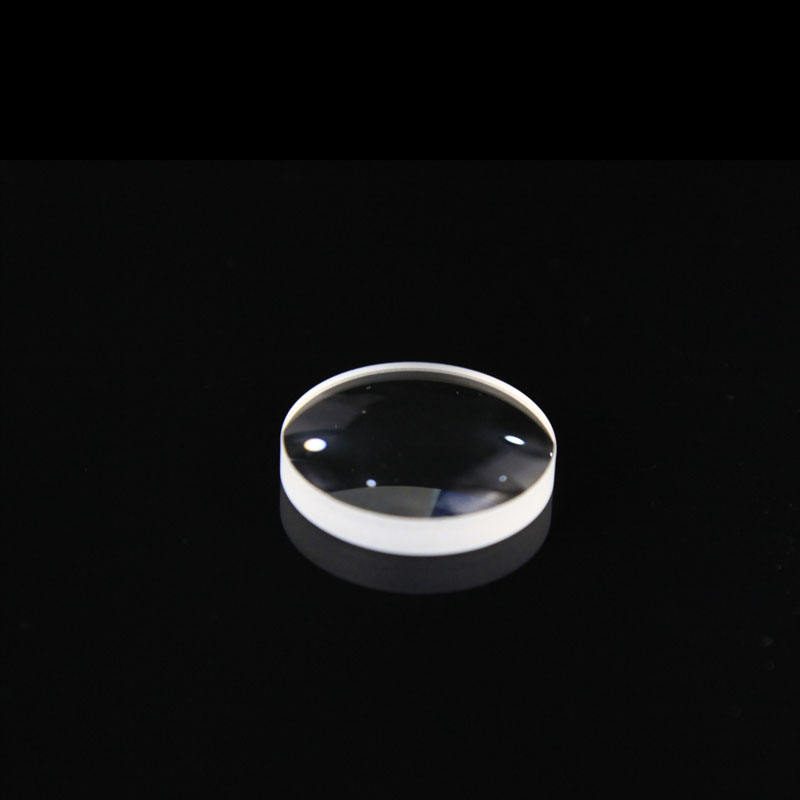

50x113 mm N-BK7 Plano-convex Lens, AR Coated
Explore our N-BK7 plano-convex lens for projection and collimation applications, featuring customizable sizes and high optical quality.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 50 mm
- Focal Length
- 113 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 50 mm
- Focal Length
- 113 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The plano-convex lens made from N-BK7 is ideal for applications in projection and collimation. With a diameter of 50 mm and a focal length of 113 mm, this lens is designed to efficiently focus and collimate light, making it suitable for various optical systems. The lens features a surface quality of 60/40 and a clear aperture of over 98%, ensuring high performance in imaging and laser measurement systems. Custom sizes are available, supporting diverse project requirements.
Key Features
- Diameter of 50 mm for versatile integration into optical systems.
- Focal length of 113 mm, optimized for effective light focusing and collimation.
- Surface quality rated at 60/40, ensuring reliable optical performance.
- Clear aperture greater than 98% for minimal light loss.
- Customizable options available with OEM, ODM, and OBM support.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 35 x 165 |
| 50 x 113 |
Applications
Projection, Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 50 mm |
| Focal Length | 113 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.02 |
| Clear Aperture | >98% |
| Diameter Tolerance | +/-0.0-0.1mm |
| Center Thickness | 8.2mm |
| Edge Thickness | 3.1mm |
| Coated | ar coated /customer request |
FAQ
What are the available custom sizes for this lens?
Custom sizes include variants of 35.0 mm and 165.0 mm, as well as 50.0 mm.
What is the diameter tolerance for this lens?
The diameter tolerance is +/-0.0-0.1 mm.
