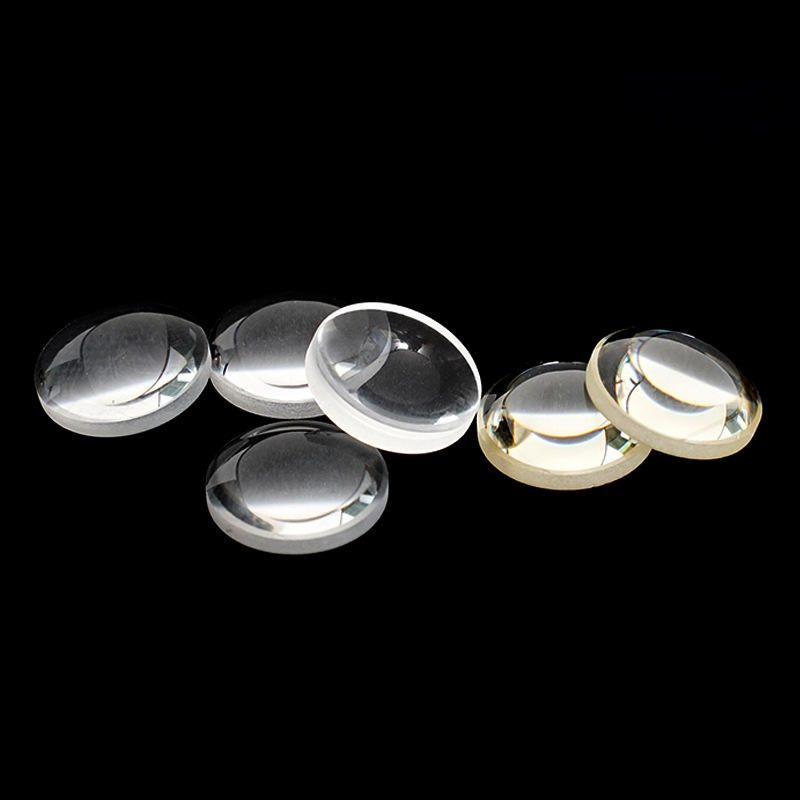

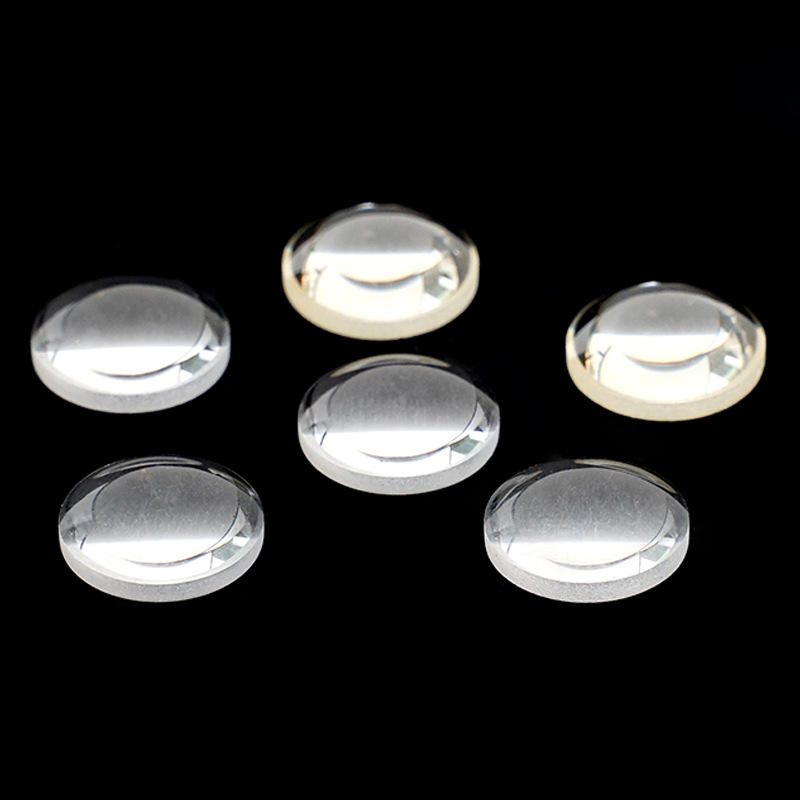

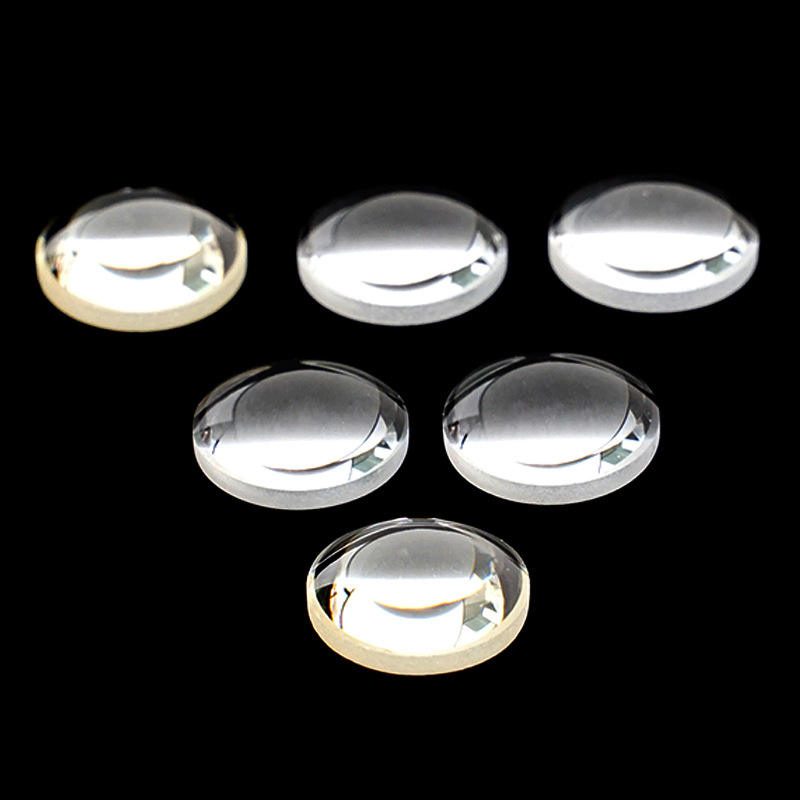

5x10 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from N-BK7 is ideal for applications in projection and collimation. With a focal length of 10 mm and a diameter of 5 mm, it effectively focuses and expands light, making it suitable for various optical systems, including laser measurement and imaging. The lens features a surface quality of 60/40 and is AR coated, ensuring optimal performance in light transmission. Custom sizes are available to meet specific application needs.

Key Features

Focal length of 10 mm for effective light focusing.
Diameter of 5 mm with a tolerance of +/-0.0-0.1 mm for precise fitting.
AR coating available to enhance transmittance and reduce reflections.
Clear aperture greater than 98% for maximum light throughput.

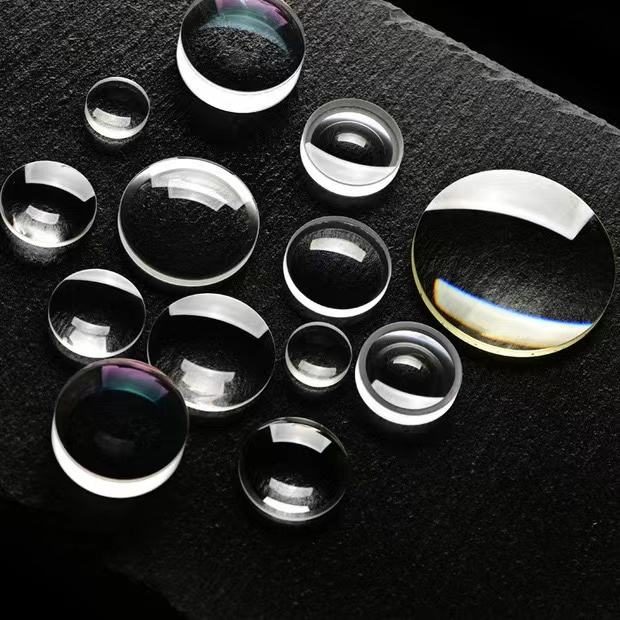

Custom sizes available, including variants from 5.0 mm to 23.8 mm.

Available Sizes

Diameter x Focal Length (mm)
5 x 10
13 x 23.8

Applications

Projection, Collimation

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	5 mm
Focal Length	10 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

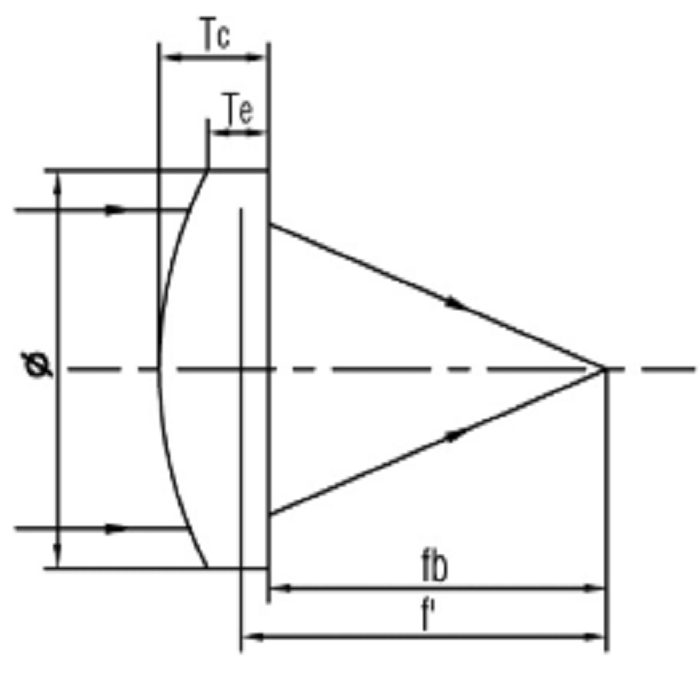

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.02
Clear Aperture	>98%
Diameter Tolerance	+/-0.0-0.1mm
Center Thickness	2.07mm
Coated	ar coated /customer request

FAQ

What is the minimum order quantity (MOQ) for this lens?

The MOQ is not specified; please inquire for details.

Can I get a custom size for this lens?

Yes, custom sizes are available, including diameters from 5.0 mm to 23.8 mm.
