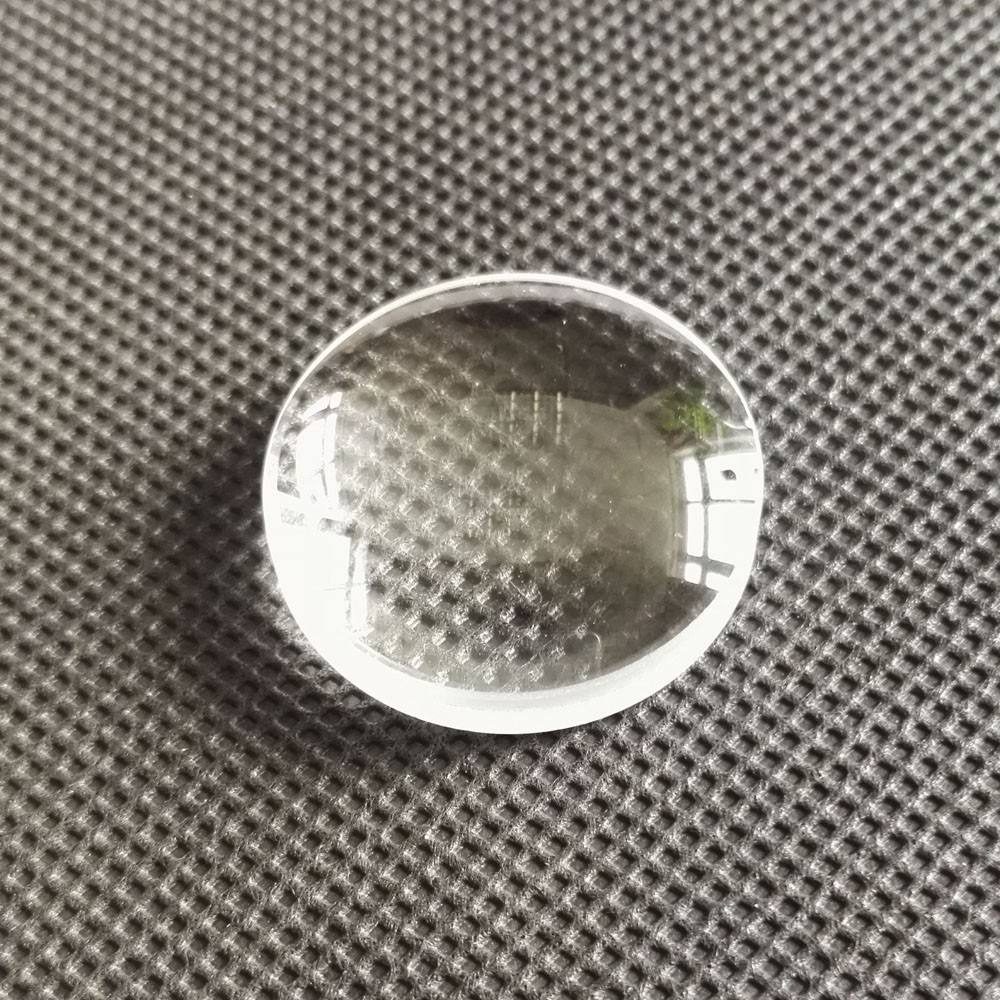

5 mm N-BK7 Plano-convex Lens, AR Coated
Explore N-BK7 plano-convex achromatic lenses with customizable sizes and anti-reflective coatings for enhanced optical performance.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
Product description
The plano-convex achromatic lens made from N-BK7 material is designed to enhance optical performance by minimizing chromatic aberrations. Its anti-reflective coating improves light transmission, making it suitable for applications in IR imaging, LIDAR, and medical devices. With a diameter range from 5.0 mm to 500.0 mm and customizable options, this lens is ideal for various precision alignment tasks in demanding environments.
Key Features
- Diameter range: 5.0 mm to 500.0 mm for versatile application fit.
- Achromatic design minimizes chromatic aberration, enhancing image clarity.
- Anti-reflective coating improves light transmission, reducing glare.
- Customizable specifications available for tailored solutions.
- Dimension tolerance of +/-0.1 mm ensures precise fitting.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 0.05g(0oz) |
| Dimension Tolerance | +/-0.1mm |
| Focal Length Tolerance | ±2% |
| Parallelism | < 3 arcmin |
| Clear Aperture | >90% |
FAQ
Can I get custom sizes for this lens?
Yes, customizable specifications are available to meet specific needs.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
