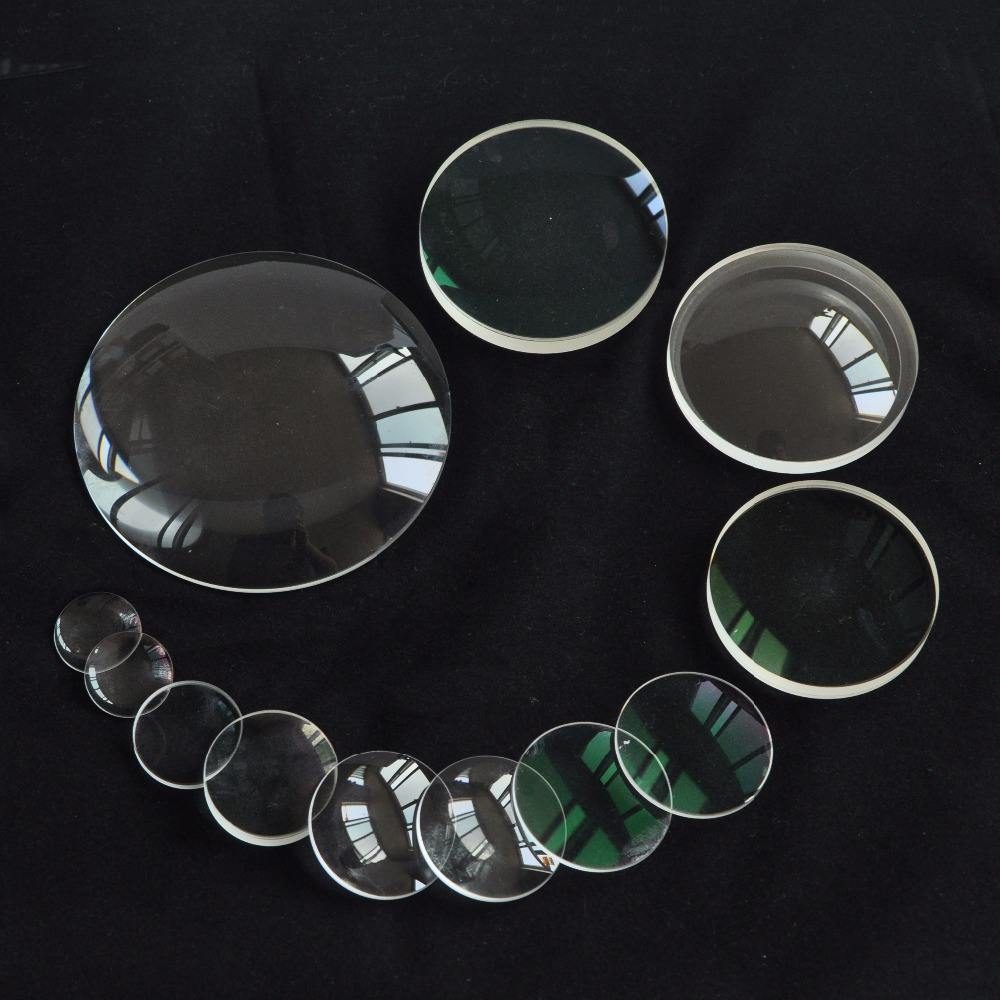

5 mm N-BK7 Plano-convex Lens, AR Coated
N-BK7 plano-convex lens for optical imaging with 93% clear aperture and 60/40 surface quality.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The N-BK7 plano-convex lens is designed for optical system imaging applications, providing high performance across a range of wavelengths. With a clear aperture of 93% and a surface quality rating of 60/40, this lens ensures effective light transmission and minimal distortion. Ideal for R&D and production environments, it meets the demands of precision imaging systems.
Key Features
- Clear aperture of 93% for enhanced light transmission and imaging quality.
- Surface quality rating of 60/40 ensures minimal imperfections for reliable performance.
- Manufactured from N-BK7 optical glass, known for its excellent optical properties.
- Diameter options from 5.0 mm to 125.0 mm accommodate various system designs.
- Centration tolerance of <3 arc min for precise alignment in optical applications.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Color | White |
| Type | WHLM1501 |
| Name | Optical Lens |
| Clear Aperture | 93% |
| Use | Optical system imaging |
FAQ
What are the available sizes for this lens?
The lens is available in diameters ranging from 5.0 mm to 125.0 mm.
What is the surface quality of the lens?
The lens has a surface quality rating of 60/40, indicating acceptable scratch and dig levels.
