1 / 6Lenses

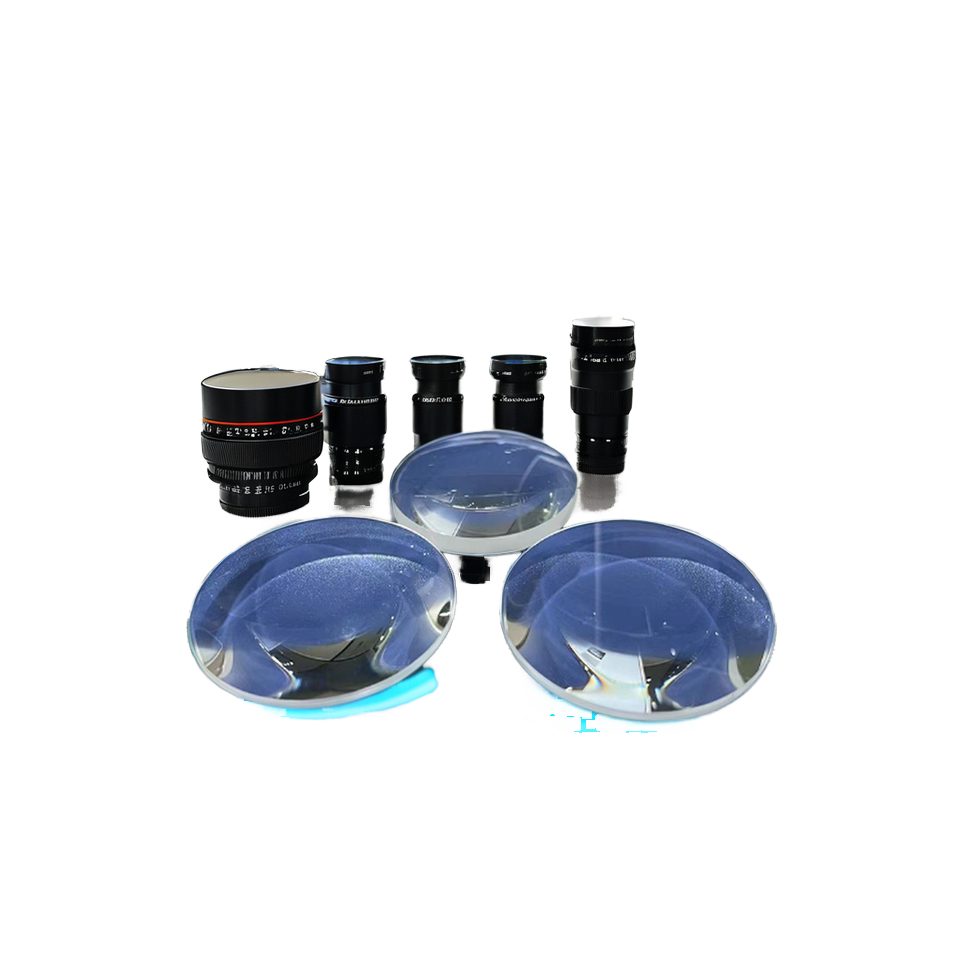

5 mm N-BK7 Plano-convex Lens, AR Coated
Explore high-performance plano-convex lenses made from N-BK7 with 94% transmittance, ideal for IR imaging and LIDAR applications.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Transmittance
- 94%
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Transmittance
- 94%
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The plano-convex lens made from N-BK7 is designed for applications requiring high transmittance and precision. With a broad spectral range of 0.4 to 1.7 μm, it is ideal for IR imaging, LIDAR, and laser applications. Its 94% transmittance ensures efficient light passage, while the 40/20 surface quality meets demanding optical standards. This lens is suitable for various optical setups, providing reliable performance in critical applications.
Key Features
- High transmittance of 94% enhances light efficiency.
- Surface quality of 40/20 ensures minimal optical distortion.
- Available in diameters ranging from 5.0 mm to 300.0 mm for versatile applications.
- Dimension tolerance of 0.0/-0.02 mm for precise fitting.
- OEM and ODM support for customized solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Surface Quality | 40/20 |
| Transmittance | 94% |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Logo/Graphic Design | unsupport |
| Weight | 0.5kg(1.10lb) |
| Color | Transparent |
| Dimension Tolerance | 0.0/-0.02mm |
| Packing | Carton |
| Transmittance | 94% |
| Flatness | 1/4lambda |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
Can I get custom sizes for this lens?
Yes, the lens supports OEM and ODM for customized sizing.
