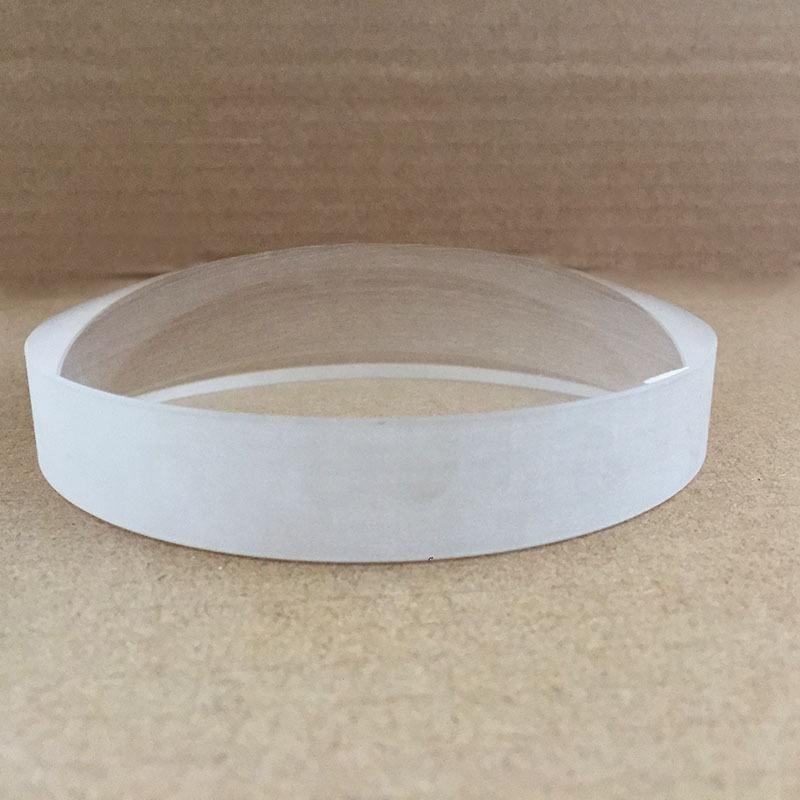

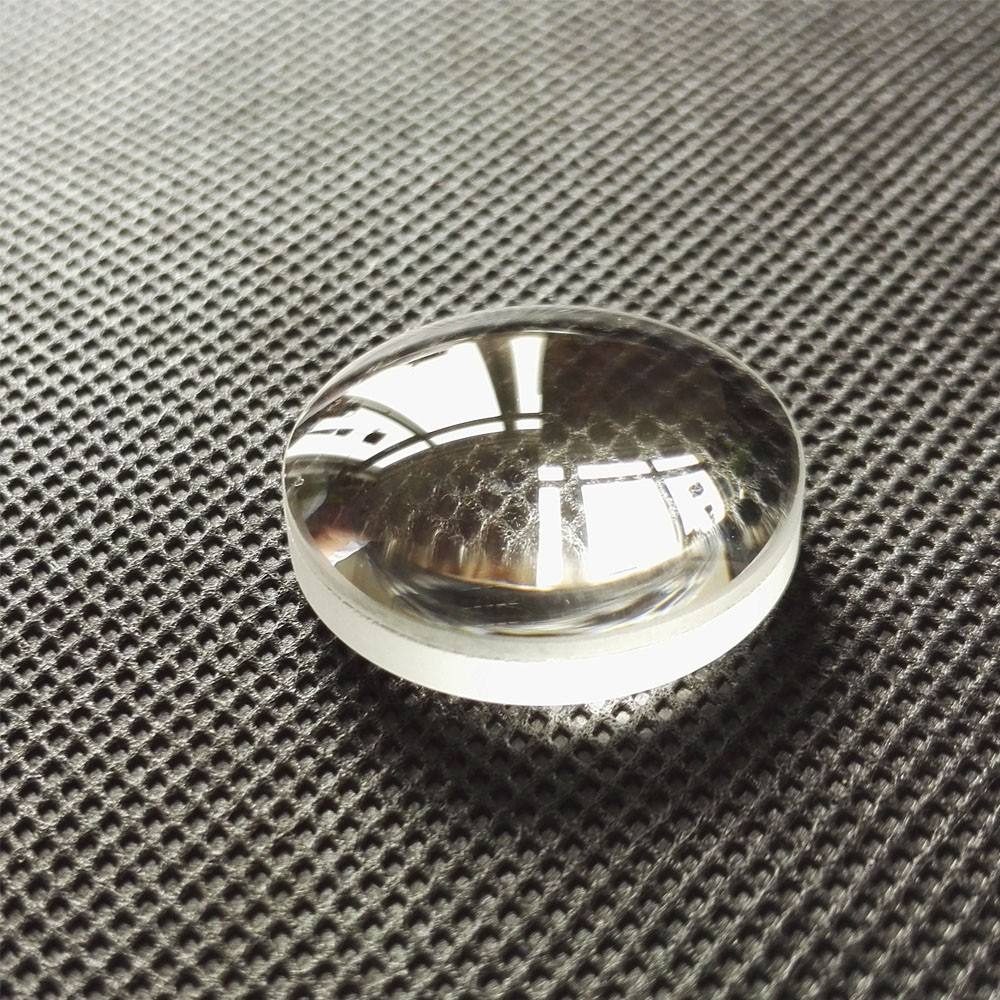

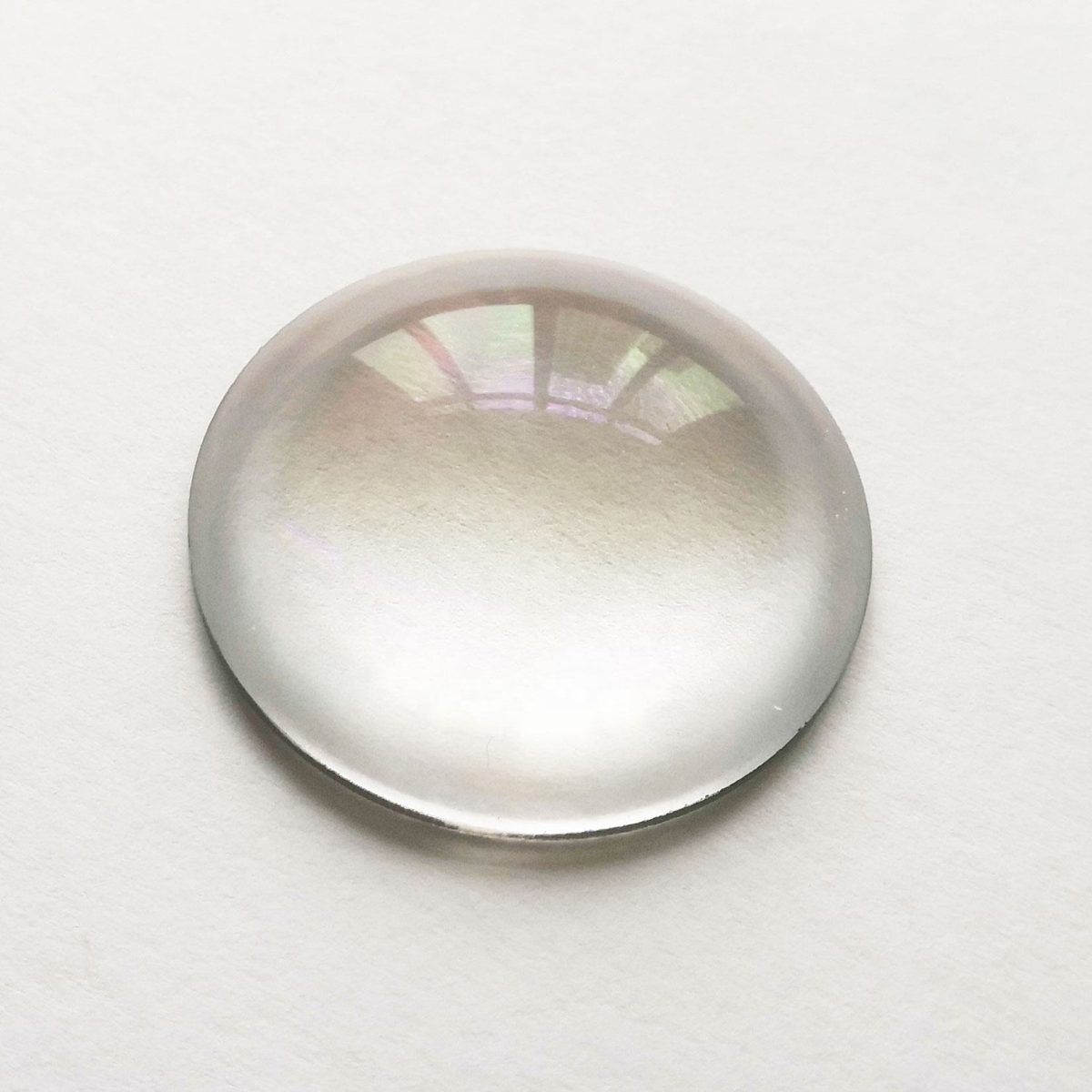

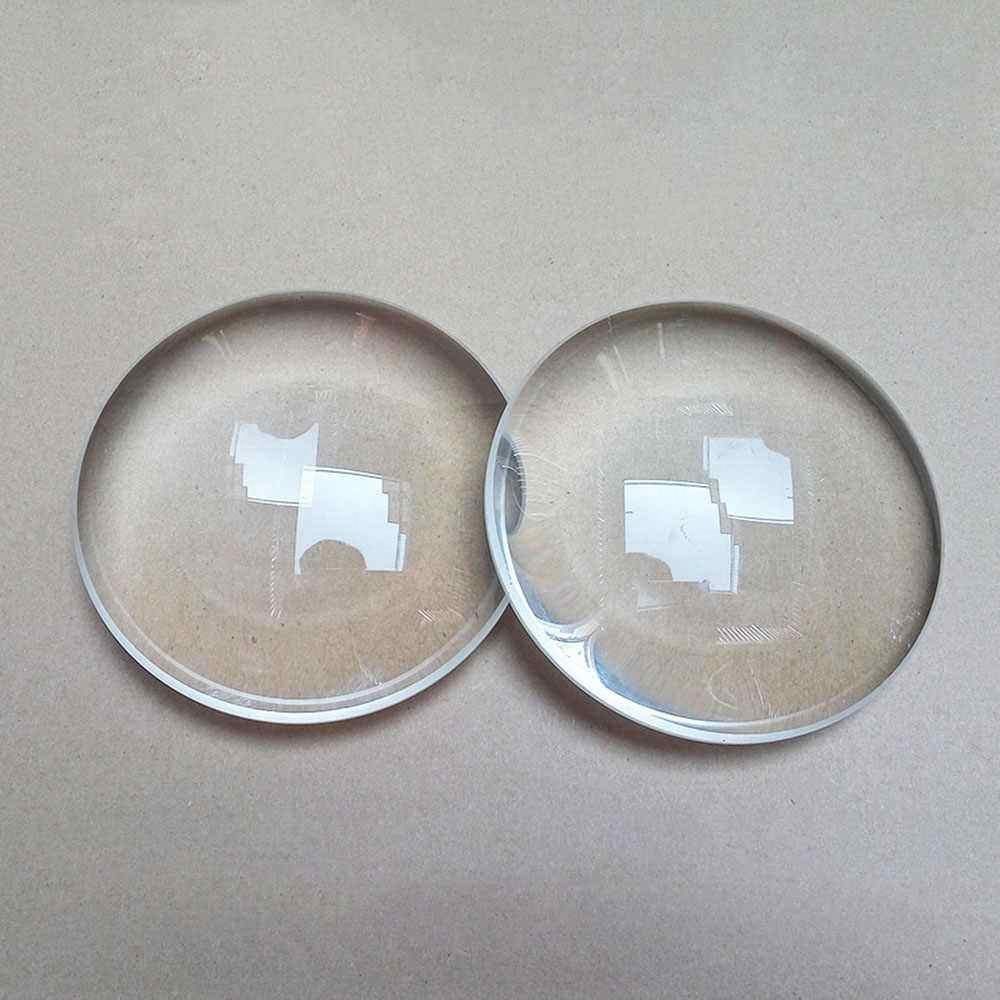

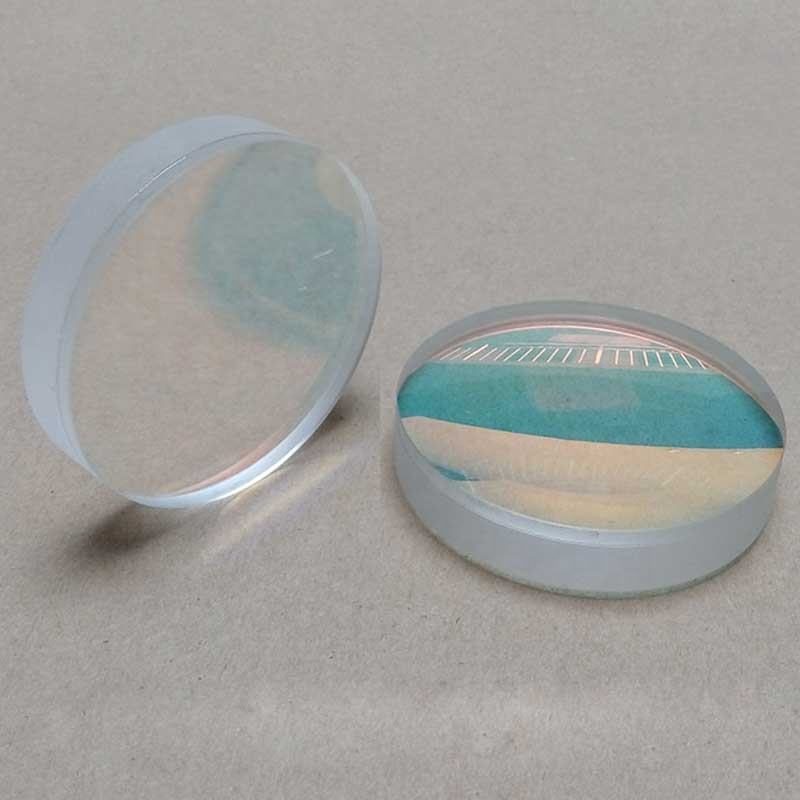

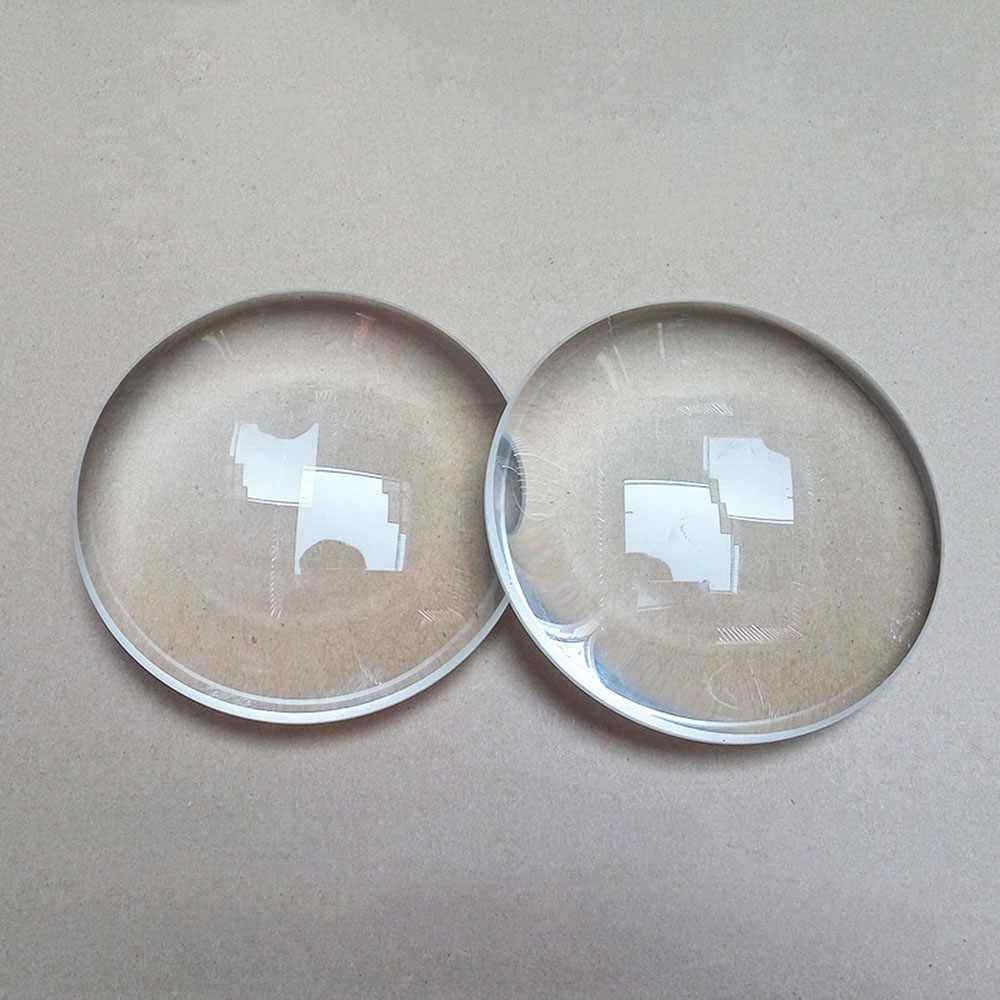

5 mm N-BK7 Plano-convex Lens, AR Coated
Discover N-BK7 plano-convex achromatic lenses for precision optical applications with customizable sizes.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The N-BK7 plano-convex achromatic lens is designed for applications requiring high precision optical alignment across a wide wavelength range of 0.7-1.7 μm and 400-700 nm. Its anti-reflective coating enhances light transmission while minimizing glare, making it suitable for IR imaging, LIDAR, laser systems, and machine vision. With a diameter range from 5.0 mm to 500.0 mm, this lens can fit various setups, ensuring optimal performance in demanding environments.
Key Features
- Wide wavelength compatibility (0.7-1.7 μm and 400-700 nm) for diverse applications.
- Customizable sizes available, accommodating specific project requirements.
- High clear aperture (>90%) for improved light throughput.
- Dimension tolerance of +/-0.1 mm ensures precision in optical setups.
- Parallelism of < 3 arcmin for enhanced optical alignment.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 0.05g |
| Dimension Tolerance | +/-0.1mm |
| Focal Length Tolerance | ±2% |
| Parallelism | < 3 arcmin |
| Clear Aperture | >90% |
FAQ
Is custom sizing available?
Yes, customizable specifications are offered to meet specific needs.
What is the minimum order quantity?
Minimum order quantity details are not specified.
