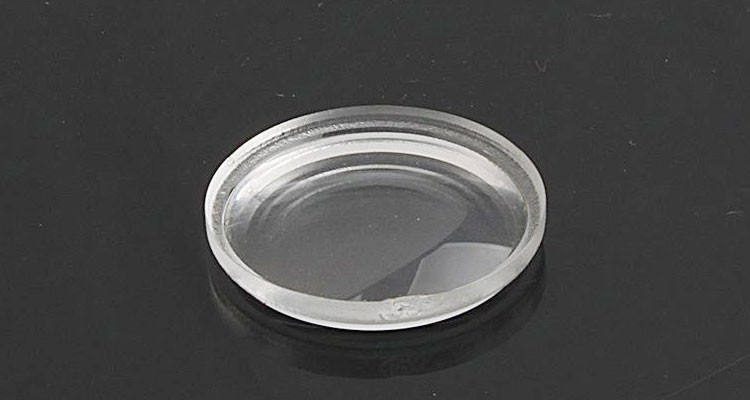

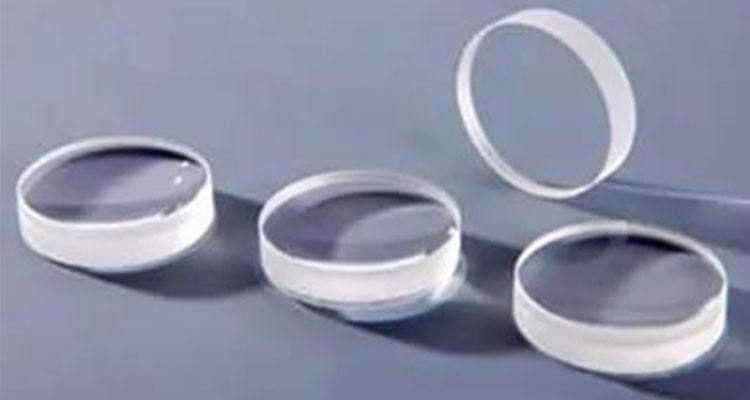

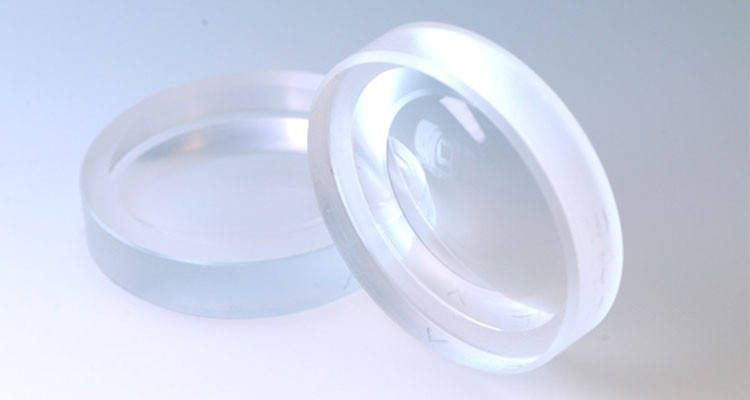

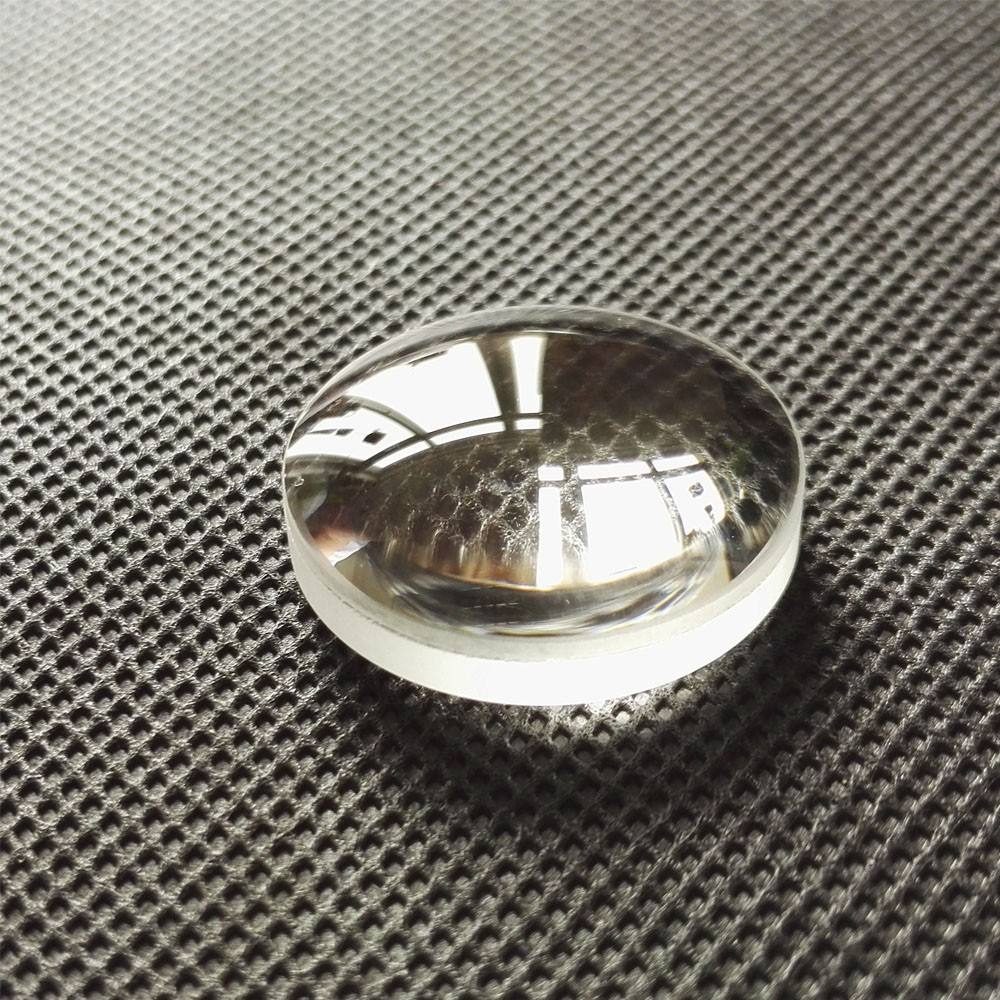

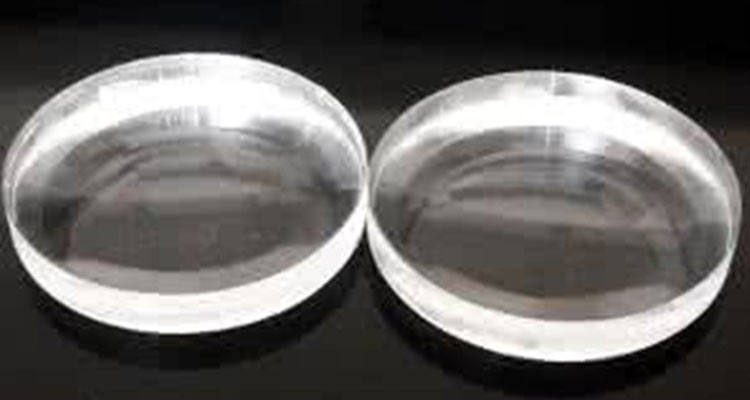

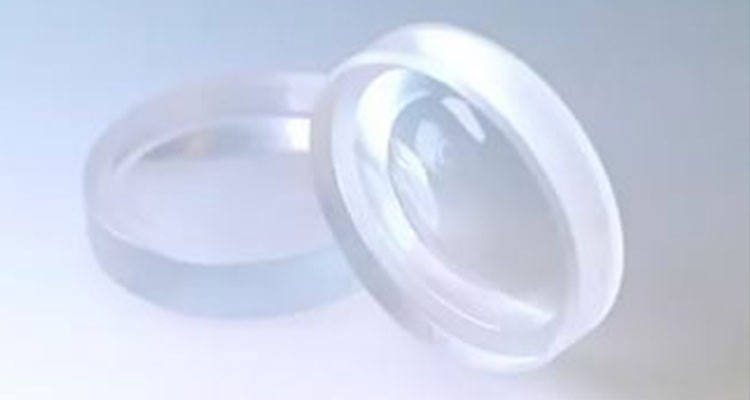

5 mm N-BK7 Plano-convex Lens, AR Coated

Product description

The plano-convex achromatic lens made from N-BK7 material is ideal for applications requiring high precision optical alignment within the 0.7-1.7 μm wavelength range. Its anti-reflective coating enhances light transmission while minimizing glare, making it suitable for IR imaging, LIDAR, and medical devices. With a diameter range from 5.0 mm to 500.0 mm, this lens can be tailored to fit specific project requirements.

Key Features

Wavelength range: 0.7-1.7 μm for versatile application in IR and LIDAR systems.
Diameter options from 5.0 mm to 500.0 mm for custom fit in various setups.
Dimension tolerance of +/-0.1 mm ensures precise integration into optical systems.
Parallelism of < 3 arcmin guarantees accurate optical performance.
Customized support available for OEM and ODM projects, enhancing sourcing flexibility.

Specification Summary

Item	Value
Material	N-BK7
Shape	Plano-convex
Diameter	5 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g(0oz)
Dimension Tolerance	+/-0.1mm
Focal Length Tolerance	±2%
Parallelism	< 3 arcmin
Clear Aperture	>90%

FAQ

What is the minimum order quantity (MOQ) for these lenses?

The minimum order quantity (MOQ) is not specified, allowing for flexible procurement.

Can I get custom sizes for the lenses?

Yes, the lenses can be customized to meet specific project requirements.
