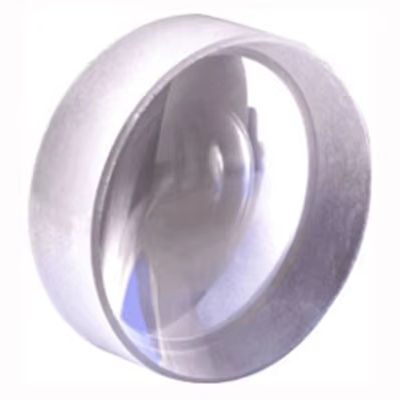

5 mm N-BK7 Plano-convex Lens, AR Coated
N-BK7 plano-convex achromatic lens for UV applications, customizable sizes, and high precision optical alignment.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product description
The plano-convex achromatic lens made from N-BK7 material is designed for applications requiring high precision optical alignment, particularly in the UV band (<400 nm). Its anti-reflective coating enhances light transmission, making it ideal for IR imaging, LIDAR, and medical devices. This lens offers a clear aperture of over 90%, ensuring optimal performance in demanding environments.
Key Features
- Material: N-BK7 for superior thermal stability and durability.
- Diameter range from 5.0 mm to 500.0 mm for versatile applications.
- Clear aperture greater than 90% for enhanced light transmission.
- Dimension tolerance of +/-0.1 mm ensures precise fitting.
- Customizable support for OEM and ODM projects.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 0.05g |
| Dimension Tolerance | +/-0.1mm |
| Focal Length Tolerance | ±2% |
| Parallelism | < 3 arcmin |
| Clear Aperture | >90% |
FAQ
What are the available sizes for this lens?
The lens is available in diameters ranging from 5.0 mm to 500.0 mm.
What is the tolerance for dimensions?
The dimension tolerance for this lens is +/-0.1 mm.
