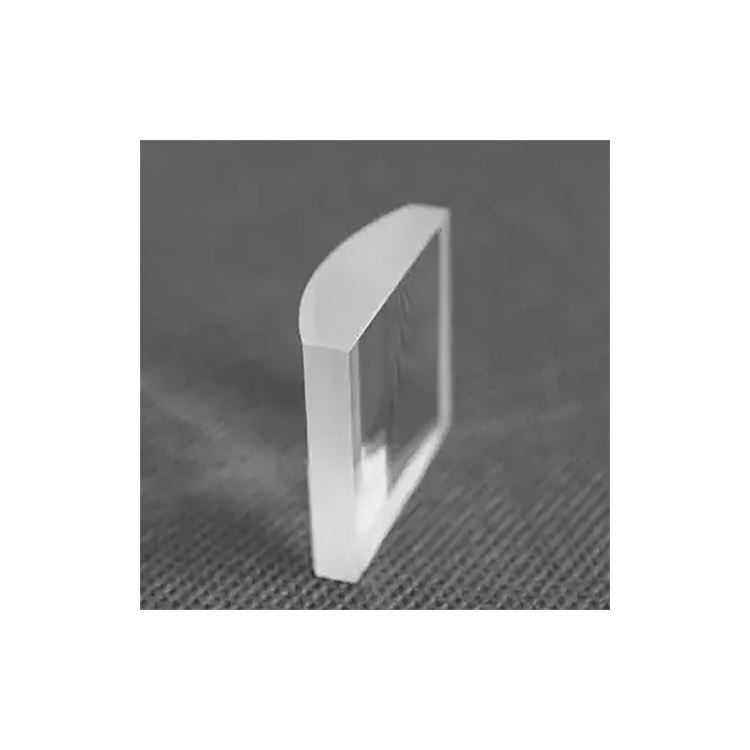

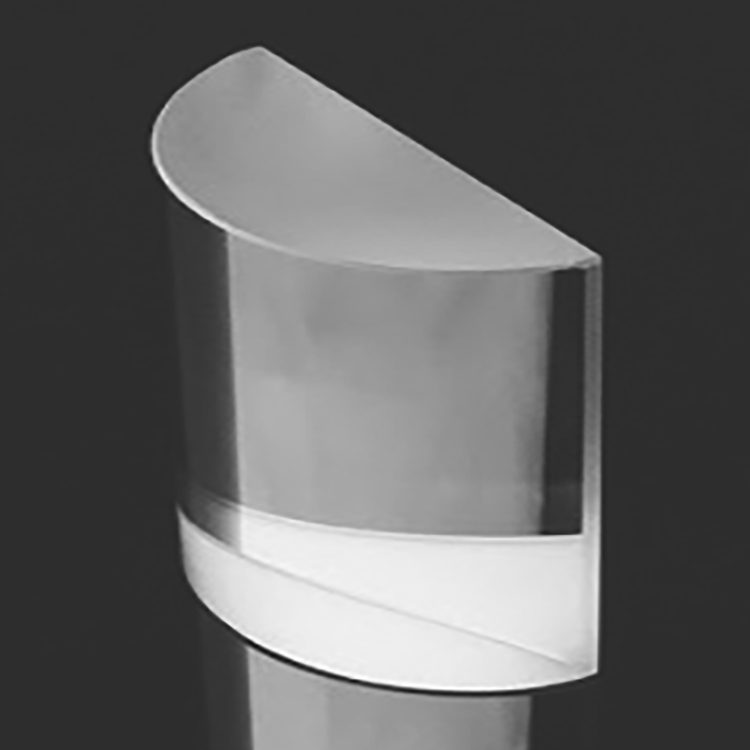

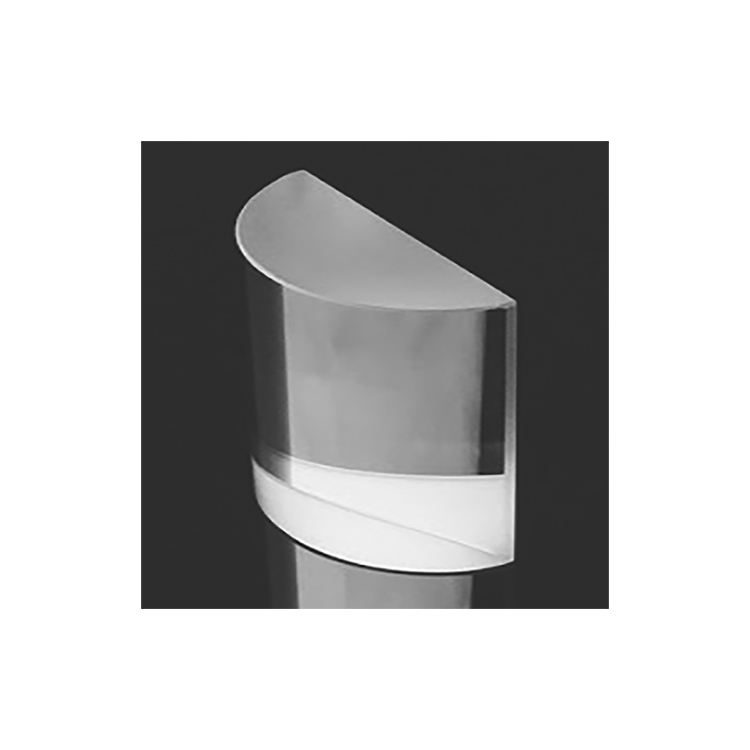

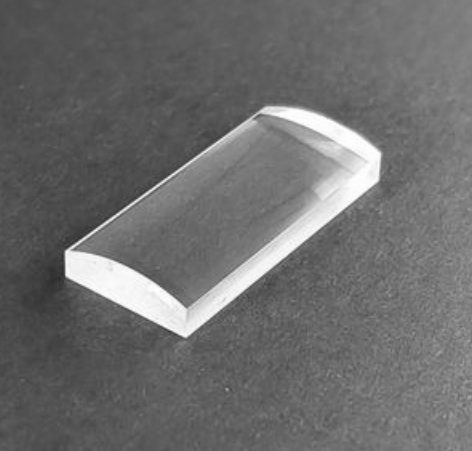

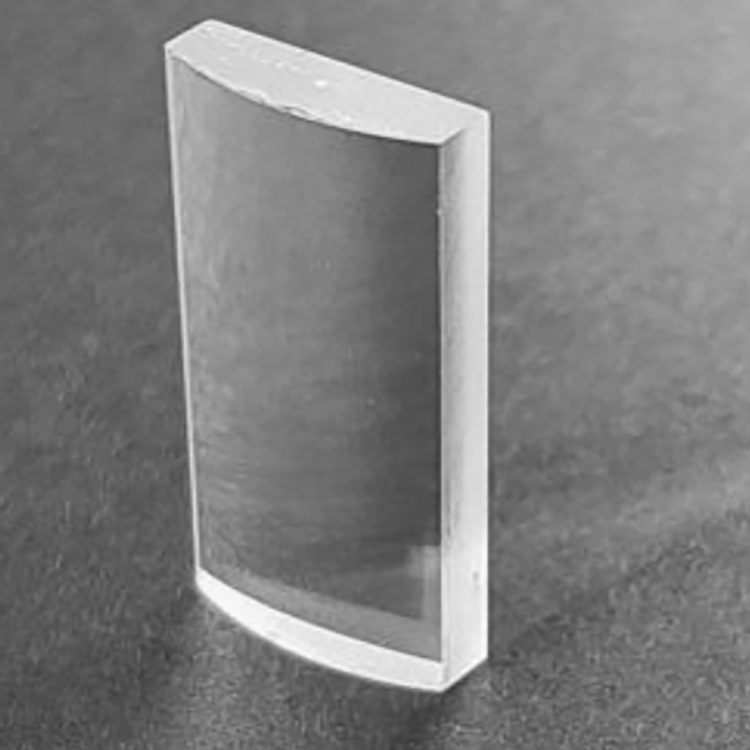

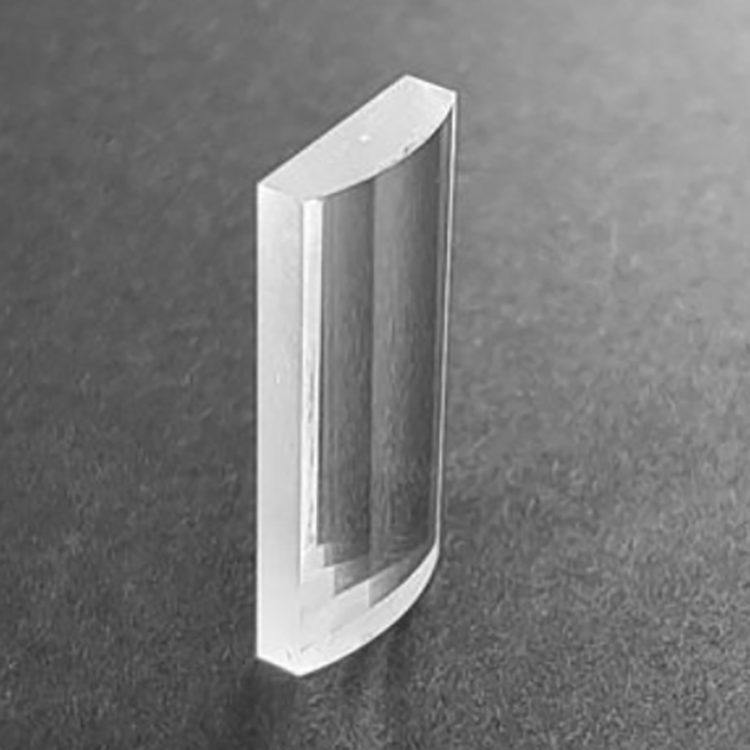

5 mm N-BK7 Plano-convex Lens, AR Coated
Explore our plano-convex N-BK7 lens with 94% transmittance, customizable sizes, and high surface quality for various optical applications.
Core attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Transmittance
- 94%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Plano-convex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Transmittance
- 94%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
The plano-convex lens made from N-BK7 material is ideal for applications requiring high transmittance in the 400-700 nm wavelength range. With a surface quality of 60/40 and a transmittance of 94%, this lens effectively focuses light, making it suitable for IR imaging, LIDAR, and machine vision applications. Available in diameters ranging from 5.0 mm to 300.0 mm, it addresses a variety of optical needs while ensuring reliable performance.
Key Features
- High transmittance of 94% for optimal light transmission.
- Available in diameters from 5.0 mm to 300.0 mm for versatile applications.
- Surface quality of 60/40 ensures minimal distortion.
- Customizable options available for OEM, ODM, and OBM projects.
- Lightweight design at 0.5g for easy integration.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Surface Quality | 60/40 |
| Transmittance | 94% |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Cylinder Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3months |
| Weight | 0.5g(0.02oz) |
| Color | Transparent |
| Dimension Tolerance | 0.0/-0.02mm |
| Packing | Carton |
| Transmittance | 94% |
| Sample | provided |
| Flatness | 1/4lambda |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
Can I get a custom size for this lens?
Yes, customizable options are available for OEM, ODM, and OBM projects.
